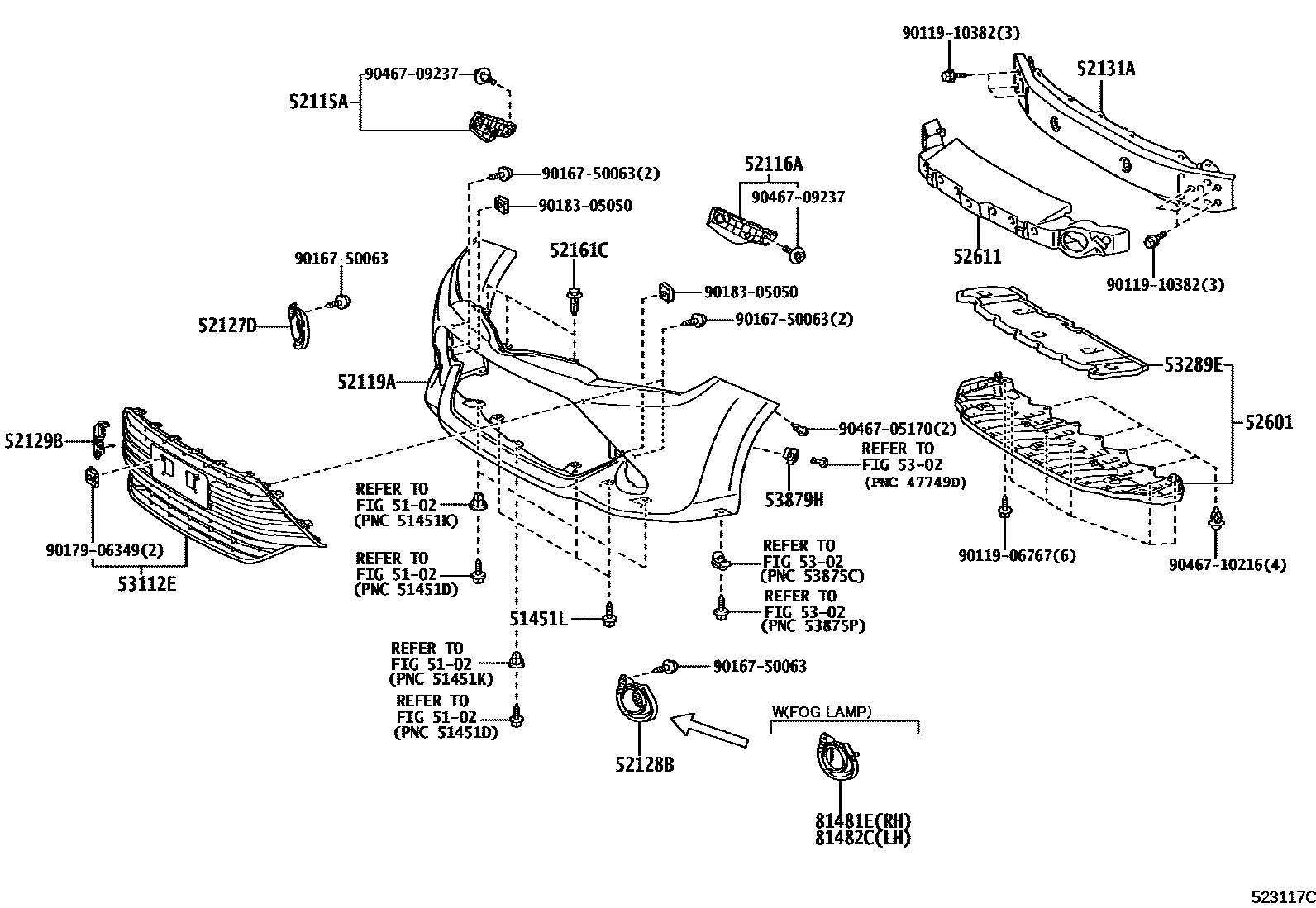

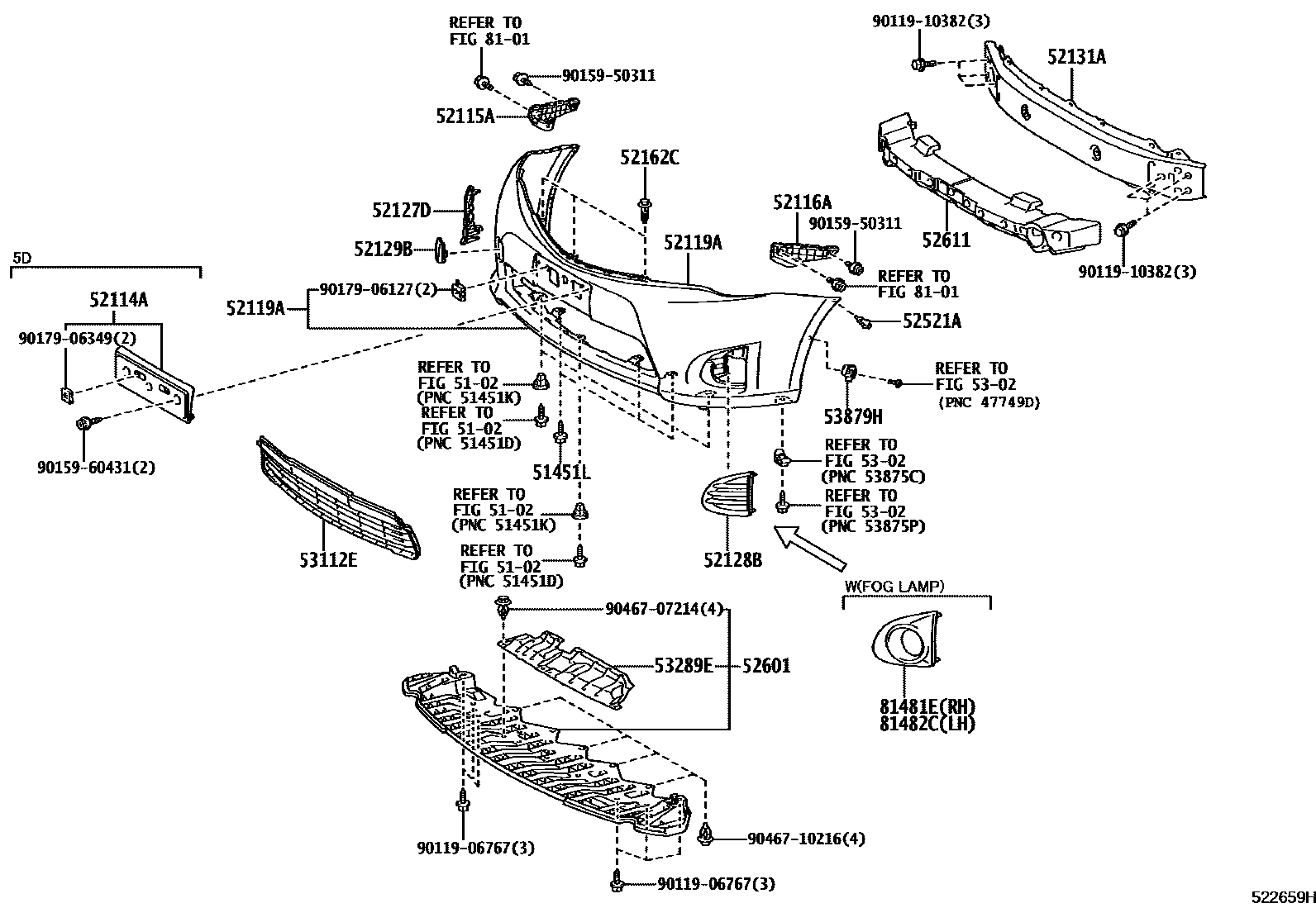

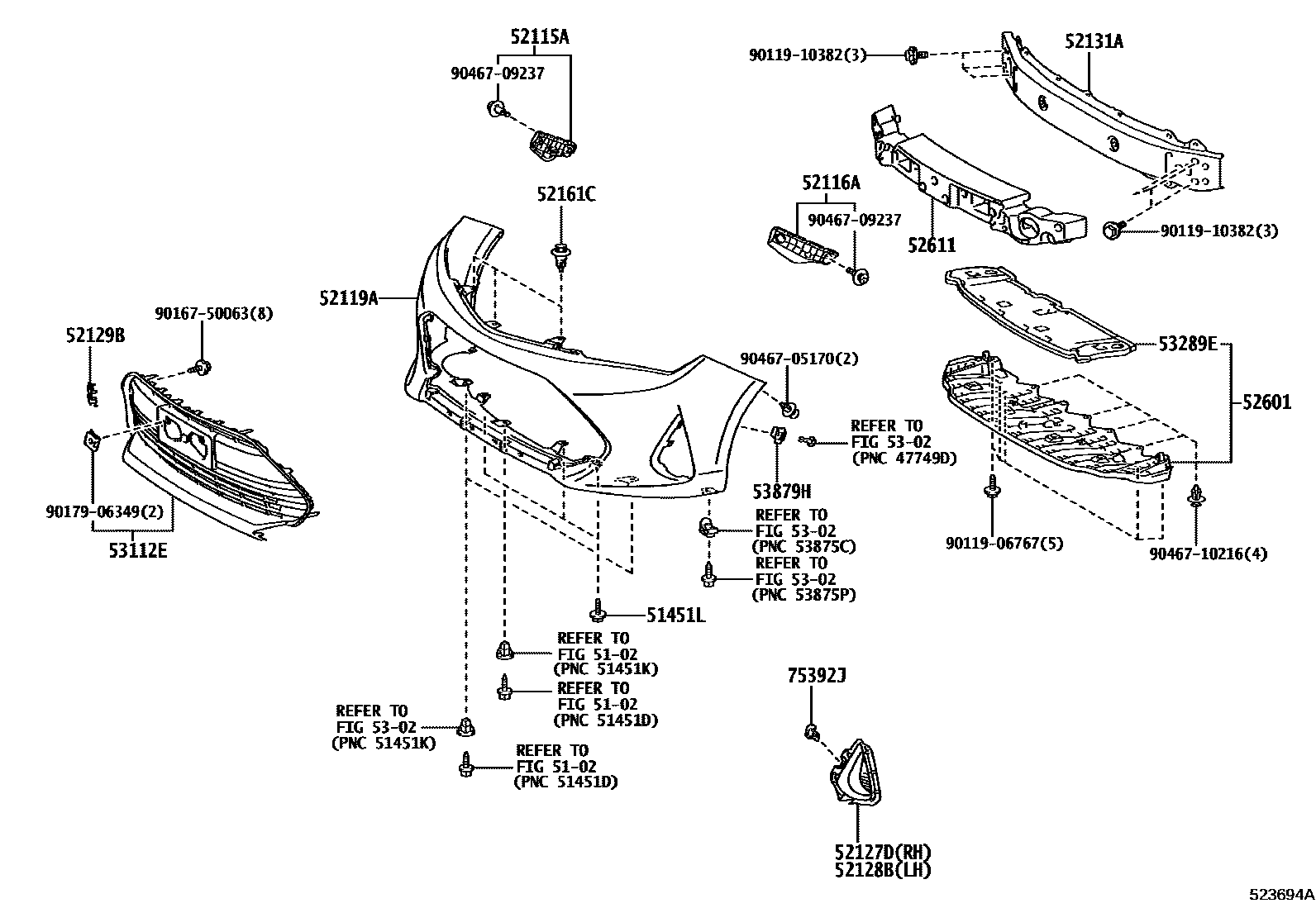

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | Bolt No. 1 | 90119-06767 |
| 52114A | Front bumper extension mounting bracket | 52114-13020 |
| 52115A | Front bumper right side bracket | 52115-12470 · 52115-12510 |
| 52116A | Front bumper left bracket | 52116-12430 · 52116-12460 |
| 52119A | front bumper cover | 52119-12974 · 52119-12979 · 52119-12980 · 52119-12993 |
| 52127D | Front bumper right hole cover | 52127-12340 · 52127-12360 · 52127-12380 · 52127-12400 |
| 52128B | Front bumper left hole cover | 52128-12270 · 52128-12280 · 52128-12310 · 52128-12400 |
| 52129B | Front bumper lower cover | 52129-12120 · 52129-12140 · 52129-12150 · 52129-12903 |
| 52131A | Front bumper reinforcement | 52131-52250 |
| 52161C | front bumper insert | 52161-16010 |
| 52162C | front bumper insert | 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-12310 · 52601-12320 |
| 52611 | front bumper energy absorber | 52611-12340 · 52611-12350 · 52611-12430 |
| 53112E | No. 1 radiator lower grille | 53112-12300 · 53112-12320 · 53112-12400 · 53112-12480 |
| 53289E | Radiator bracket opening cover | 53289-12050 · 53289-12070 |
| 53879H | Front fender lining fixing parts | 53879-30050 · 53879-30060 · 53879-50020 · 53879-58010 |
| 75392J | External protective strip fixings | 75392-35200 |
| 81481E | Right fog light cover | 52127-12330 · 52127-13140 |
| 81482C | Left fog light cover | 52128-12260 · 52128-13160 |
