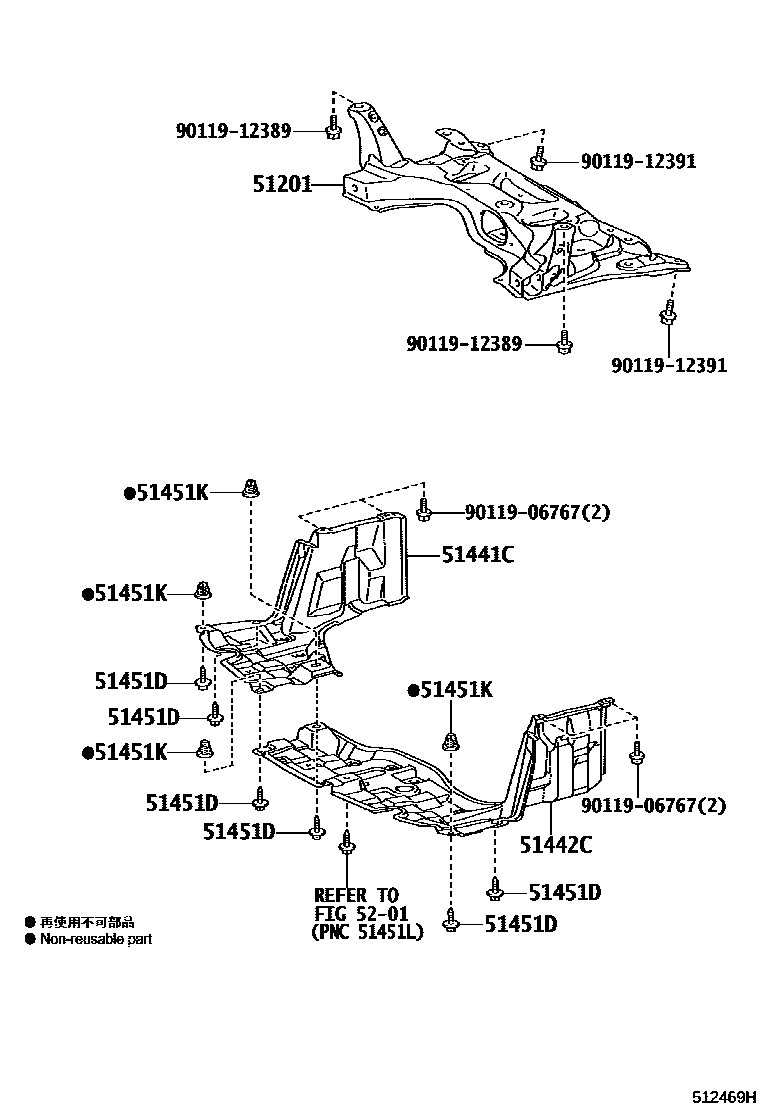

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52084 · 51201-52085 · 51201-52086 · 51201-52087 |
| 51441C | Engine right bottom cover | 51441-12310 · 51441-52180 · 51441-52330 |
| 51442C | Engine left bottom cover | 51442-52090 · 51442-52160 |
| 51451D | Screw No. 1 | 90159-60496 |
| 51451K | No. 1 screw seal | 90189-06230 · 90189-06236 |
