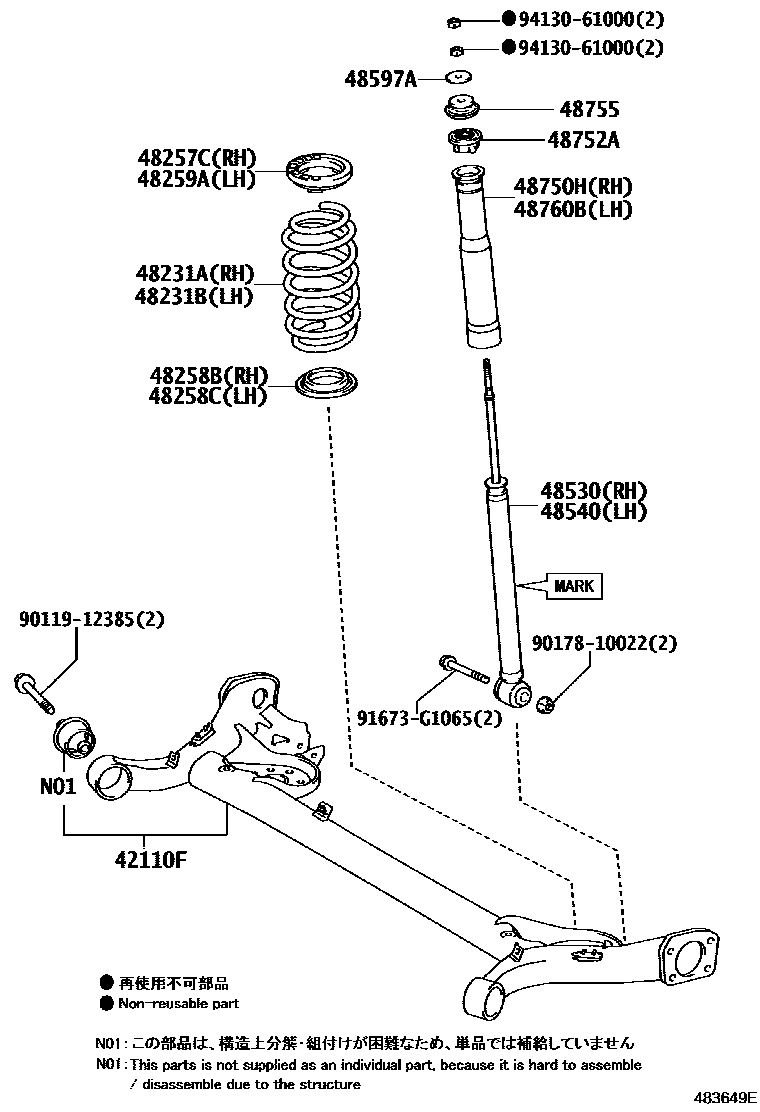

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-12460 · 42110-52332 |
| 48231A | Right rear coil spring | 48231-12J50 · 48231-13151 · 48231-52F90 · 48231-52G20 · 48231-52G51 |
| 48231B | Left rear coil spring | 48231-12J50 · 48231-13151 · 48231-52F90 · 48231-52G20 · 48231-52G51 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-12E70 · 48530-12G42 · 48530-12J10 · 48530-13130 · 48530-13190 · 48530-13220 |
| 48540 | Left rear shock absorber assembly | 48530-12E70 · 48530-12G42 · 48530-12J10 · 48530-13130 · 48530-13190 · 48530-13220 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48750H | Right rear suspension support assembly | 48750-52100 · 48750-52200 |
| 48752A | Rear suspension mount block | 48752-52010 |
| 48755 | rear suspension mount | 48755-52010 |
| 48760B | Left rear suspension support assembly | 48750-52100 · 48750-52200 |
