Toyota COROLLA 制动助力器和真空管 — Figure 4703

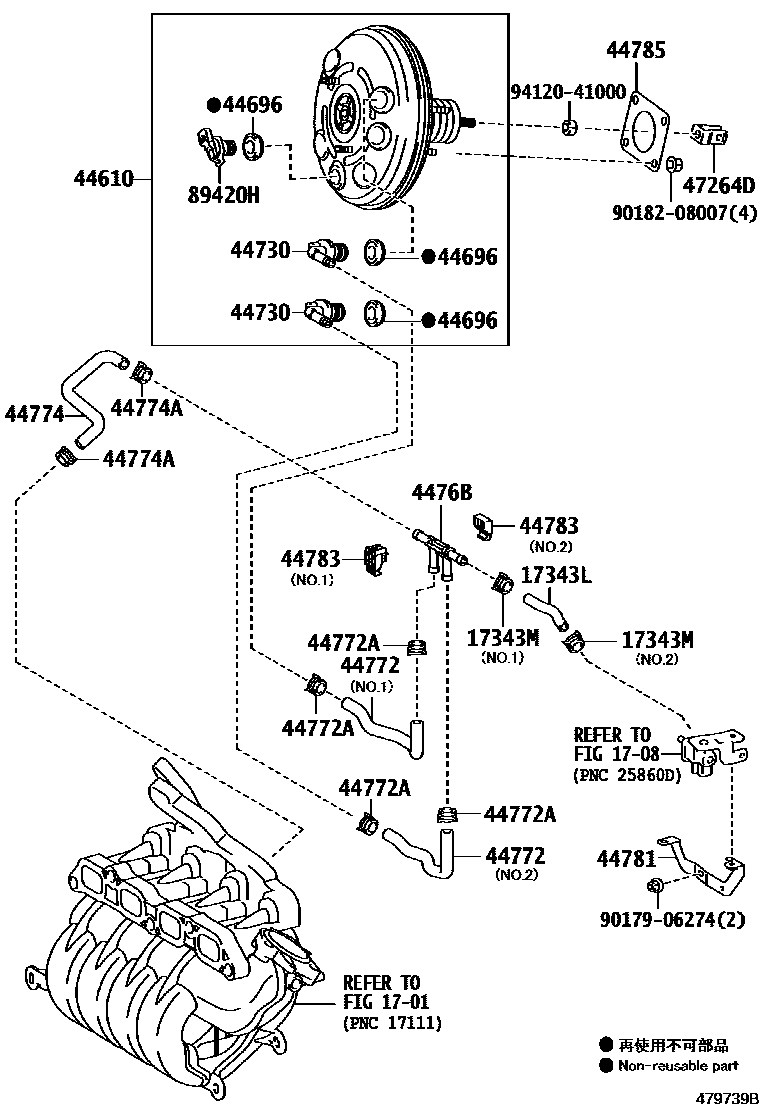

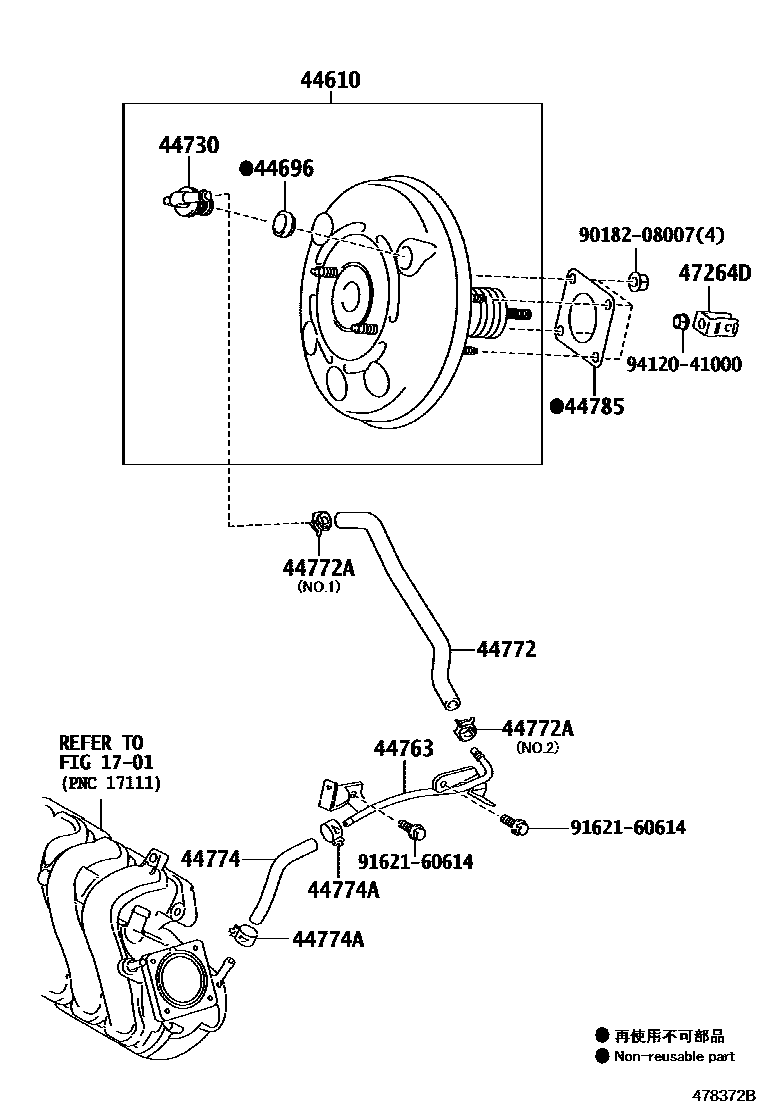

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17343L | No. 3 air hose | 44727-52010 |
| 17343M | Clip (for No. 3 air hose) | 90467-16014 · 96132-41500 · 96133-41501 |
| 44610 | brake booster assembly | 44610-12K20 · 44610-12K30 · 44610-12L60 · 44610-12L70 · 44610-12N20 · 44610-12N30 · 44610-12N40 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-20170 |
| 44763 | booster vacuum tube | 44763-52030 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44772 | Hoses (check valve to connector tube) | 44772-52120 · 44772-52220 · 44772-52230 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-52070 · 44774-52170 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 · 96136-41801 |
| 44781 | hose holder | 44781-52040 |
| 44783 | Vacuum hose clamp | 44783-52090 · 44783-52100 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-52040 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
