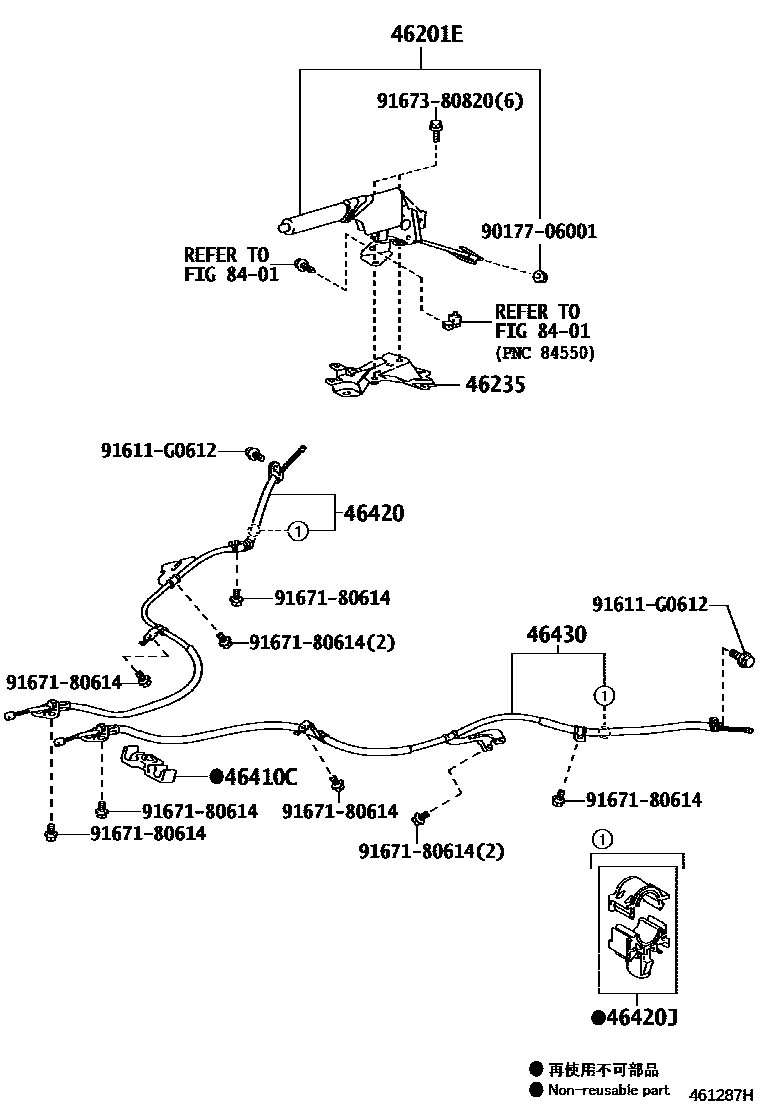

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46235 | Parking brake lever bracket | 46235-52040 |
| 46410C | Clip (for front parking brake cable) | 46411-52030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12780 · 46420-12790 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-52030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12670 · 46430-12680 |
