Toyota COROLLA 传动桥总成(CVT) — Figure 3401

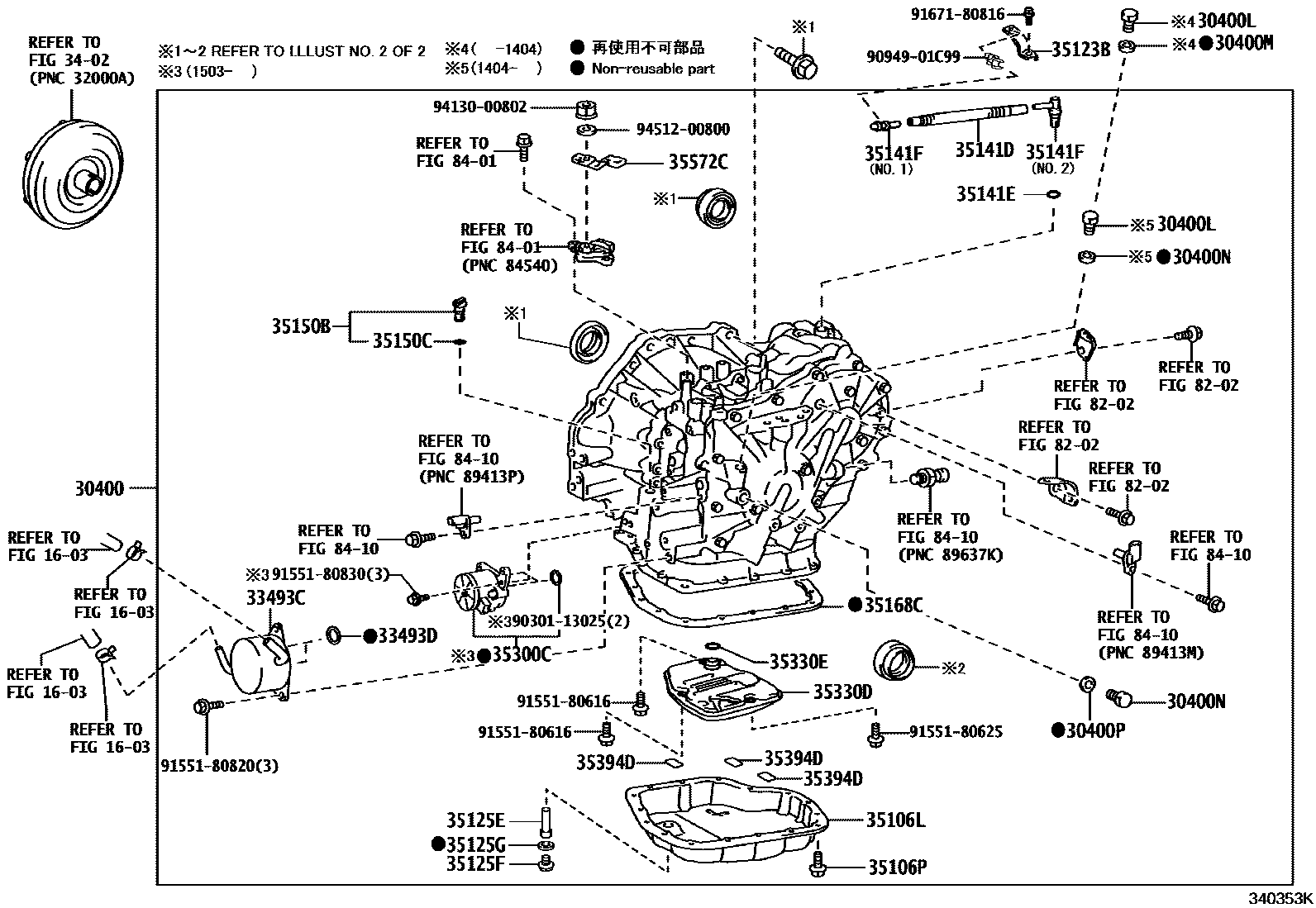

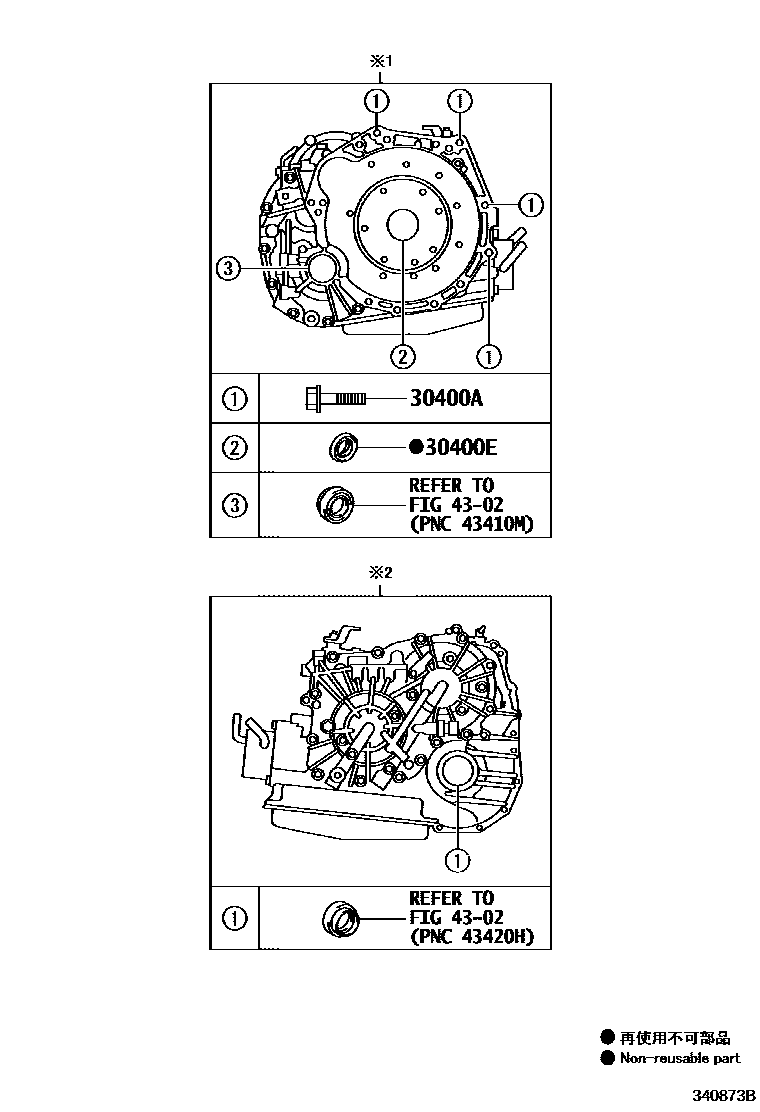

Toyota COROLLA EPC diagram 3401, 传动桥总成(CVT), with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-12140 · 30400-12270 |
| 30400A | Bolts (for securing transaxle and engine) | 91552-81245 · 91612-61045 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45027 |
| 30400L | Oil filling plug (CVT) | 90341-12025 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 33493-52010 |
| 33493D | O-ring (for transmission oil cooler) | 90301-20012 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-12170 · 35106-12171 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35123B | Transmission breather skirt | 35123-52030 · 35123-52050 |
| 35125E | Overflow pipe (CVT) | 35125-12430 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-52020 |
| 35141E | O-ring (for breather plug) | 90301-06005 · 90301-06021 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03191 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12090 · 35168-12091 |
| 35300C | Oil pump assembly with motor | 35300-12011 |
| 35330D | Oil filter assembly | 35330-0W110 |
| 35330E | O-ring (for oil filter) | 90301-22014 · 90301-22019 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35572C | transmission control lever | 35572-12170 |
