Toyota COROLLA Shift Lever & Retainer — Figure 3312

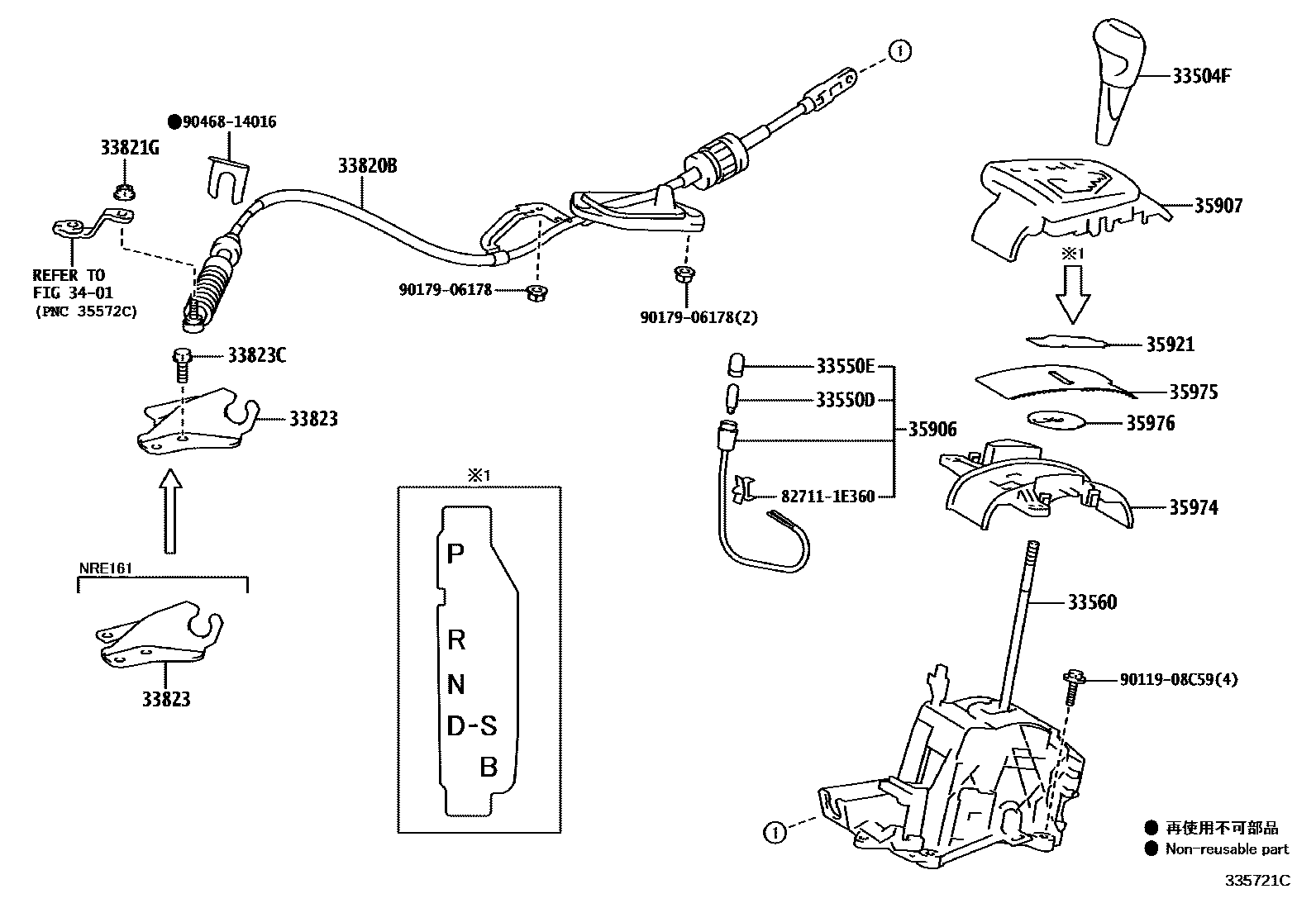

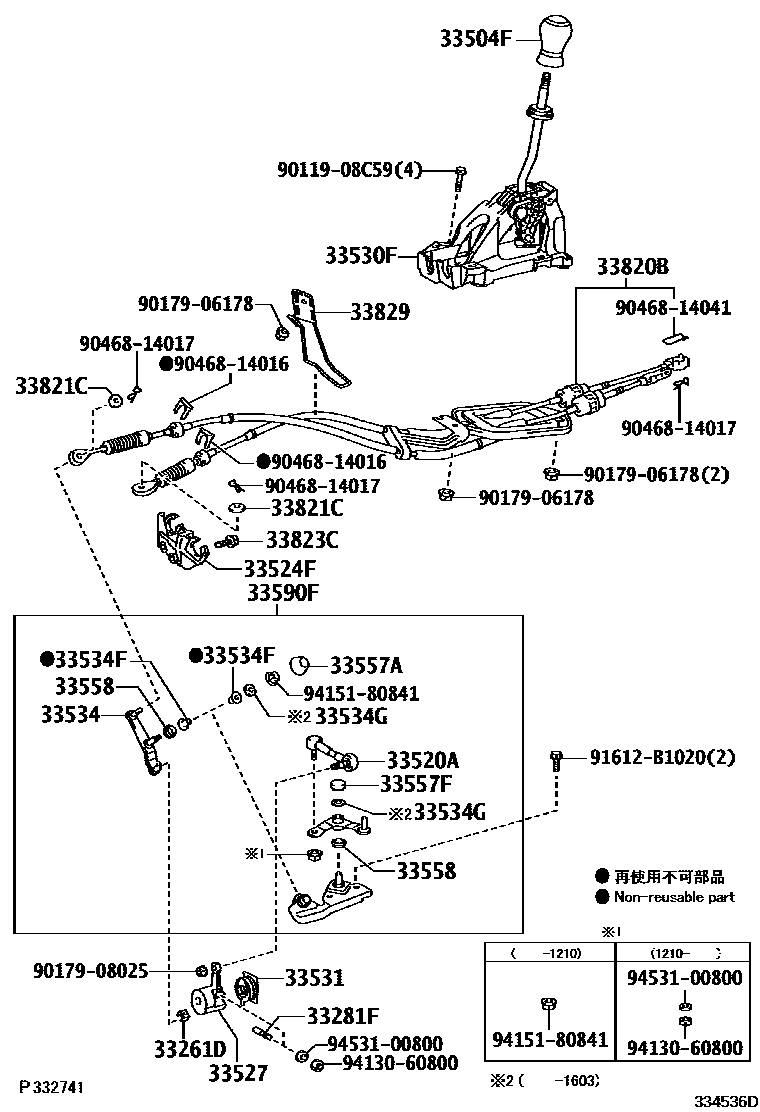

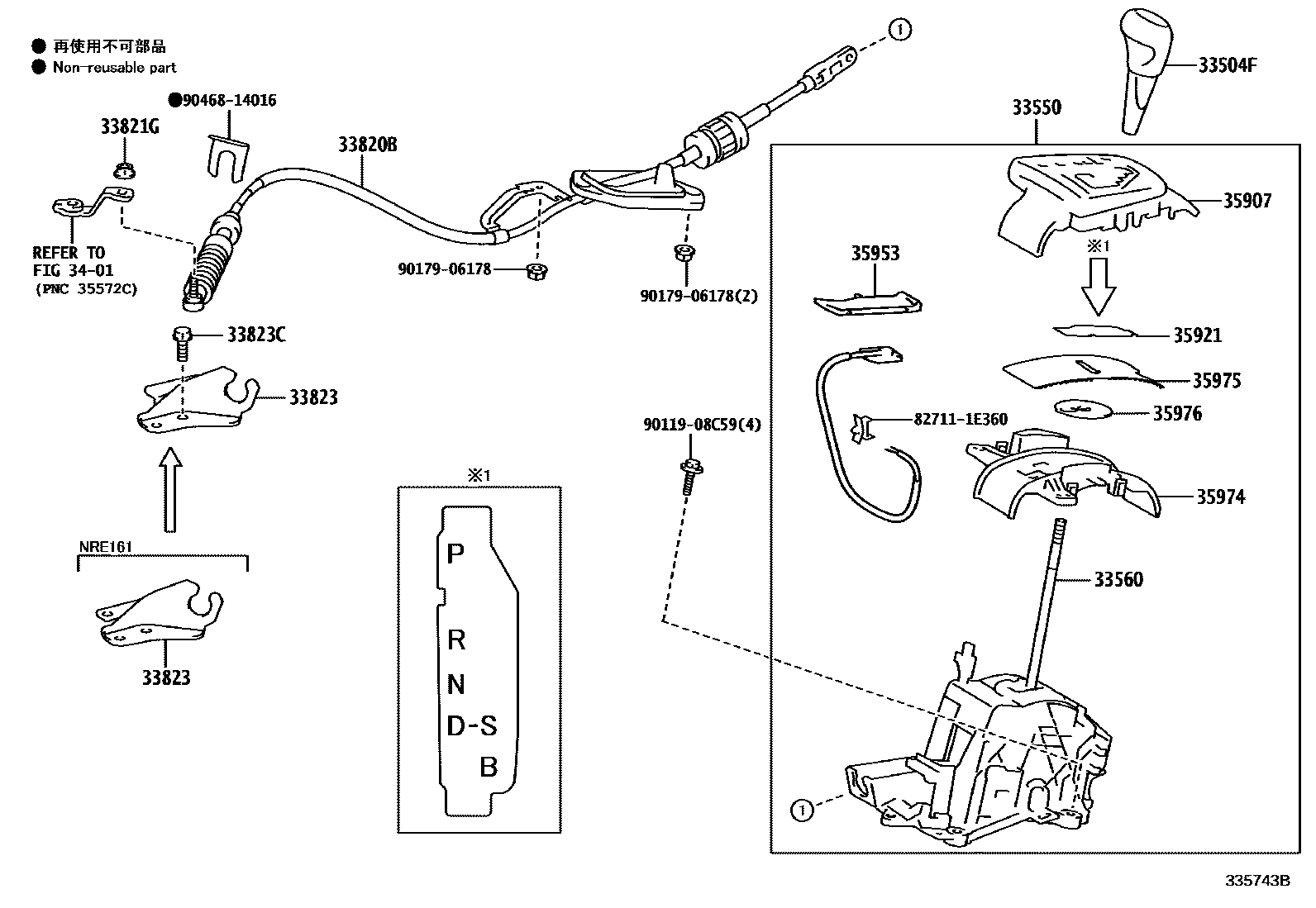

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33504F | Shift lever handle sub-assembly | 33504-12690 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52050 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52210 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-52020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550 | Transmission floor shift assembly | 33550-12K50 |
| 33550D | position indicator light bulb | 35955-74010 |
| 33550E | position indicator cover | 35956-52020 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-12530 · 33560-12560 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52030 |
| 33820B | Transmission control cable assembly | 33820-12G00 · 33820-12G20 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-52120 · 33823-52150 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 · 91612-61030 |
| 33829 | Transmission control cable bracket | 33829-52092 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12310 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12640 · 35907-12650 · 35907-12690 |
| 35921 | control position indicator board | 35921-12660 · 35921-12680 |
| 35953 | Position indicator light guide | 35953-12250 |
| 35974 | Position indicator light lower shell | 35974-12350 · 35974-12440 |
| 35975 | Slide cover (for position indicator light) | 35975-12470 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52140 |
