Toyota COROLLA 燃油喷射系统 — Figure 2211

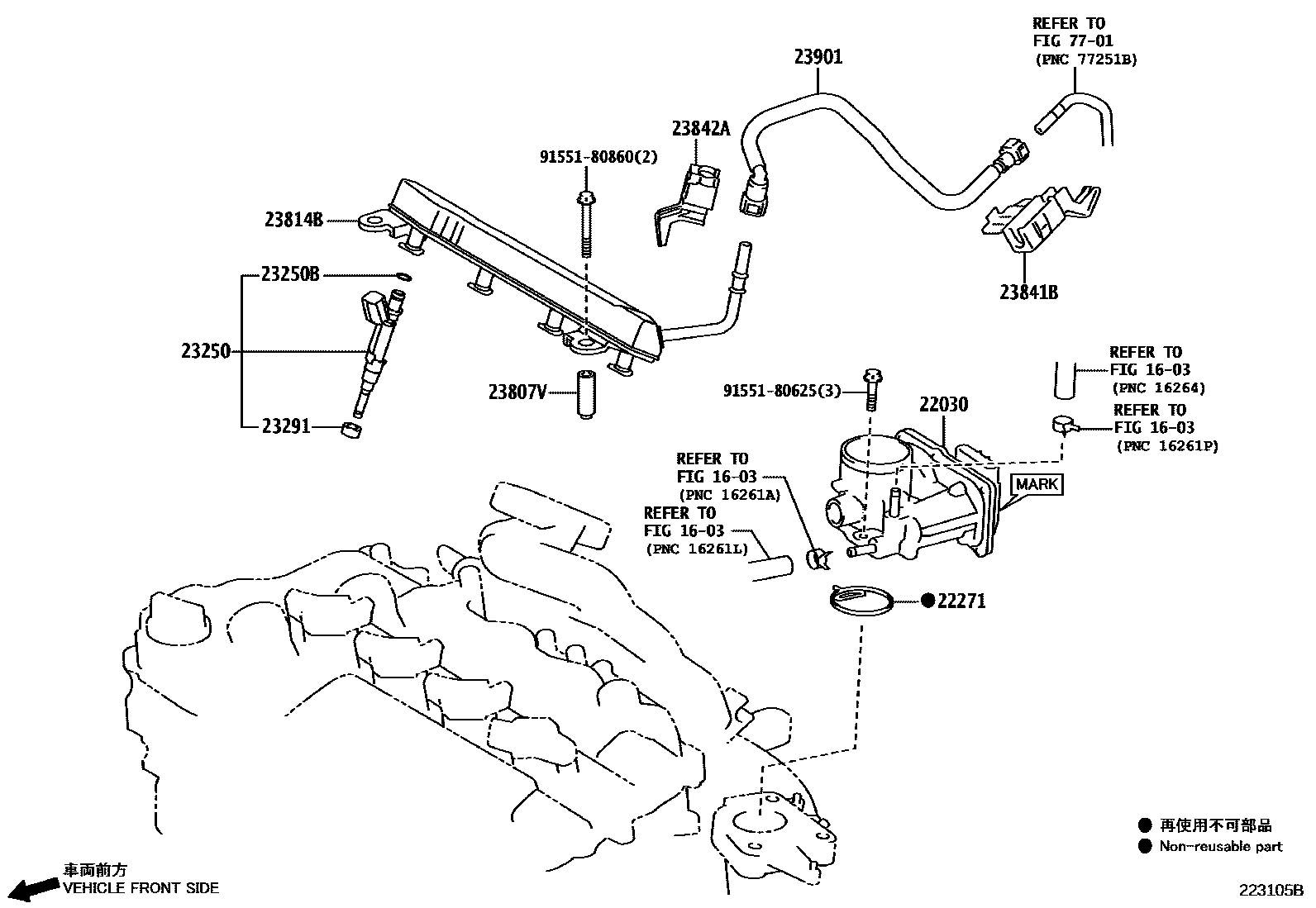

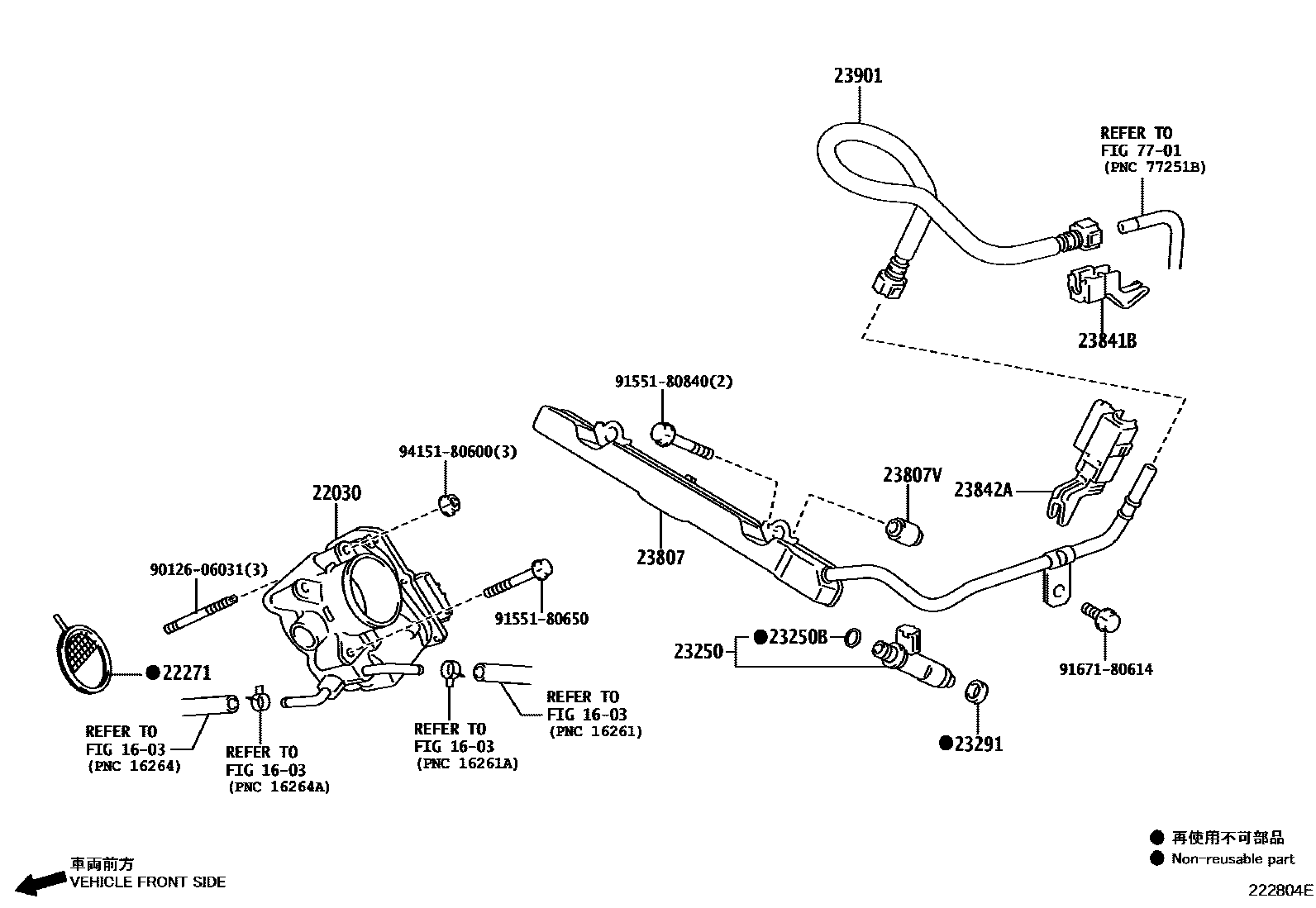

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-21030 · 22030-21040 · 22030-47060 · 22030-47090 |
| 22271 | Throttle body gasket | 22271-21060 · 22271-47050 |
| 23250 | Fuel injector assembly | 23209-21040 · 23209-21100 · 23209-49245 |
| 23250B | O-ring (for fuel injector) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-23010 |
| 23807 | Oil pipe sub-assembly | 23807-21030 · 23807-21031 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-21010 · 23891-47030 |
| 23814B | oil pipeline | 23814-47050 · 23814-47051 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-37090 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-21040 · 23841-21050 · 23841-37090 |
| 23901 | Fuel pipe sub-assembly | 23901-21110 · 23901-47080 |
