Toyota COROLLA Alternator — Figure 1903

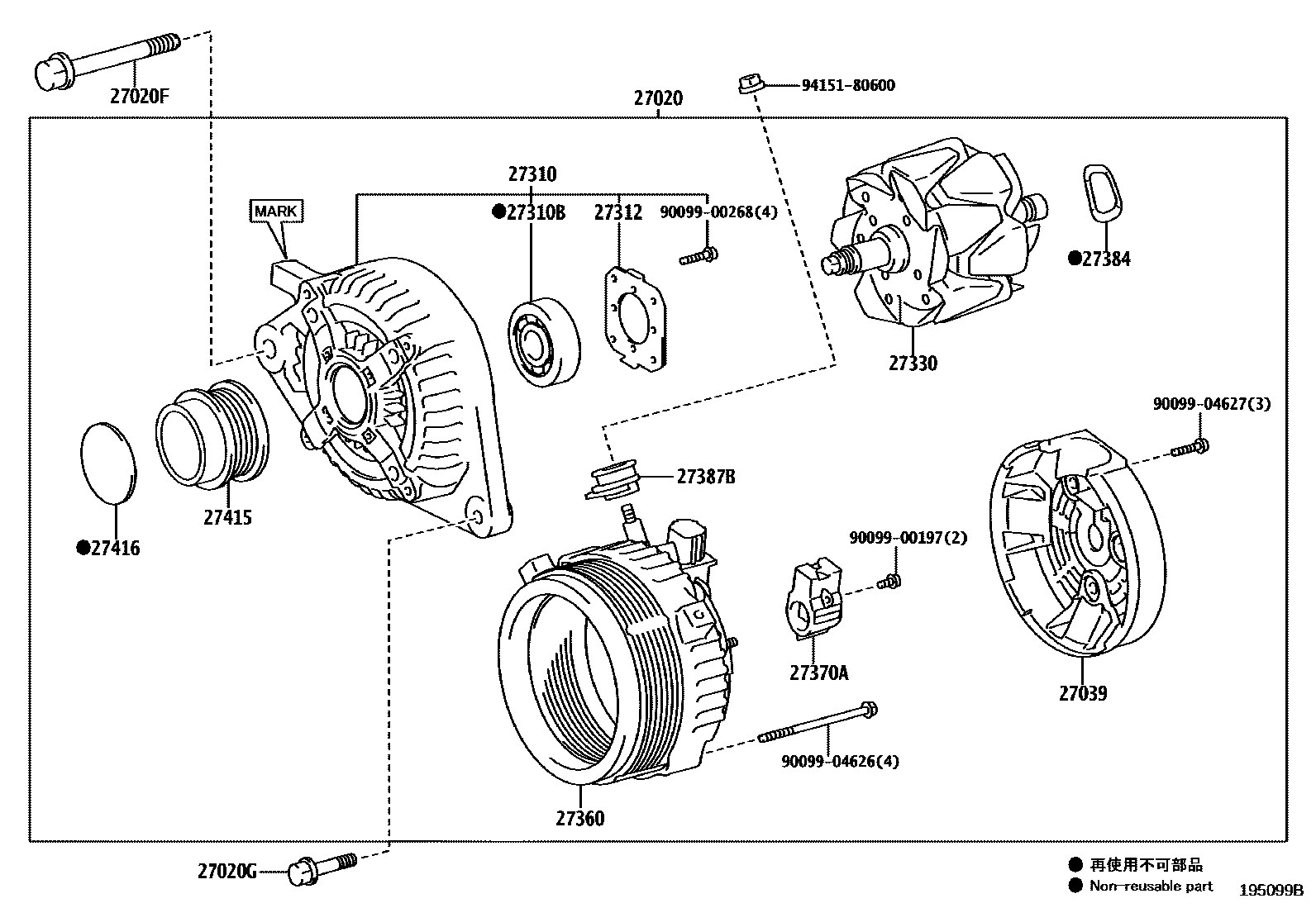

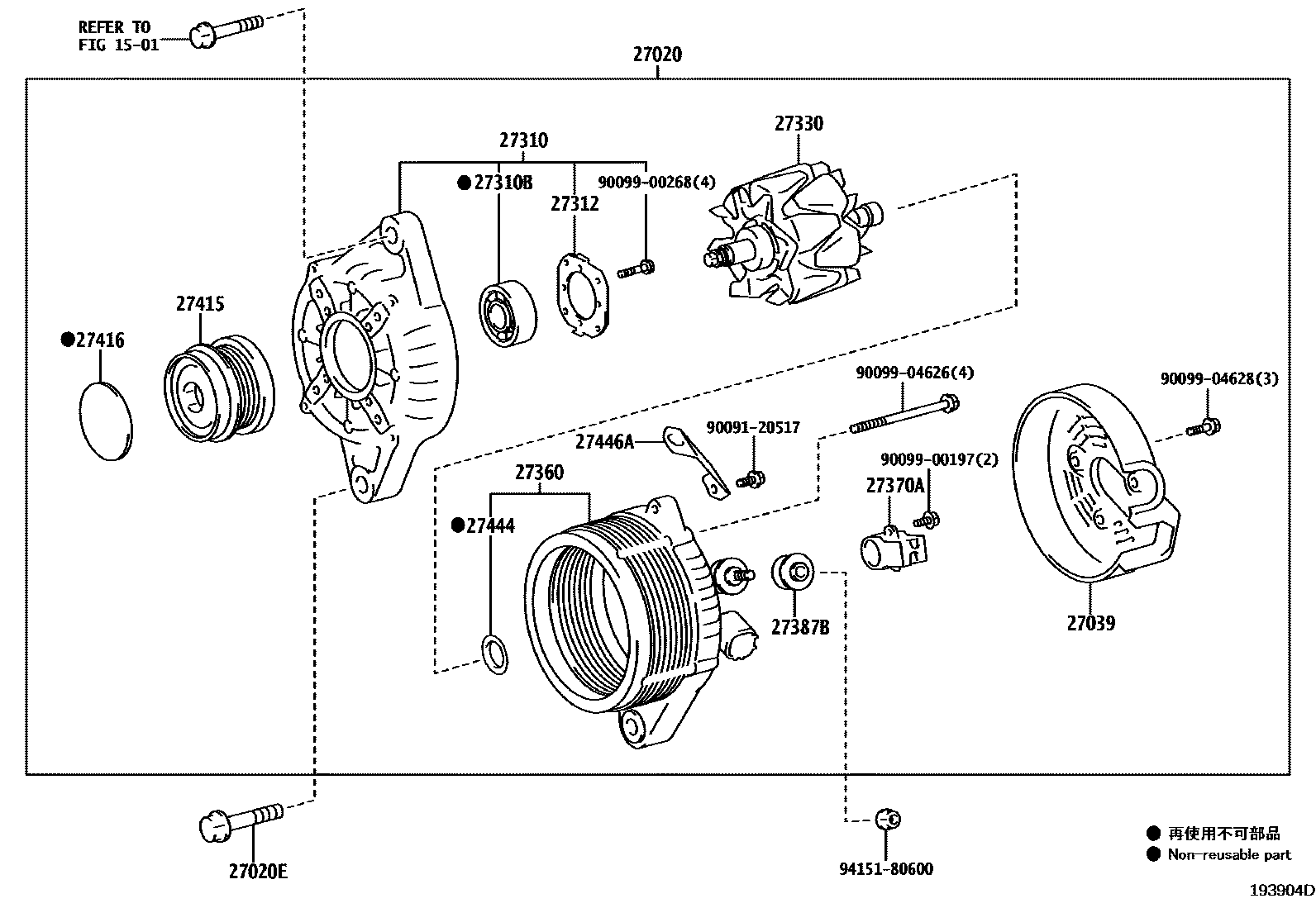

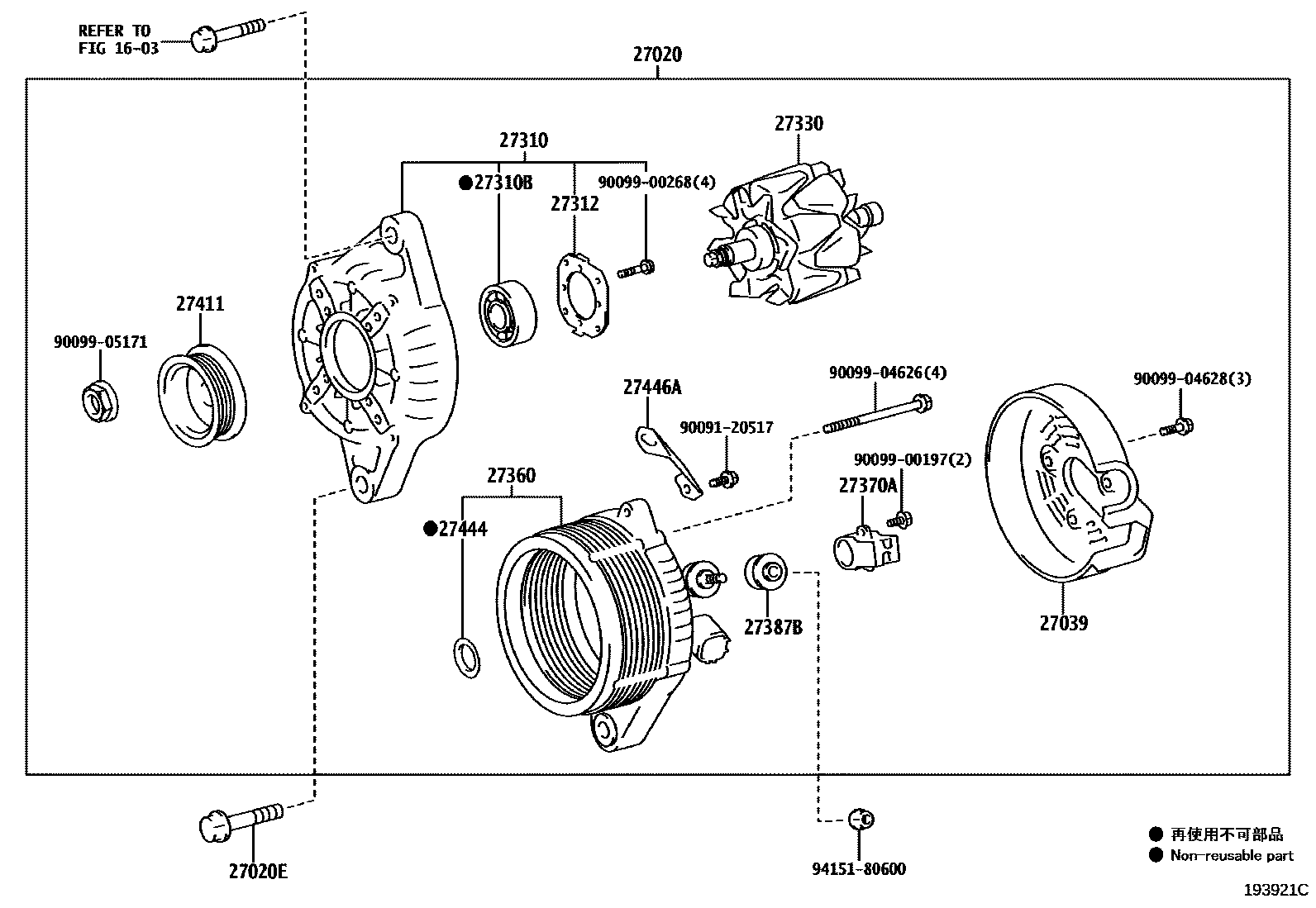

Toyota COROLLA EPC diagram 1903, Alternator, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-21180 · 27060-21200 · 27060-47270 · 27060-47290 |
| 27020E | Bolts (for generator) | 90105-10075 |
| 27020F | Bolt No. 1 (for generator) | 91552-81075 |
| 27020G | Bolt No. 2 (for generator) | 91671-80845 |
| 27039 | Alternator Rear End Cover | 27039-47310 · 27039-47330 |
| 27310 | Alternator Drive End Frame Assembly | 27310-21210 · 27310-47330 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10223 · 90099-10227 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-47310 · 27330-47330 |
| 27360 | Alternator Stator Coil Assembly | 27360-21210 · 27360-47411 |
| 27370A | Alternator Brush Holder Assembly | 27370-31220 |
| 27384 | Washer | 27384-38130 |
| 27387B | Generator terminal insulation pad | 27387-20130 · 27387-47310 |
| 27411 | Alternator Pulley | 27411-21210 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0M010 · 27415-0M011 · 27415-0Y061 · 27415-47070 |
| 27416 | Generator pulley cover | 27416-0W050 · 27416-47010 |
| 27444 | Generator bearing cap seals | 27444-21190 |
| 27446A | card holder | 27446-21020 |
