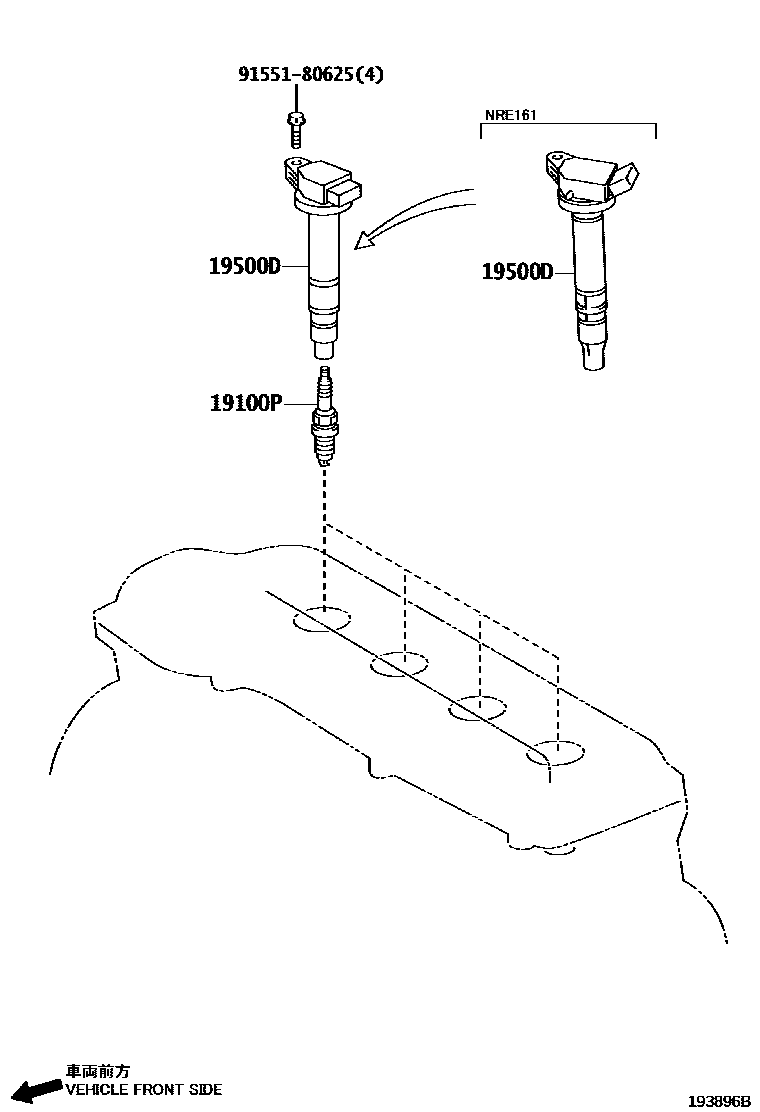

Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01243 · 90919-01280 · 90919-01289 |
| 19500D | No. 1 ignition coil | 90919-02257 · 90919-02260 |
