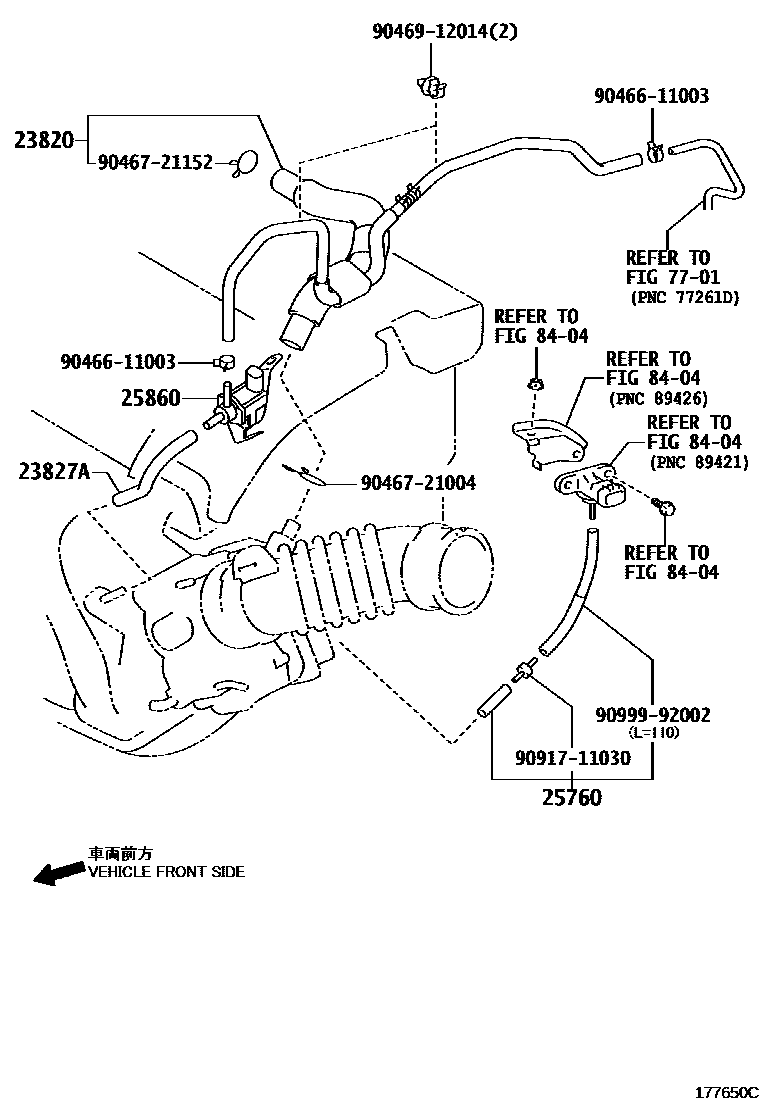

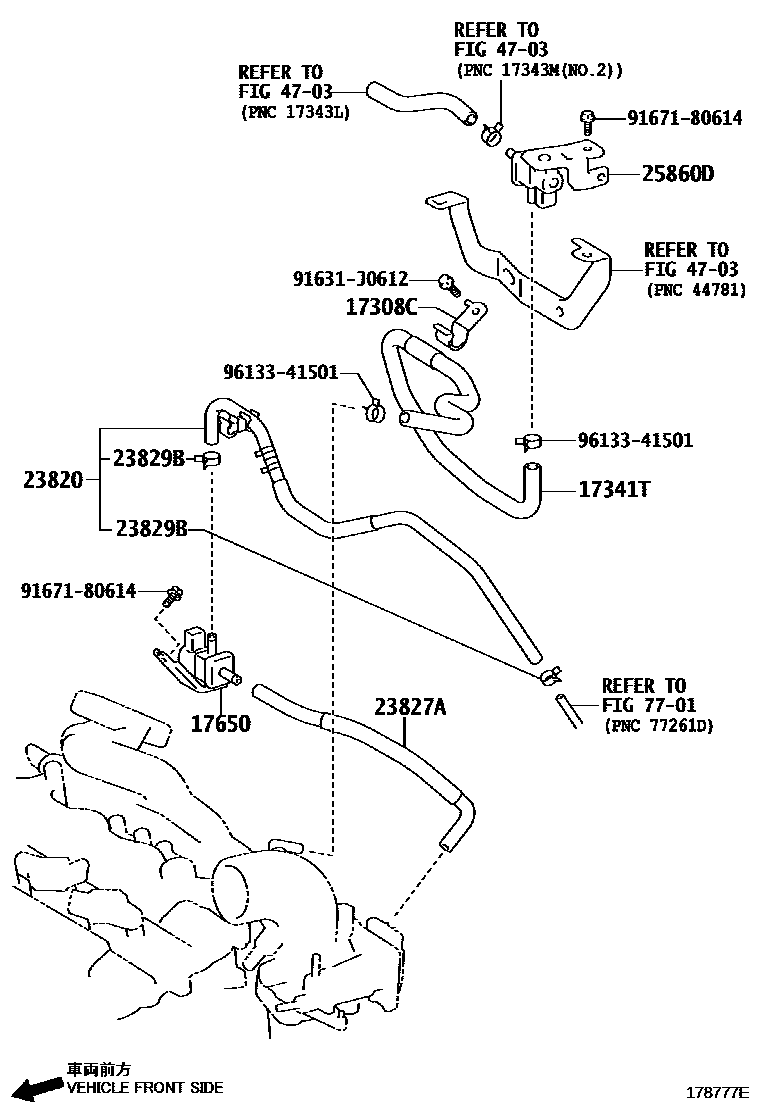

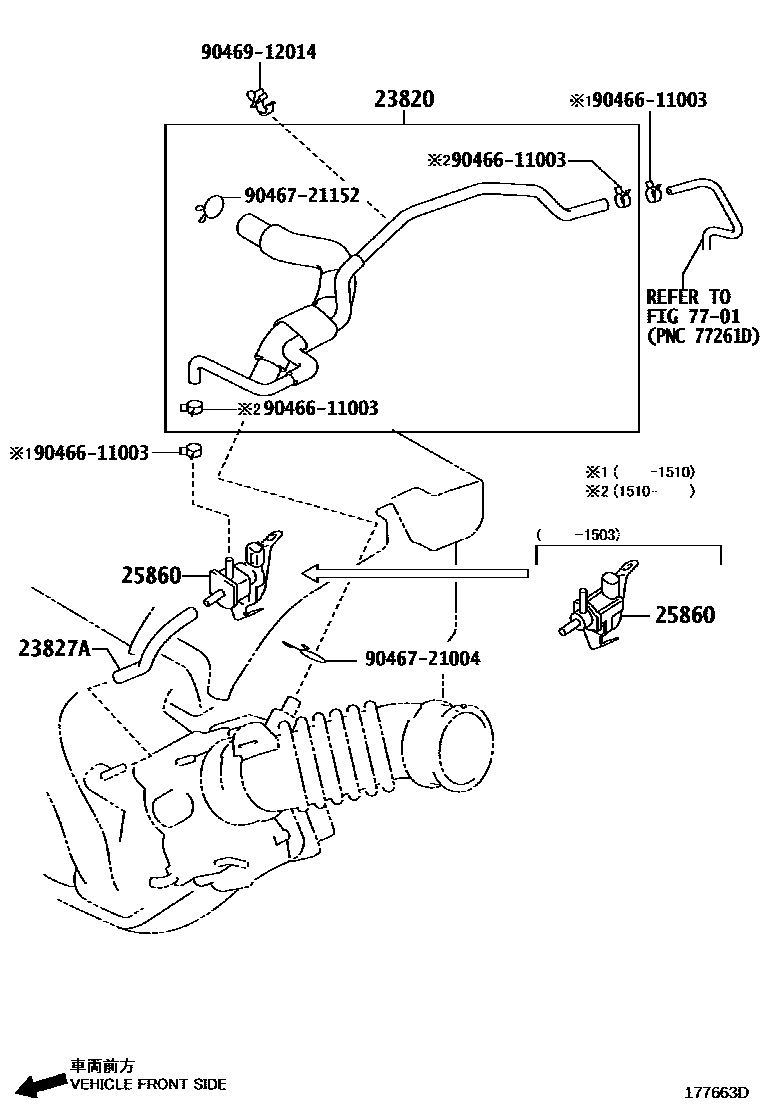

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-52070 |
| 17341T | Air hose No. 1 | 44726-12030 |
| 17650 | Vacuum switch valve assembly | 25860-47030 |
| 23820 | Fuel vapor supply hose assembly | 23820-21090 · 23820-21091 · 23820-21190 · 23820-47040 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21150 · 23827-47090 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 |
| 25760 | Vacuum transfer hose assembly | 25760-21030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-21070 · 25860-21150 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-47040 |
