Toyota COROLLA Air Cleaner — Figure 1703

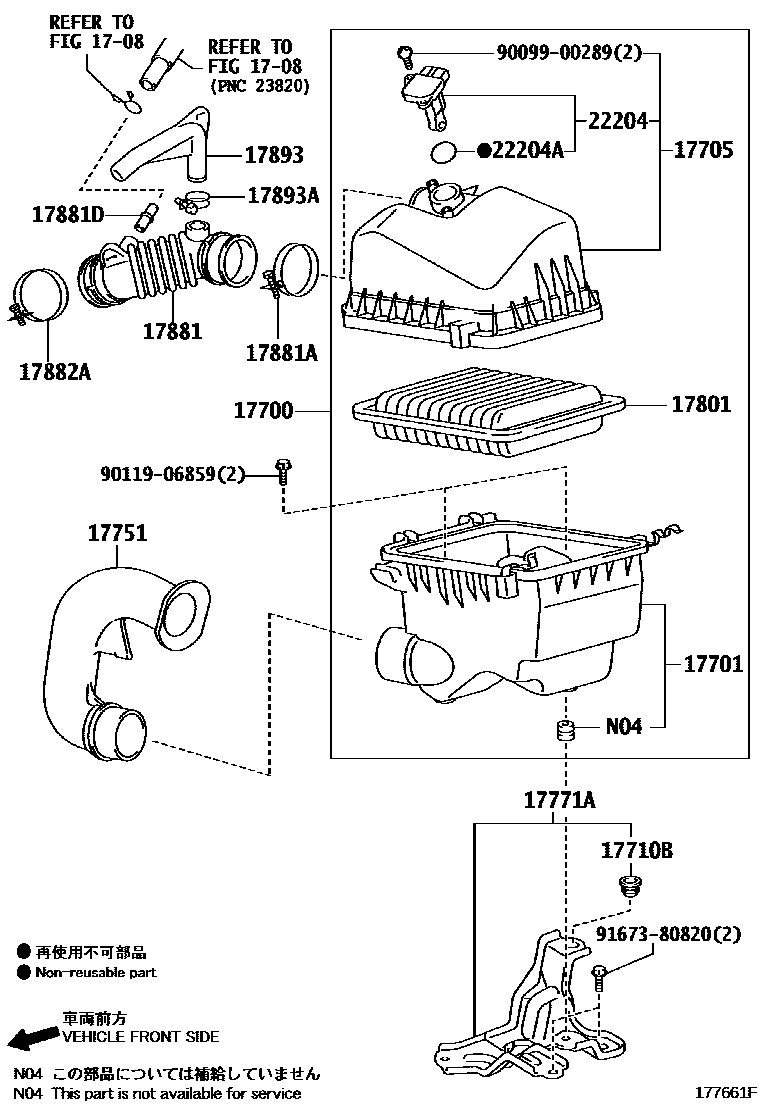

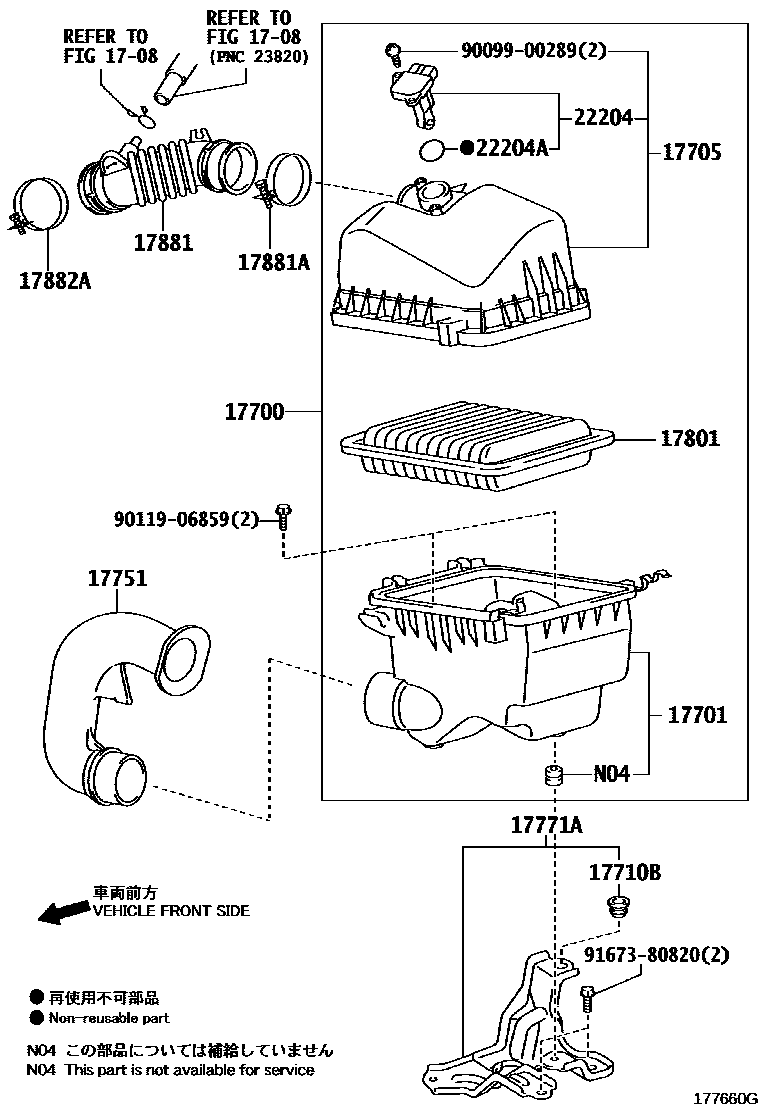

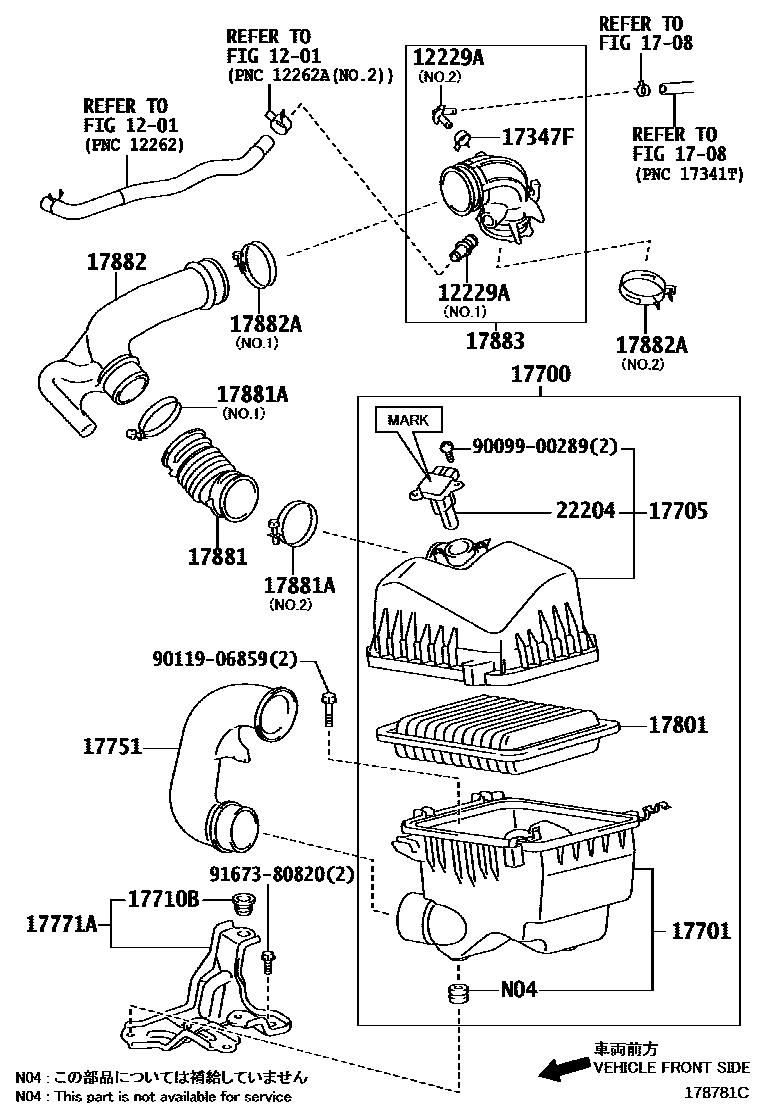

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 · 12229-47010 |
| 17347F | Clamps or clips (for air hoses) | 96136-41901 |
| 17700 | air filter assembly | 17700-21120 · 17700-47160 |
| 17701 | Air filter housing sub-assembly | 17701-21100 |
| 17705 | Air filter cover sub-assembly | 17705-21090 · 17705-47130 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-21160 · 17751-21230 · 17751-47080 |
| 17771A | air filter bracket | 17771-21050 |
| 17801 | Air filter element sub-assembly | 17801-21050 |
| 17881 | No. 1 air cleaner hose | 17880-21091 · 17881-21140 · 17881-47070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 · 96111-10730 |
| 17881D | Connector tube (for air cleaner hose) | 12229-21010 |
| 17882 | No. 2 air cleaner hose | 17882-47050 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10690 · 96111-10730 |
| 17883 | No. 3 air cleaner hose | 17883-47041 |
| 17893 | Intake resonator | 17893-37080 |
| 17893A | hose clamp | 96111-10330 |
| 22204 | Intake air flow meter assembly | 22204-0C020 · 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-22010 · 22204-28010 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
