Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

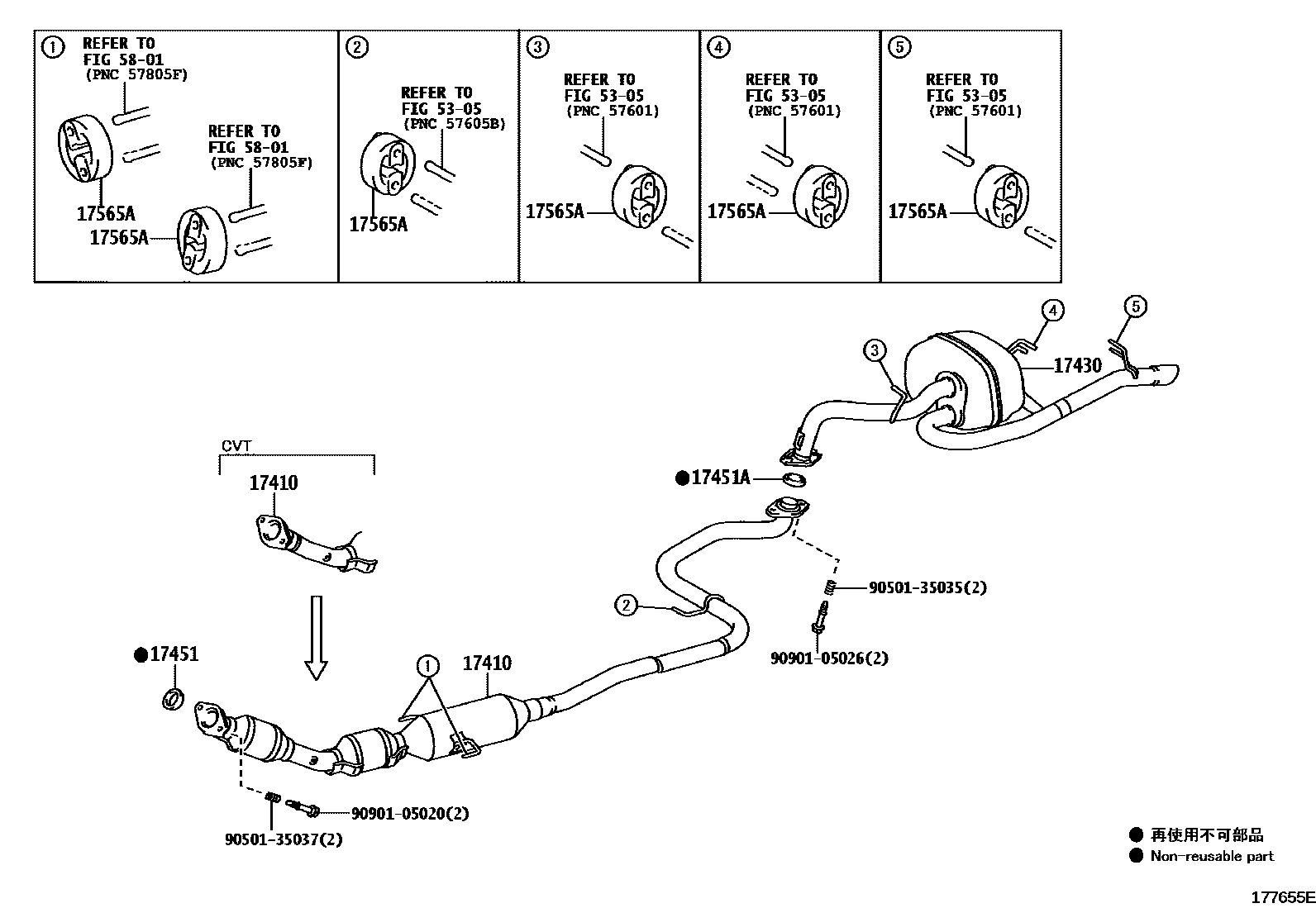

Toyota COROLLA Exhaust Pipe EPC diagram — 177655E
Exhaust Pipe — 177655E (201204 – 999999)

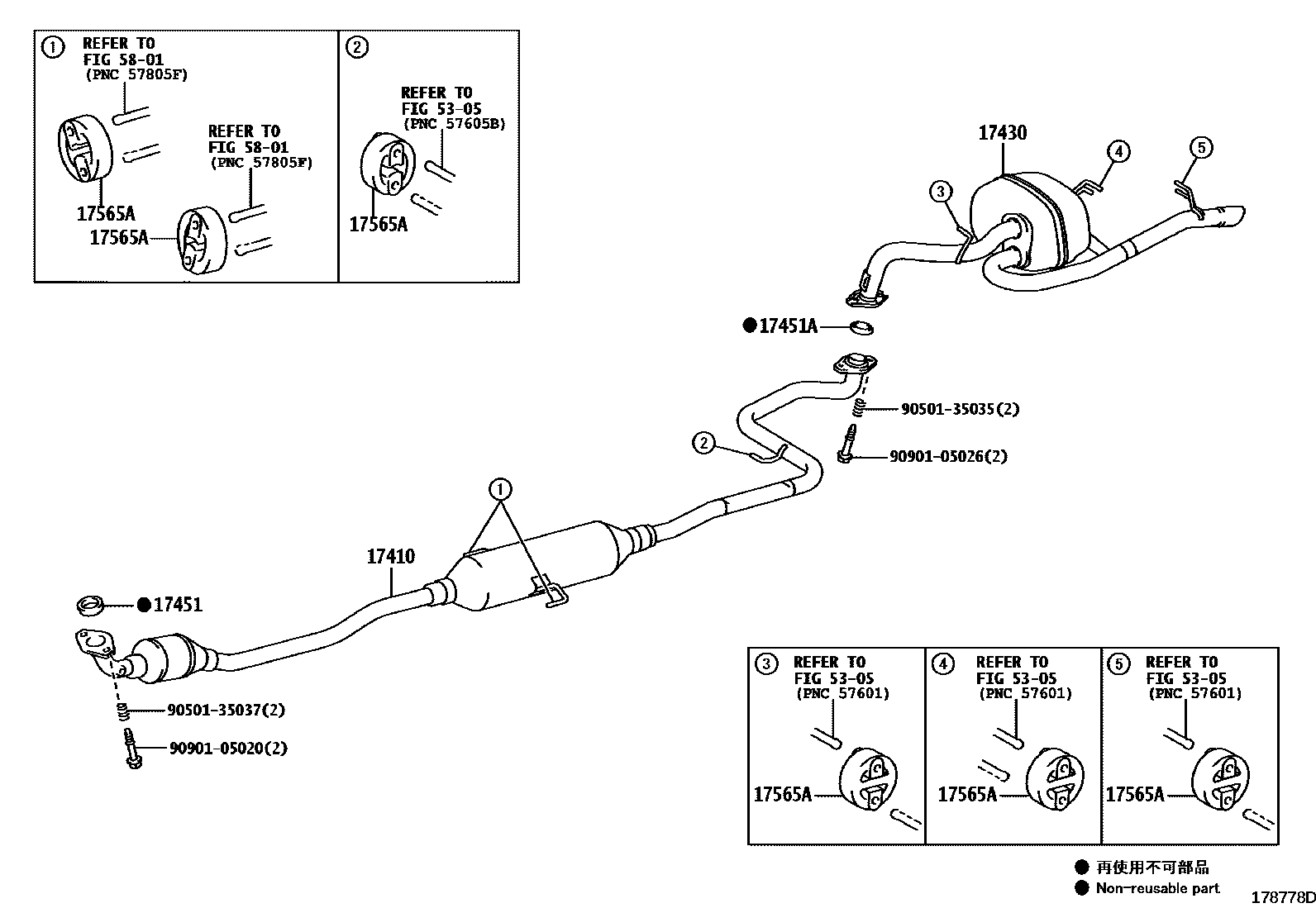

Toyota COROLLA Exhaust Pipe EPC diagram — 178778D
Exhaust Pipe — 178778D (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-21C70 · 17410-21C80 · 17410-47310 · 17410-47311
17430Exhaust tailpipe assembly17430-21A00
17451Exhaust pipe gasket17451-21070
17451ANo. 2 exhaust pipe gasket17451-23042
17565ANo. 4 exhaust pipe lifting lug17565-47010
