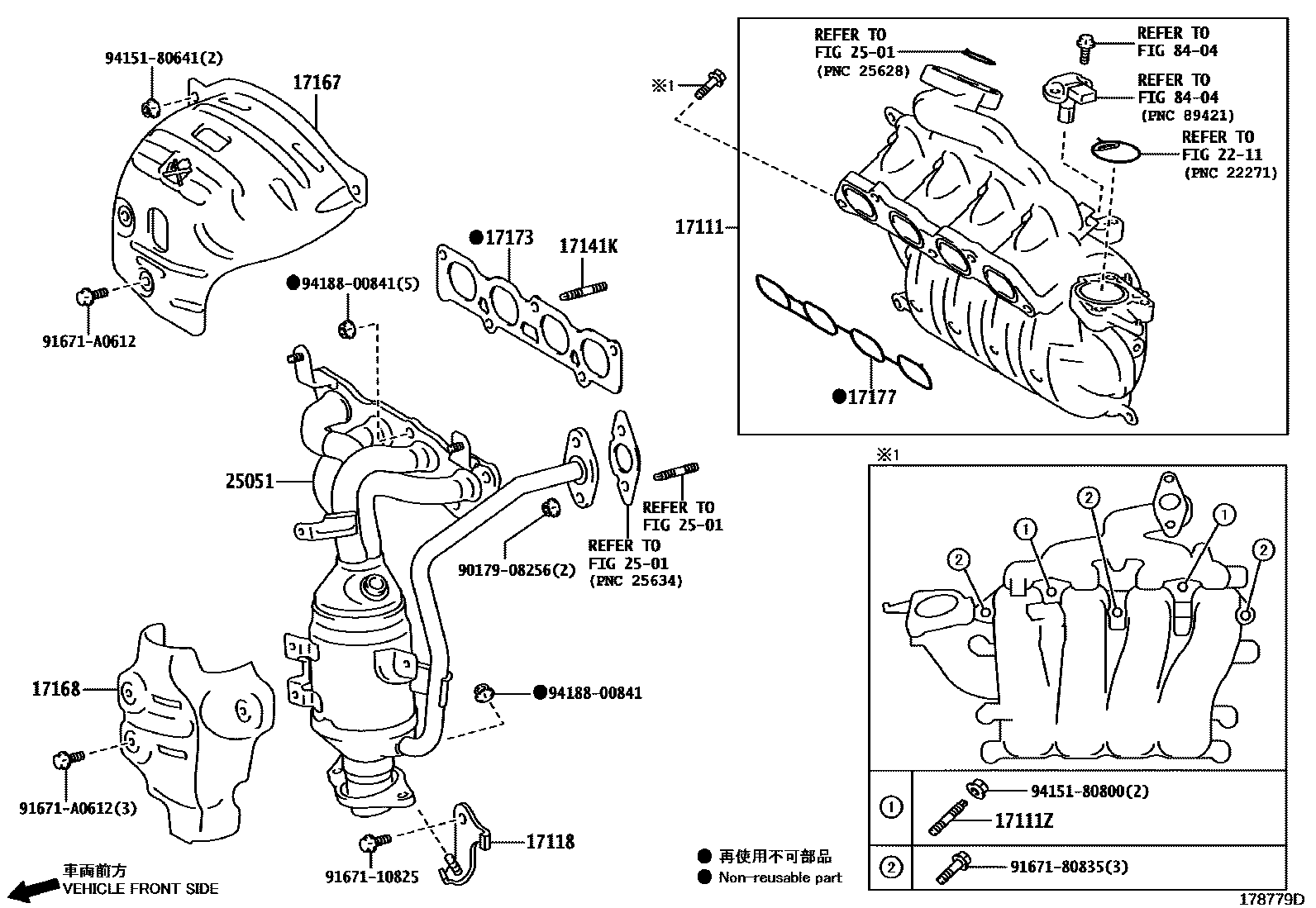

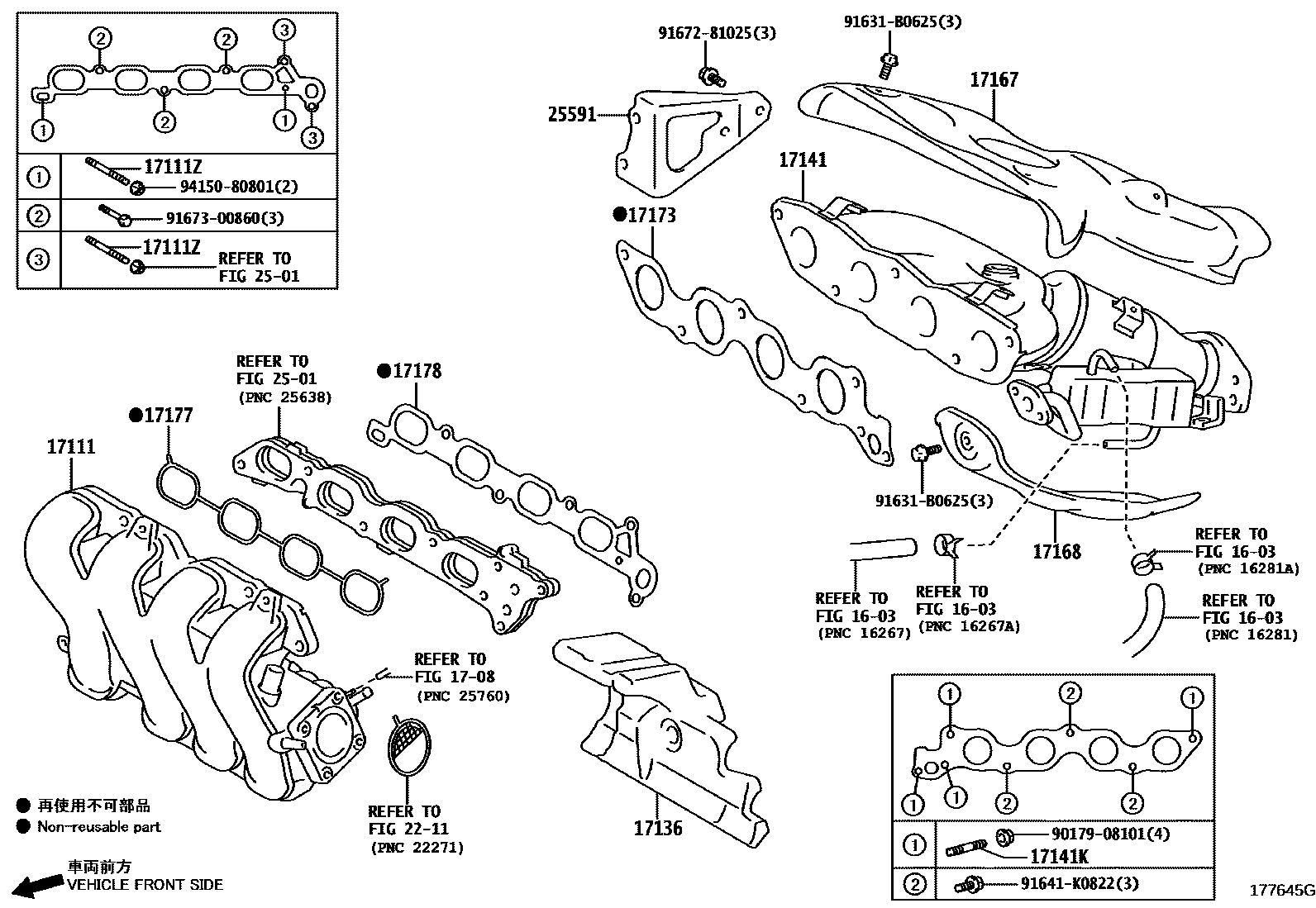

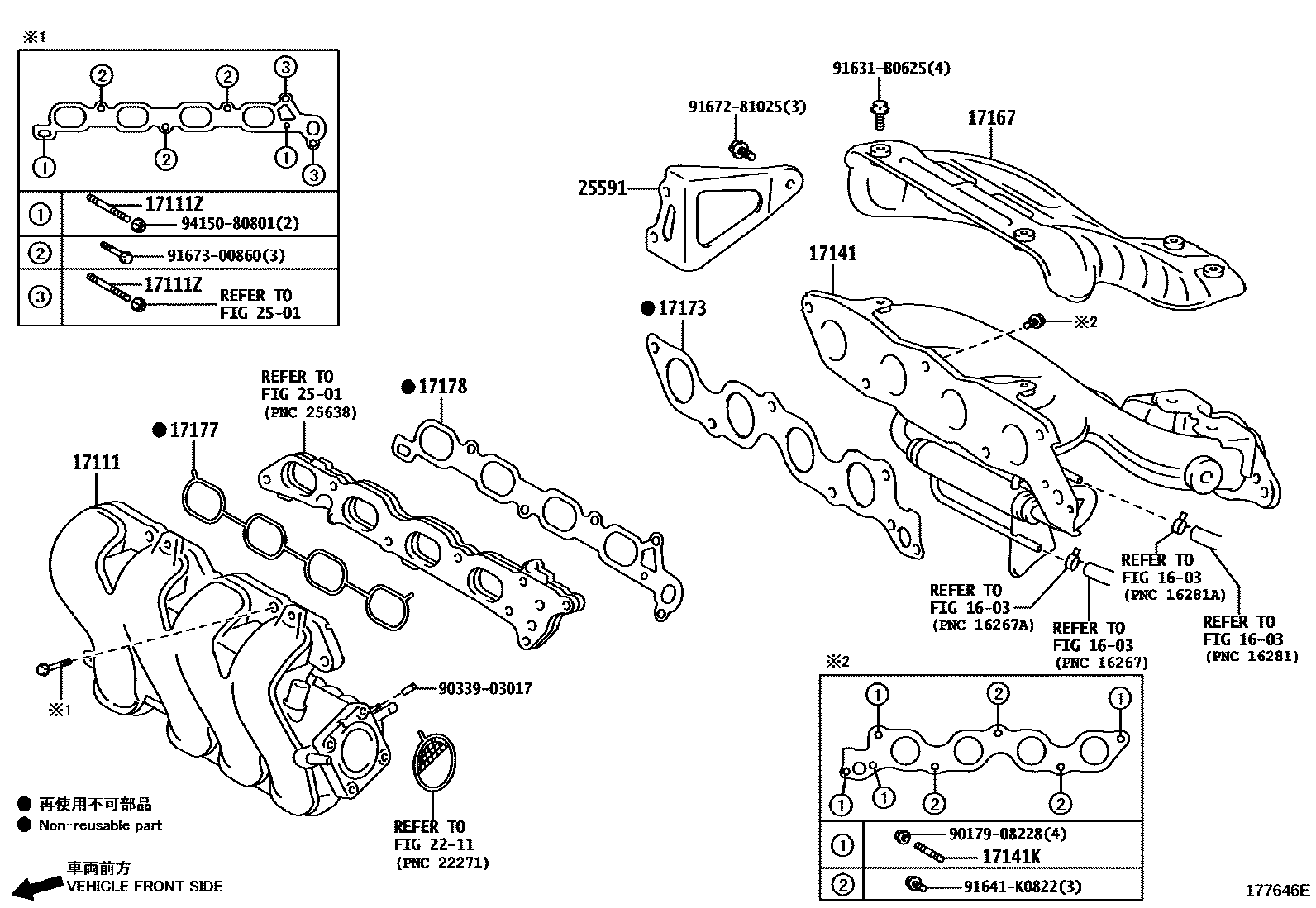

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-21071 · 17120-47110 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08049 · 90126-08060 |
| 17118 | Manifold stays | 17118-47010 · 17118-47011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-21010 |
| 17141 | exhaust manifold | 17104-21041 · 17140-21120 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 · 90126-08063 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-21110 · 17167-21180 · 17167-21181 · 17167-47011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-21070 · 17168-21071 · 17168-21072 · 17168-47041 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-21030 · 17173-47021 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-21030 · 17177-47011 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-21010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-47140 |
| 25591 | Manifold bracket | 25591-21060 · 25591-21080 |
