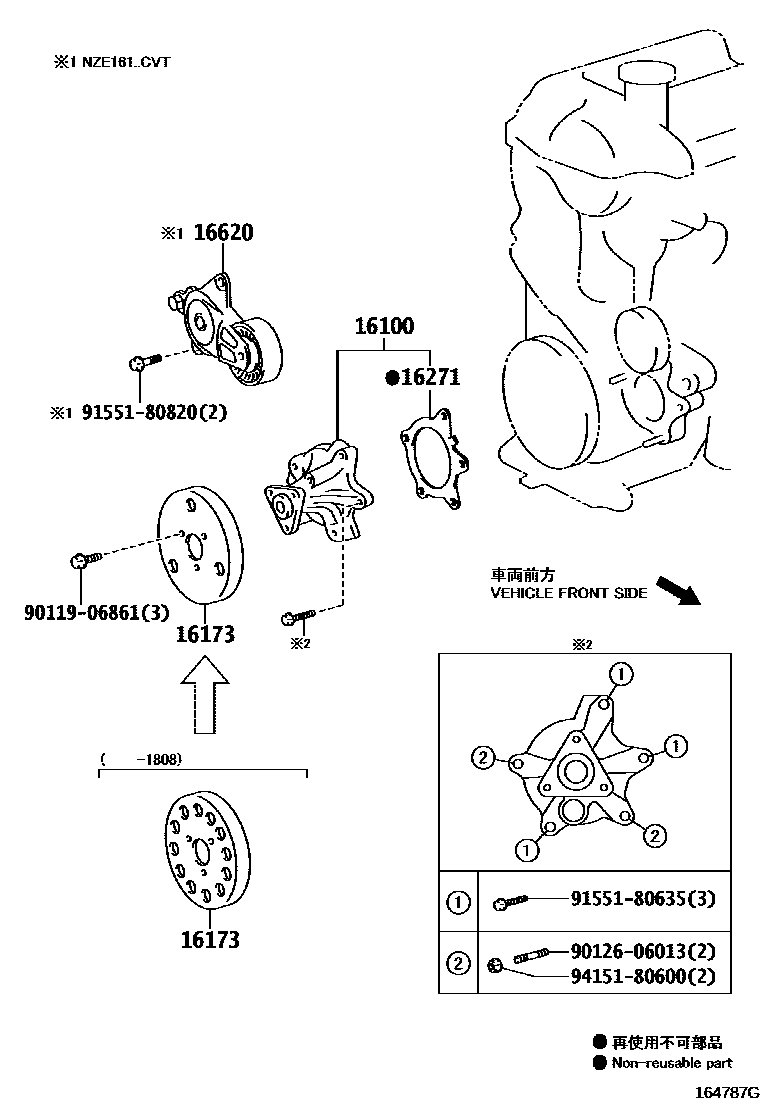

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-29157 · 16100-29158 · 16100-80013 |
| 16173 | water pump pulley | 16173-21020 · 16173-21021 |
| 16271 | water pump gasket | 16271-0Y030 · 16271-21021 |
| 16620 | Poly V-belt tensioner assembly | 16620-21010 · 16620-47030 |
