Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 2 images and 7 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 151942C
Oil Filter — 151942C (201204 – 999999)

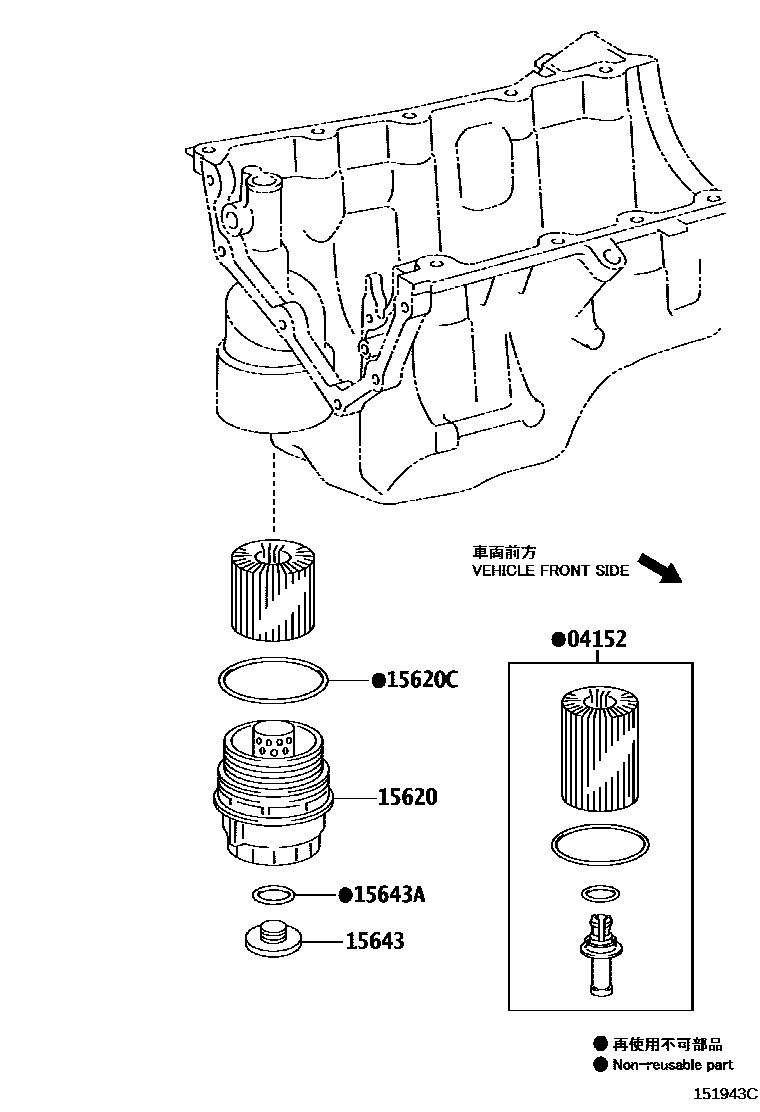

Toyota COROLLA Oil Filter EPC diagram — 151943C
Oil Filter — 151943C (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-40060
15600AConnector (for oil filter)90904-04004
15601Oil filter sub-assembly90915-10003
15620Oil filter cover assembly15620-40030
15620CGasket (for oil filter cover)90301-69011
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
