Toyota COROLLA Camshaft & Valve — Figure 1302

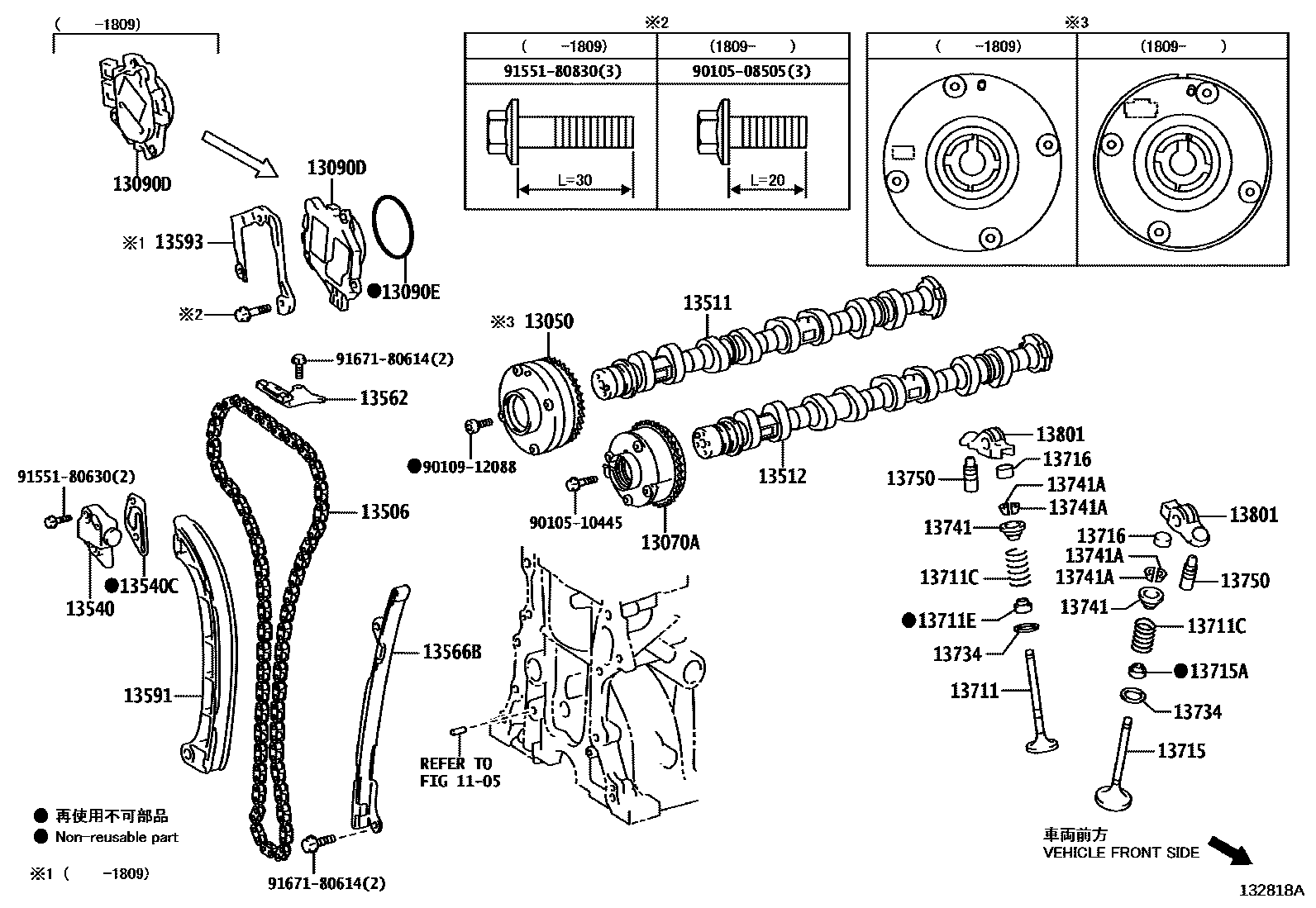

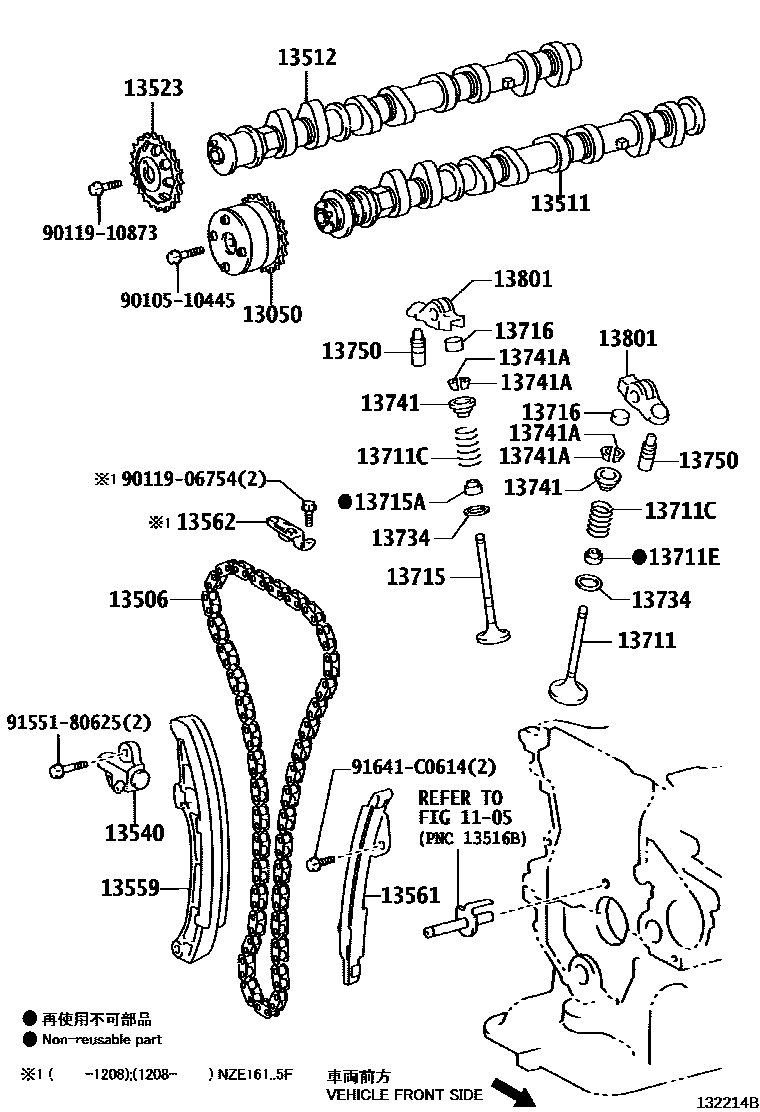

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-21061 · 13050-47020 · 13050-47040 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-47020 |
| 13090D | Cam timing control motor assembly with EDU | 13090-47010 · 13090-47020 |
| 13090E | O-ring (for cam timing control motor) | 90301-92004 |
| 13506 | Chain sub-assembly | 13506-21061 · 13506-47030 |
| 13511 | camshaft | 13501-21052 · 13501-21080 · 13501-47060 |
| 13512 | Camshaft No. 2 | 13502-21042 · 13502-21050 · 13502-47050 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13540 | No. 1 chain tensioner assembly | 13540-21020 · 13540-47011 |
| 13540C | Pad (for chain tensioner) | 13552-47010 |
| 13559 | chain tensioner guide plate | 13559-21010 · 13559-21030 · 13559-21031 |
| 13561 | No. 1 chain shock absorber | 13561-21020 |
| 13562 | No. 2 chain shock absorber | 13562-21010 · 13562-47020 |
| 13566B | Timing chain guide plate | 13566-47030 |
| 13591 | Timing chain tensioner arm | 13591-47040 · 13591-47060 |
| 13593 | Camshaft timing gear cover | 13593-47010 |
| 13711 | intake valve | 13711-21040 · 13711-47010 |
| 13711C | Compression spring (for outside) | 90501-29060 · 90501-29066 · 90501-32053 |
| 13711E | Intake valve stem oil seal | 90913-02101 |
| 13715 | exhaust valve | 13715-21040 · 13715-47010 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 |
| 13716 | valve stem cover | 13716-75020 |
| 13734 | Valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-20021 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13750 | Valve lash adjuster assembly | 13750-21010 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-36020 · 13801-47010 |
