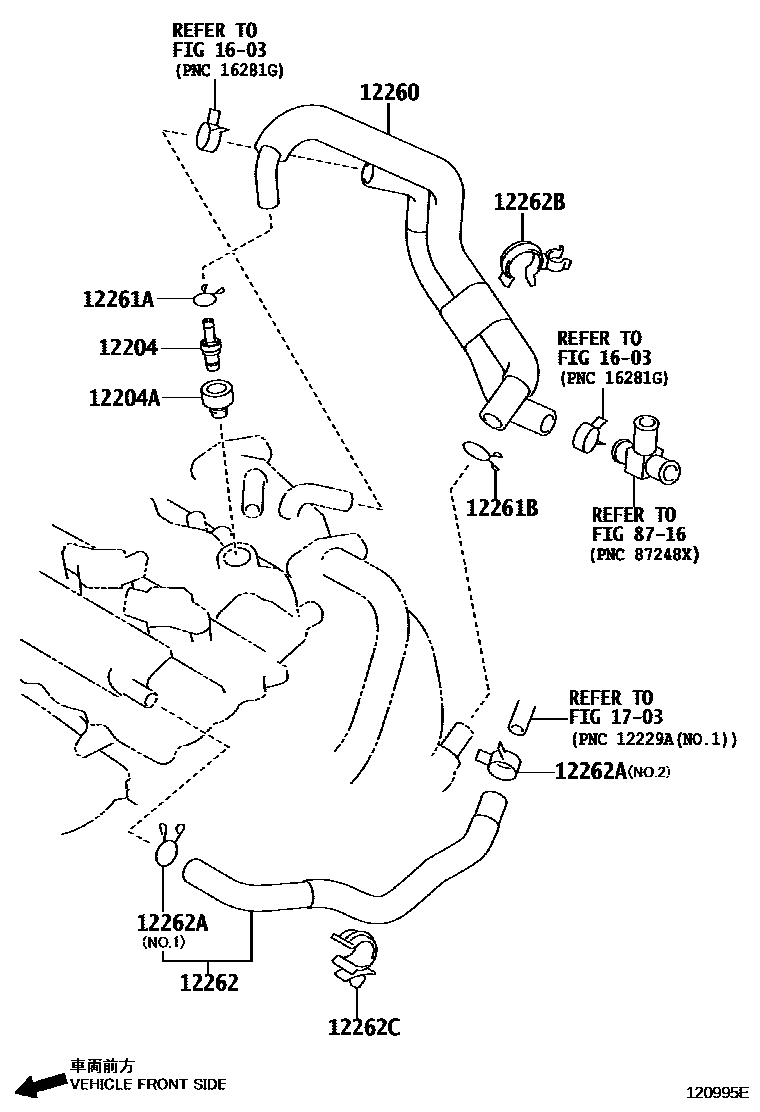

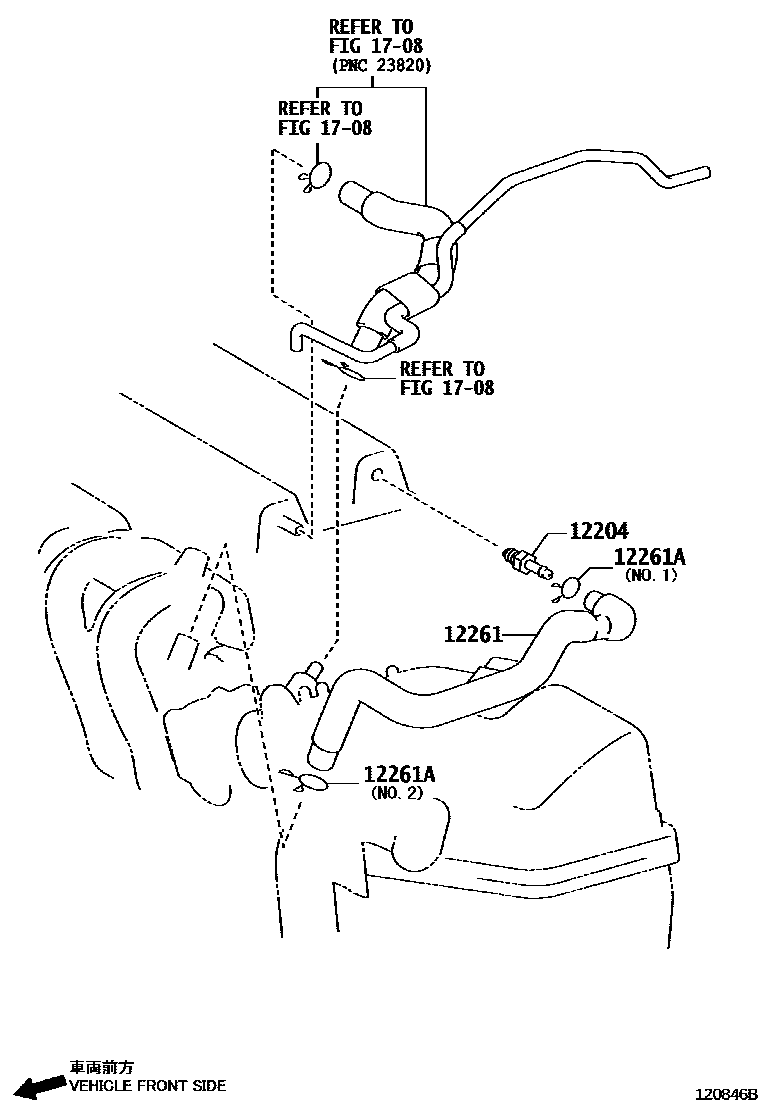

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-21020 · 12204-47060 |
| 12204A | Gasket (for ventilation system) | 11249-47020 |
| 12260 | Ventilation hose assembly | 12029-47020 |
| 12261 | Ventilation Hose | 12261-21060 |
| 12261A | Clip or clip (for vent hose) | 90466-23003 · 90467-15120 · 90467-16035 |
| 12261B | Clip or clip (for vent hose) | 90467-23002 |
| 12262 | Ventilation hose No. 2 | 12262-47040 |
| 12262A | Clamp (for vent hose No. 2) | 90467-21004 · 96136-42201 |
| 12262B | Clamp (for ventilation hose) | 16581-47070 |
| 12262C | Ventilation hose clamp No. 2 | 12251-47030 |
