Toyota COROLLA Engine Mounting — Figure 1107

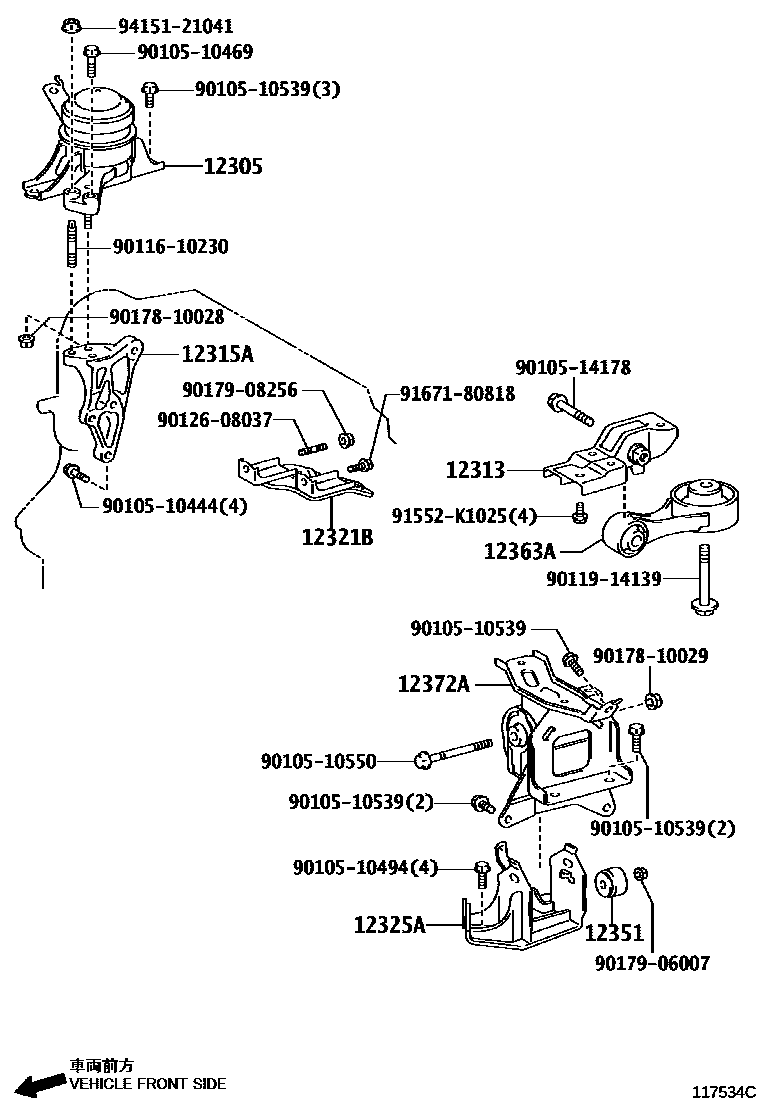

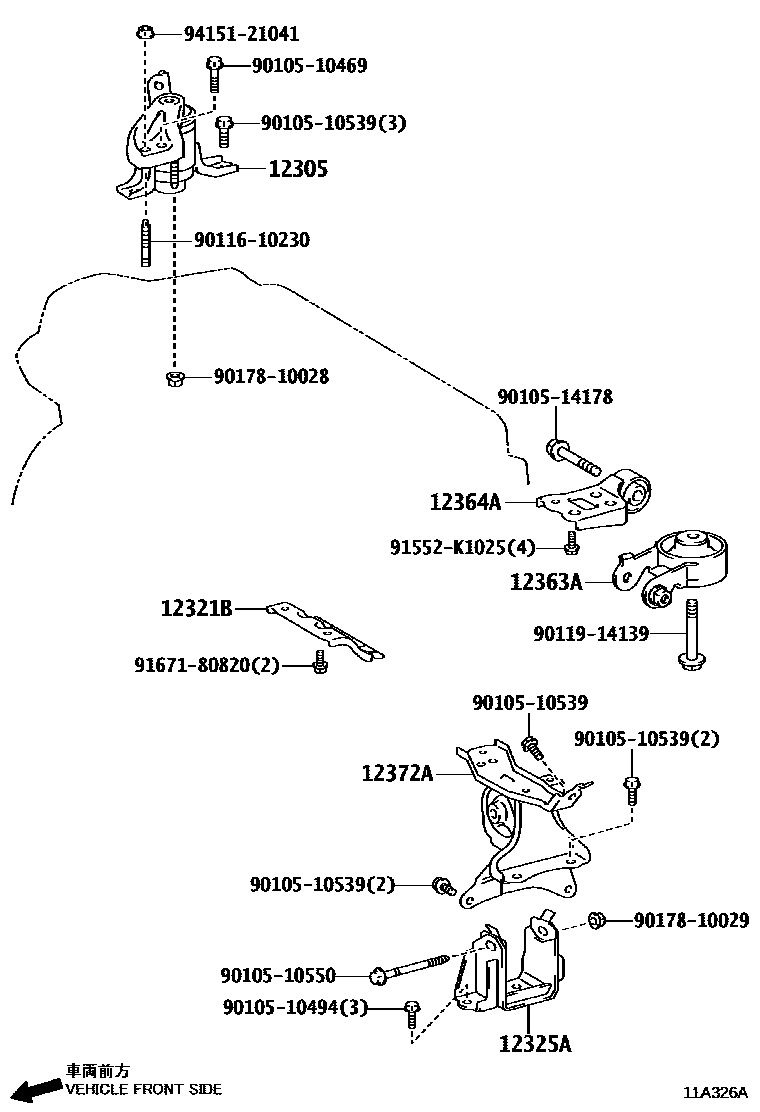

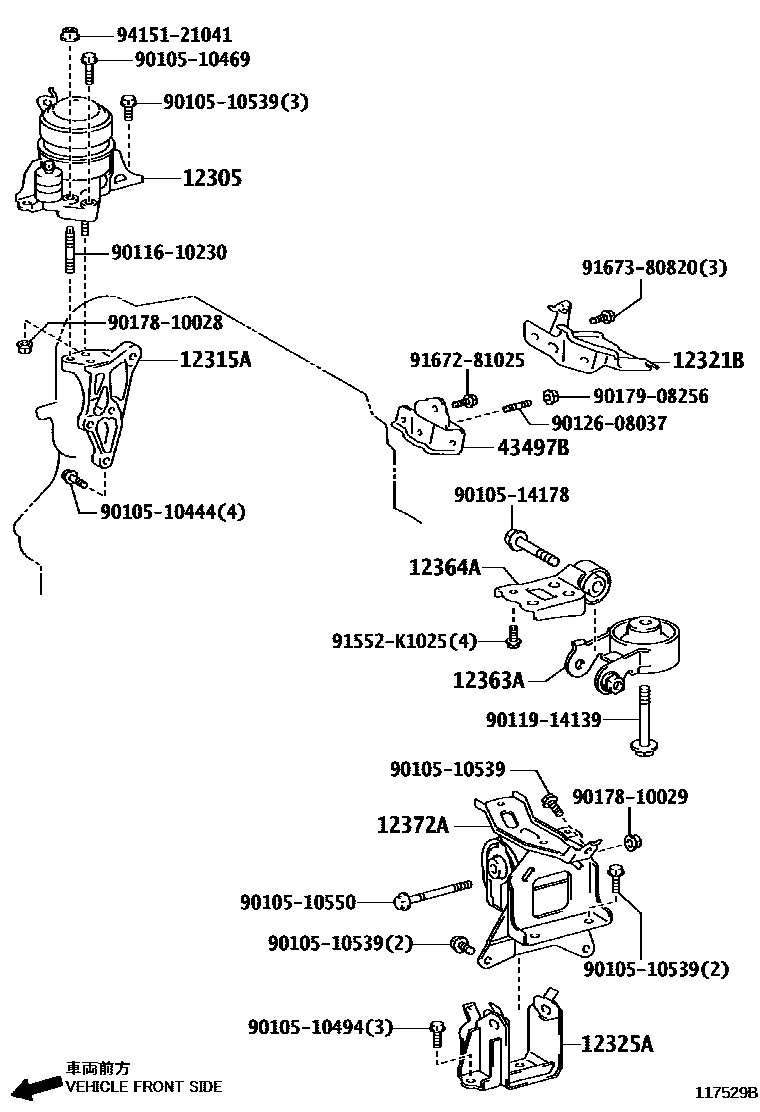

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21200 · 12305-21520 · 12305-47041 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-21040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21044 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12080 · 43409-52020 · 43498-12070 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21170 · 12325-21230 · 12325-47130 |
| 12351 | engine mount shock absorber | 12351-21090 |
| 12363A | Engine movement control lever | 12363-21040 · 12363-21150 · 12363-21151 |
| 12364A | Engine lateral control lever | 12364-21110 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21310 · 12372-21320 · 12372-47160 |
| 43497B | Driveshaft insulation pad bracket | 43497-12030 |
