Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 4 PNC and OE references.

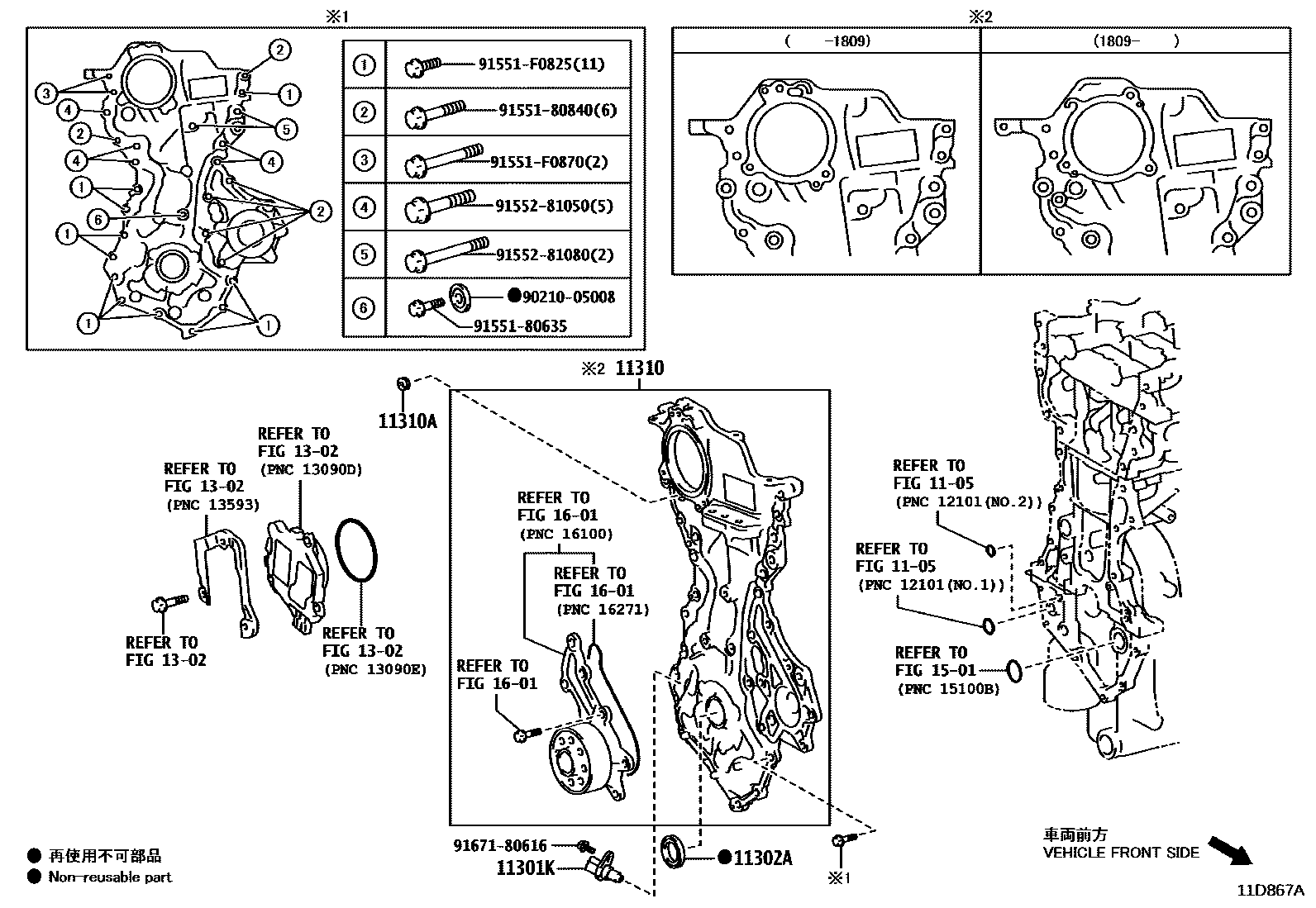

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D867A
Timing Gear Cover & Rear End Plate — 11D867A (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05079
11302AOil seal (for timing chain or timing belt cover)90311-36007
11310Timing chain cover assembly11310-47090 · 11310-47091 · 11310-47100
11310ATapered thread plug (for timing chain cover)90344-53006 · 90344-53008
