Toyota COROLLA Cylinder Block — Figure 1105

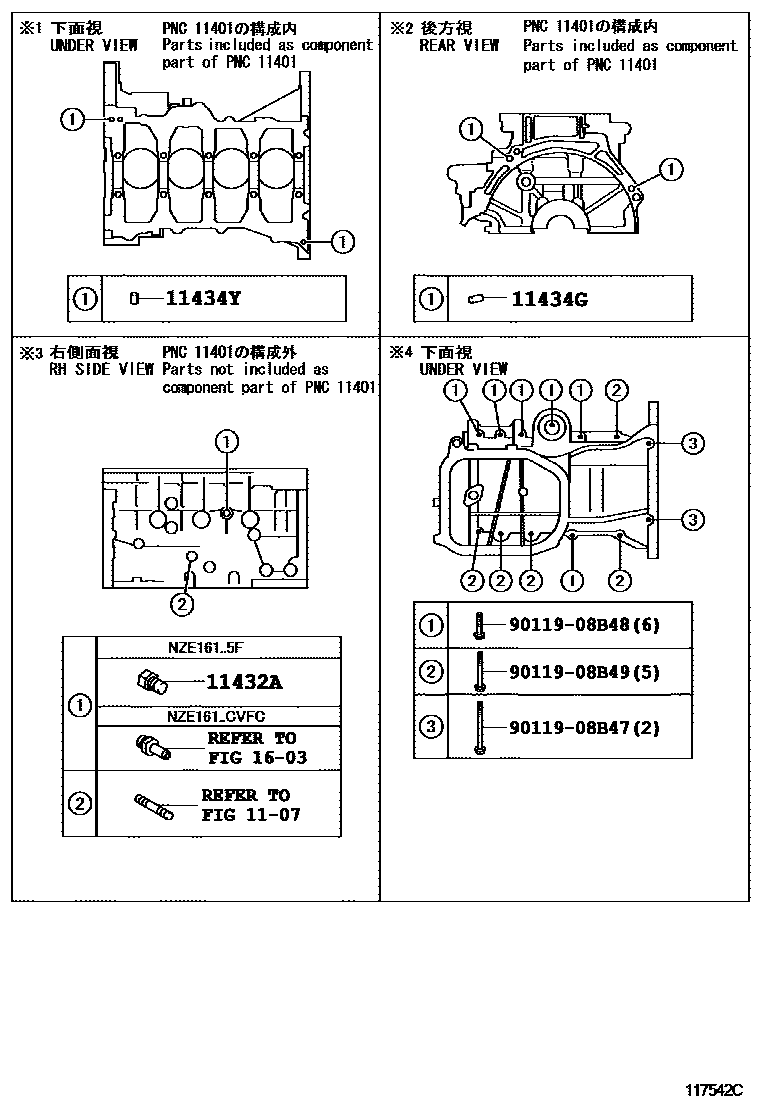

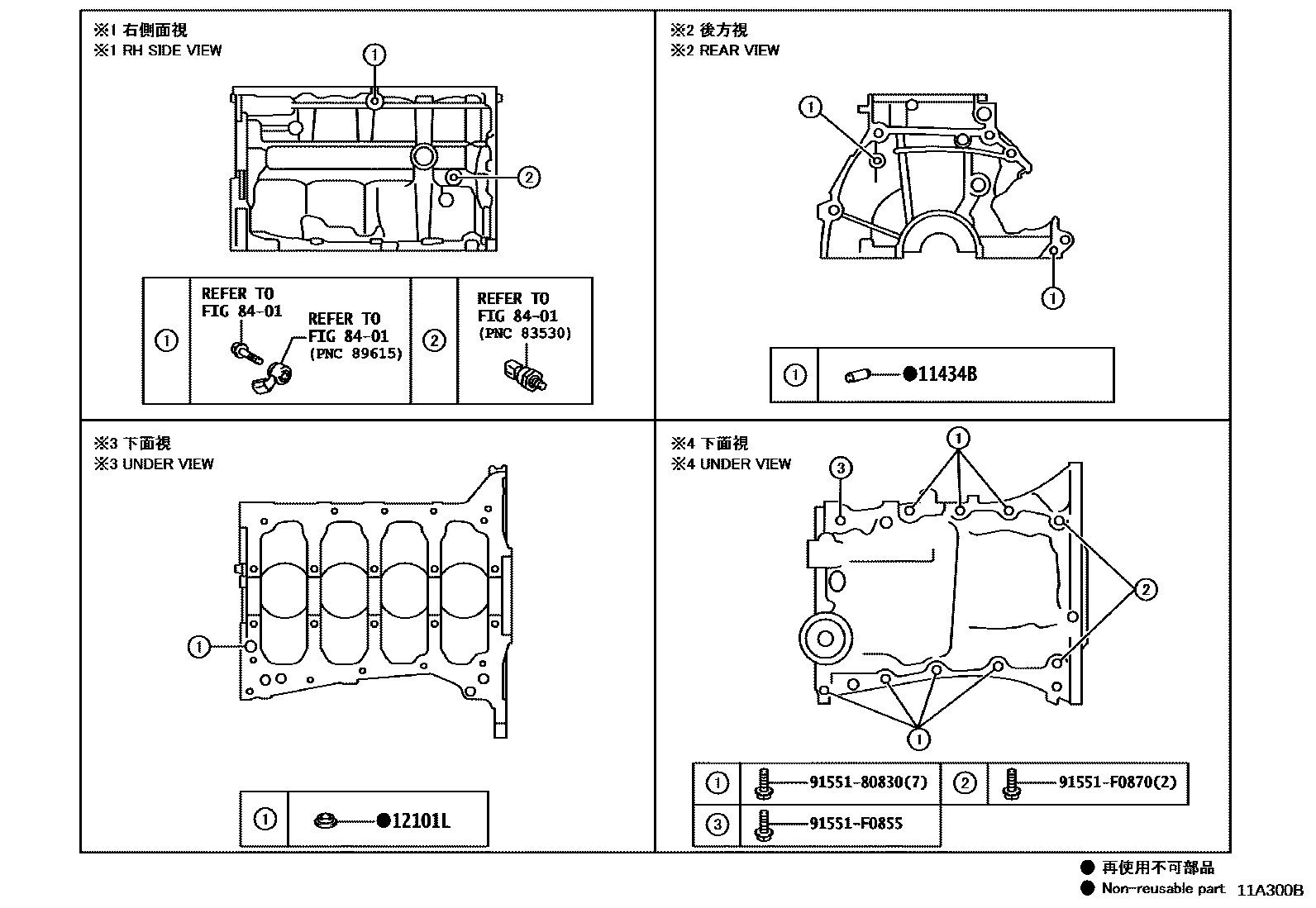

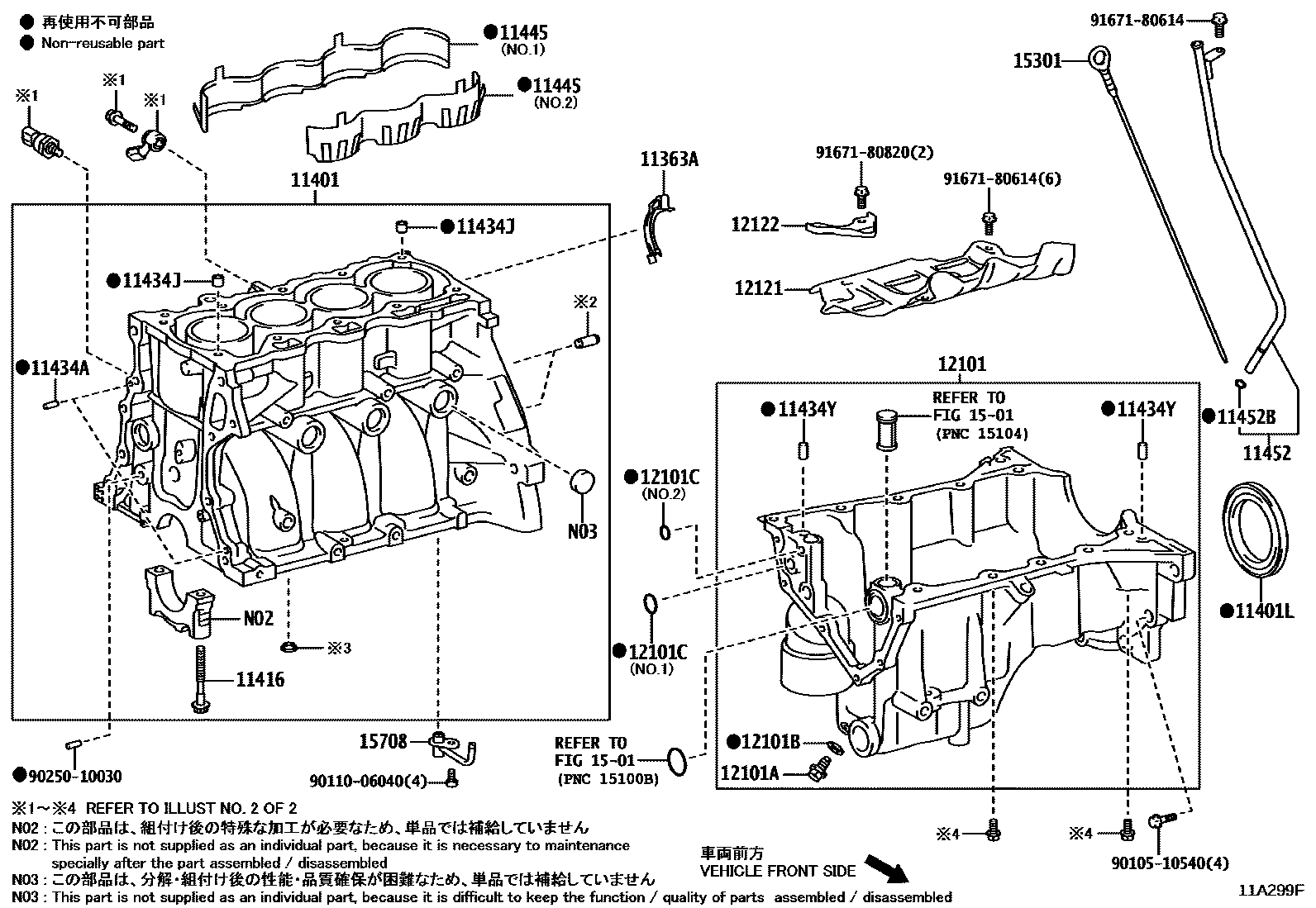

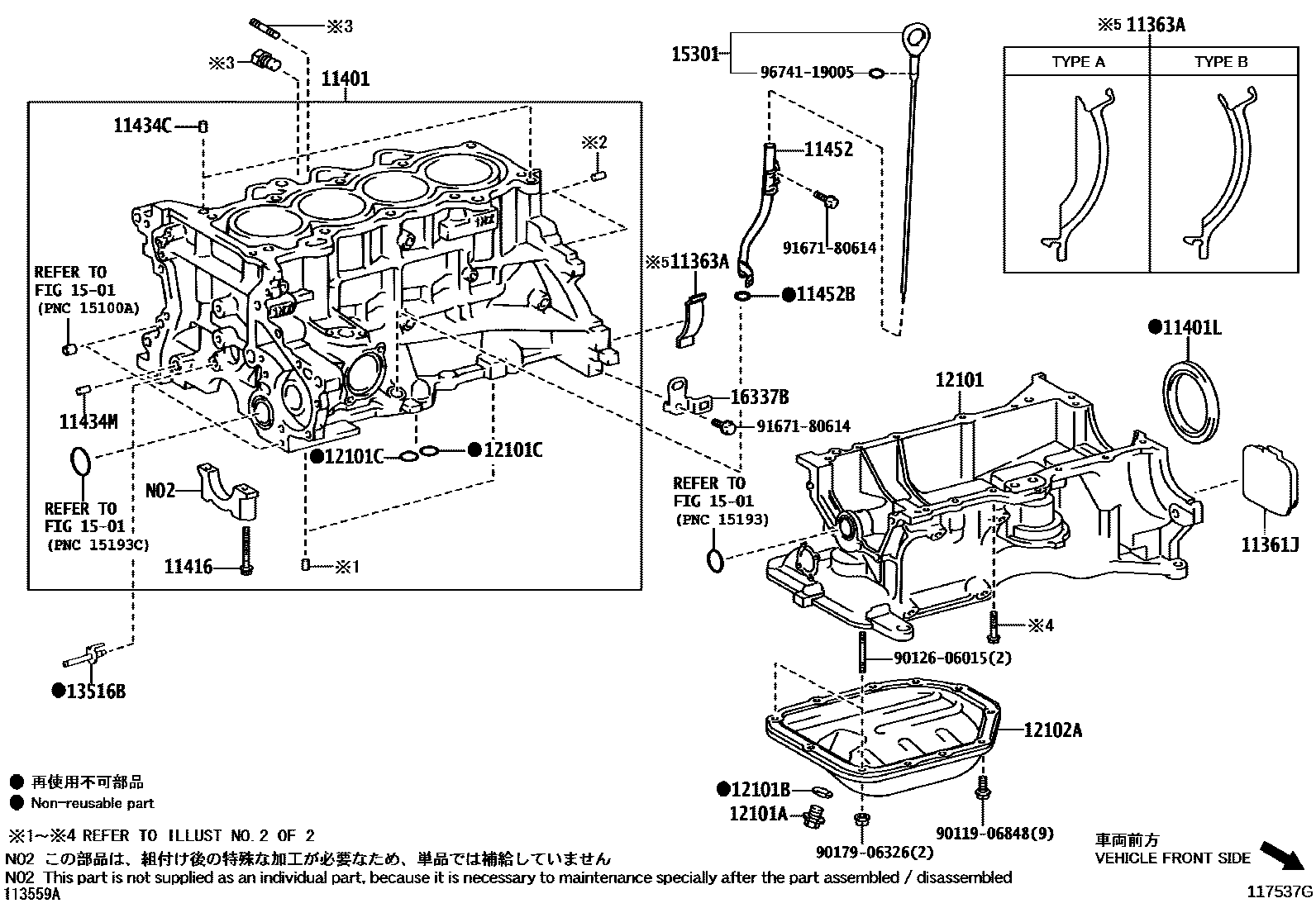

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-21010 · 11363-33010 · 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-29868 · 11401-80882 · 11410-49075 · 11410-49076 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75019 · 90311-75022 · 90311-78004 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02125 · 90910-02175 · 90910-02207 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11445 | Cylinder block water jacket spacer | 11445-47020 · 11445-47030 |
| 11452 | Engine oil level gauge guide | 11409-47012 · 11452-21030 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-47160 · 12111-21033 · 12111-21080 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-09031 · 90301-19023 · 96722-24020 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 |
| 12102A | No. 2 oil pan sub-assembly | 12102-21010 |
| 12121 | No. 1 oil pan baffle | 12121-47030 |
| 12122 | No. 2 oil pan baffle | 12122-47010 |
| 13516B | oil nozzle | 13516-21010 · 13516-21011 |
| 15301 | Engine oil level scoring assembly | 15301-21060 · 15301-21061 · 15301-21062 · 15301-47080 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-47080 · 15708-47081 |
| 16337B | No. 1 water outlet stay | 16337-21010 |
