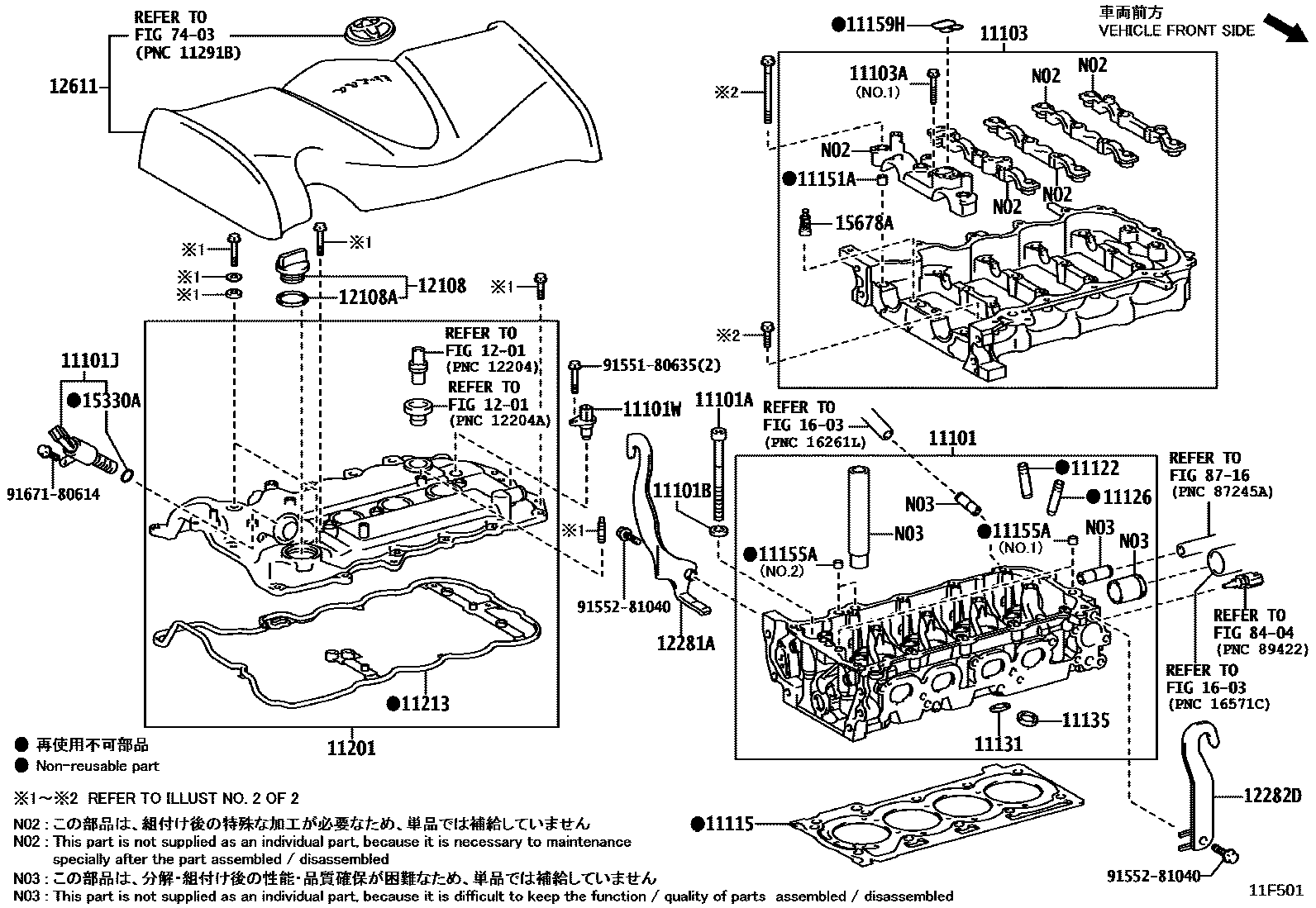

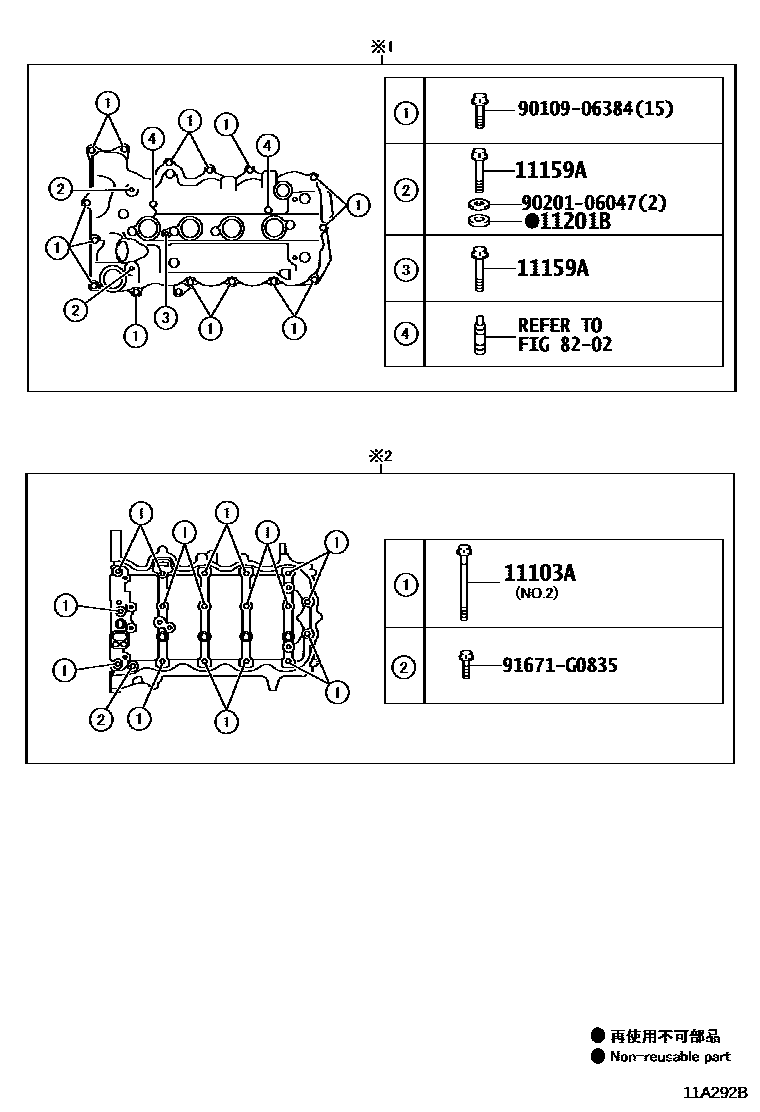

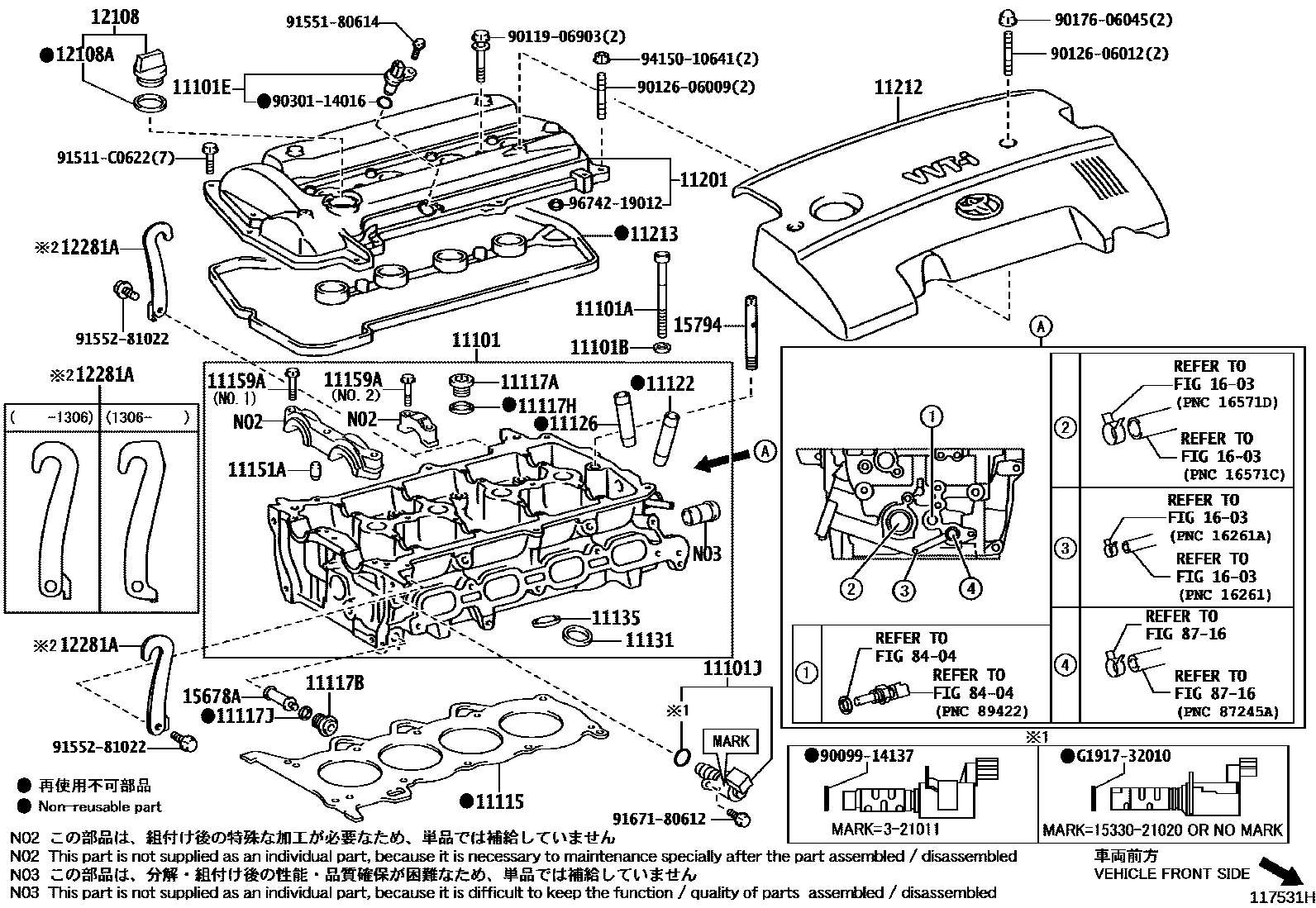

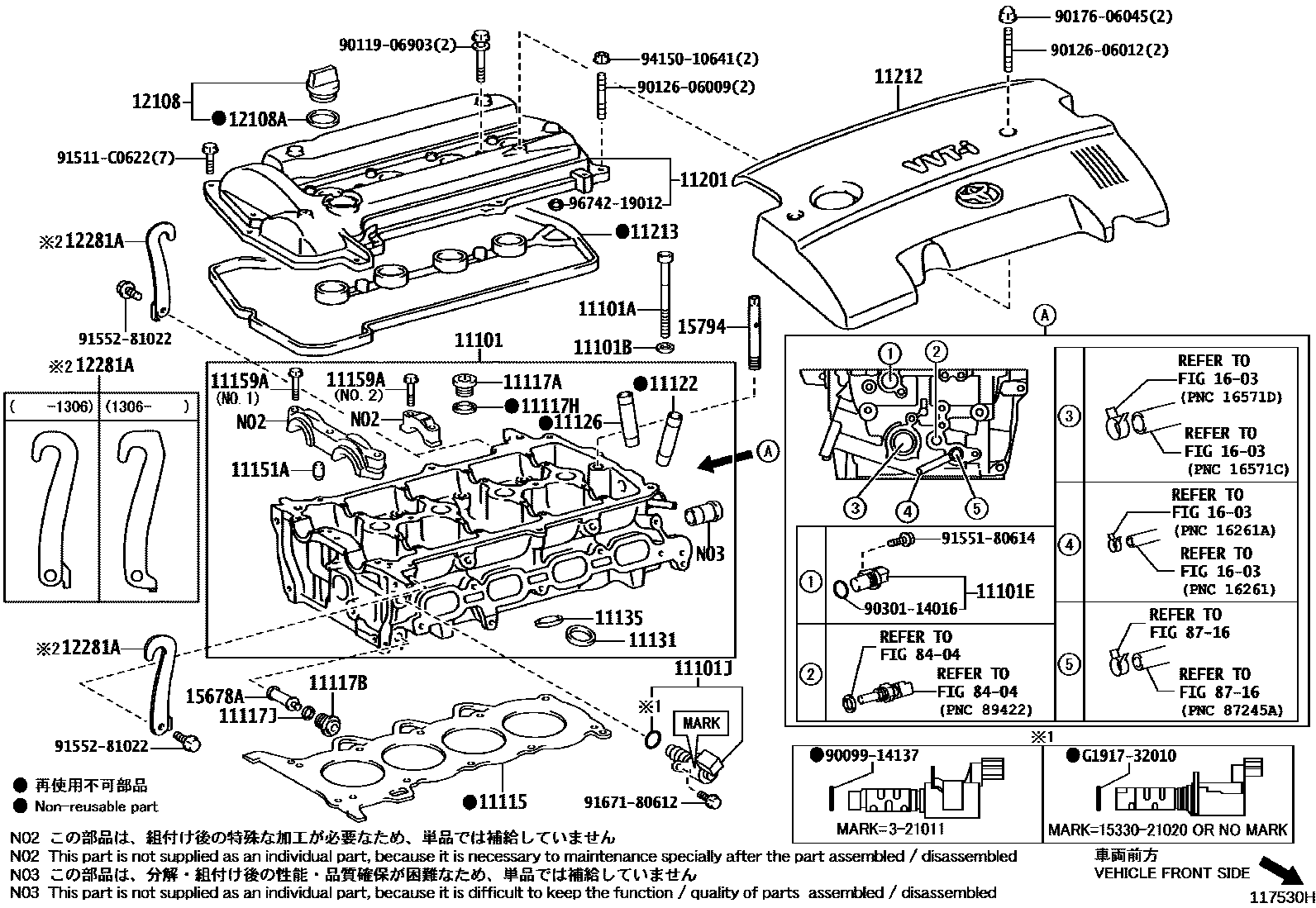

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-21051 · 11101-21052 · 11101-21090 · 11101-49506 · 11101-49507 · 11101-49508 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02170 · 90910-02174 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09024 · 90201-10344 |
| 11101E | Cam position sensor | 90919-05024 · 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-21011 · 15330-47020 |
| 11101W | No. 1 crankshaft position sensor | 90919-05060 |
| 11103 | Camshaft housing sub-assembly | 11103-47902 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90119-07009 |
| 11115 | GASKET, CYLINDER HEAD | 11115-21090 · 11115-21091 · 11115-47080 |
| 11117A | No. 1 headed tapered thread plug | 90341-24011 · 90341-24013 |
| 11117B | No. 2 headed tapered thread plug | 90341-14013 |
| 11117H | Gasket (for coolant hole) | 90430-24246 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-14009 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31041 · 11122-47020 · 11122-75020 · 11123-31041 · 11123-47020 · 11123-75020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47020 · 11122-75020 · 11123-31041 · 11123-47020 · 11123-75020 |
| 11131 | intake valve seat | 11131-21020 · 11131-21021 · 11131-21060 · 11131-47010 · 11132-21020 · 11132-21021 · 11132-21060 · 11132-47010 |
| 11135 | Exhaust valve seat | 11135-21020 · 11135-47010 · 11135-47040 · 11136-21020 · 11136-47010 · 11136-47040 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90250-06001 · 90253-13005 |
| 11155A | PIN, RING W/HEAD | 90253-11004 · 90253-12002 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-06360 · 90105-T0347 · 90109-06080 · 90119-08A29 · 91551-80635 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-47020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-21070 · 11201-21090 · 11201-47150 |
| 11201B | Gasket (for cylinder head cover) | 90210-12011 |
| 11212 | No. 2 cylinder head cover | 11212-21040 · 11212-21070 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-21020 · 11213-47040 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-21010 · 12281-21090 · 12281-47023 |
| 12282D | ENGINE HANGER, NO.2 | 12282-47010 |
| 12611 | Engine hood No. 1 | 12611-47080 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90099-14137 |
| 15678A | Oil control valve filter | 15678-21010 · 15678-31020 |
| 15794 | Cylinder head oil nozzle | 15794-21010 |
