Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

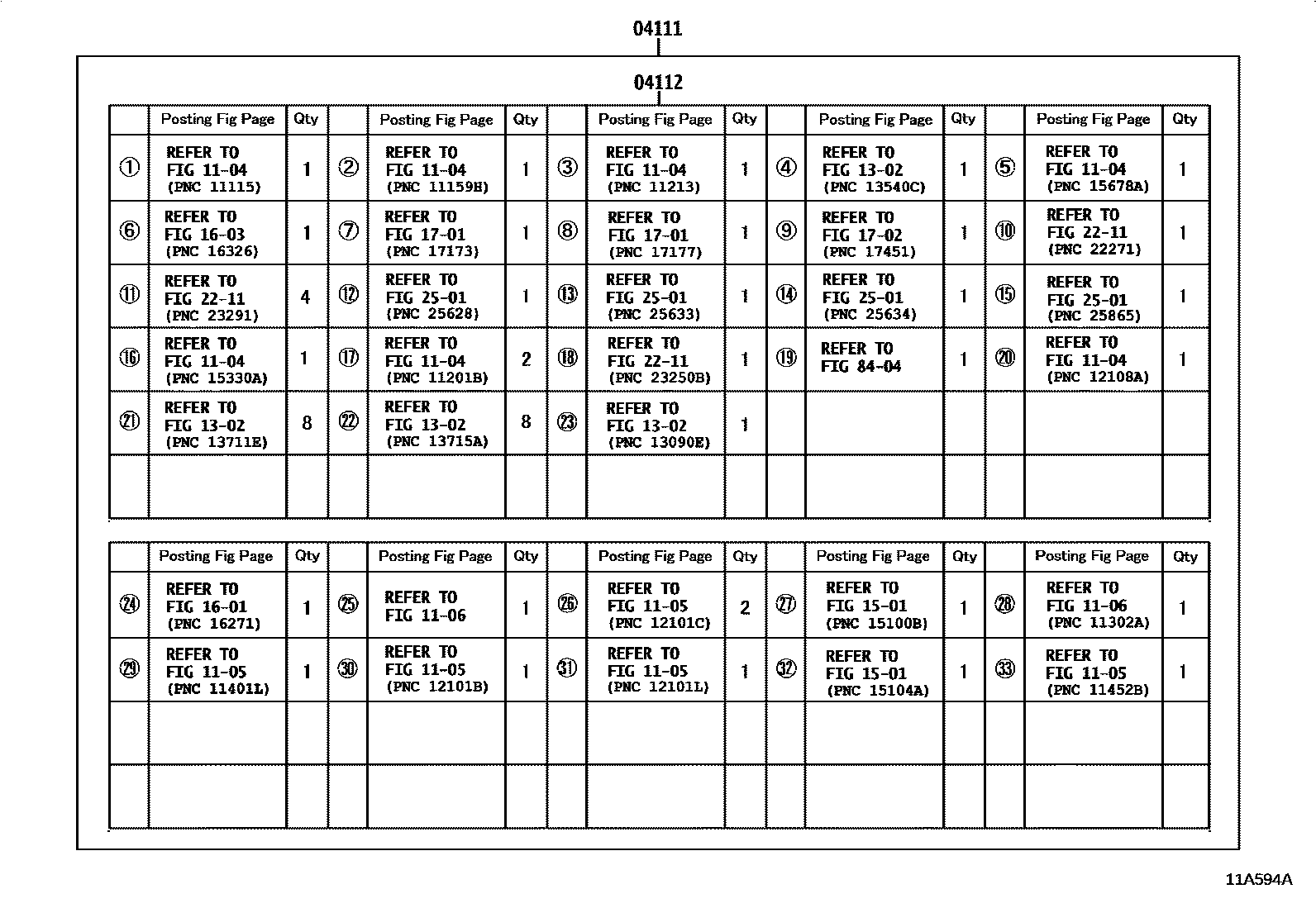

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A594A
Engine Overhaul Gasket Kit — 11A594A (201503 – 999999)

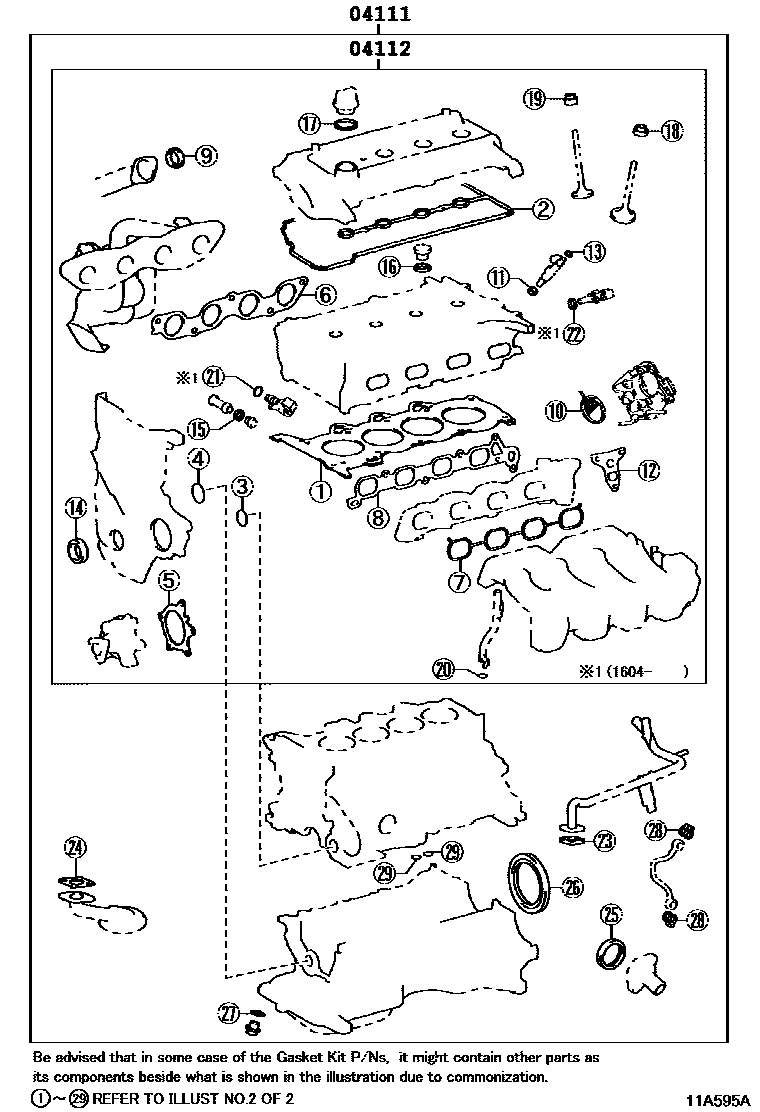

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A595A
Engine Overhaul Gasket Kit — 11A595A (201204 – 999999)

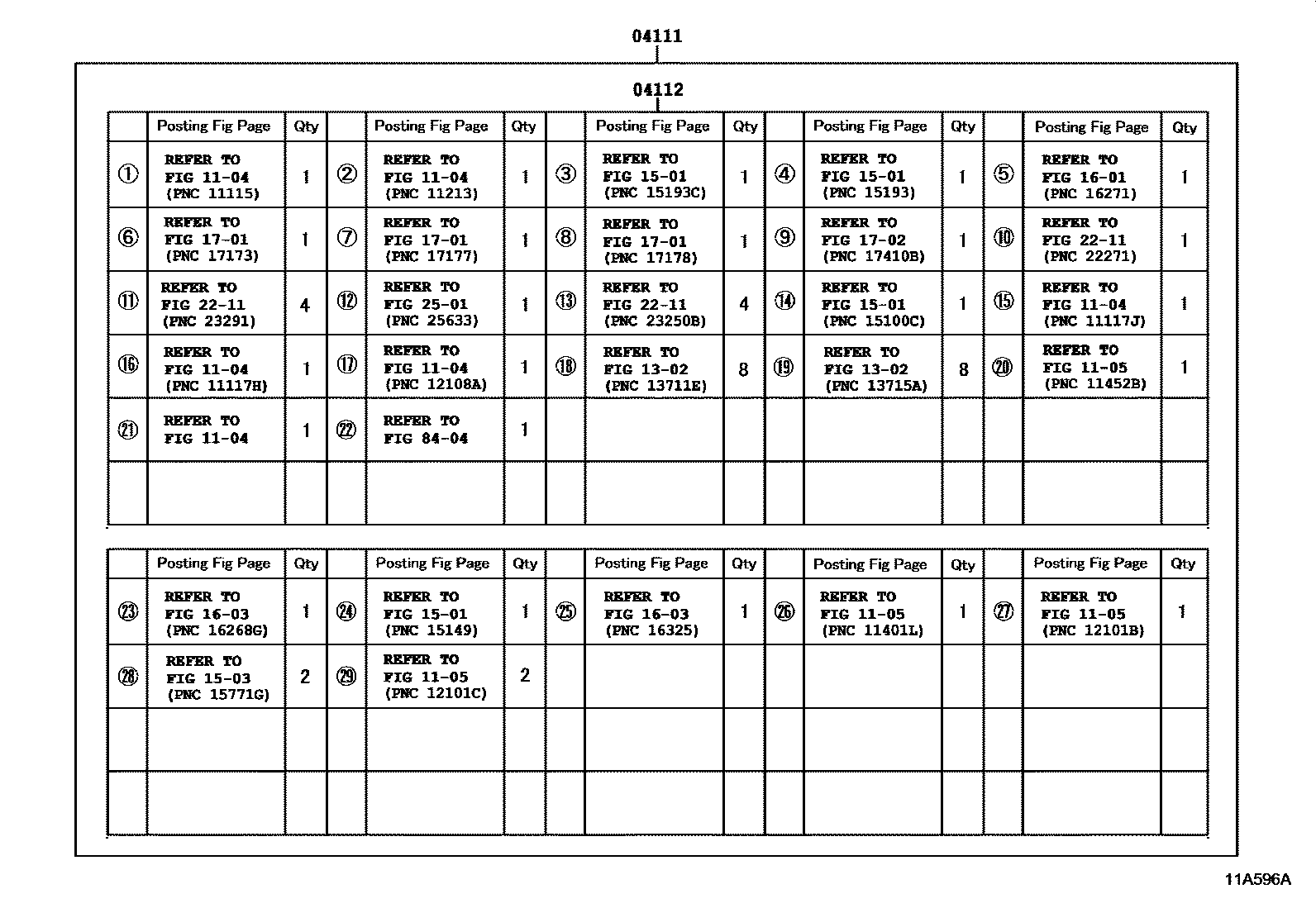

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A596A
Engine Overhaul Gasket Kit — 11A596A (201204 – 999999)

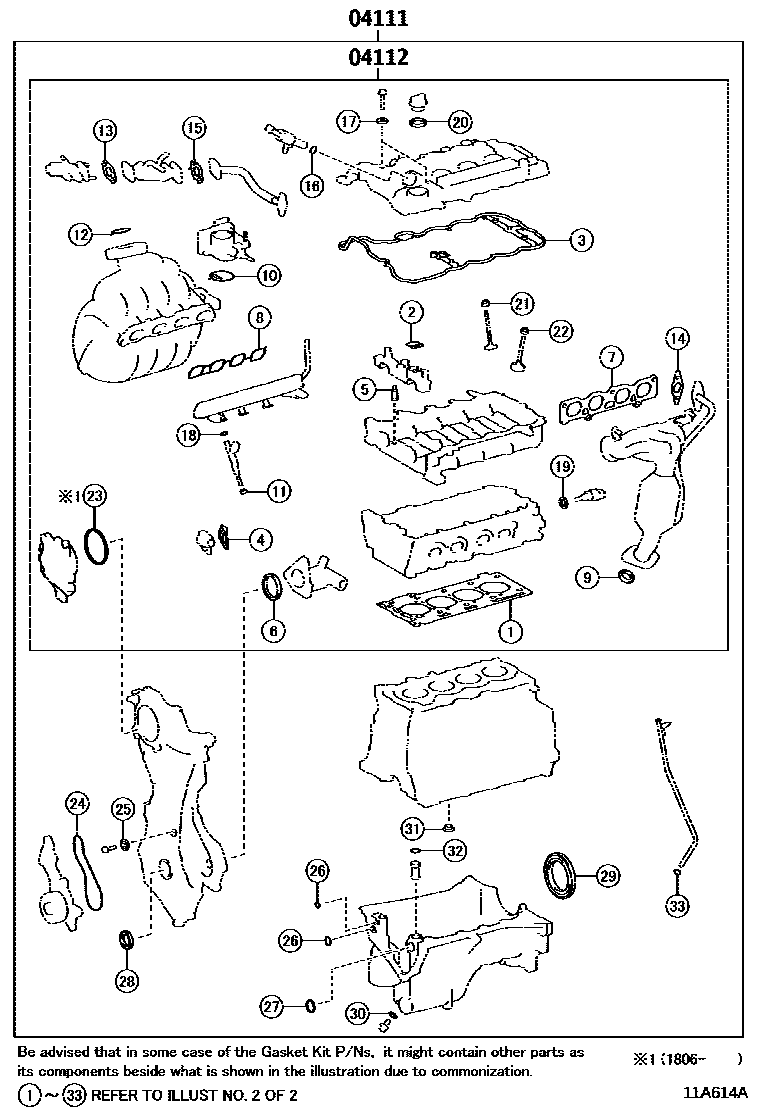

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A614A
Engine Overhaul Gasket Kit — 11A614A (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21247 · 04111-21248 · 04111-21249 · 04111-47260 · 04111-47261
04112Engine valve grinding pad assembly04112-21245 · 04112-21246 · 04112-21247 · 04112-47170 · 04112-47171
