Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

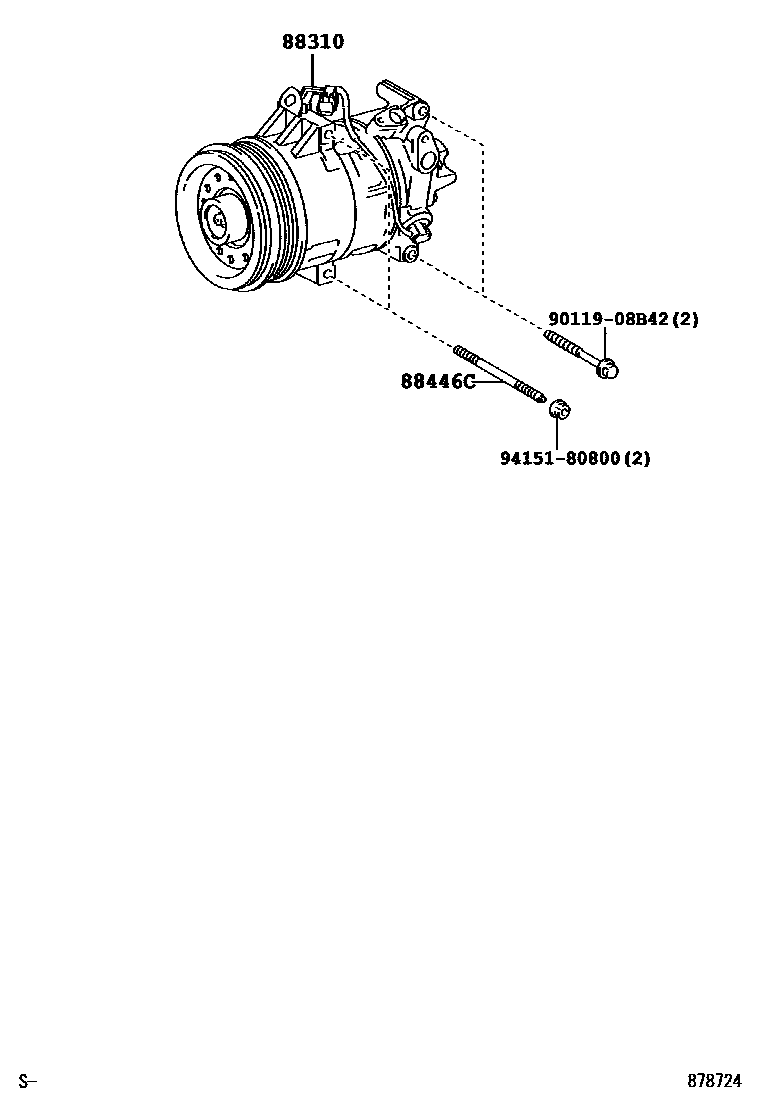

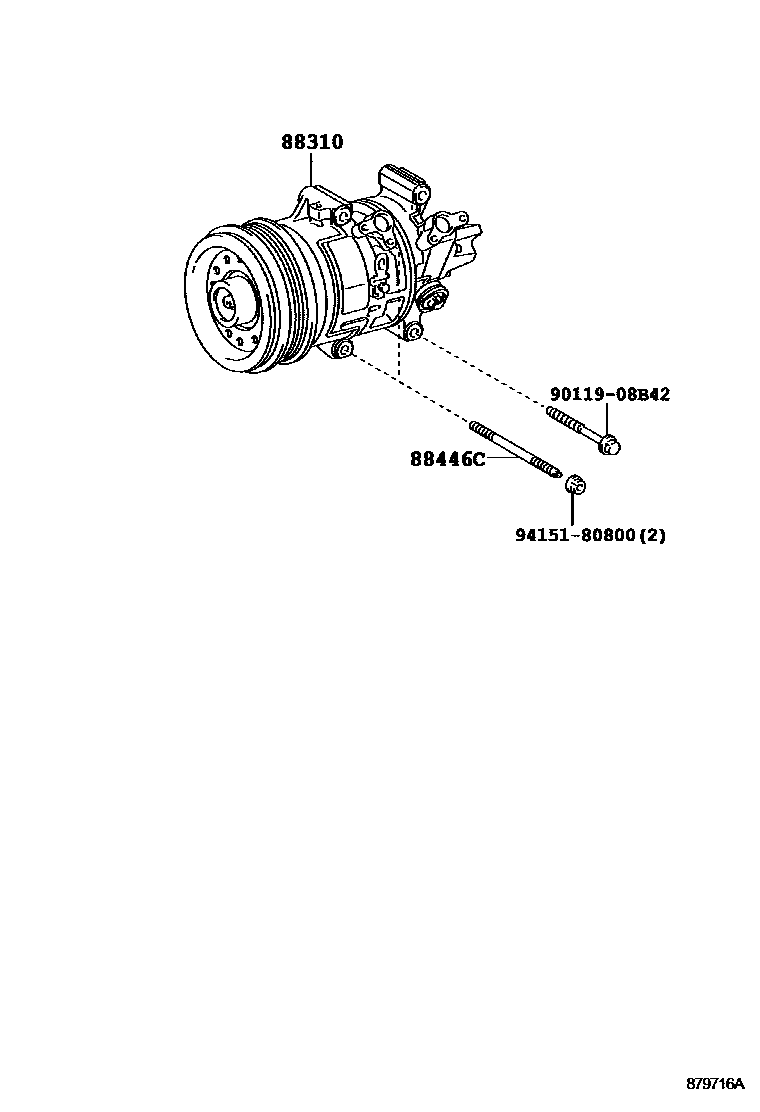

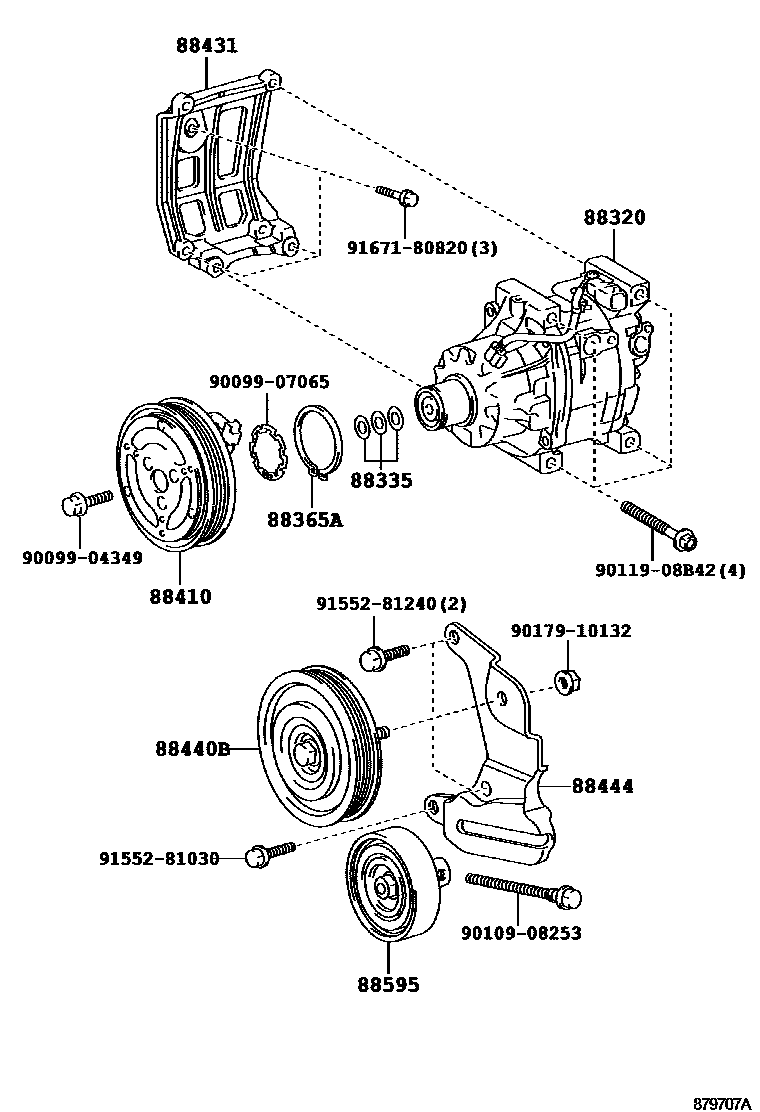

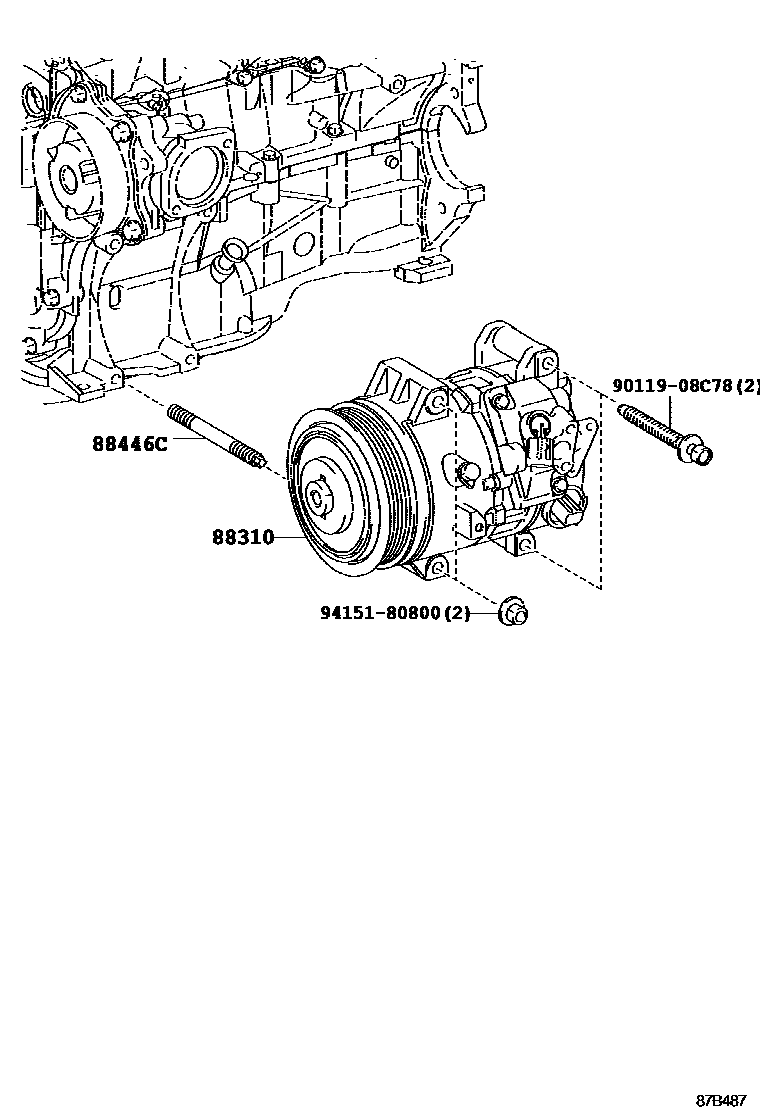

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-1A750 · 88310-1A751 · 88310-52551 · 88310-68031 · 88310-68032 |
| 88320 | Cooler Compressor Assembly | 88320-1A531 |
| 88335 | Overhaul gasket assembly | 88335-14020 |
| 88365A | Snap ring (for compressor) | 88365-87201 |
| 88410 | Magnetic Clutch Assembly | 88410-1A310 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12651 |
| 88440B | Idler gear assembly | 88440-12270 |
| 88444 | Idler gear bracket | 88444-12070 |
| 88446C | Electromagnetic clutch fixing bolt | 88446-12060 · 88446-12061 · 88446-42030 |
| 88595 | Cooler compressor idler pulley | 44350-12070 |
