Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

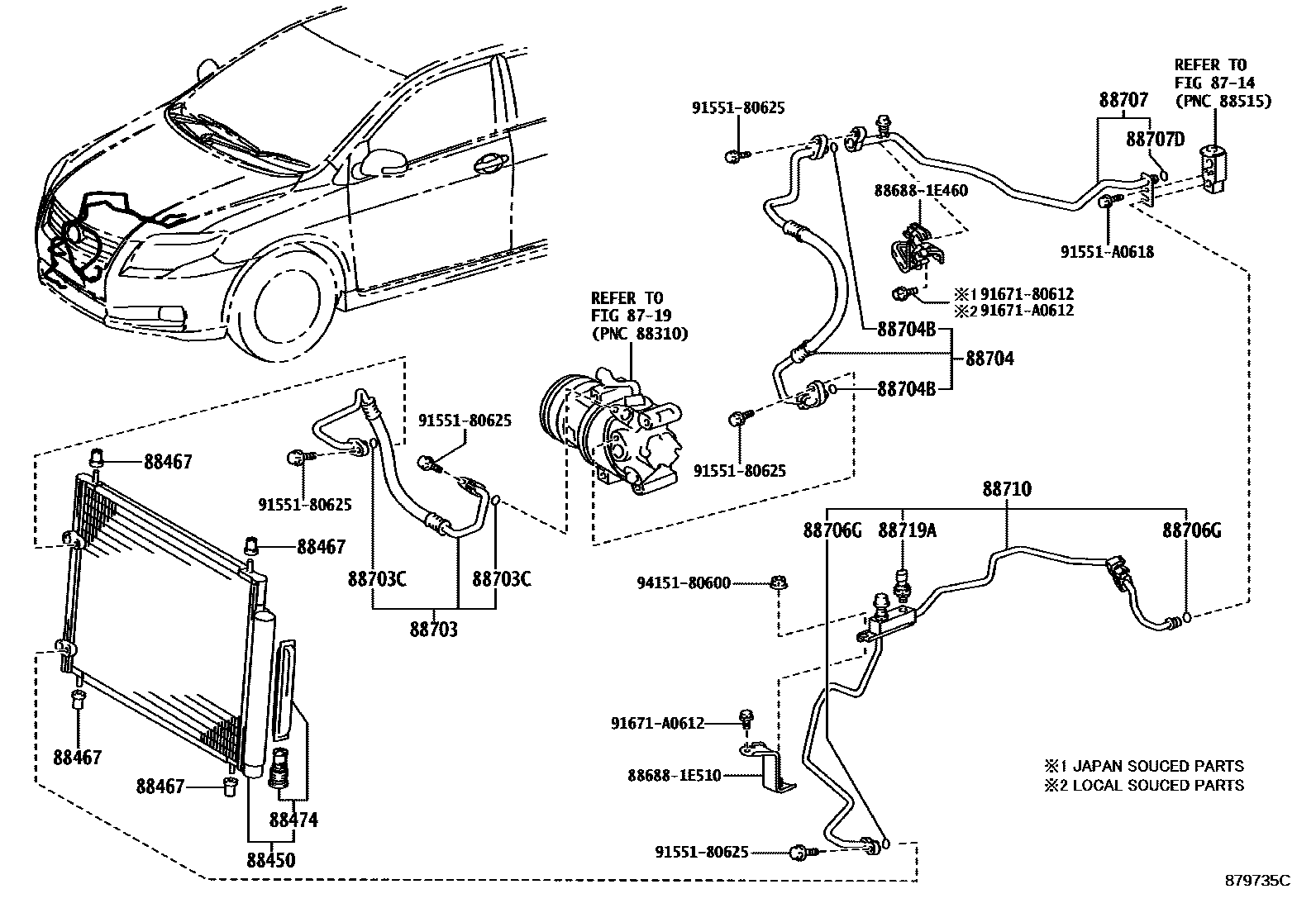

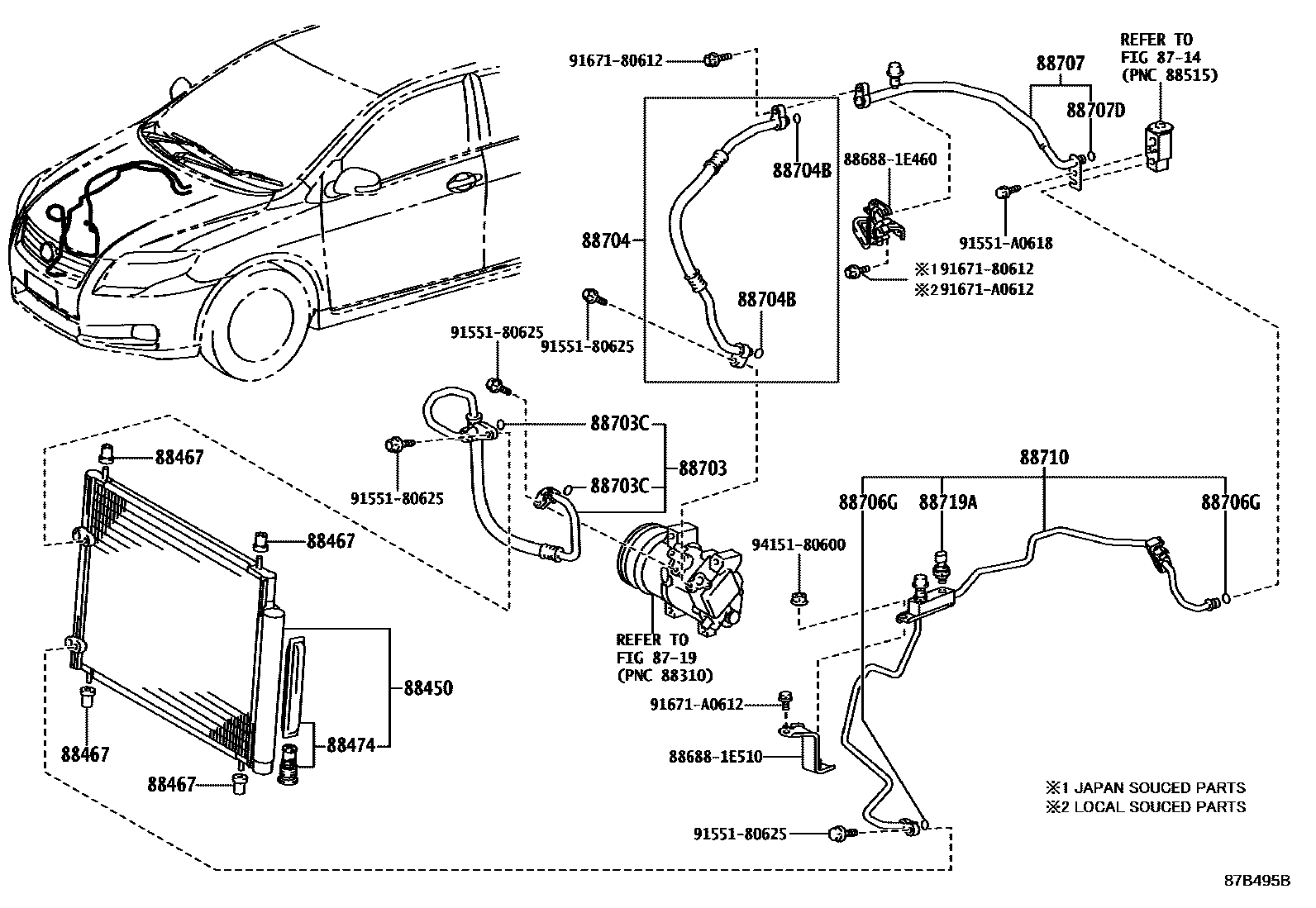

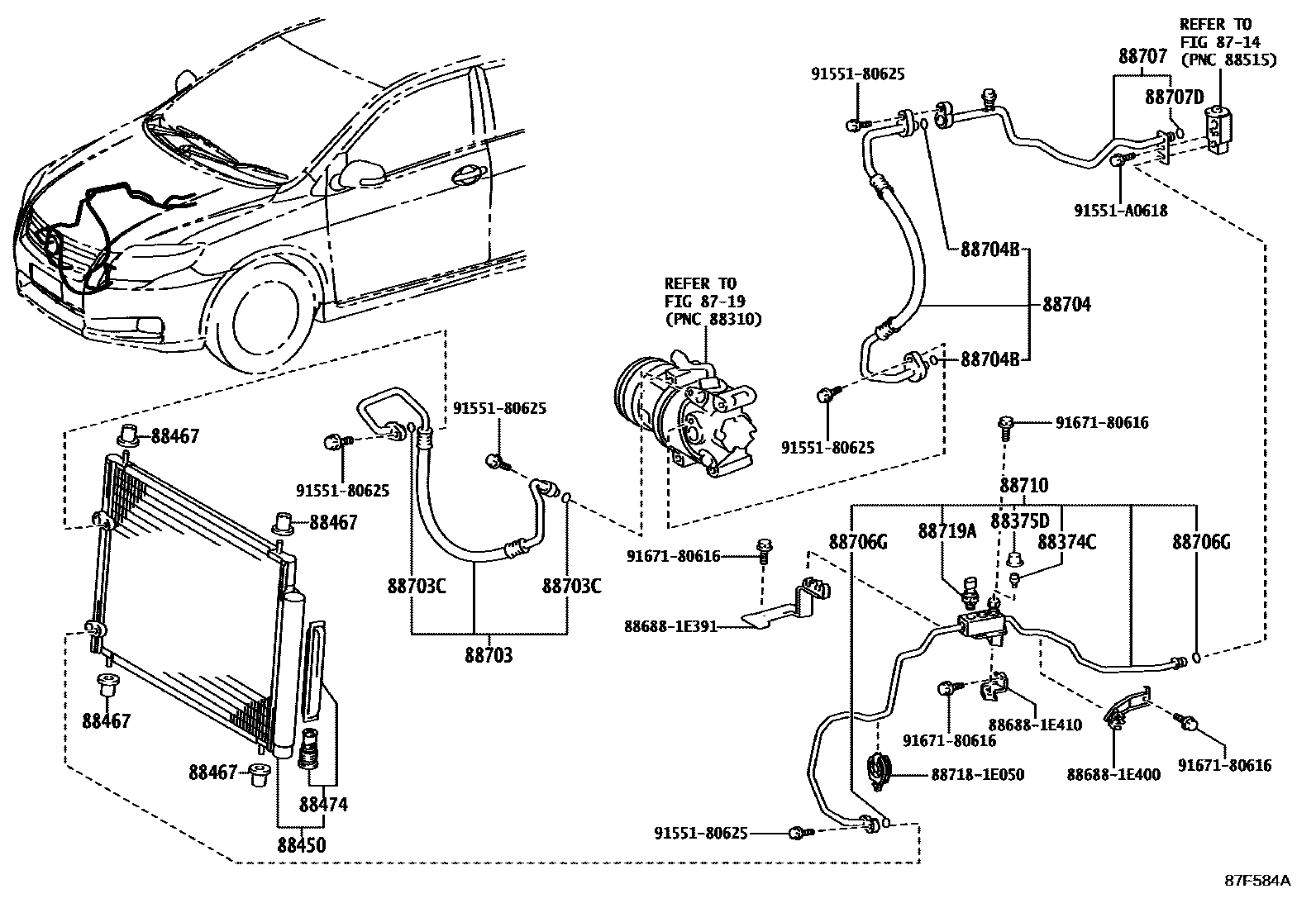

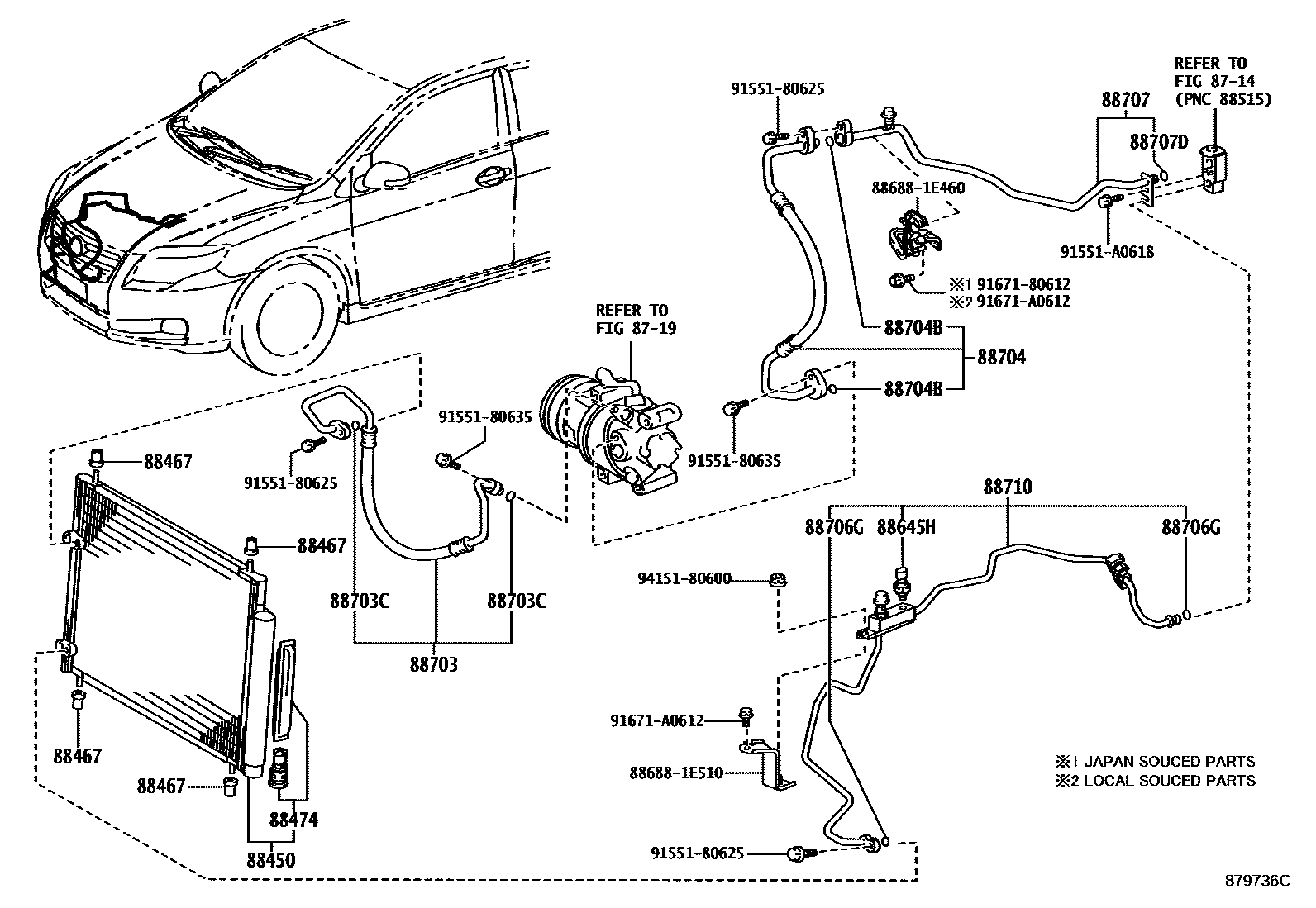

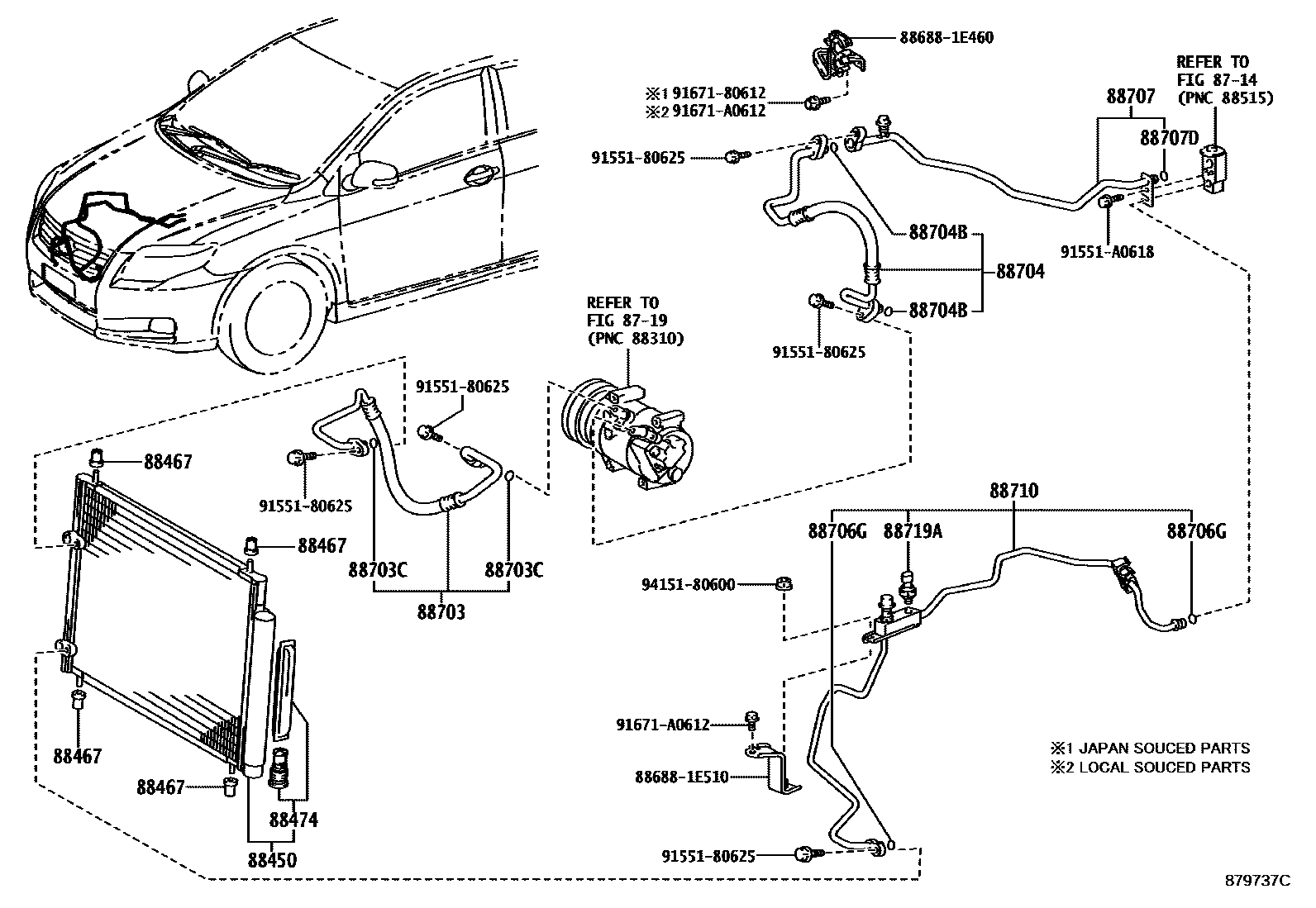

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-12280 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-12030 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88703 | Discharge hose sub-assembly | 88703-12880 · 88703-1A030 · 88703-1A031 · 88703-1A040 · 88703-1A041 · 88703-1A050 · 88703-1A051 · 88703-1A141 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-1A230 · 88704-1A270 · 88704-1A280 · 88704-1A290 · 88704-1A360 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88706G | O-ring (for liquid pipe) | 90099-14119 |
| 88707 | Suction pipe sub-assembly | 88707-12260 · 88707-12270 · 88707-12280 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710 | Air conditioning pipe assembly | 88710-12820 · 88710-12821 · 88710-12870 · 88710-12880 · 88710-12890 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
