Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

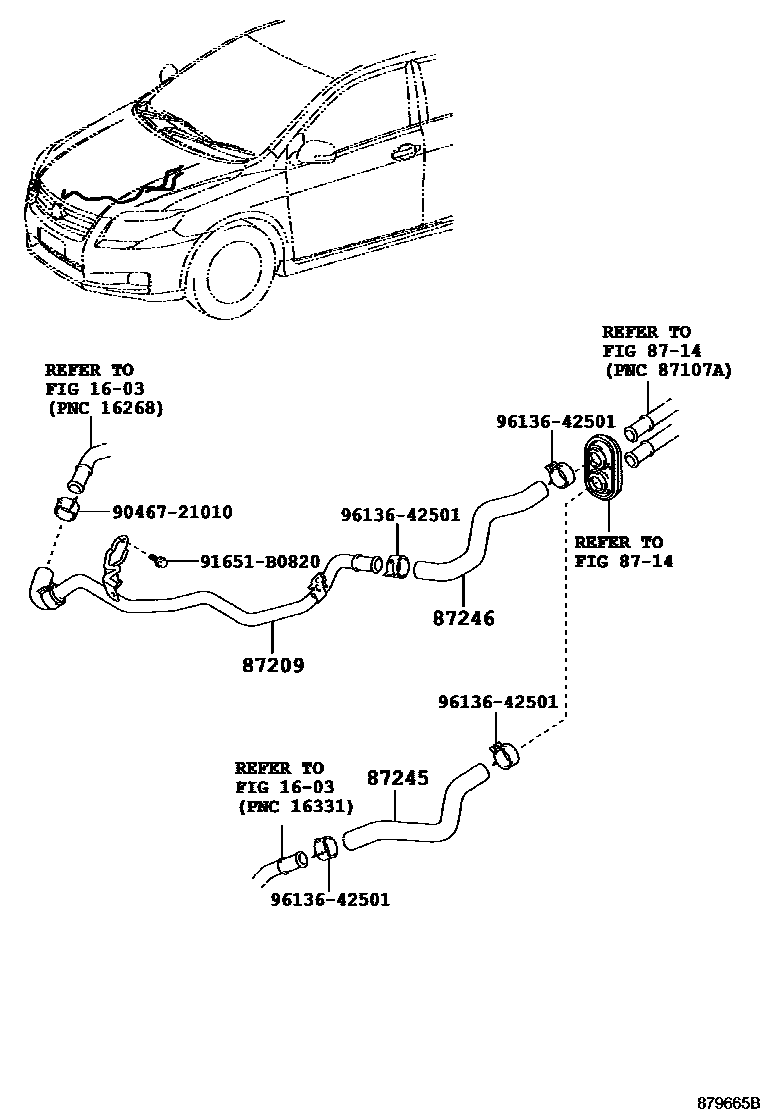

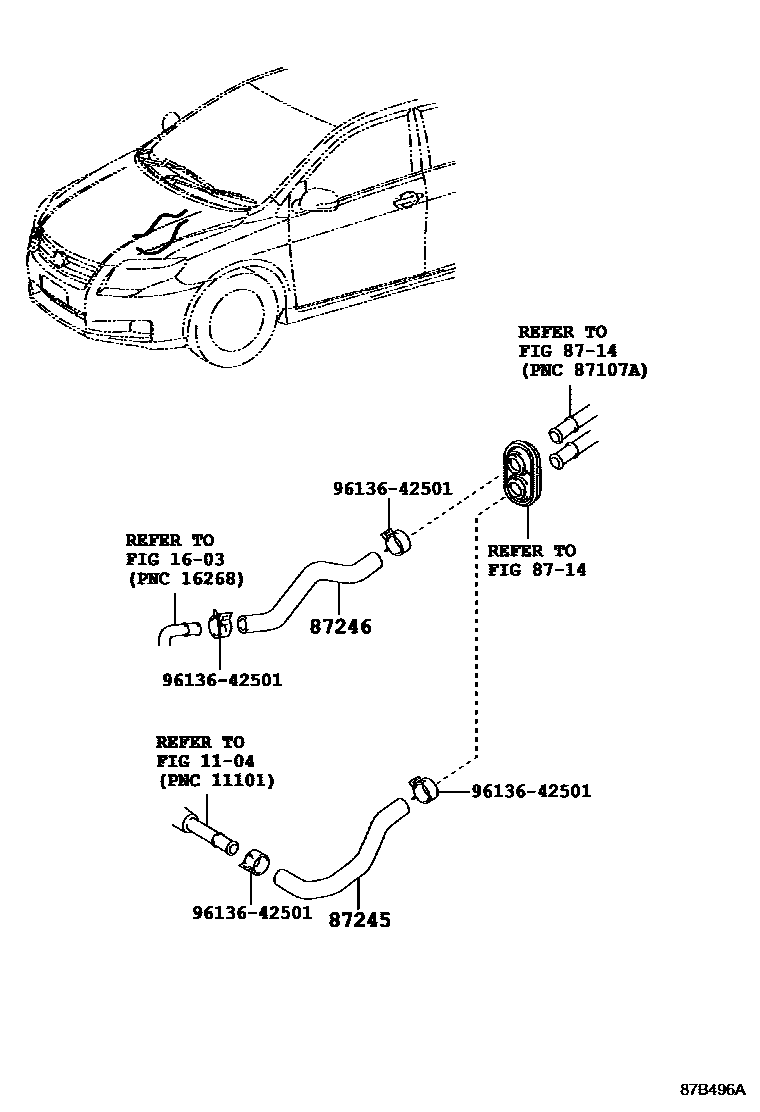

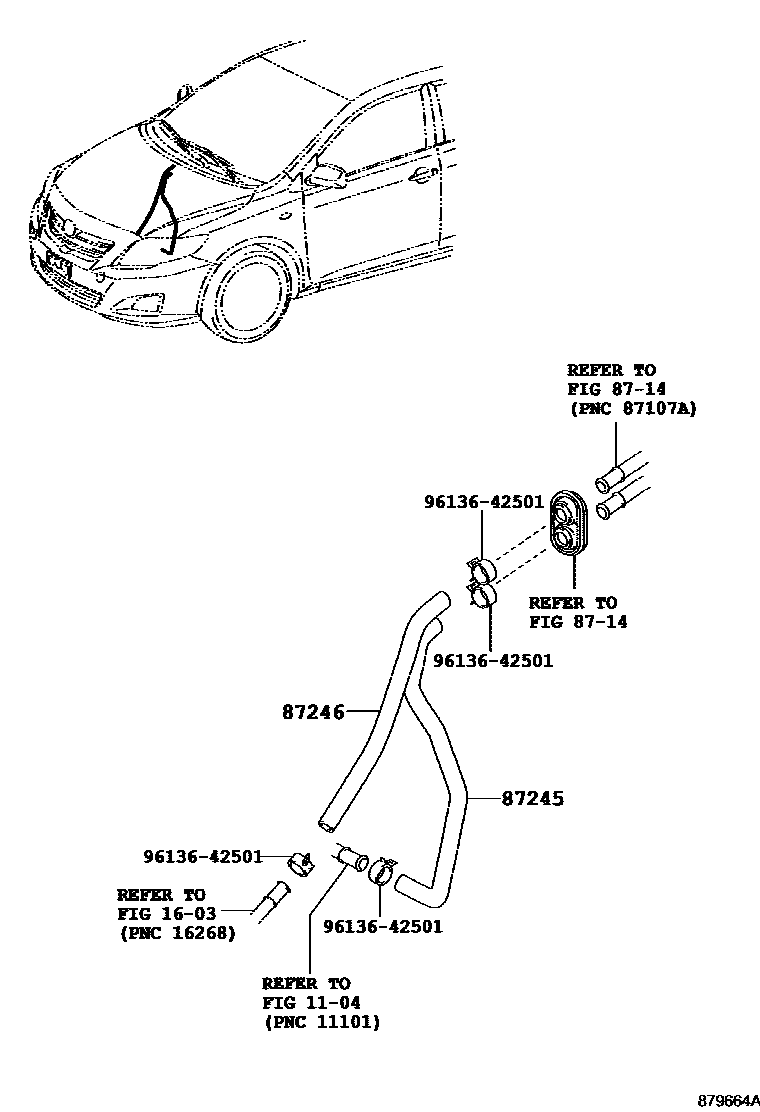

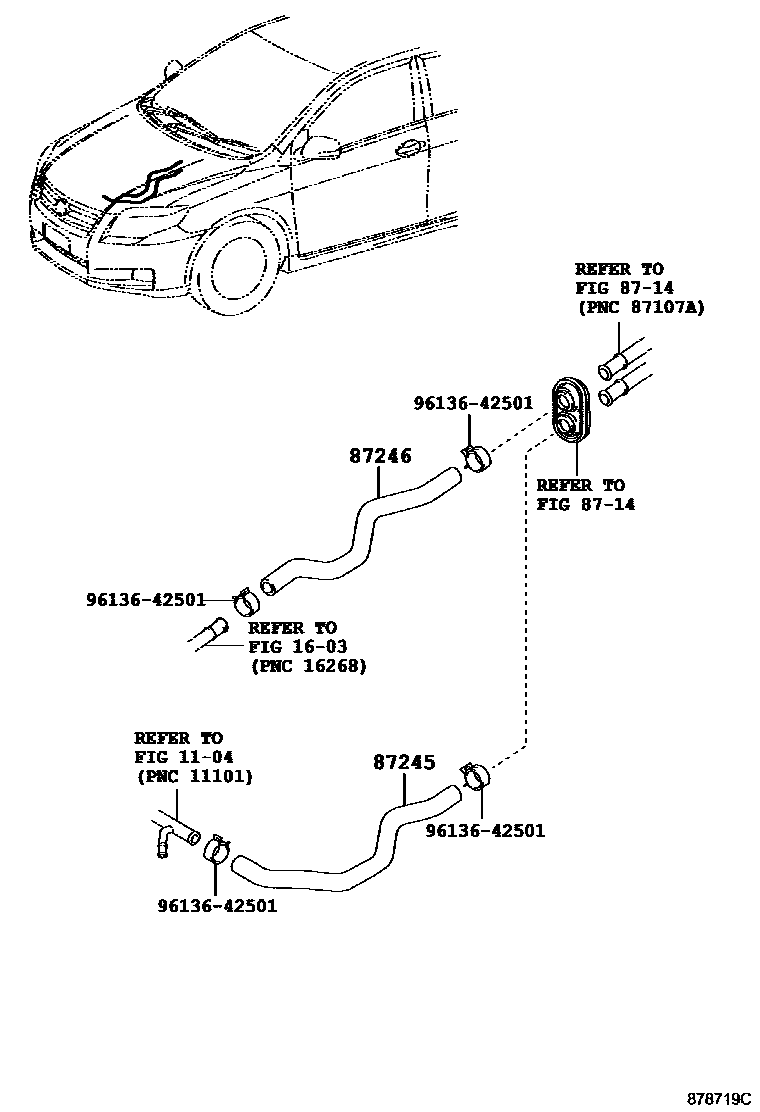

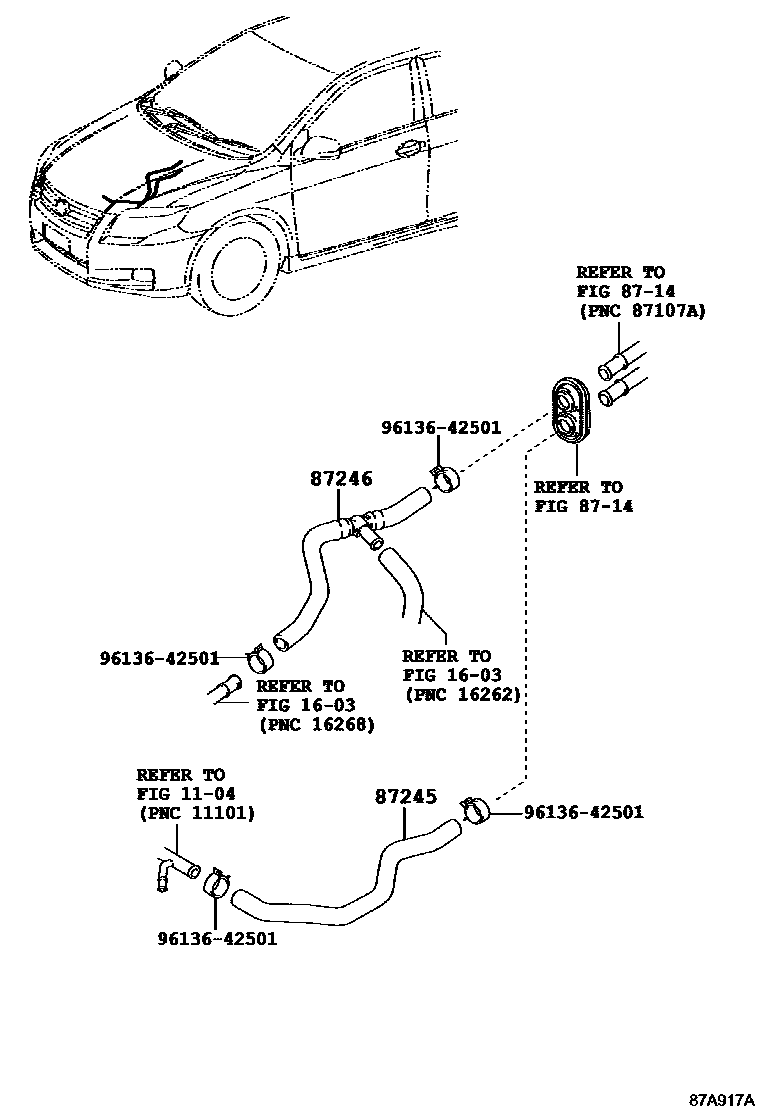

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87209 | Water hose sub-assembly | 87209-12450 |
| 87245 | Heater water inlet hose | 87245-12B80 · 87245-12D70 · 87245-12E00 · 87245-12E20 · 87245-12E40 |
| 87246 | Heater outlet hose | 87209-12560 · 87245-12C70 · 87245-12D80 · 87245-12E10 · 87245-12E30 · 87245-12E50 |
