Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

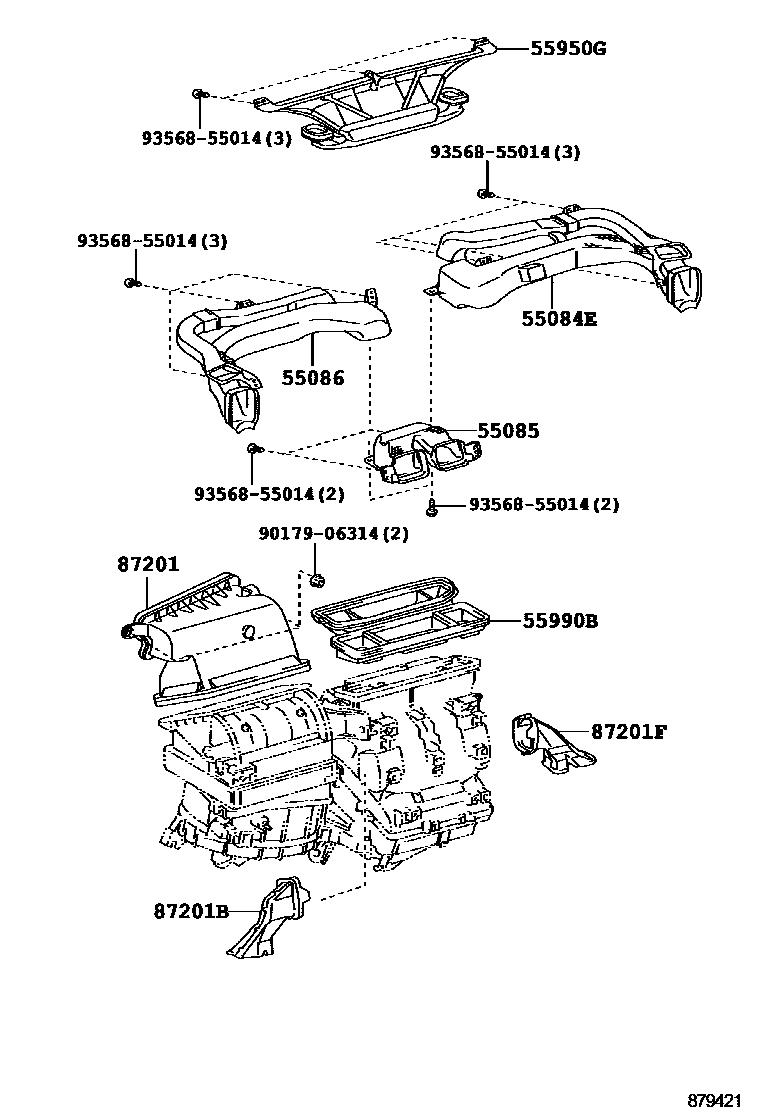

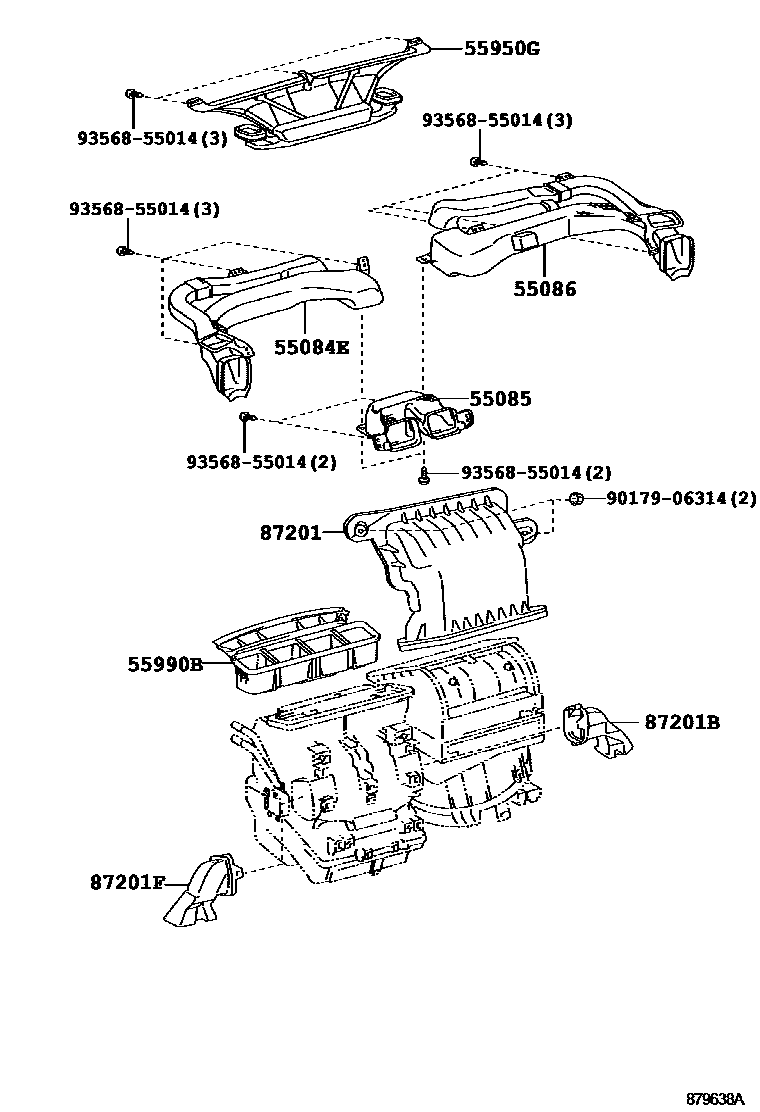

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-12130 · 55084-12140 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-12130 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-12190 · 55086-12200 · 55086-12250 |

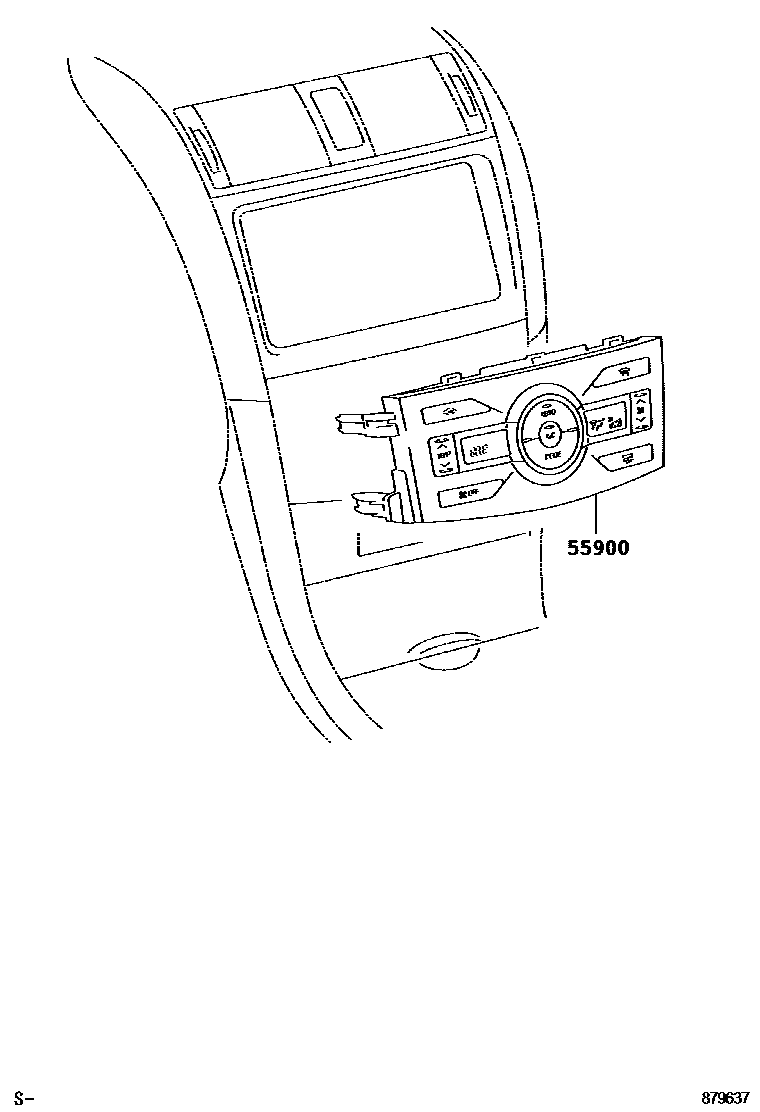

| 55900 | Air conditioning control assembly | 55900-12A60 |

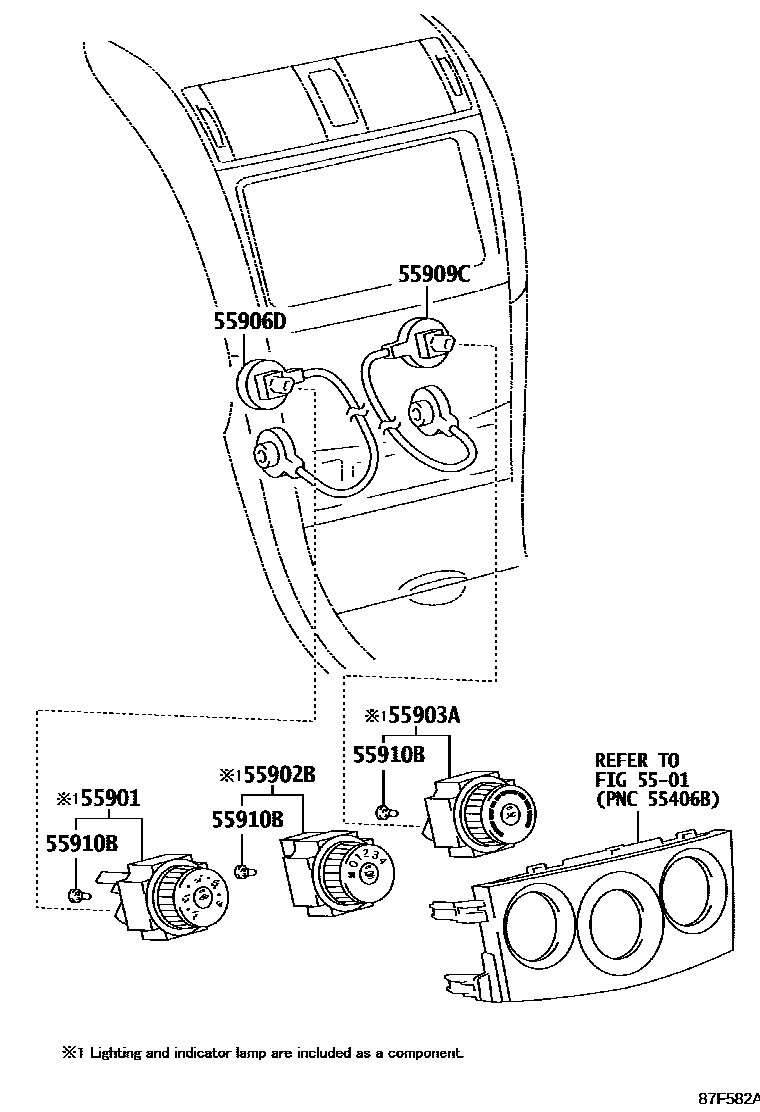

| 55901 | Heater controller base sub-assembly | 55901-12140 · 55901-12210 |
| 55902B | Heater control sub-assembly | 55902-12060 · 55902-12120 |
| 55903A | No. 3 heater control sub-assembly | 55903-12010 · 55903-12030 · 55903-12130 · 55903-12150 · 55903-12180 · 55903-12220 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-26060 |
| 55909C | Air mix damper control cable sub-assembly | 55909-26080 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-12280 |
| 55990B | Lower defroster nozzle assembly | 55990-12080 |
| 87201 | No. 1 air duct sub-assembly | 87220-12030 · 87220-12040 |
| 87201B | No. 2 air duct sub-assembly | 87211-12330 · 87211-12350 |
| 87201F | No. 3 air duct sub-assembly | 87211-12320 · 87211-12321 · 87211-12340 · 87211-12440 |
| 88505 | Air conditioning duct sub-assembly | 88505-12010 · 88505-12020 |

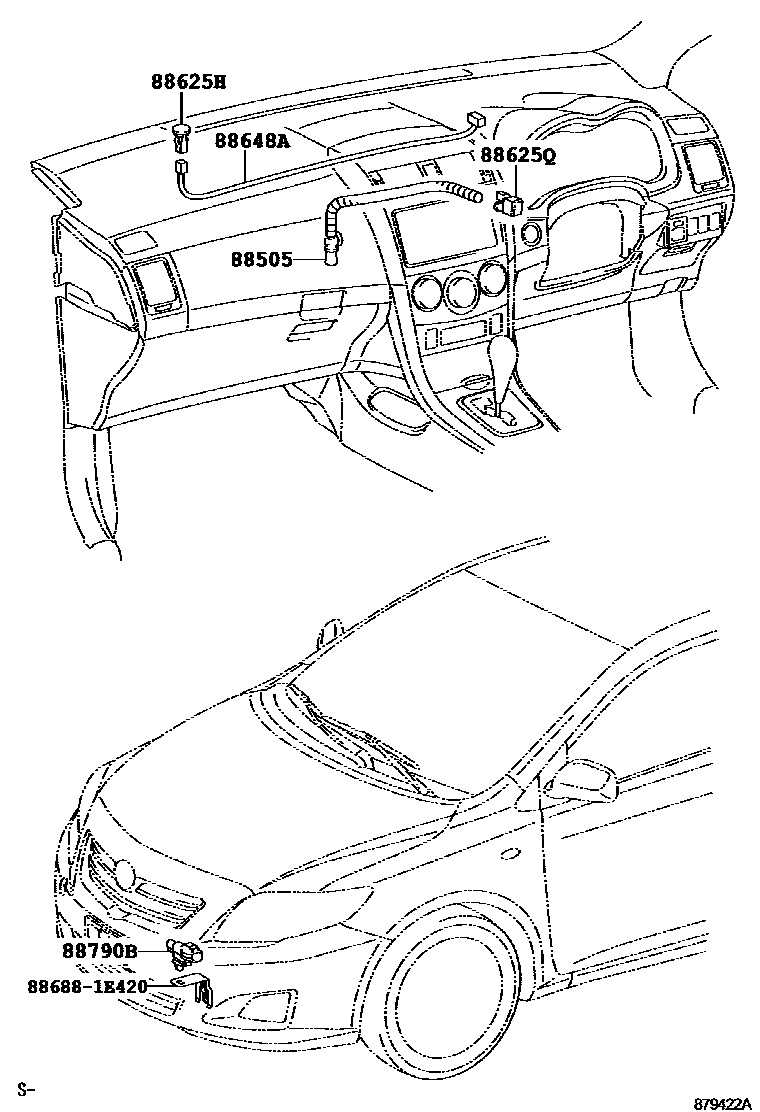

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-12730 |
| 88790B | Thermistor assembly | 88790-22131 |
