Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.

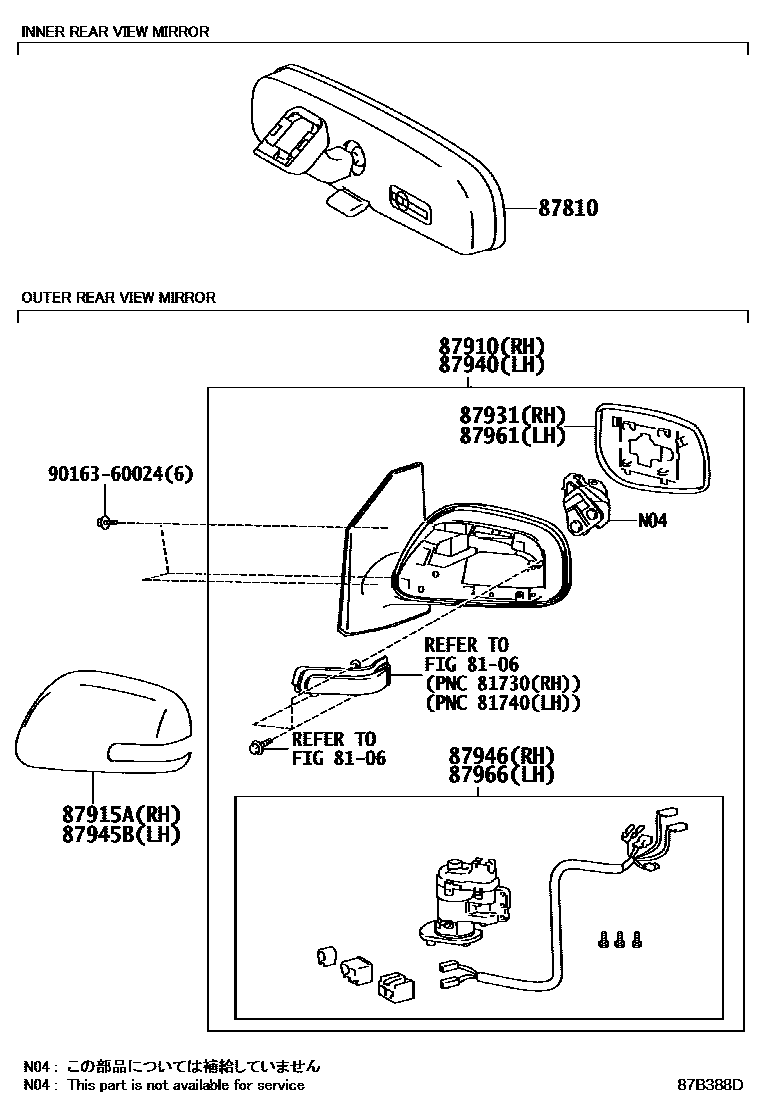

Toyota COROLLA 后视镜 EPC diagram — 87B388D
后视镜 — 87B388D (200704 – 999999)

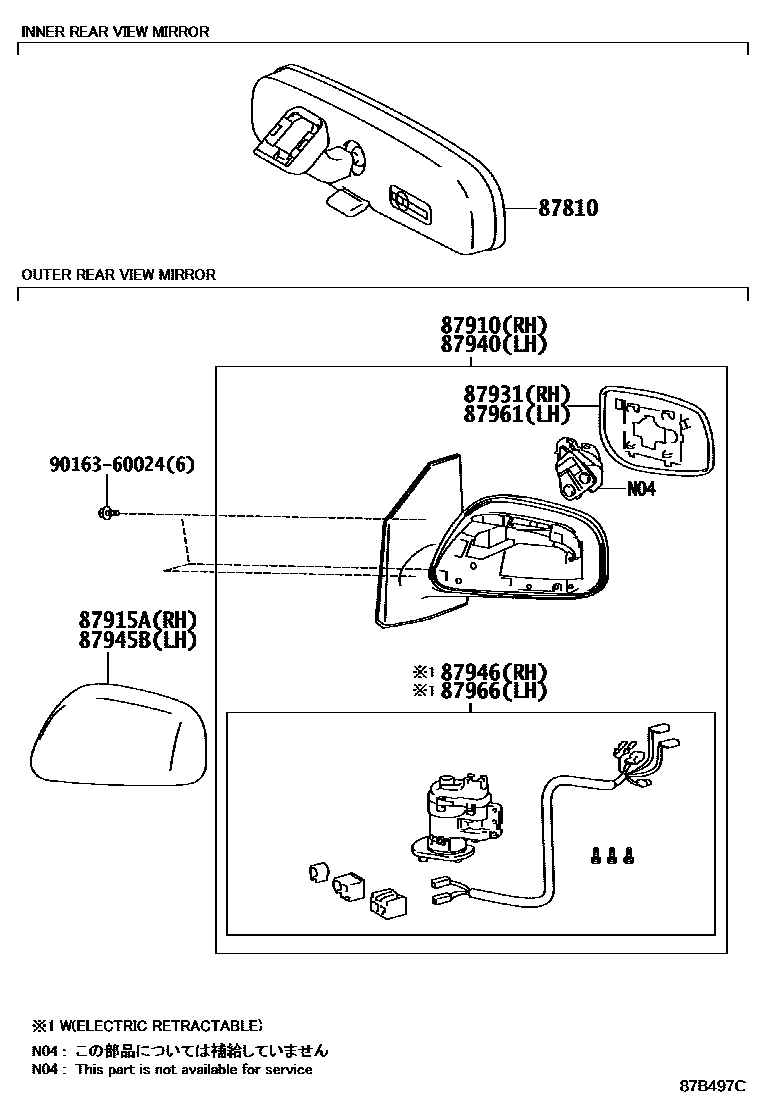

Toyota COROLLA 后视镜 EPC diagram — 87B497C
后视镜 — 87B497C (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-52041
87910Right exterior rearview mirror assembly87910-12B40 · 87910-12B60 · 87910-12B90 · 87910-12C60 · 87910-12C70 · 87910-12C80 · 87910-12C90 · 87910-12D00 · 87910-12D10 · 87910-12D20
87915ARight exterior rearview mirror cover87915-12050
87931Right exterior rearview mirror87931-12A80 · 87931-12B00 · 87931-12B20 · 87931-12B90 · 87931-12C60 · 87931-12C80 · 87931-12D00 · 87931-12D20
87940Left exterior rearview mirror assembly87940-12B50 · 87940-12B70 · 87940-12B90 · 87940-12C80 · 87940-12C90 · 87940-12D00 · 87940-12D10 · 87940-12D20 · 87940-12D30 · 87940-12D40
87945BLeft exterior rearview mirror cap87945-12050
87946Right exterior rearview mirror retractor87946-12B90 · 87946-12C80
87961Left exterior rearview mirror87961-12A90 · 87961-12B10 · 87961-12B30 · 87961-12B90 · 87961-12C80 · 87961-12D00 · 87961-12D20 · 87961-12D30
87966Left exterior rearview mirror retractor87966-12B90 · 87966-12D00
