Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

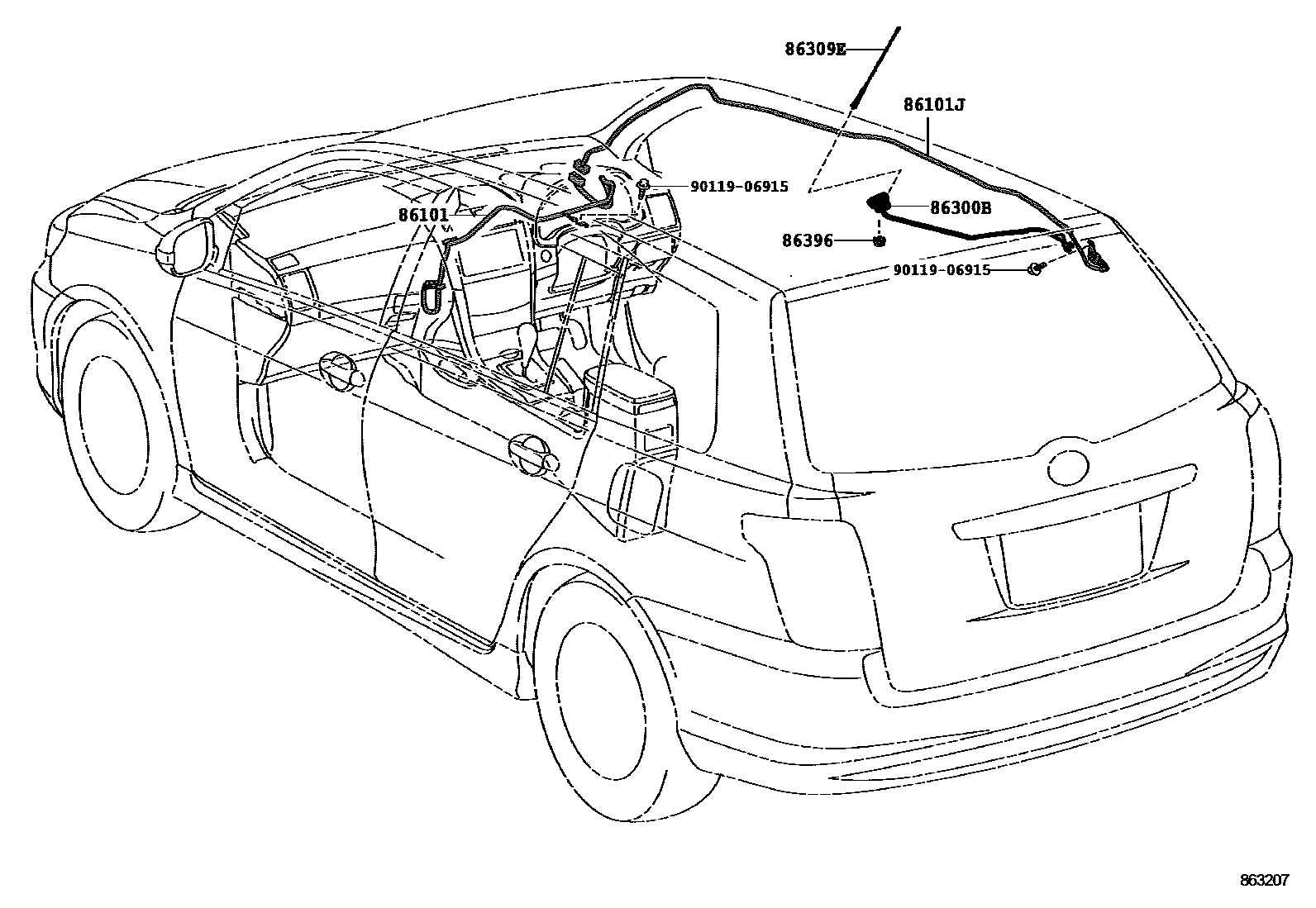

Toyota COROLLA antenna EPC diagram — 863207
antenna — 863207 (200704 – 999999)

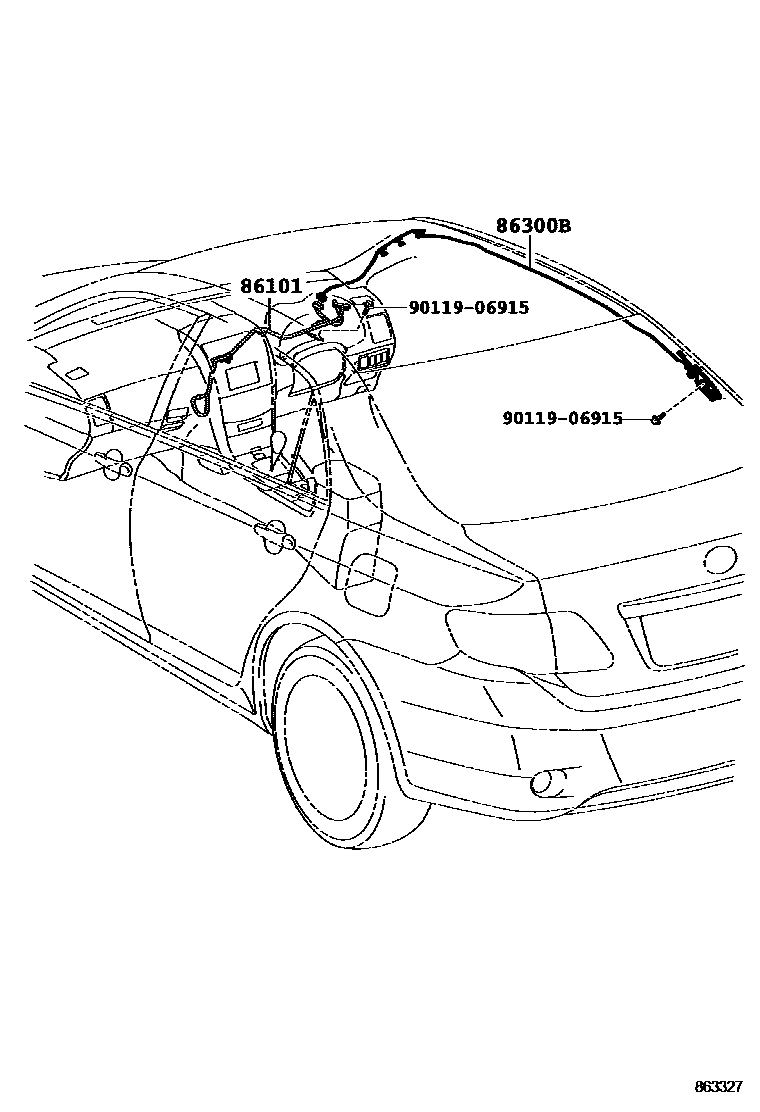

Toyota COROLLA antenna EPC diagram — 863327
antenna — 863327 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-12540 · 86101-12550 · 86101-12760 · 86101-12A10
86101JAntenna No. 2 wire sub-assembly86101-12570
86300BNo. 1 amplifier antenna assembly86300-12A00 · 86300-12A50
86309ERoof antenna sub-assembly86309-52040
86396Antenna nut86396-20040
