Toyota COROLLA 扬声器 — Figure 8602

Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.

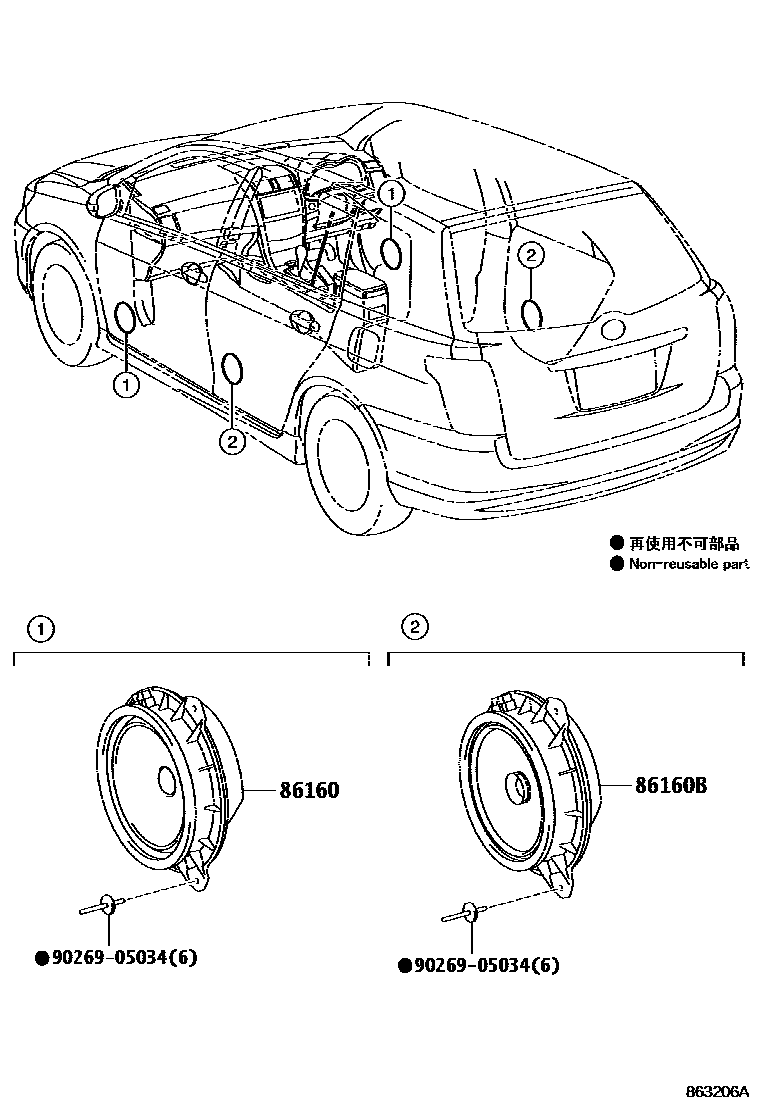

Toyota COROLLA 扬声器 EPC diagram — 863206A
扬声器 — 863206A (200704 – 999999)

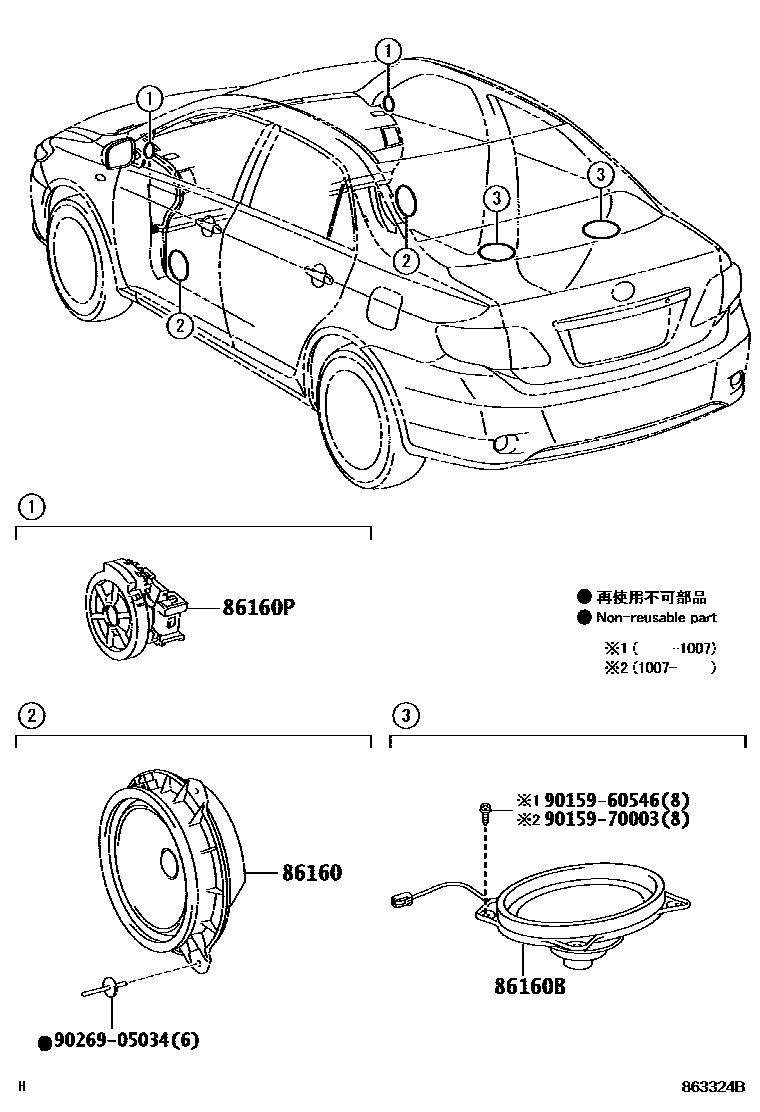

Toyota COROLLA 扬声器 EPC diagram — 863324B
扬声器 — 863324B (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
86160No. 1 front speaker assembly86160-2B580 · 86160-52330
86160BRear speaker assembly86160-1A180 · 86160-52220
86160PNo. 2 front speaker assembly86160-52340 · 86160-68010
