Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

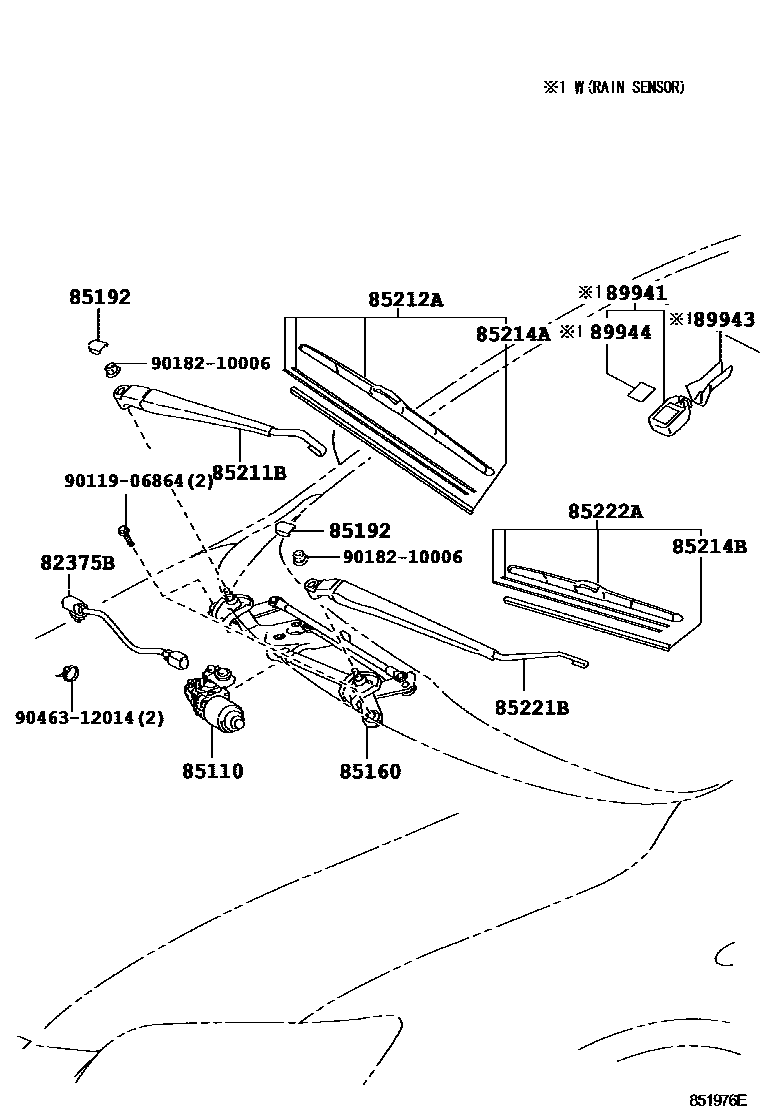

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 851976E
挡风玻璃刮水器 — 851976E (200704 – 999999)

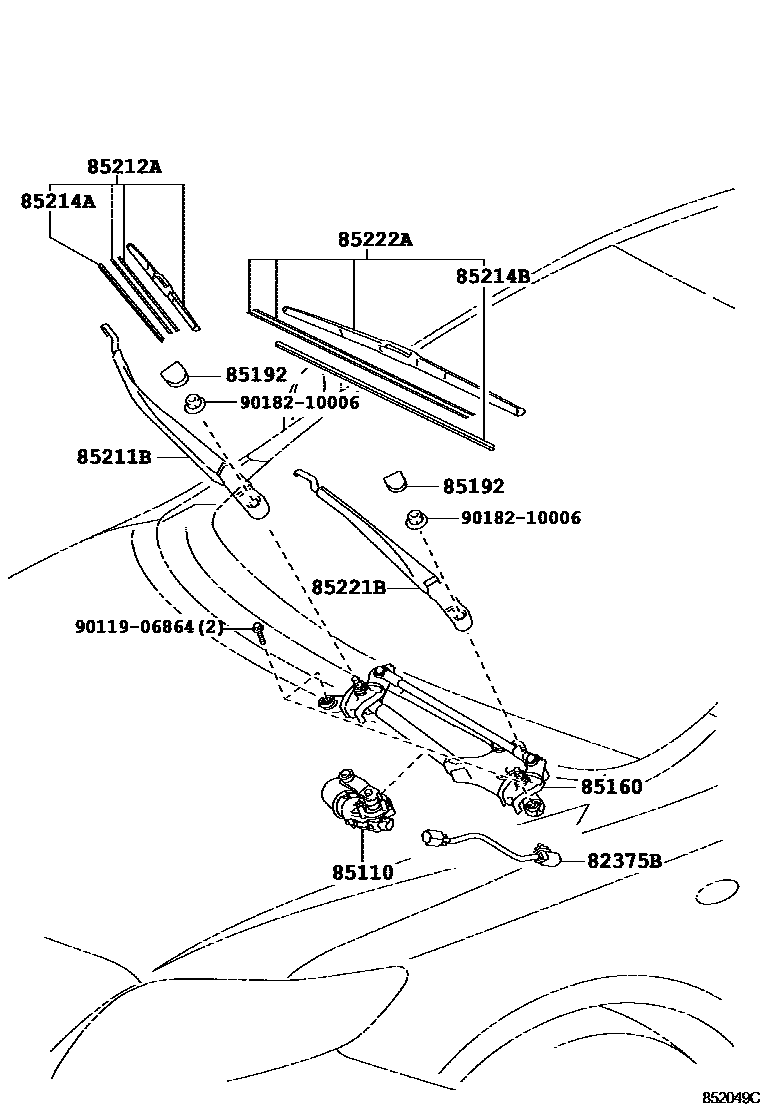

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 852049C
挡风玻璃刮水器 — 852049C (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12310 · 82375-12311
85110Windshield wiper motor assembly85110-12A40 · 85110-12A50 · 85110-12A80
85160Windshield wiper connecting rod assembly85150-12A50 · 85150-12A60 · 85150-12A80
85192windshield wiper arm cover85292-13010
85211BRight front wiper arm85211-12520 · 85211-12540 · 85211-12550
85212ARight front wiper blade85212-12430 · 85212-12480 · 85212-12490
85214ARight wiper rubber strip85214-68020 · 85214-68030
85214BLeft wiper rubber strip85214-68020 · 85214-68030
85221BLeft front wiper arm85221-12470 · 85221-12490 · 85221-12510
85222ALeft front wiper blade85222-12830 · 85222-12860
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
