Toyota COROLLA 防盗装置 — Figure 8424

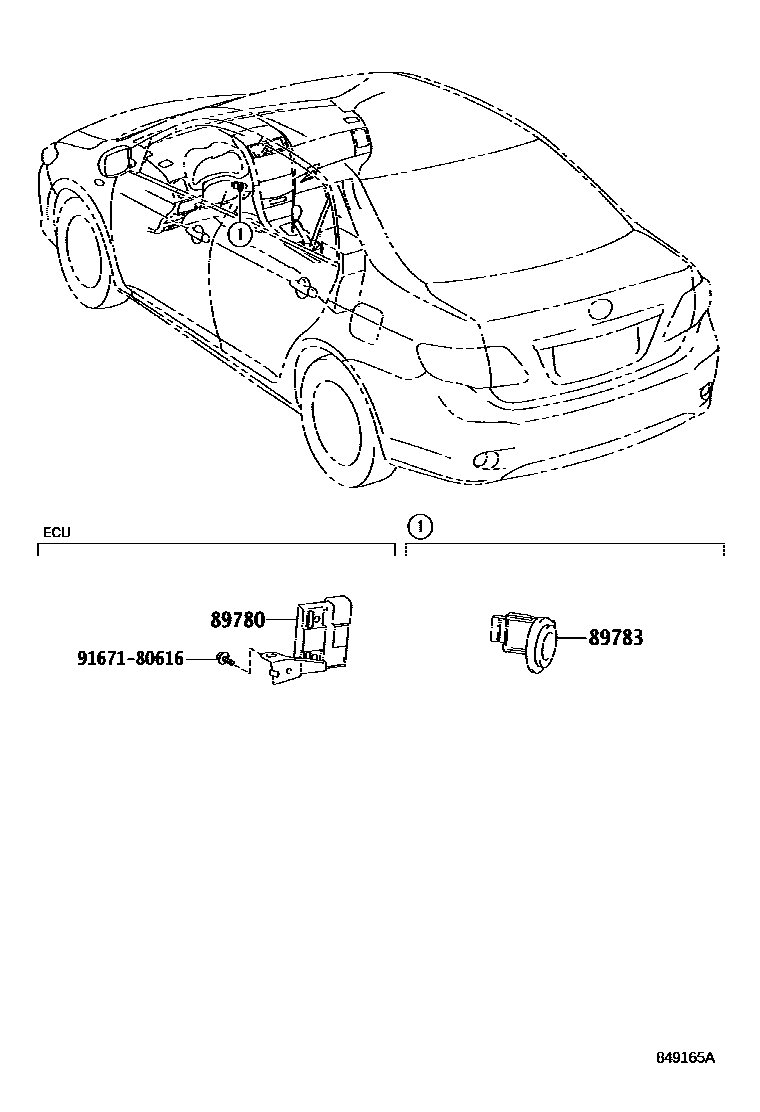

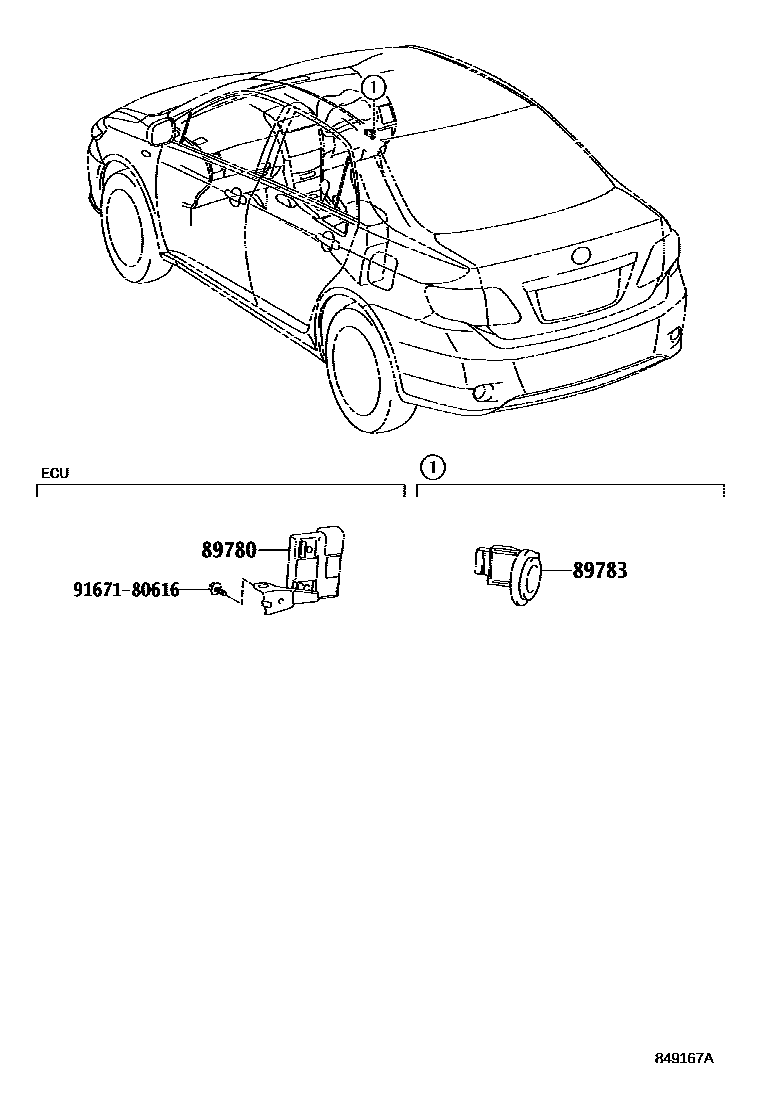

Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89780 | Transceiver key ECU assembly | 89780-12240 · 89780-12290 |
| 89783 | transceiver key amplifier | 89783-12070 · 89783-12100 · 89783-12101 · 89783-12112 · 89783-12113 |
