Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 6 PNC and OE references.

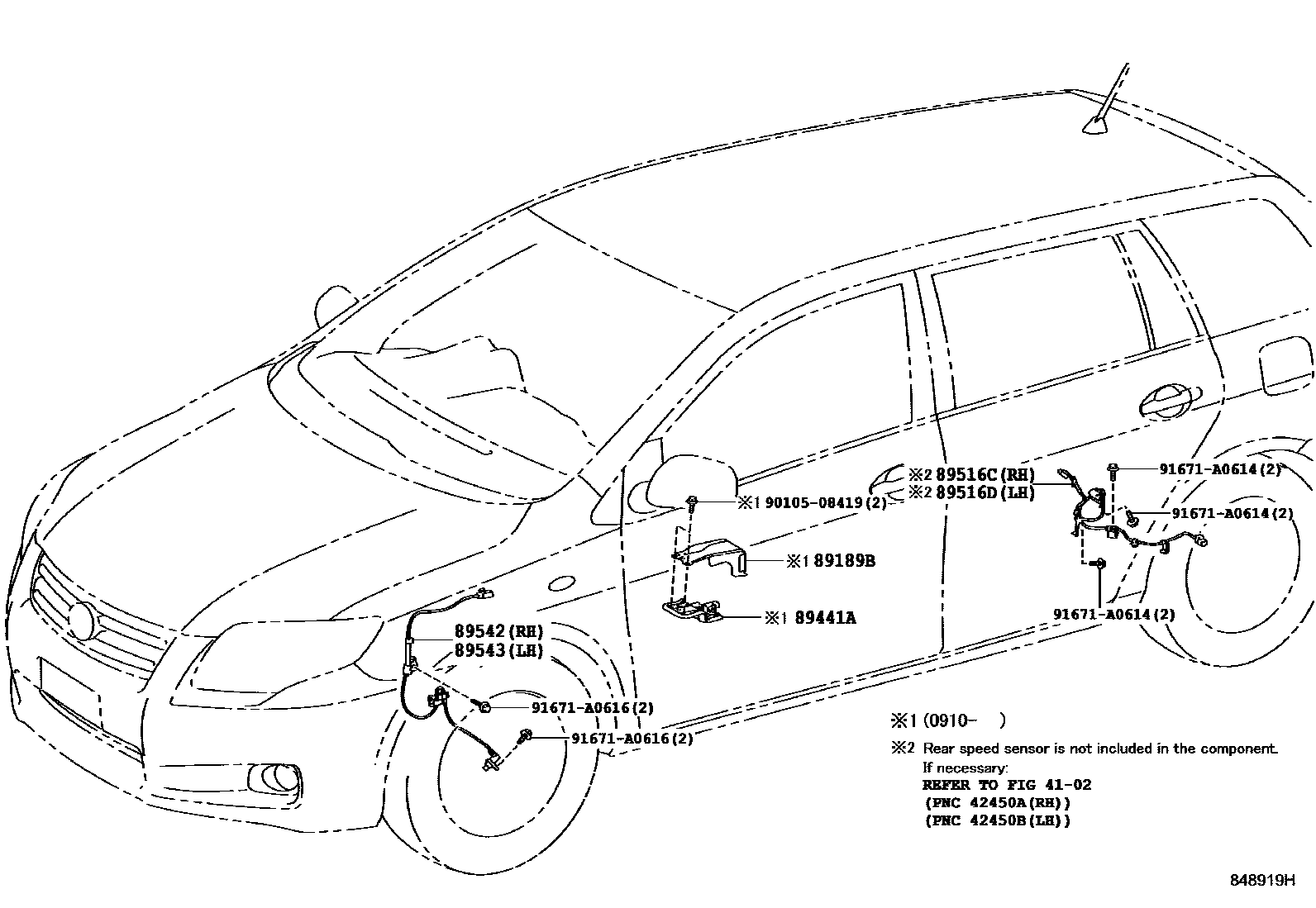

Toyota COROLLA ABS 和 VSC EPC diagram — 848919H
ABS 和 VSC — 848919H (200704 – 999999)

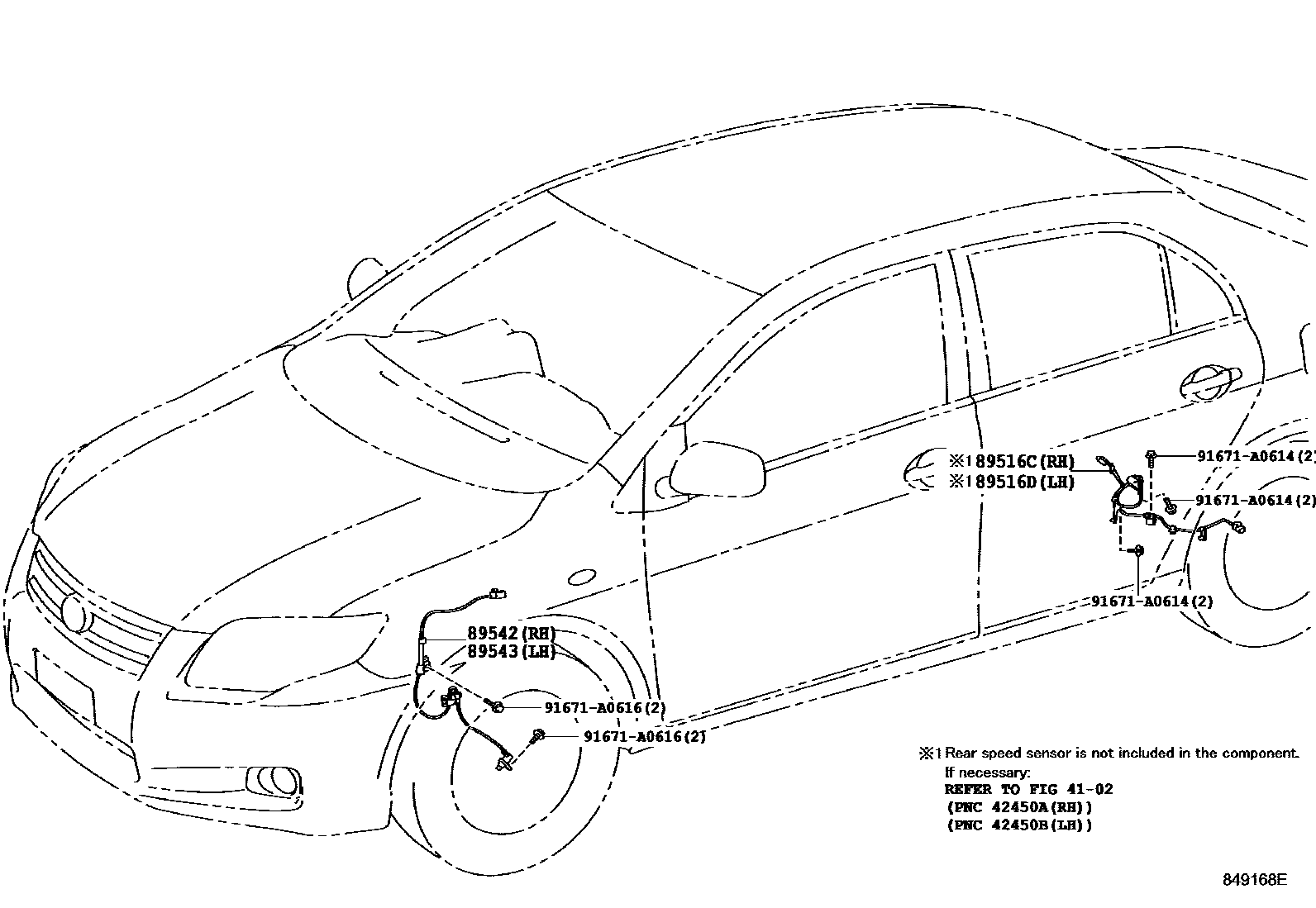

Toyota COROLLA ABS 和 VSC EPC diagram — 849168E
ABS 和 VSC — 849168E (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
89189BYaw rate sensor bracket89189-12100
89441Adeceleration sensor89440-12120
89516CRight anti-skid control sensor harness89516-12120 · 89516-12140
89516DLeft anti-skid control sensor wiring harness89516-12130 · 89516-12150
89542Right front wheel speed sensor89542-12100
89543Left front wheel speed sensor89543-12100
