Toyota COROLLA 车内灯 — Figure 8121

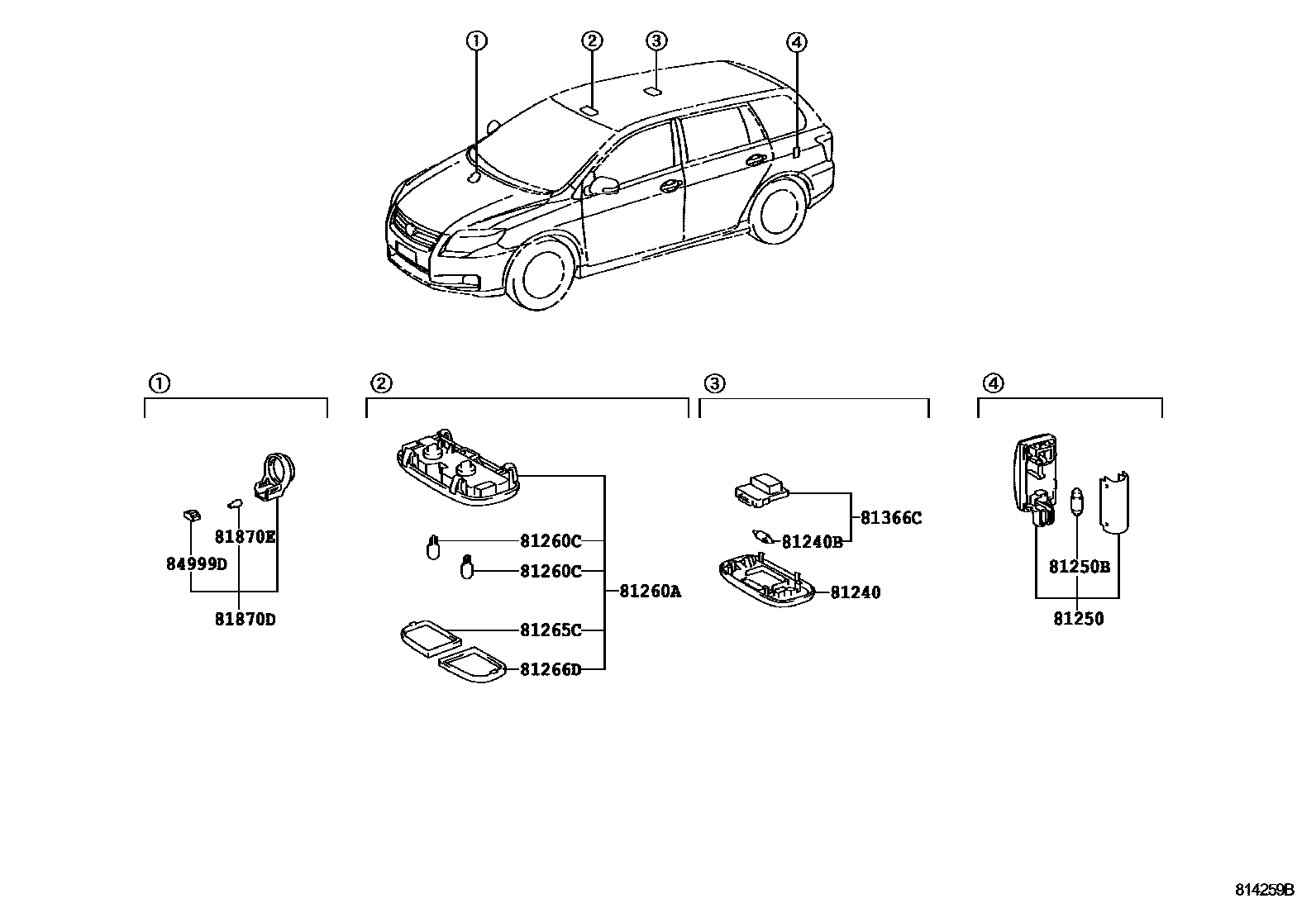

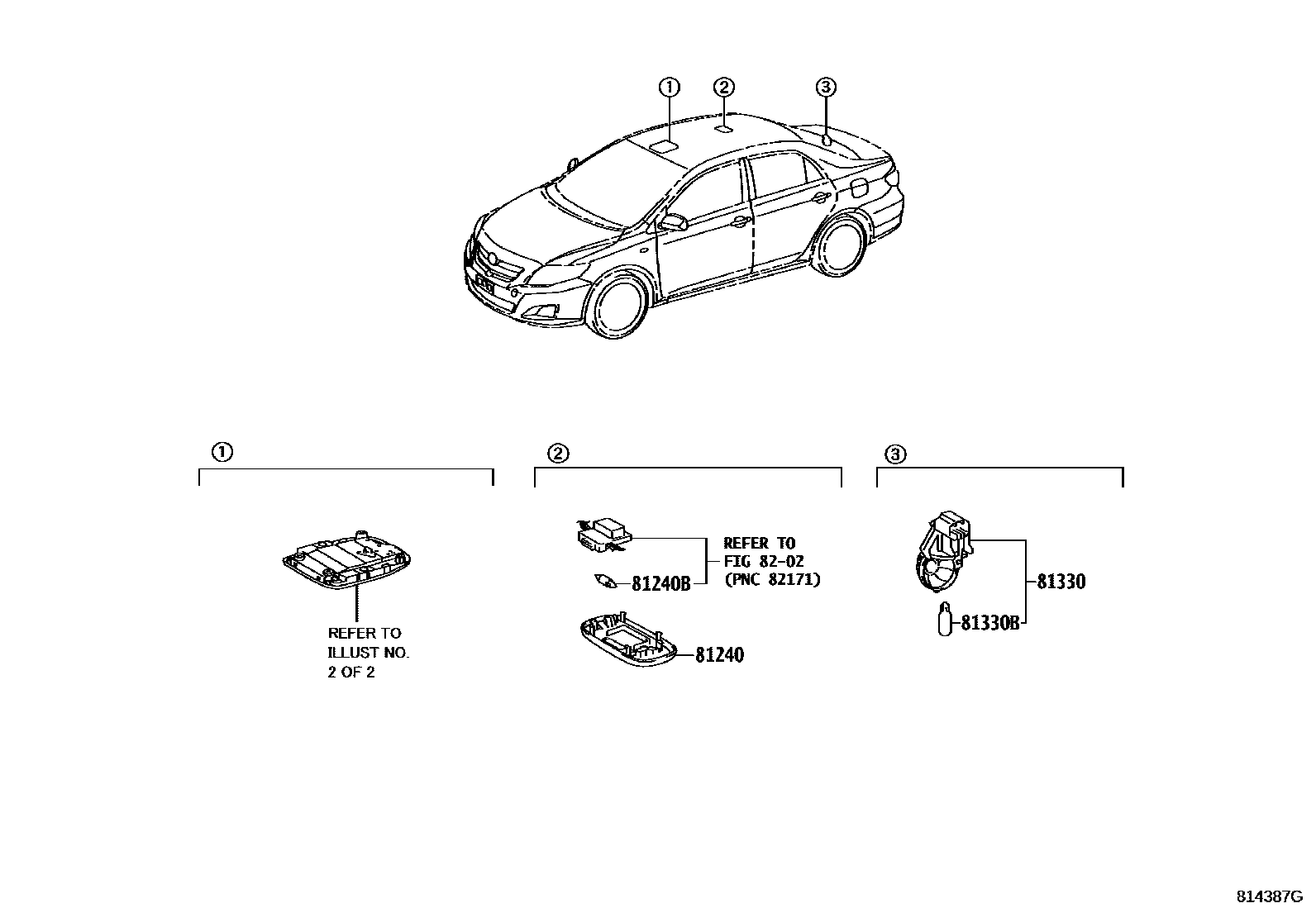

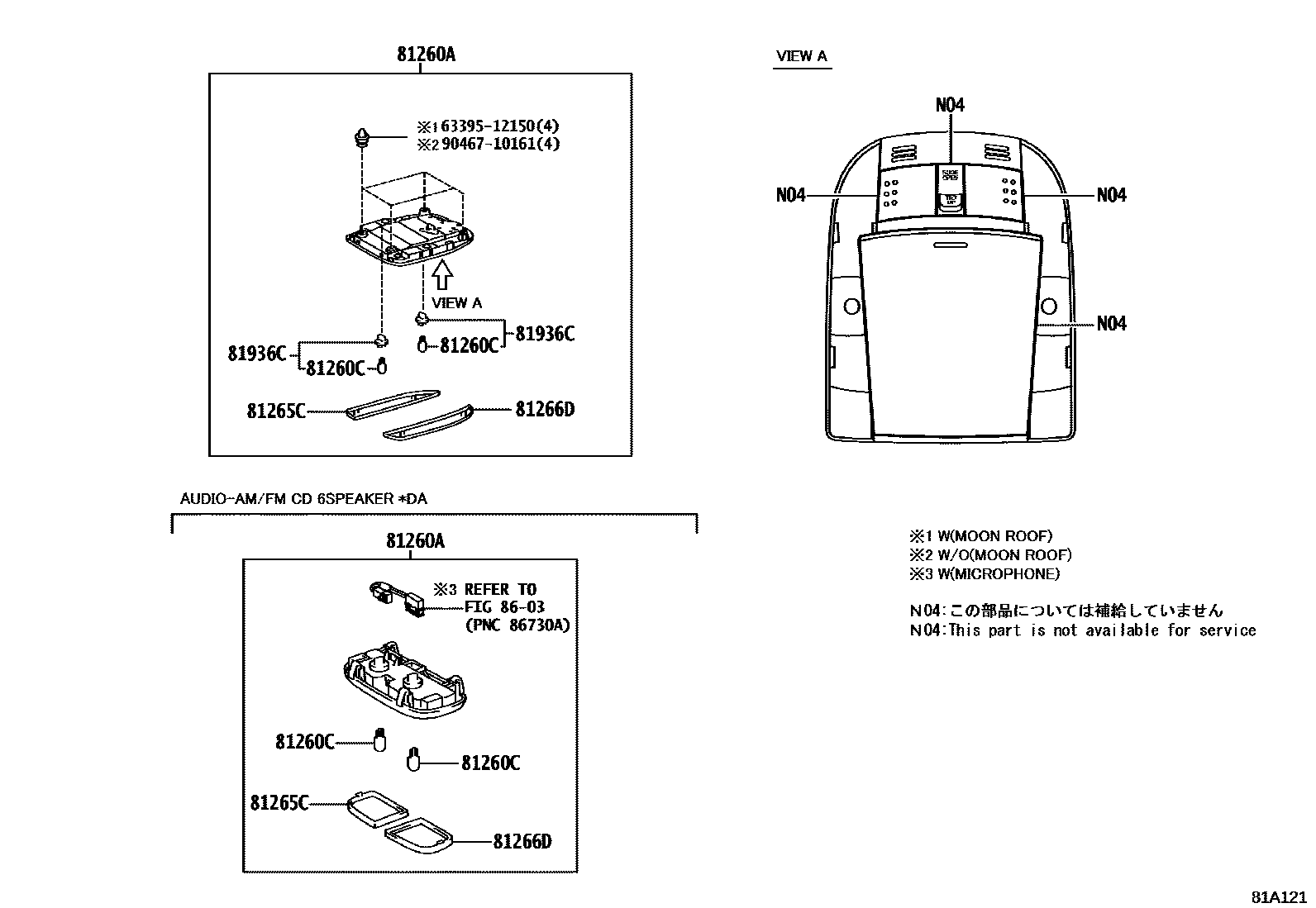

Toyota COROLLA EPC diagram 8121, 车内灯, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81250 | No. 2 interior light assembly | 81250-48010 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 |
| 81265C | No. 1 reading lamp shade | 81265-12160 · 81265-52020 |
| 81266D | Reading lamp shade No. 2 | 81266-12160 · 81266-52020 |
| 81330 | No. 1 trunk light assembly | 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81366C | Interior light switch base | 81366-68010 |
| 81870D | Lock core lighting assembly | 81870-42020 |
| 81870E | Lock cylinder lighting bulb | 90010-01030 |
| 81936C | Bulb assembly | 81936-12150 |
| 84999D | Lock cylinder lamp holder | 84999-10250 |
