Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 3 images and 3 PNC and OE references.

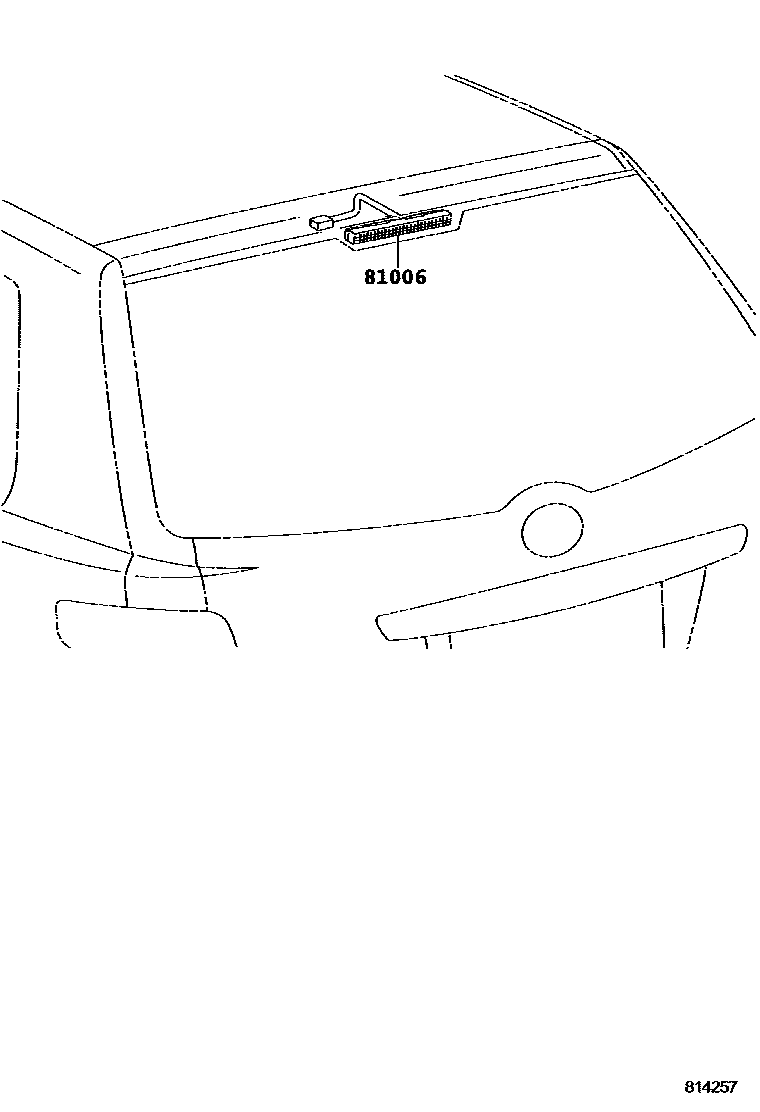

Toyota COROLLA 高位刹车灯 EPC diagram — 814257
高位刹车灯 — 814257 (200704 – 999999)

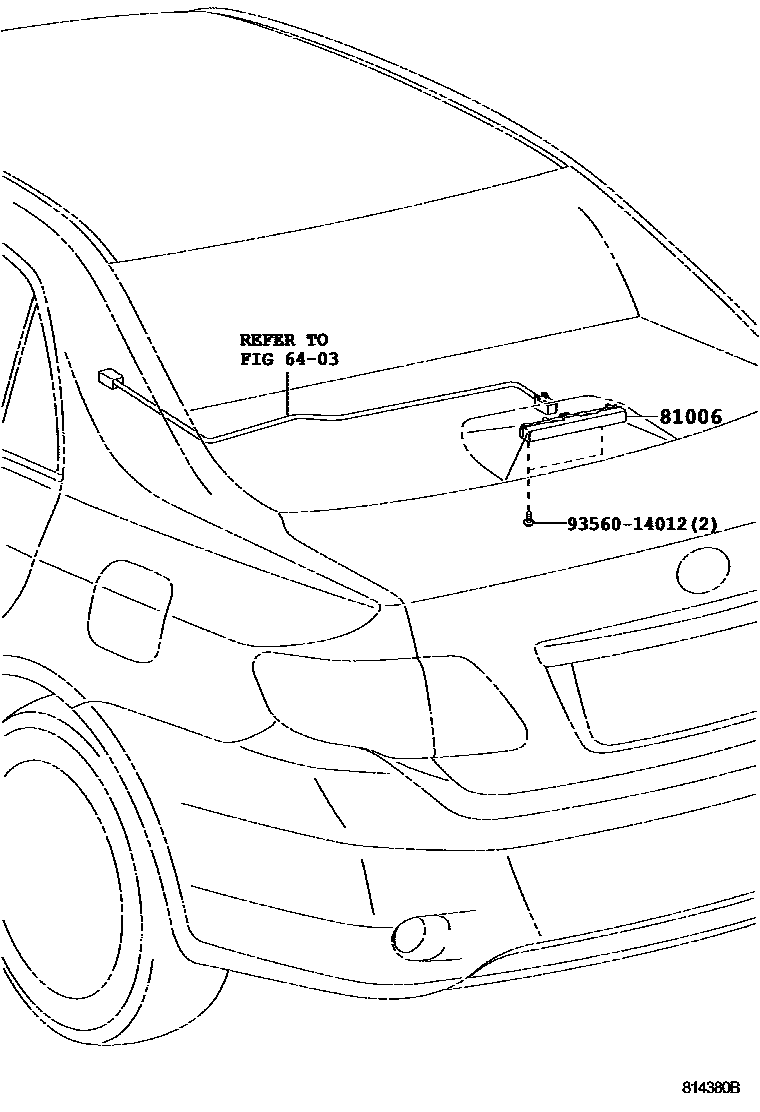

Toyota COROLLA 高位刹车灯 EPC diagram — 814380B
高位刹车灯 — 814380B (200708 – 999999)

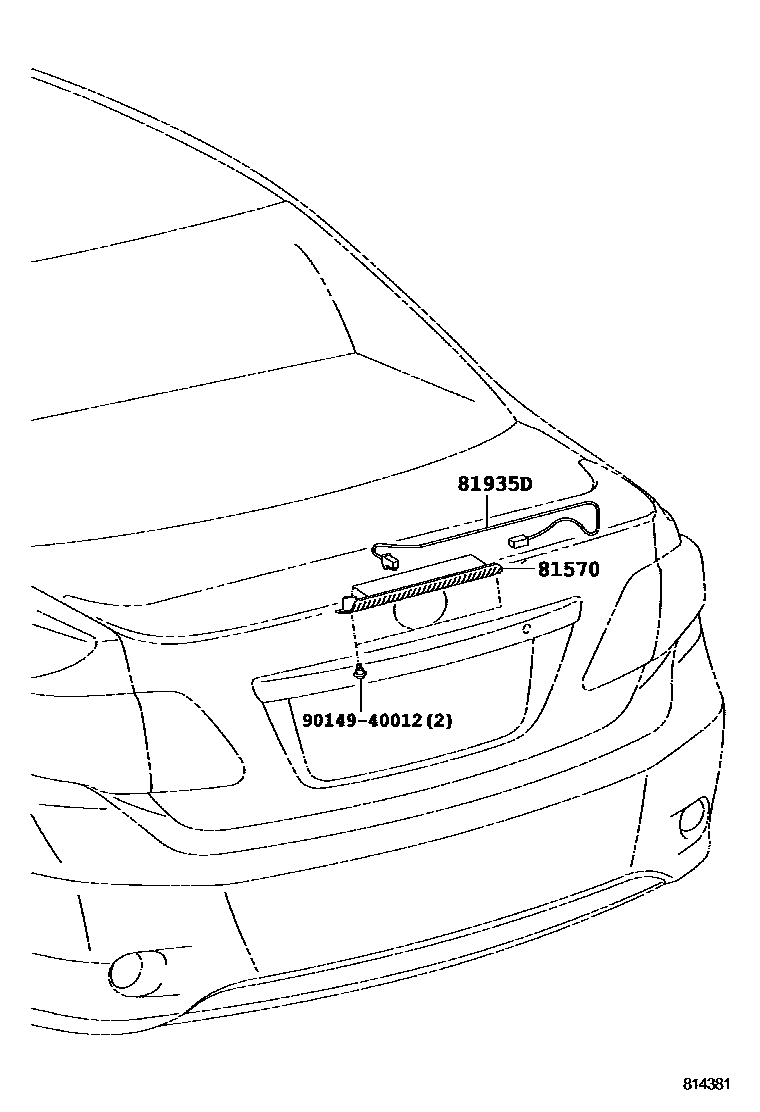

Toyota COROLLA 高位刹车灯 EPC diagram — 814381
高位刹车灯 — 814381 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
81006central brake light assembly81006-13010 · 81006-33010
81570Central brake light assembly81570-42071
81935DCentral brake light wire assembly81935-12190
