Toyota COROLLA 后牌照灯 — Figure 8113

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 4 PNC and OE references.

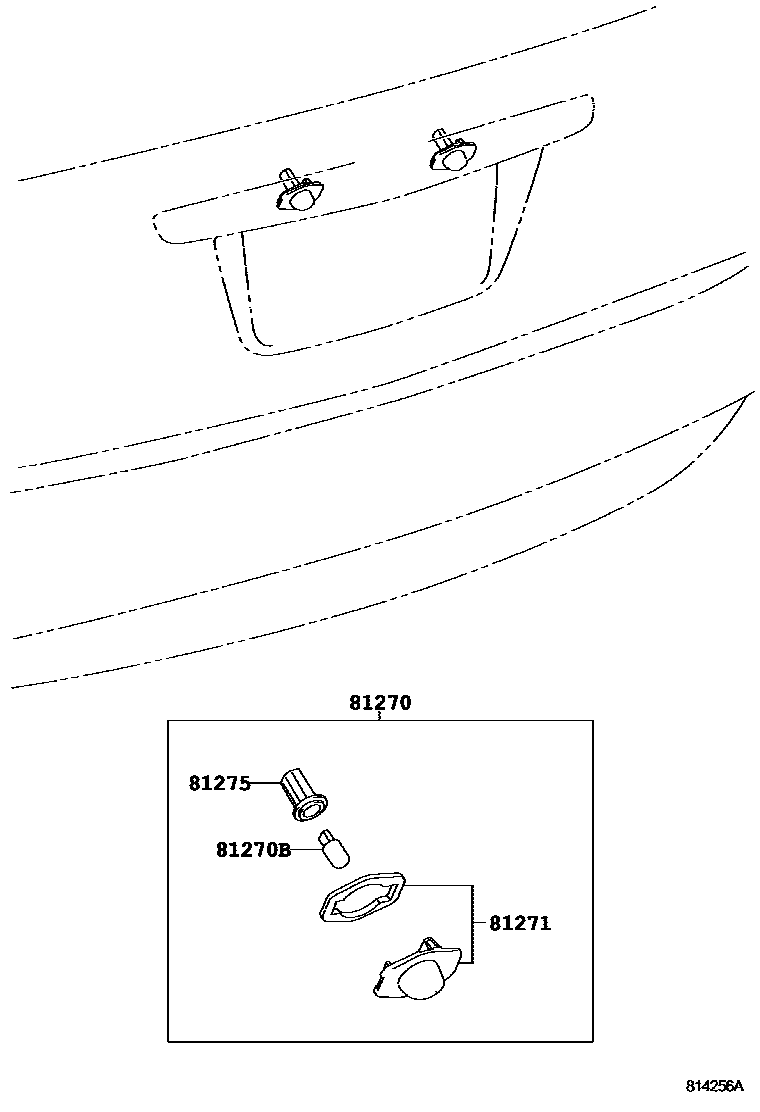

Toyota COROLLA 后牌照灯 EPC diagram — 814256A
后牌照灯 — 814256A (200704 – 999999)

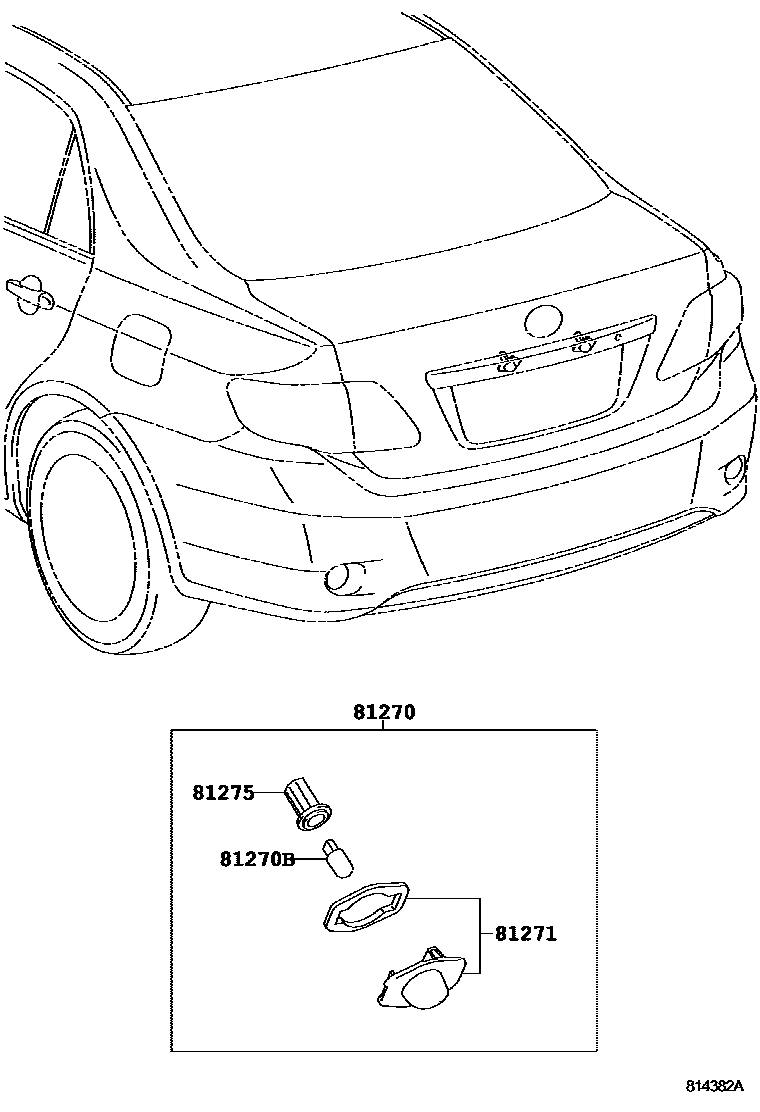

Toyota COROLLA 后牌照灯 EPC diagram — 814382A
后牌照灯 — 814382A (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270License plate light assembly81270-12520 · 81270-12521
81270BBulb (for license plate light)99132-12050
81271license plate lamp shade81271-12520 · 81271-12521
81275License plate lamp holder and wiring harness81275-12520
