Toyota COROLLA 后组合灯 — Figure 8111

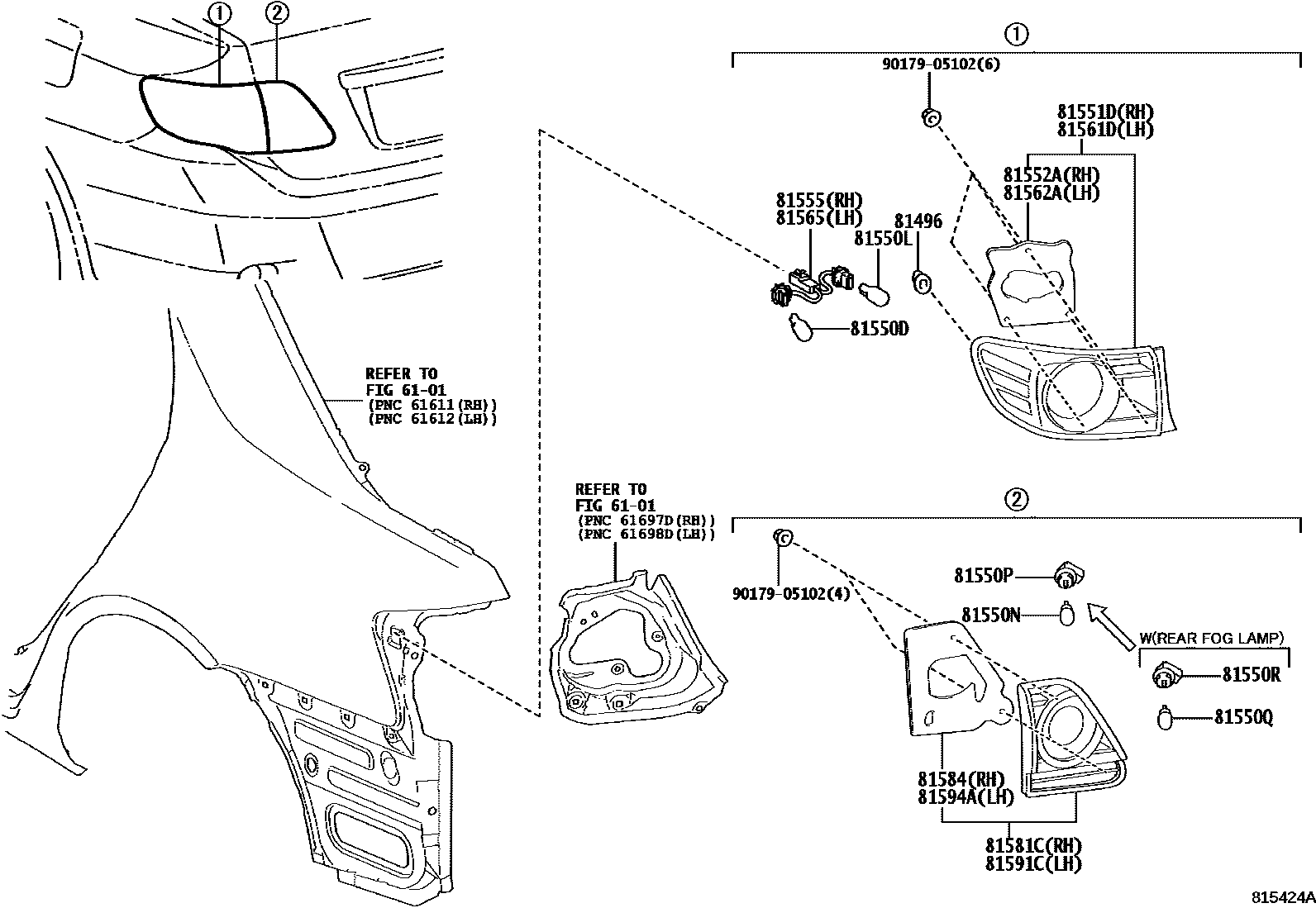

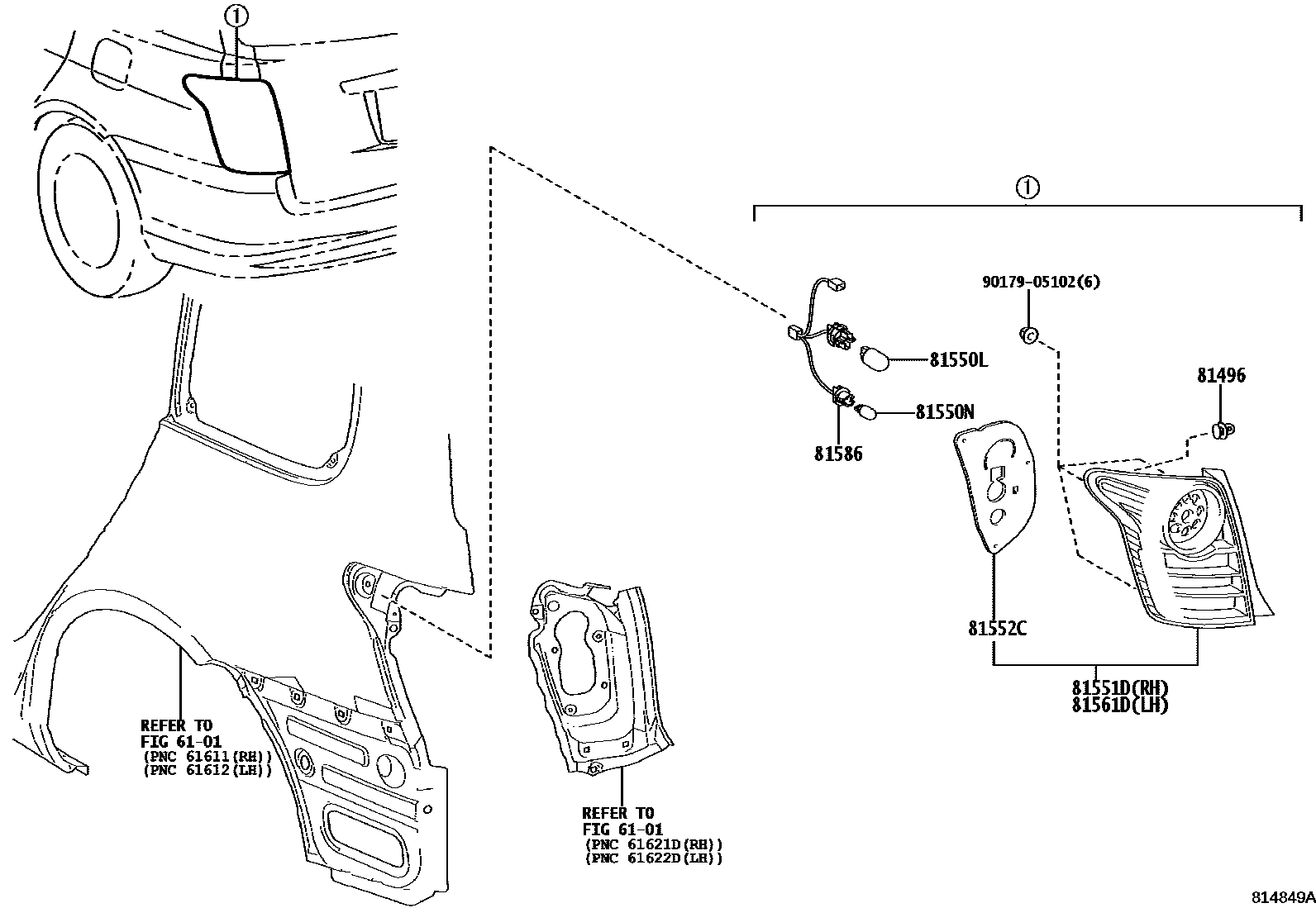

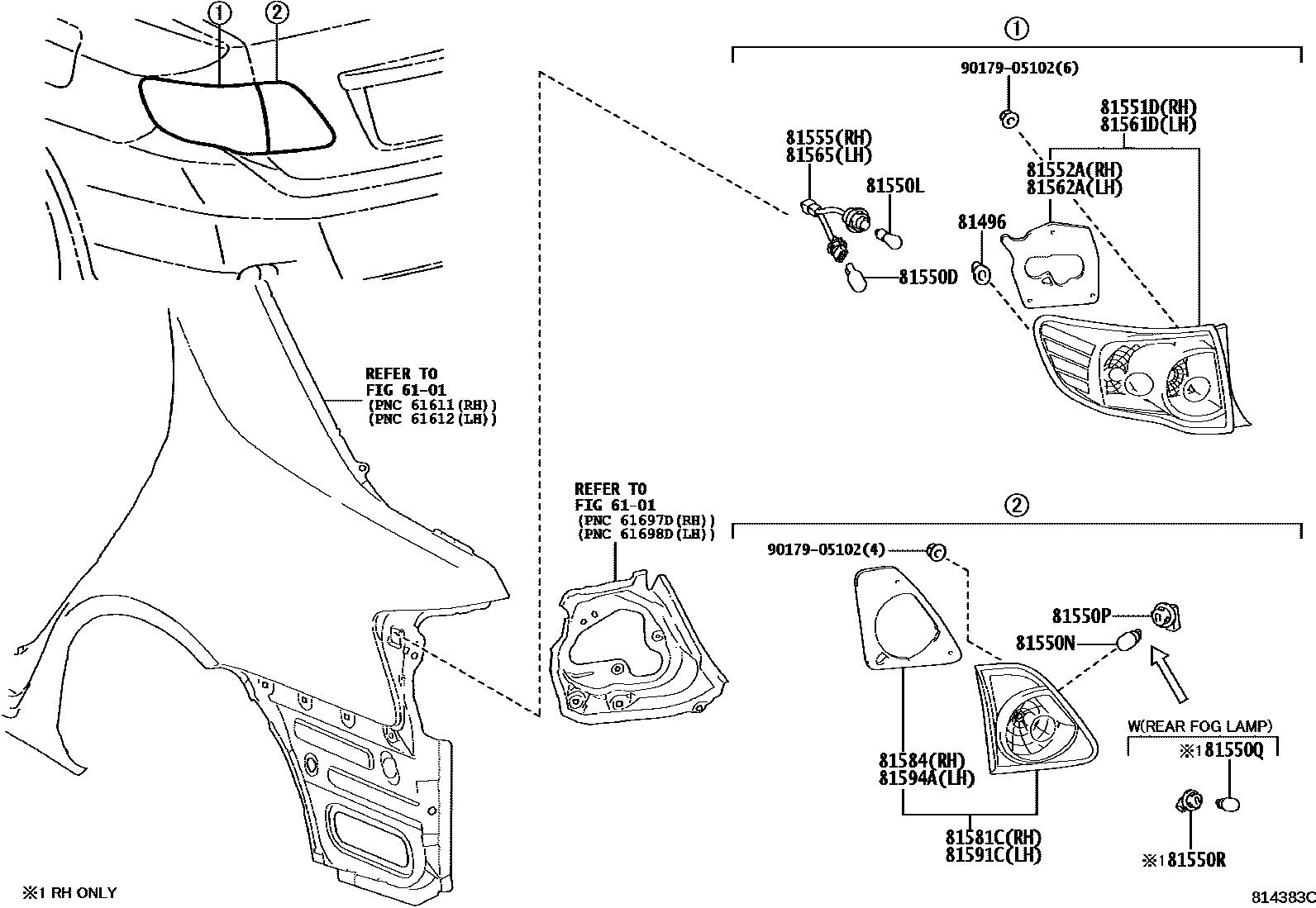

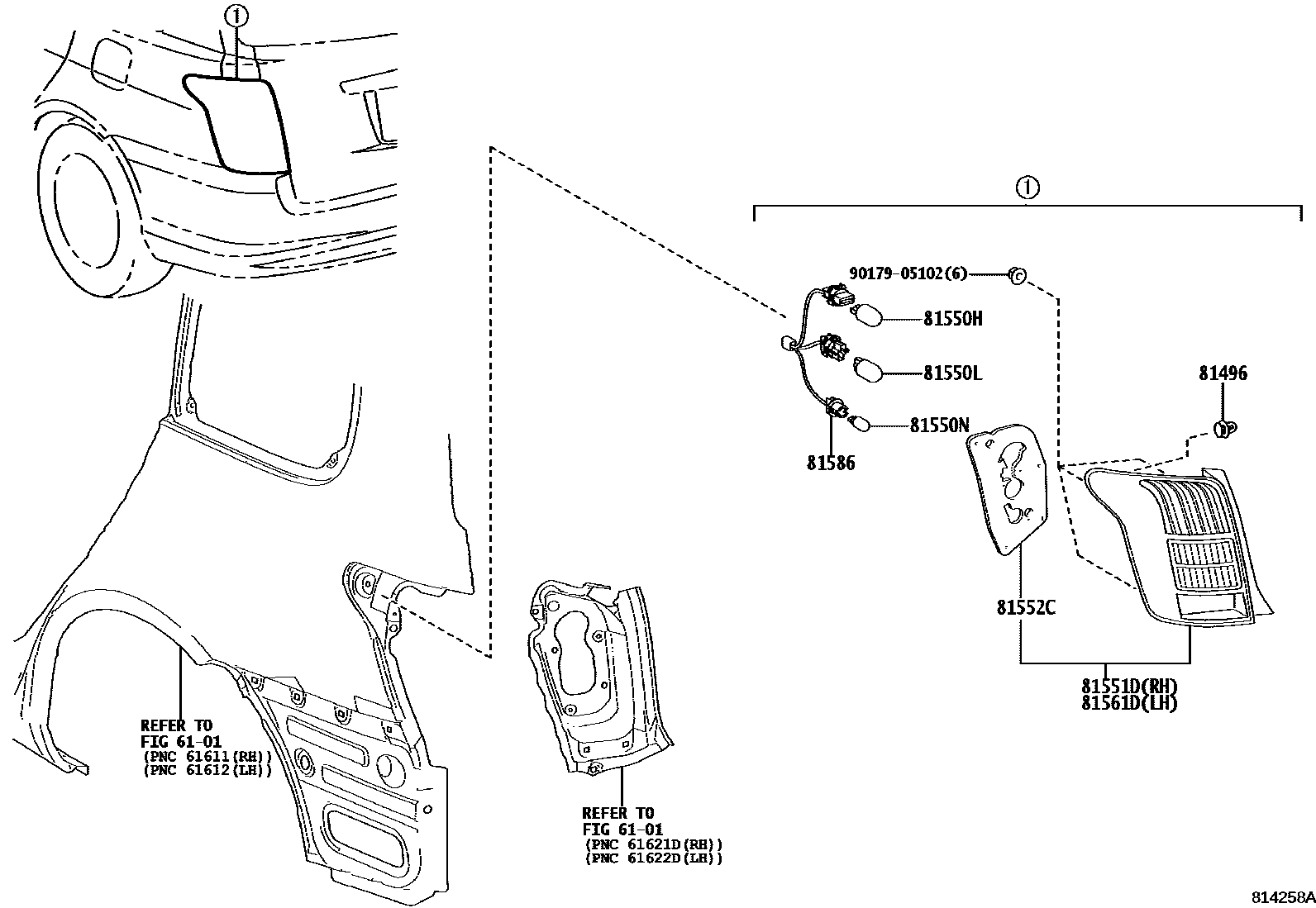

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 · 81496-60010 |
| 81550D | Bulb (for rear combination lights) | 90981-13044 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15021 · 99132-11210 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-99005 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81550R | Rear fog light lamp holder | 90075-60042 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12A10 · 81551-12A30 · 81551-13690 · 81551-13710 |
| 81552A | Right rear combination light gasket | 81552-12A10 · 81554-12A30 |
| 81552C | Rear combination light gasket | 81552-13690 · 81552-13710 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12A10 · 81555-12A30 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12A10 · 81561-12A30 · 81561-13650 · 81561-13710 |
| 81562A | Left rear combination light gasket | 81552-12A10 · 81554-12A30 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12A10 · 81555-12A30 |
| 81581C | Right rear light lampshade and lamp body | 81581-12100 · 81581-12110 · 81581-12150 · 81581-12180 |
| 81584 | Right rear light seal | 81584-12100 · 81584-12110 · 81584-12180 |
| 81586 | Rear light wire | 81555-13690 · 81555-13710 |
| 81591C | Left rear light lampshade | 81591-12110 · 81591-12150 · 81591-12180 |
| 81594A | Left rear light gasket | 81594-12110 · 81594-12180 |
