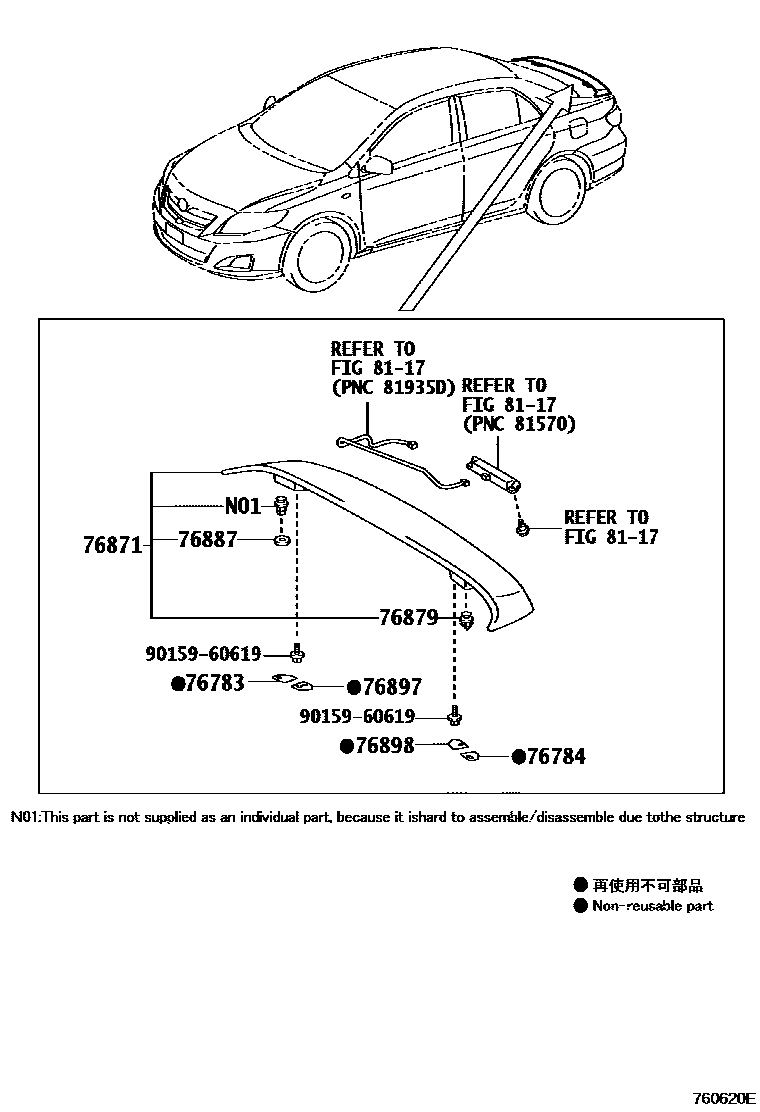

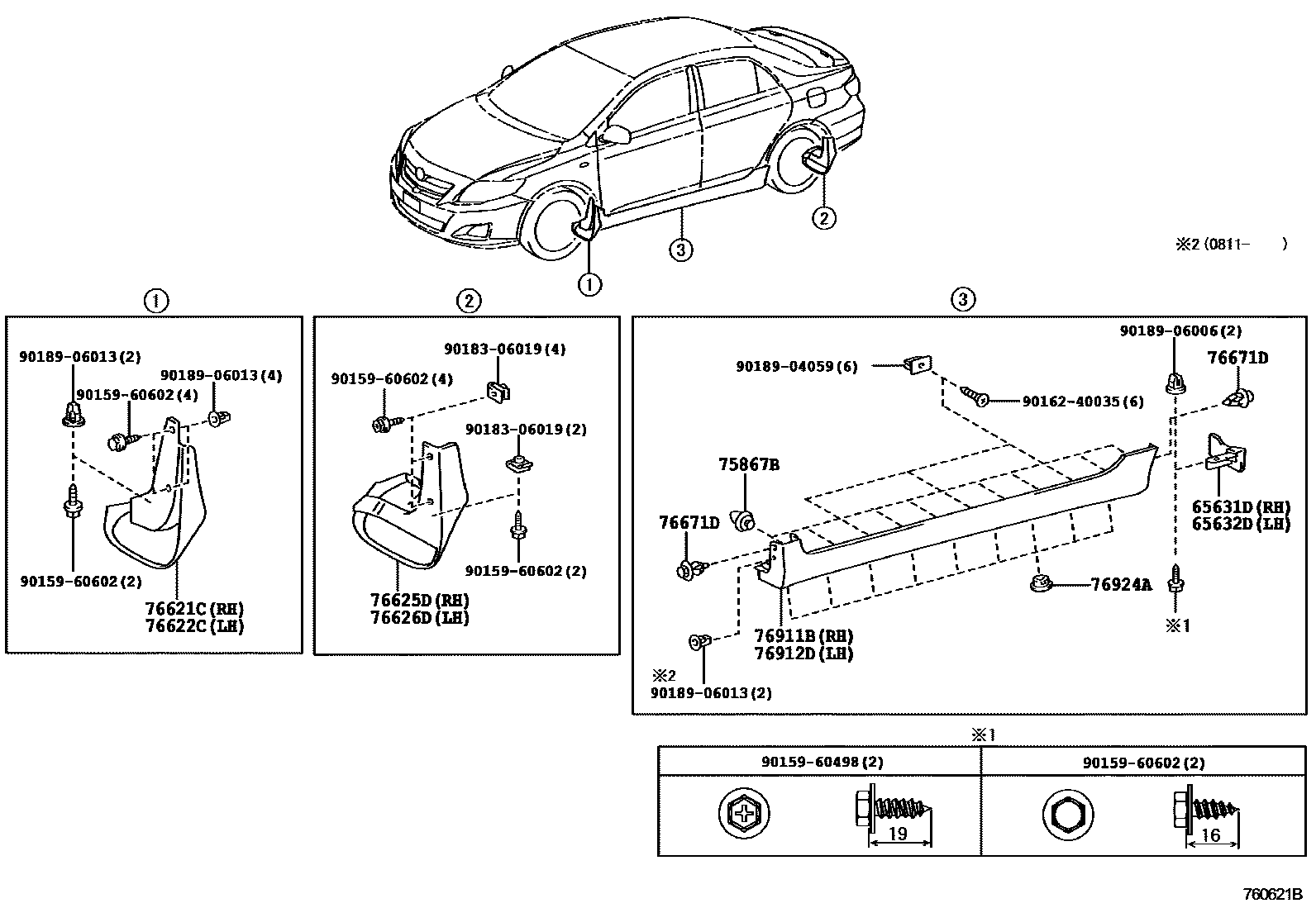

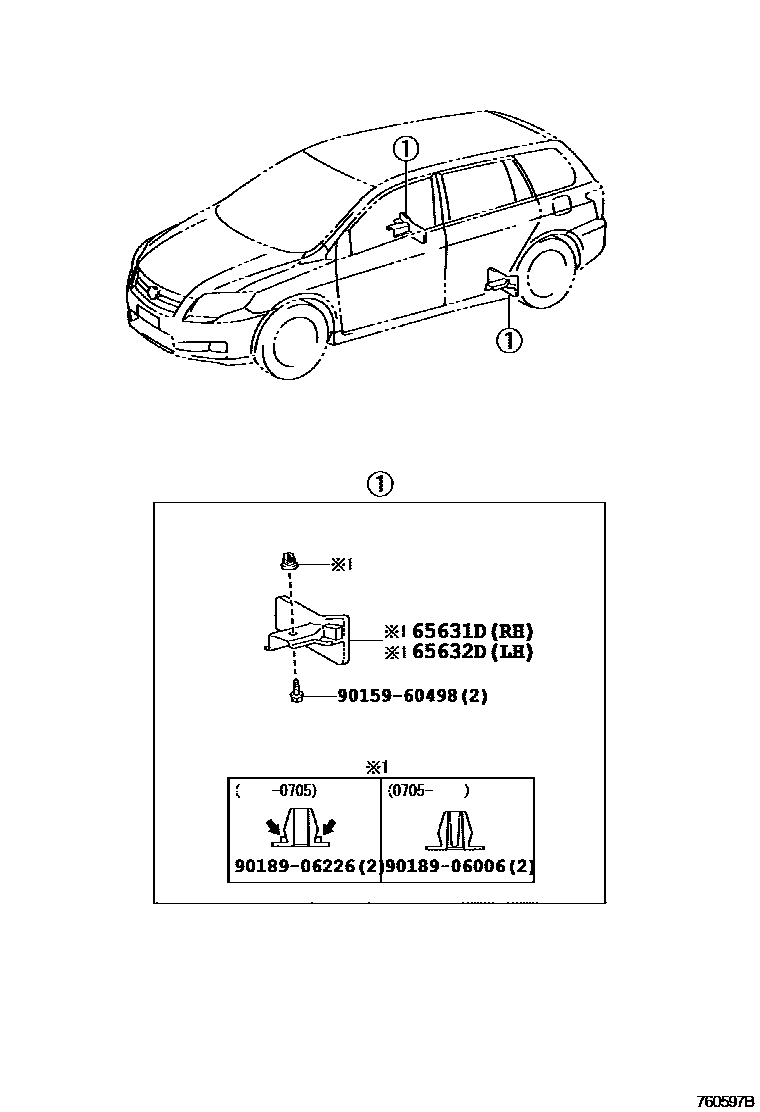

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-12030 · 65631-12031 · 65631-12060 |
| 65632D | Left rear wheel house front panel | 65632-12030 · 65632-12031 · 65632-12060 |
| 75867B | Door sill panel protective strip clip | 75867-12040 |
| 76621C | Right front fender fender | 76621-12290 |
| 76622C | Left front fender fender | 76622-12290 |
| 76625D | Right rear side fender | 76625-12530 · 76625-12580 |
| 76626D | Left rear side fender | 76626-12530 · 76626-12580 |
| 76671D | Side fender clips | 90467-06165 |
| 76783 | Right rear lower spoiler tape | 76783-12090 |
| 76784 | Left rear lower spoiler tape | 76784-12090 |
| 76879 | No. 1 rear spoiler clip | 76879-12060 |
| 76887 | Rear spoiler seal | 76887-12040 |
| 76897 | Right rear spoiler protection strip | 76897-12170 |
| 76898 | Left rear spoiler protection strip | 76898-12170 |
| 76911B | right fender | 76911-12904 · 76911-12905 |
| 76912D | left fender | 76912-12903 · 76912-12904 |
| 76924A | No. 2 side fender fixings | 76924-12040 |
