Toyota COROLLA 后防护条 — Figure 7504

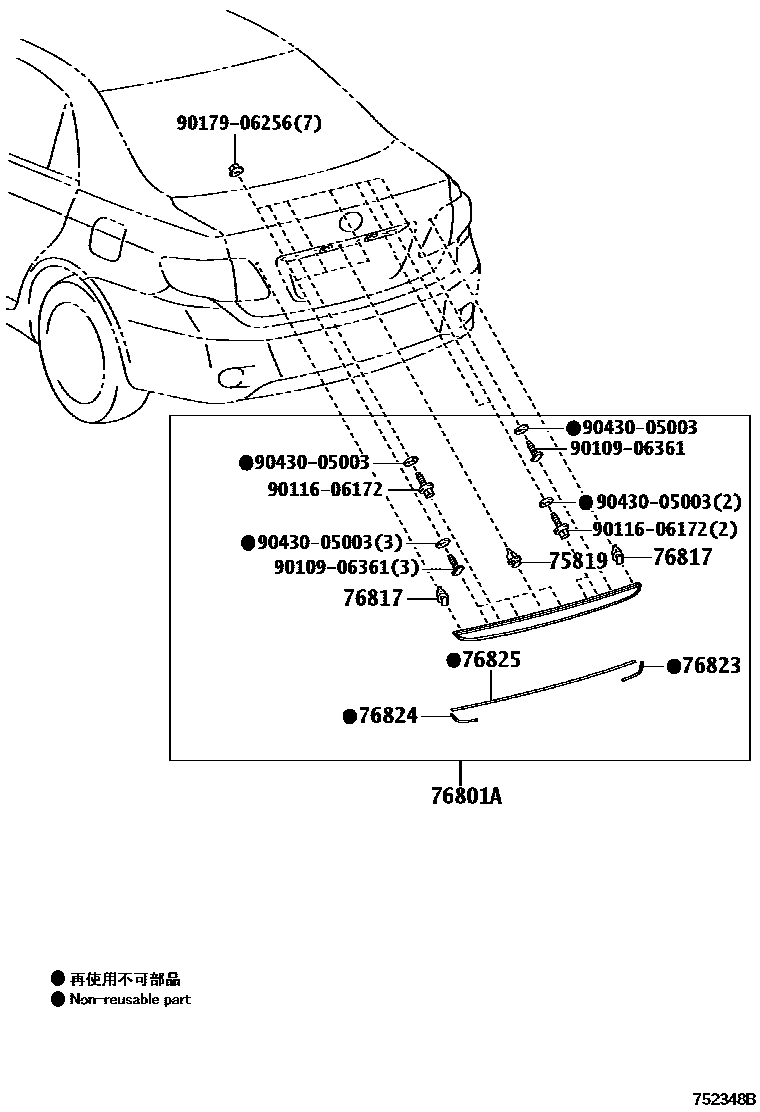

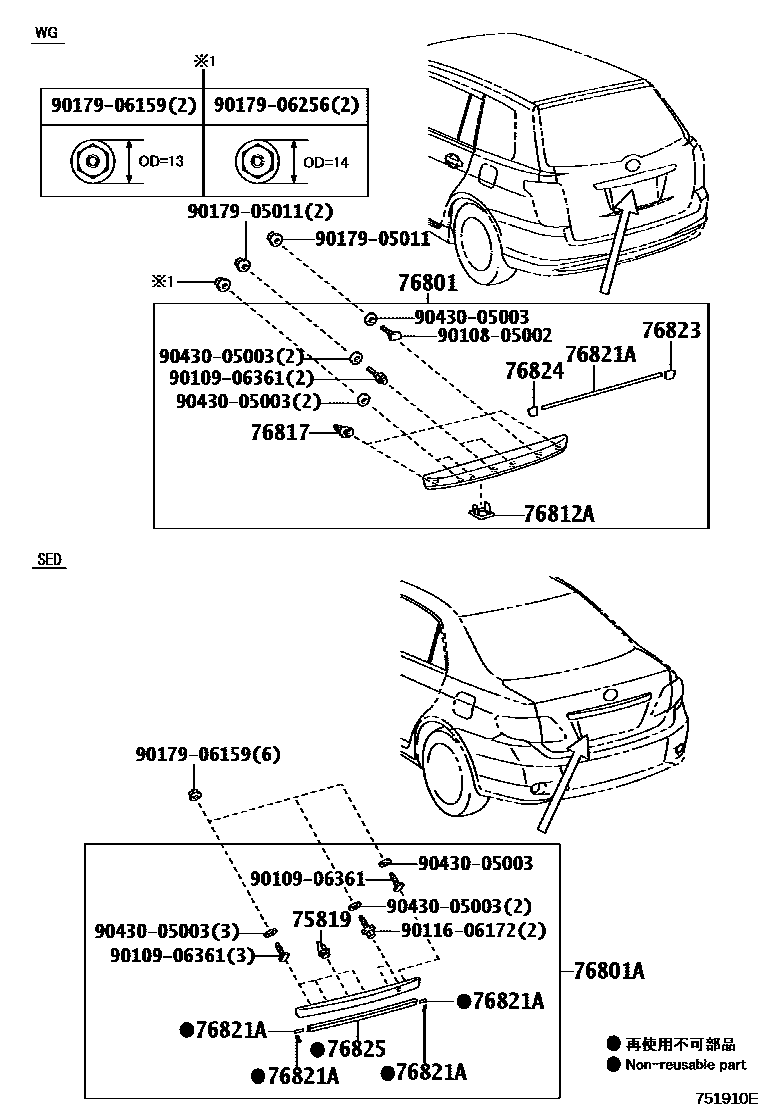

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12880 · 76801-12B40 |
| 76812A | No. 2 rear door exterior trim strip | 76812-13060 |
| 76817 | Rear door exterior decorative strip clip | 76817-12100 · 76817-50010 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12210 · 76821-13080 |
| 76823 | Rear door right side decorative strip protective cover | 76823-12040 · 76823-13020 |
| 76824 | Rear door left side decorative strip protective cover | 76824-12040 · 76824-13010 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12050 · 76825-12090 |
