Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

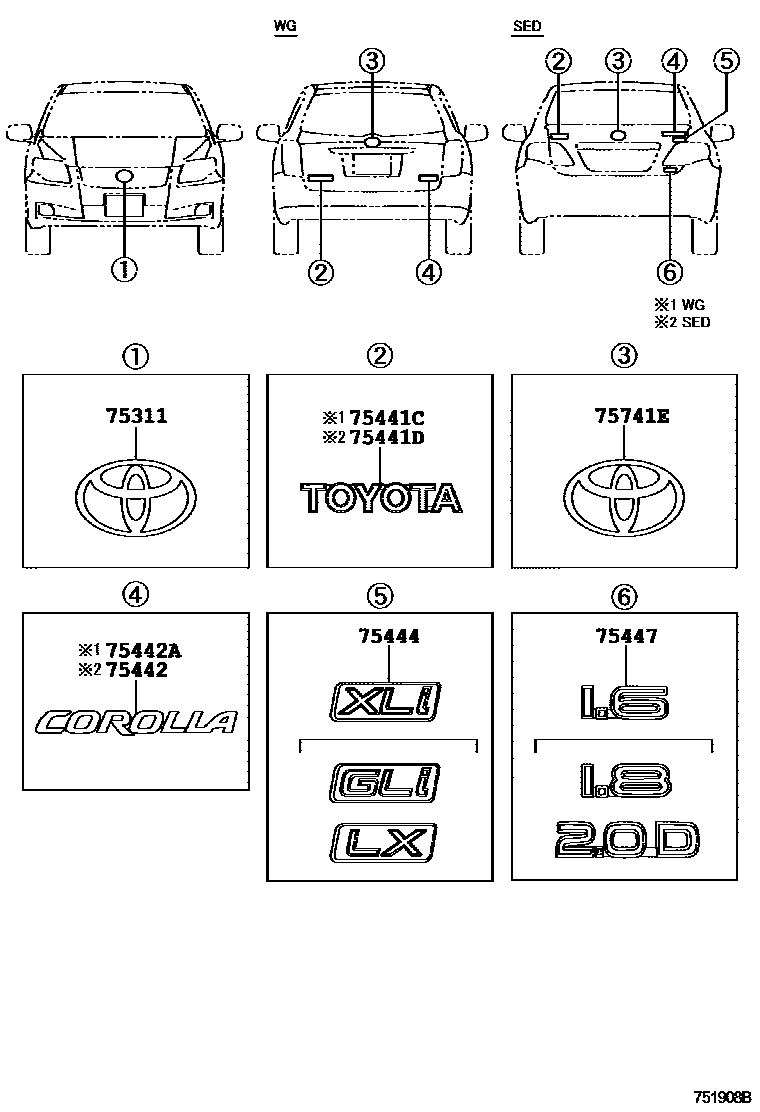

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751908B
丰田徽标和铭牌(车外和车内) — 751908B (200704 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-12380 · 75311-13210
75441CBack door nameplate75441-13240
75441DTrunk door No. 1 name plate75441-12A00
75442Trunk door number plate No. 275442-12A11
75442ANo. 2 nameplate on back door75442-13370
75444Trunk door No. 4 nameplate75444-12B30 · 75444-12B40 · 75444-12B50
75447Trunk door No. 7 nameplate75447-12070 · 75447-12080 · 75447-12090
75741Elogo90975-02063 · 90975-02071
