Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

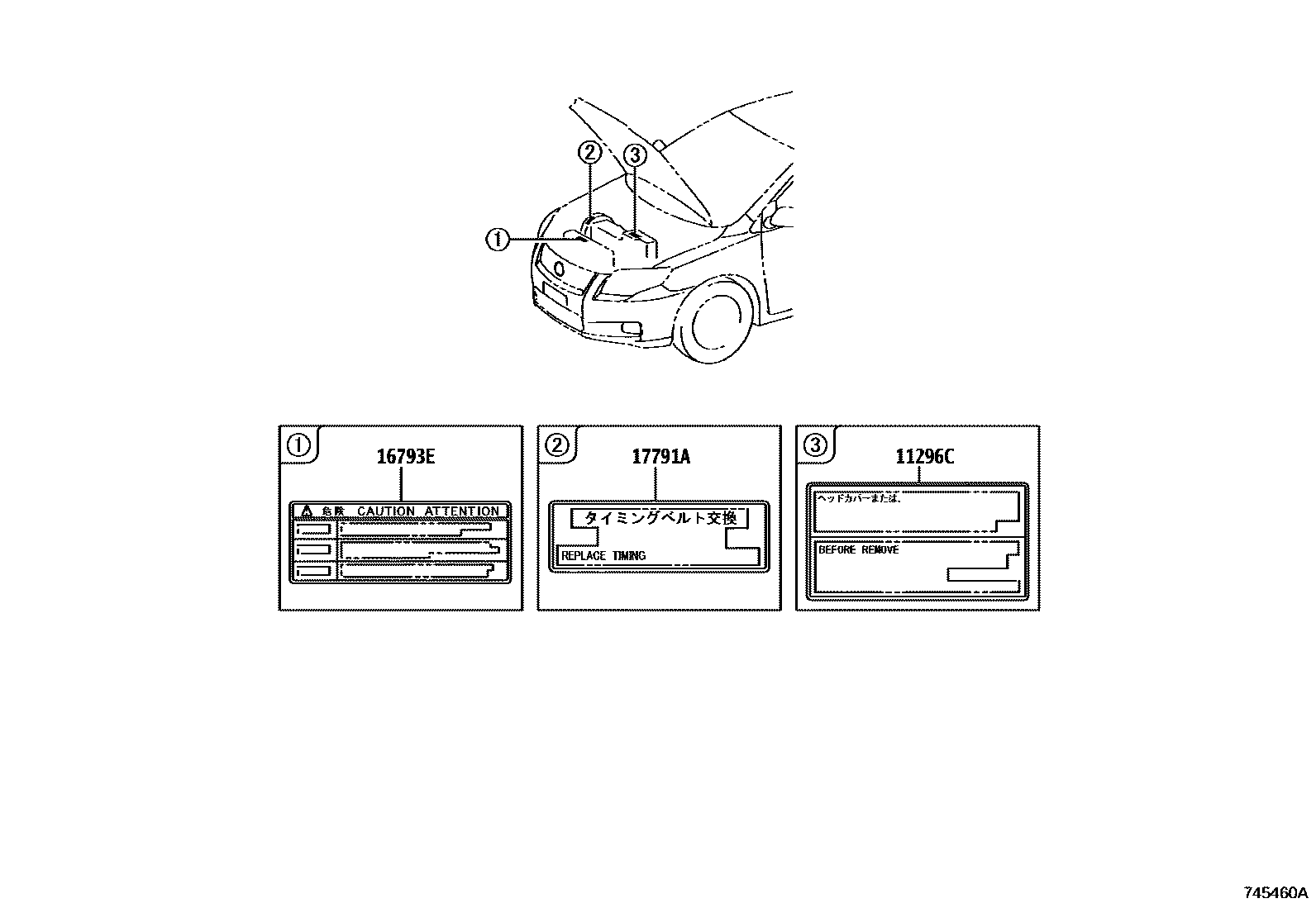

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11296C | Engine maintenance information label | 11296-64010 |
| 16793E | Cooling fan warning label | 16793-46010 |
| 17791A | Maintenance information label | 17791-55010 |
| 23923A | Fuel Precipitator Caution Label | 23923-64011 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511B | Nameplate | 74511-2B300 · 74511-48030 |
| 74541 | tire pressure warning plate | 42661-12C30 · 42661-12C40 · 42661-12C50 · 42661-12E70 · 42661-12F20 |
| 74543J | rear seat warning label | 74543-13260 |
| 74559B | fuel information label | 74559-14050 · 74559-89101 |
| 74571A | Label cover protective film | 74571-32010 |
| 74596A | Side air bag warning label | 74596-12020 · 74596-53010 · 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 84639A | cruise control switch information label | 84639-64010 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-28220 |
