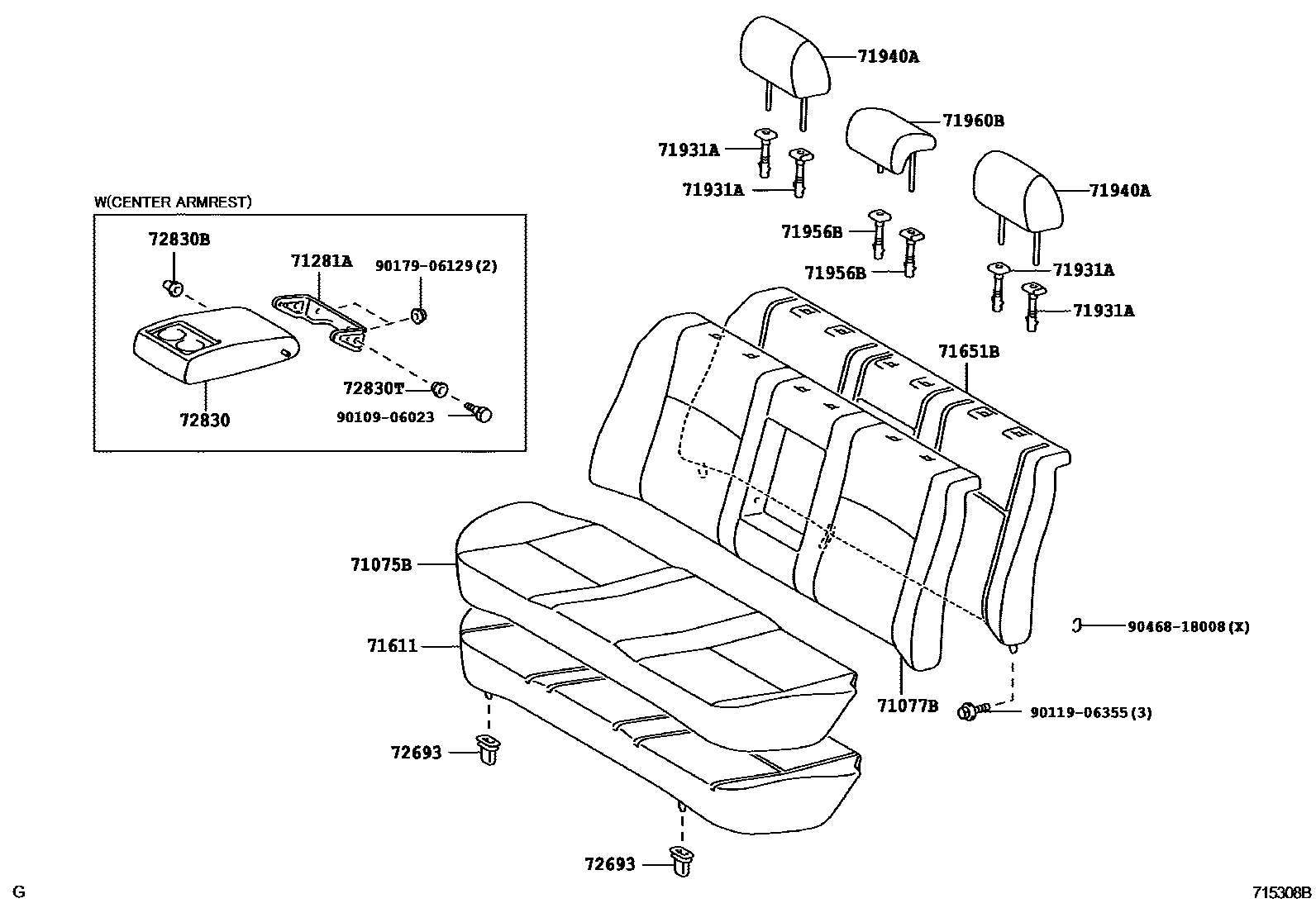

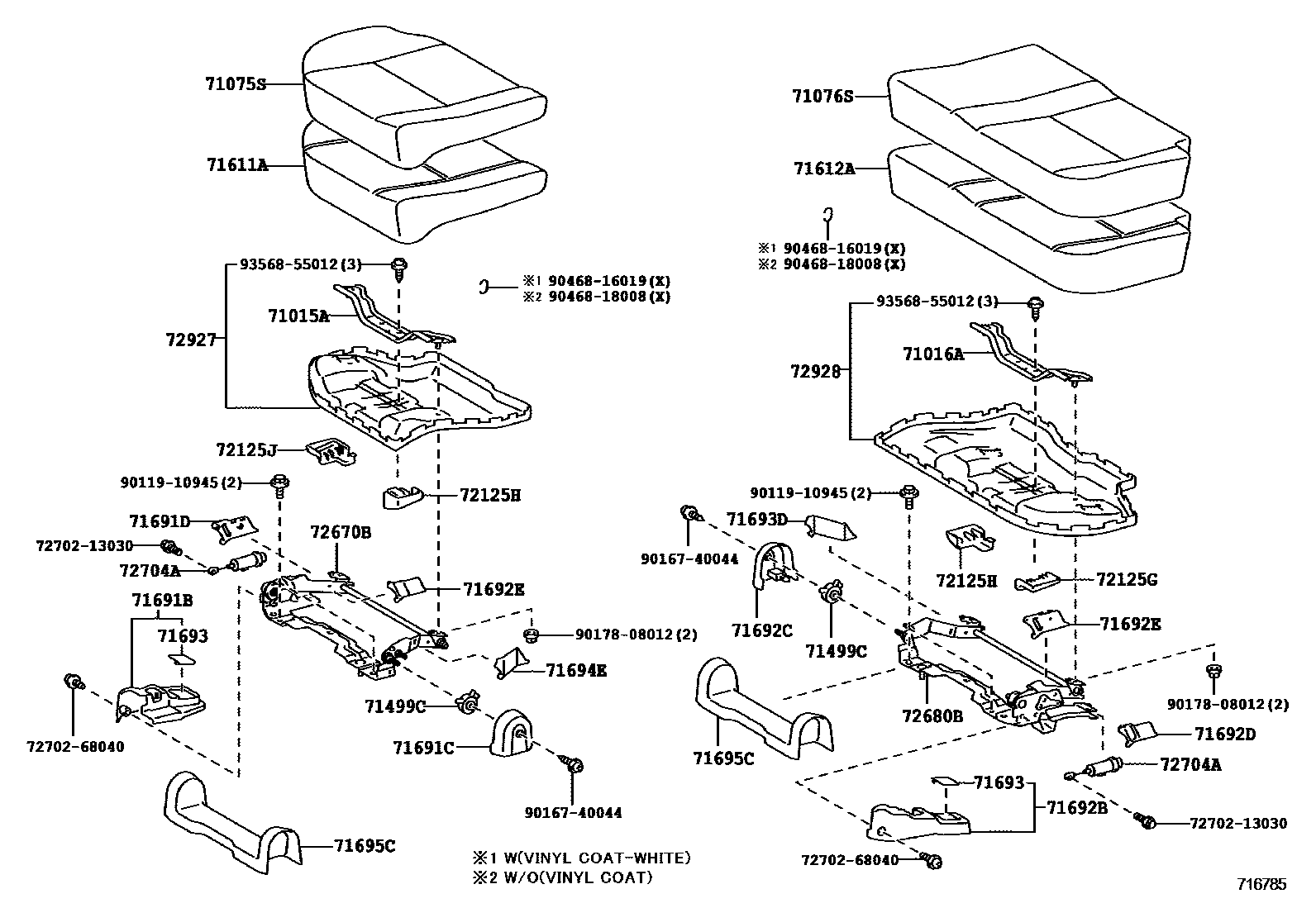

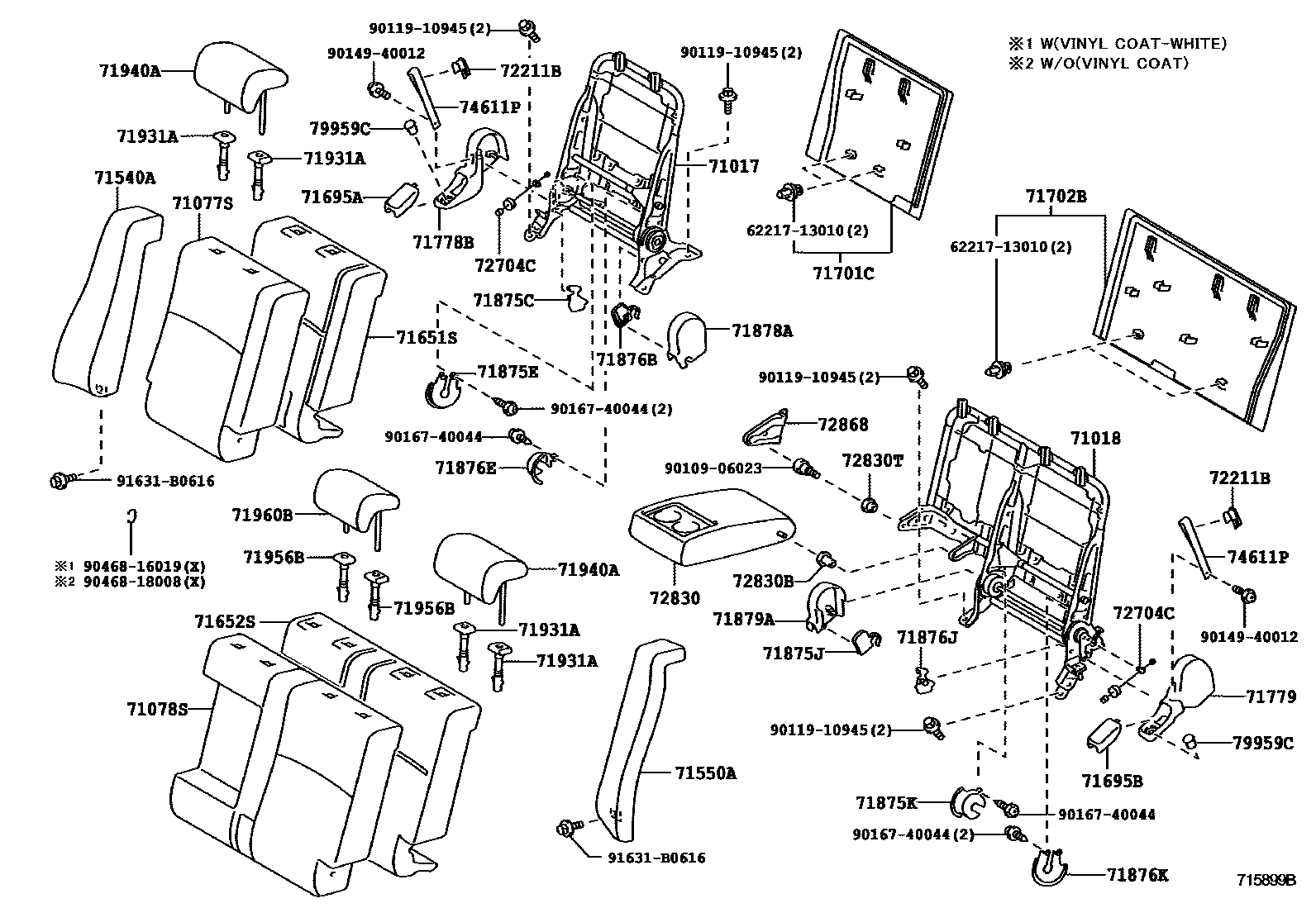

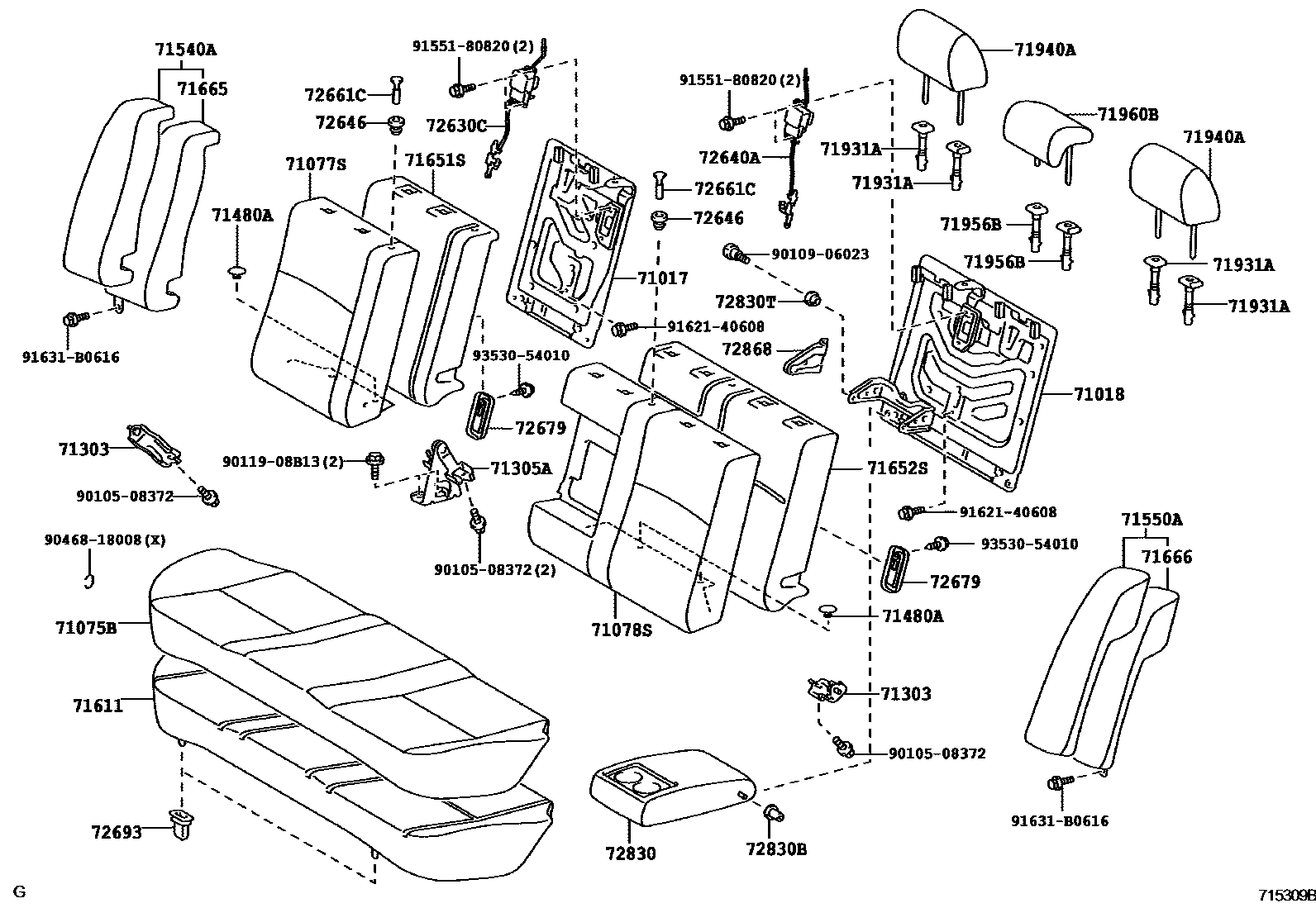

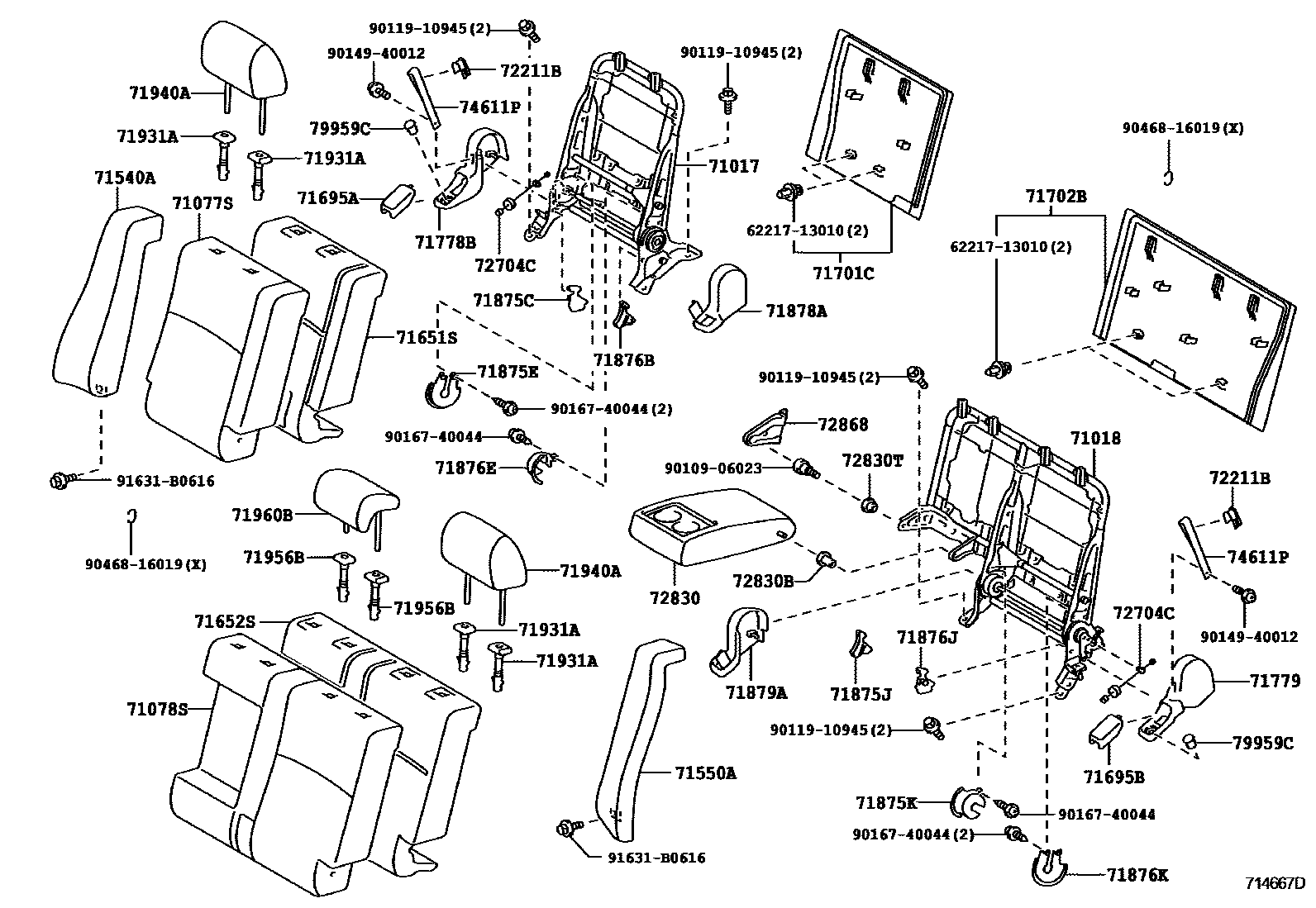

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-1F020 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13090 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12860 · 71017-13310 · 71017-13320 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12400 · 71018-13130 · 71018-13140 |
| 71281A | Rear seat center armrest hinge | 71281-12040 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12170 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12210 |
| 71499C | Rear seat cushion spring damper | 71499-13090 |
| 71611 | Rear seat cushion cushion | 71503-12200 |
| 71611A | Rear right seat cushion | 71611-13330 · 71611-13340 |
| 71612A | Rear left seat cushion | 71612-13190 · 71612-13200 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12300 · 71507-12310 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12A30 · 71651-13340 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12780 · 71652-13200 |
| 71665 | Rear right seat backrest side cushion | 71665-12210 |
| 71666 | Rear left seat backrest side cushion | 71666-12170 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-28060 |
| 71875J | Right backrest tilt adjuster inner cover | 71875-13070 |
| 71875K | Right backrest tilt adjuster inner cover | 71875-13060 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-13070 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-13050 |
| 71876K | Left backrest tilt adjuster inner cover | 71876-28060 |
| 72630C | Rear right seat back lock assembly | 72630-12350 |
| 72640A | Rear left seat back lock assembly | 72640-12320 |
| 72670B | Rear right seat cushion lock assembly | 72670-13030 · 72670-13031 |
| 72680B | Rear left seat cushion lock assembly | 72680-13030 · 72680-13031 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-13040 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-13020 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 79959C | Rear seat leg cover | 79959-13010 |
