Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

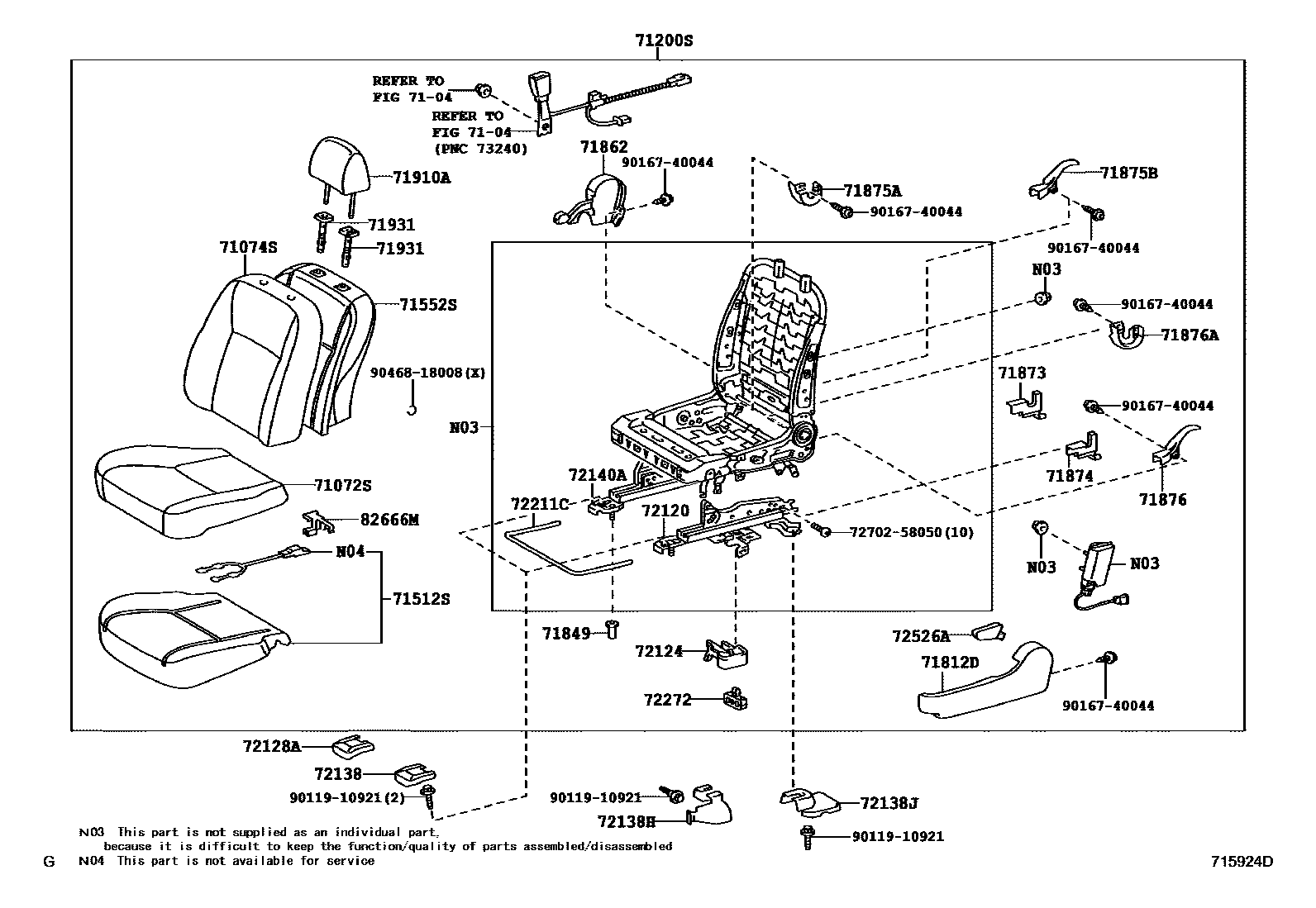

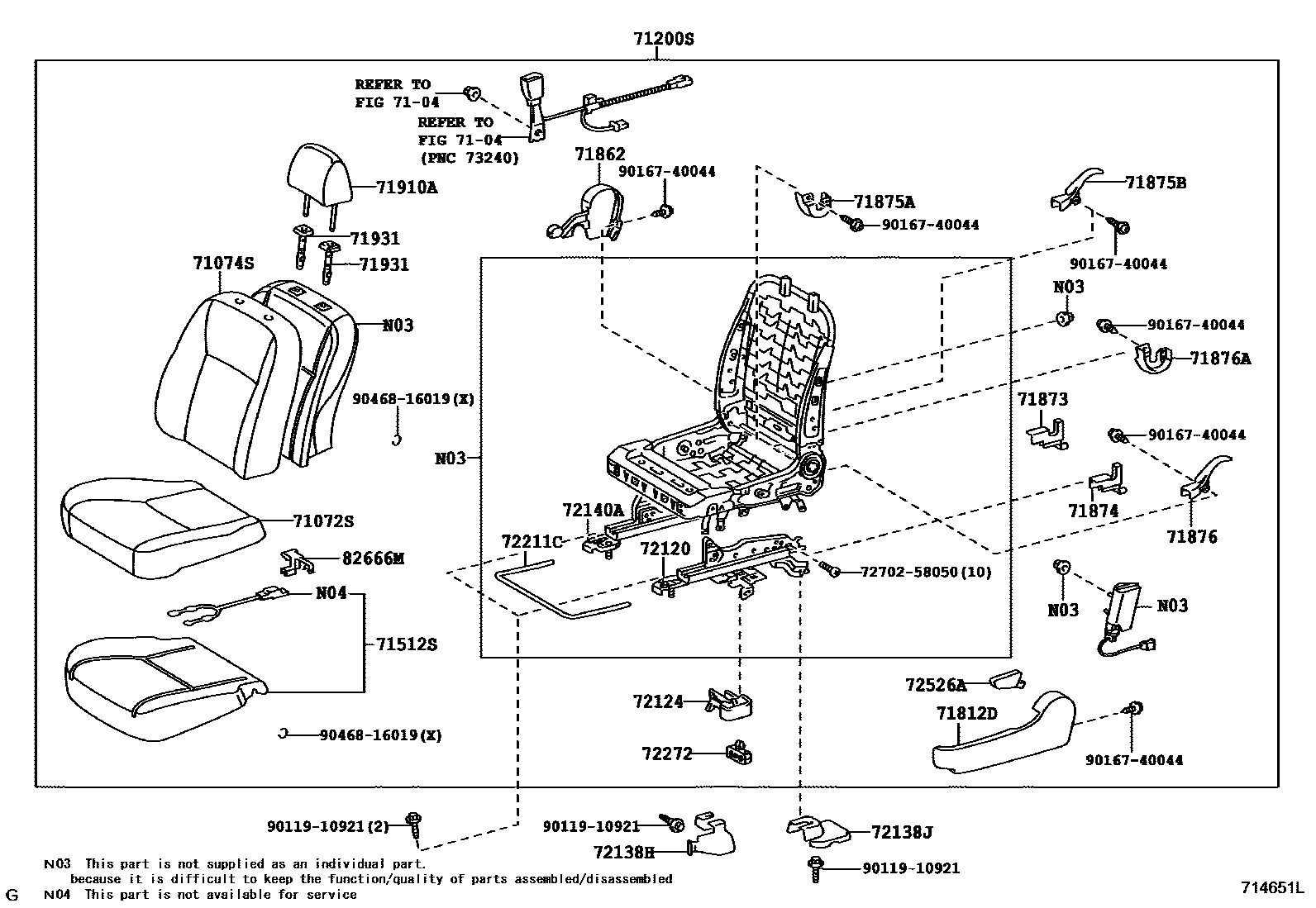

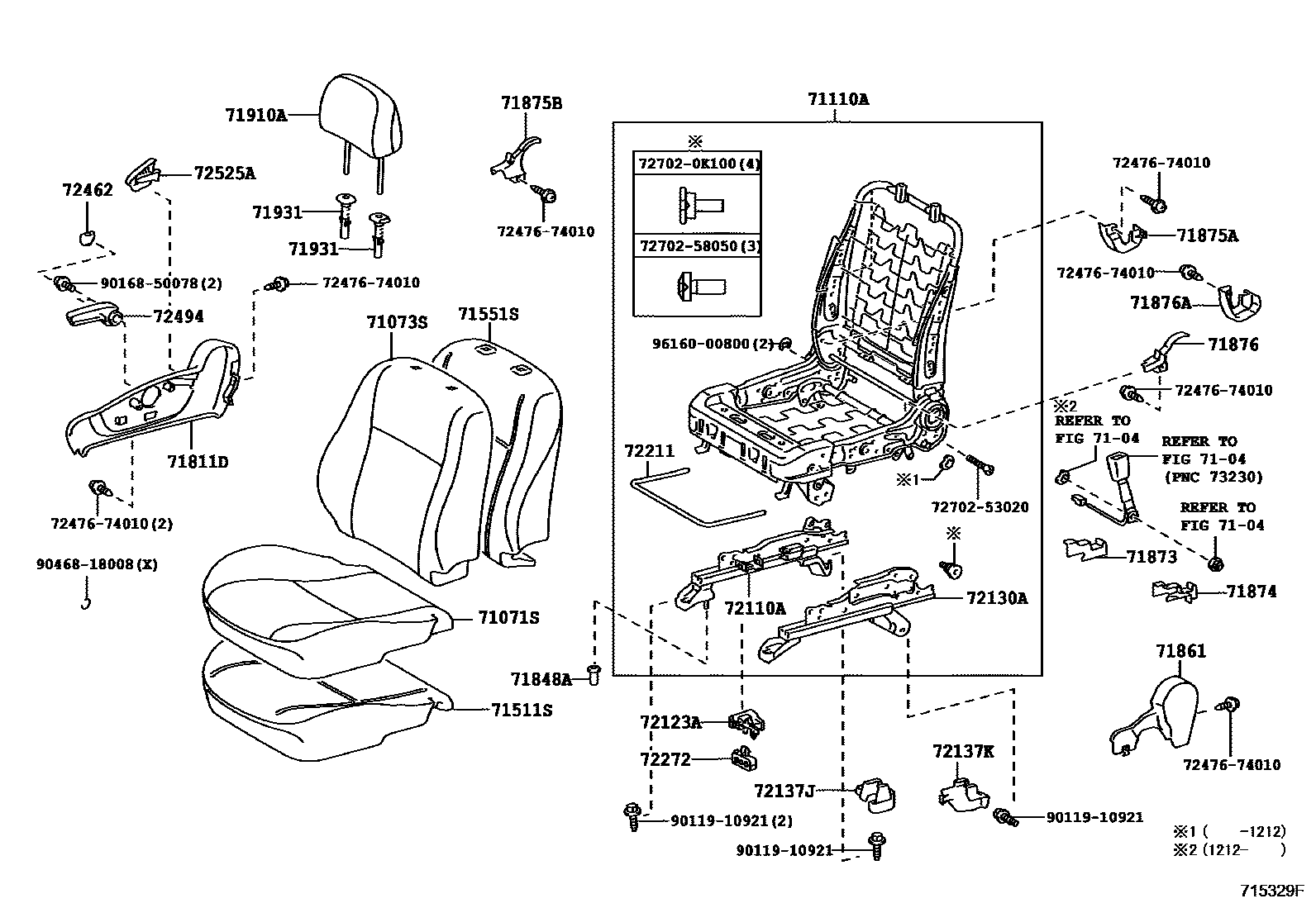

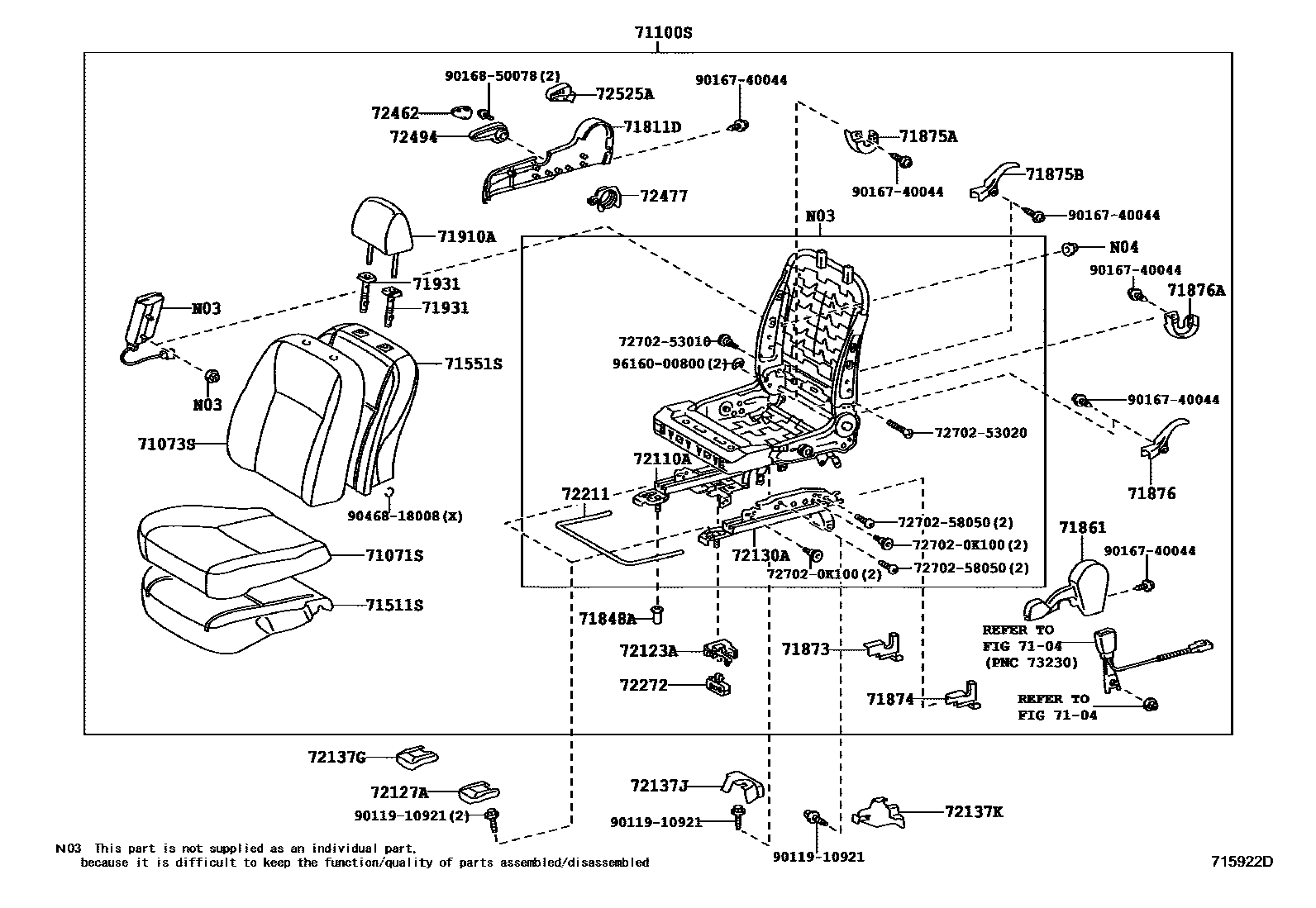

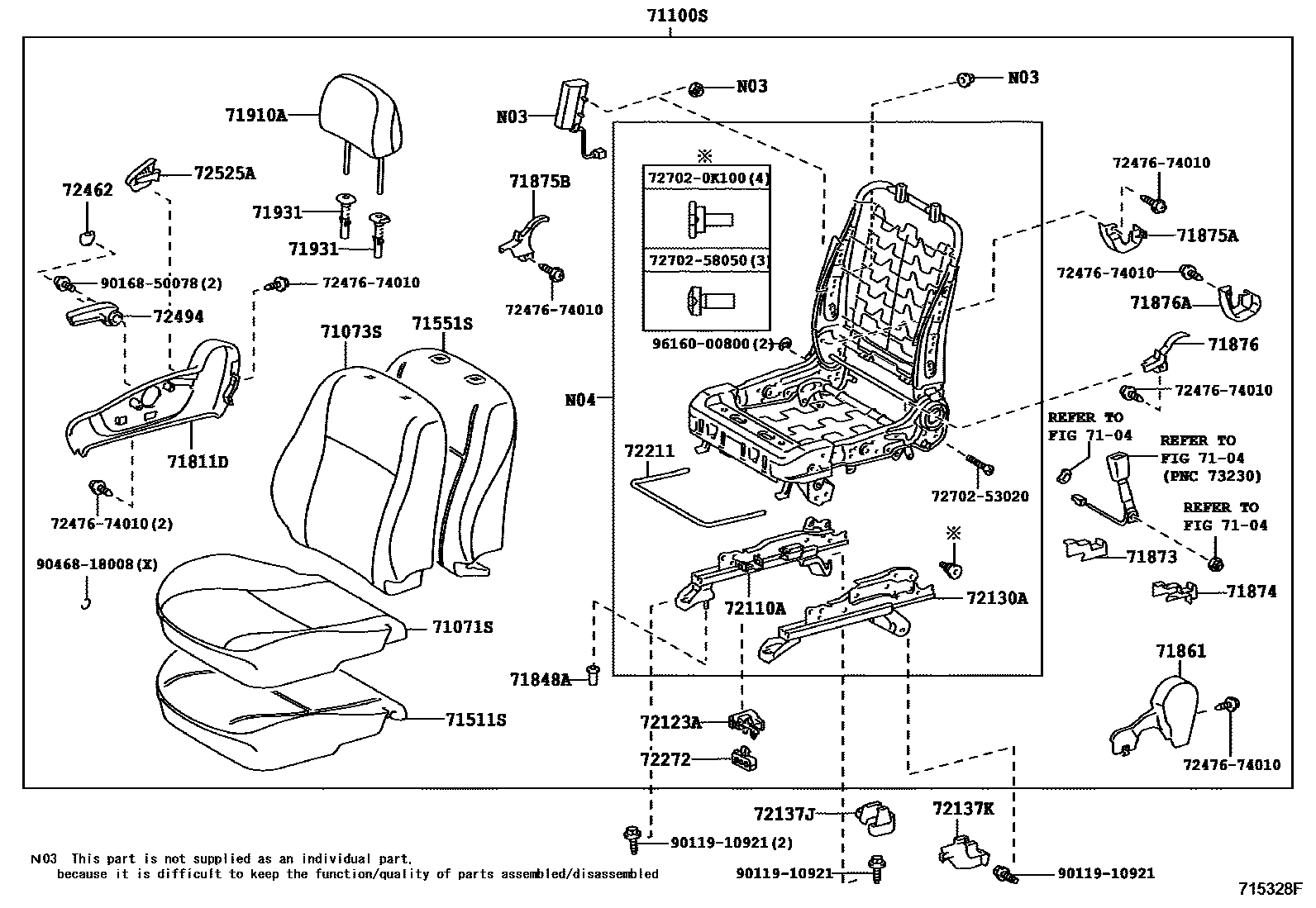

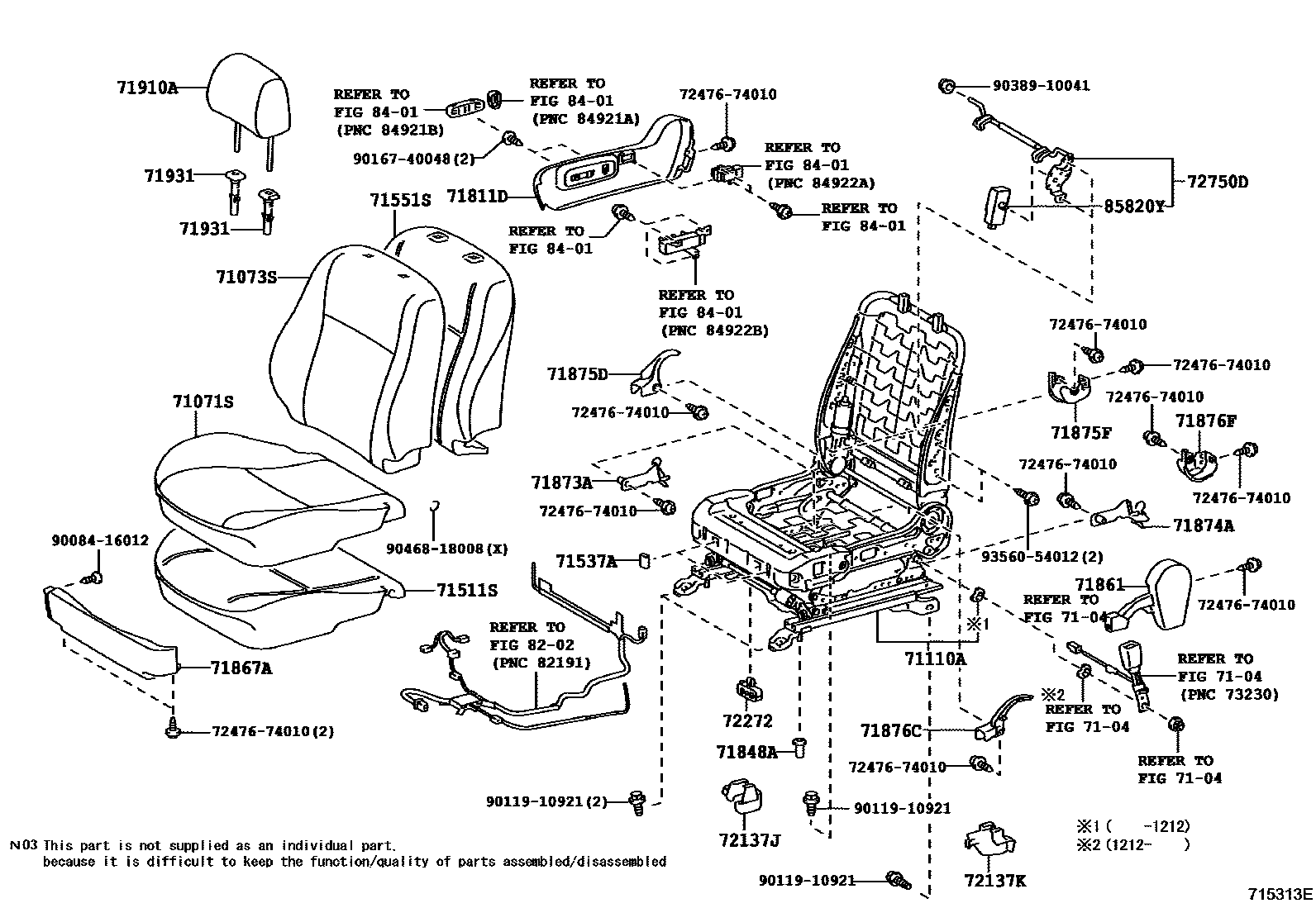

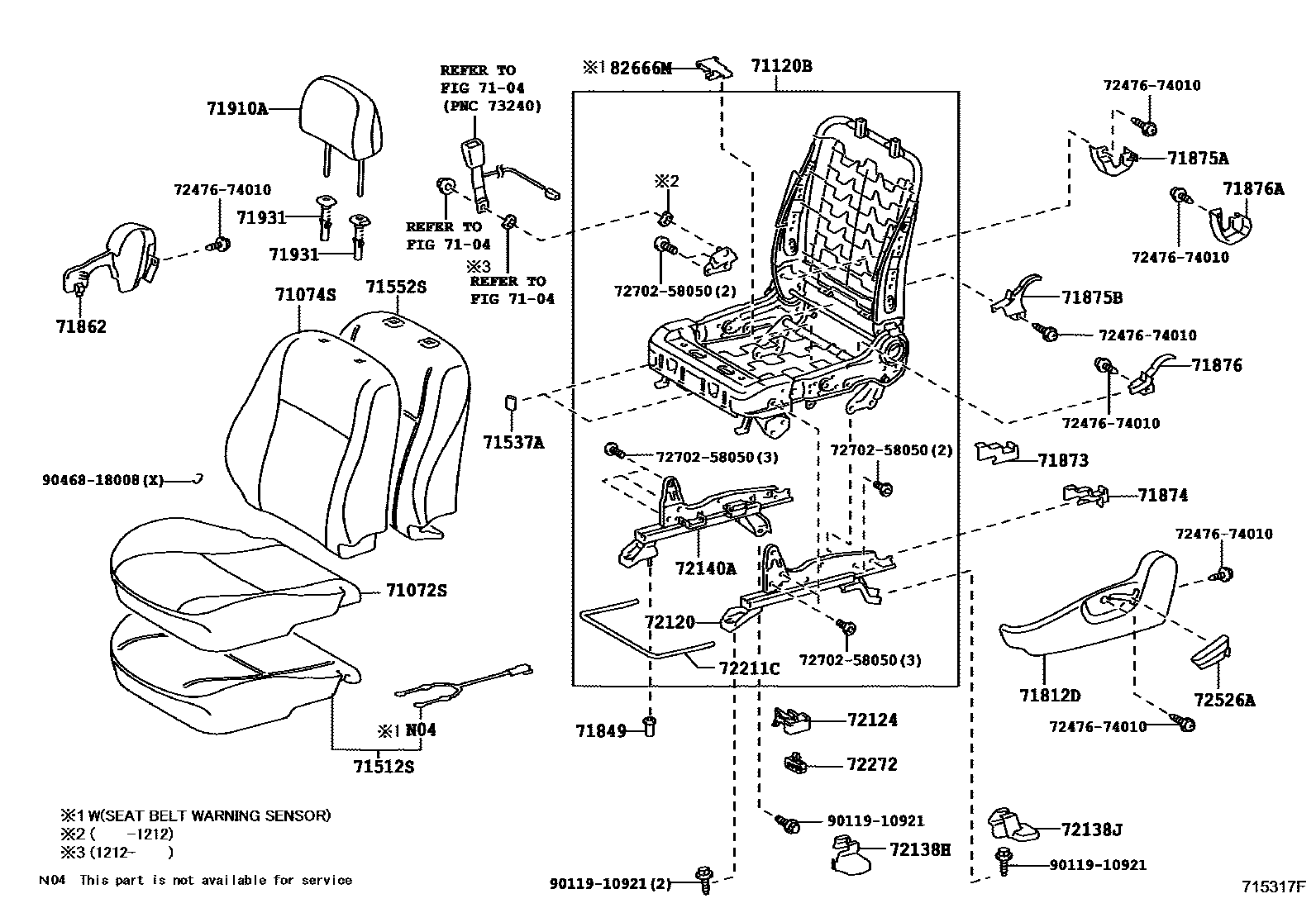

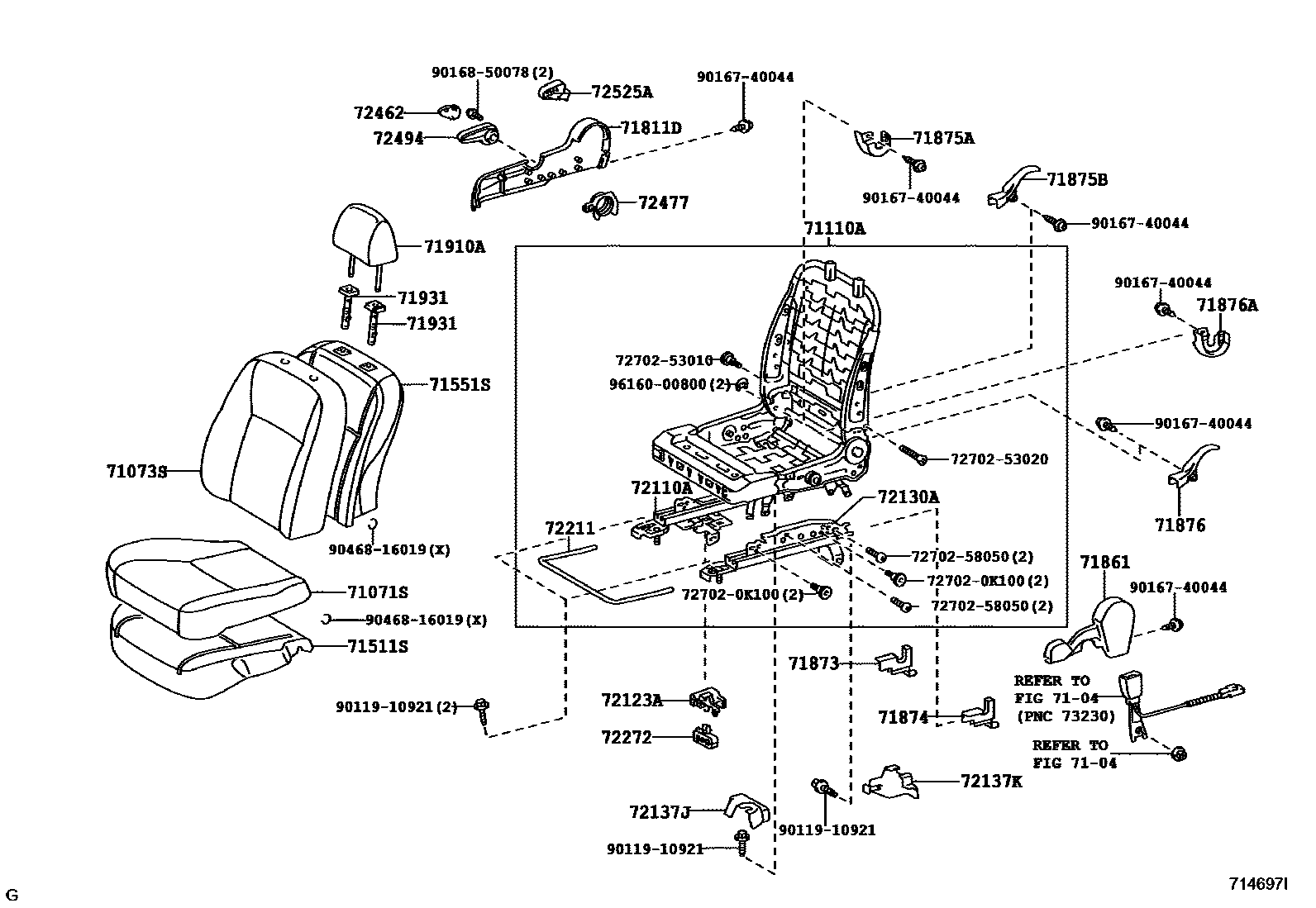

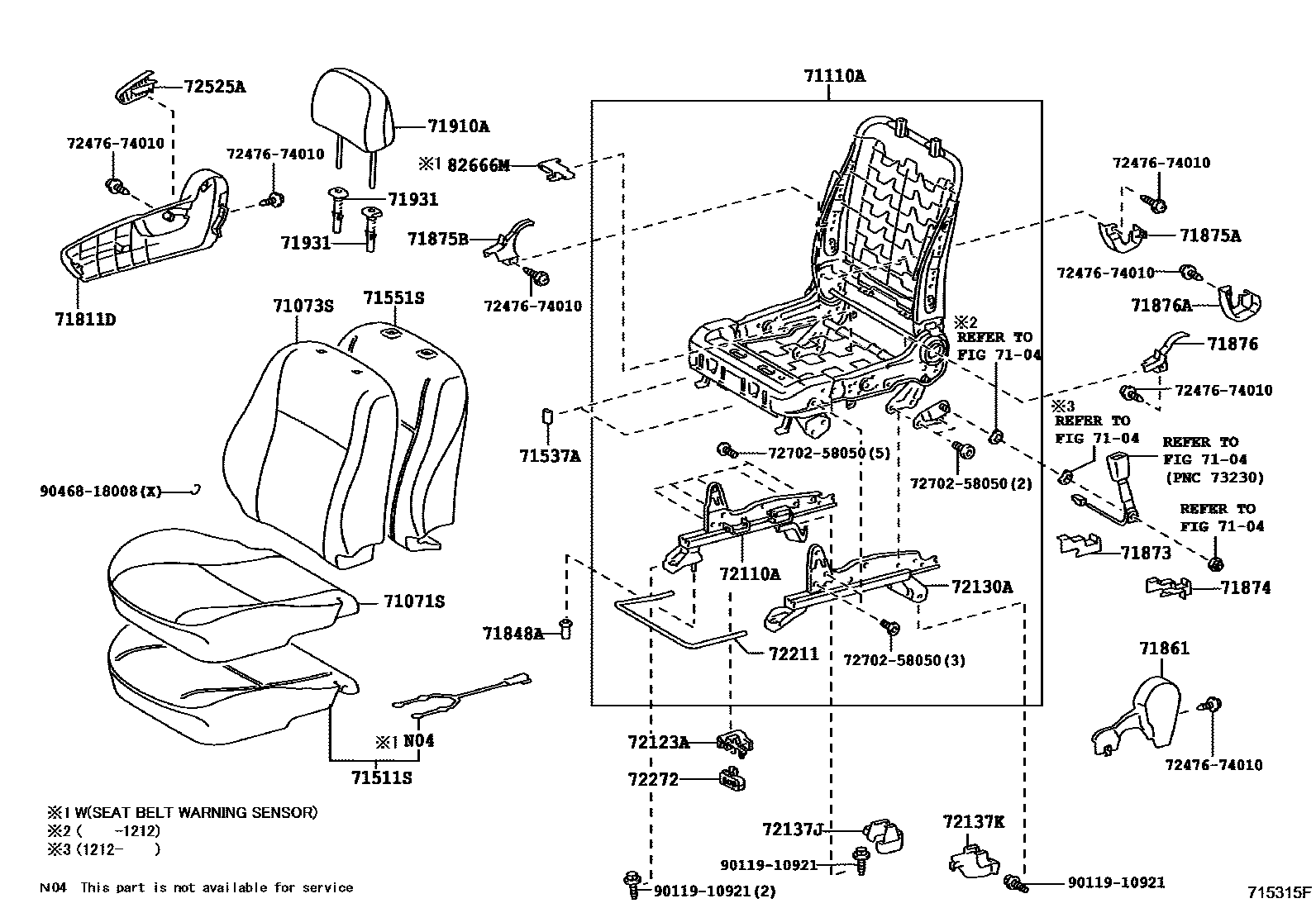

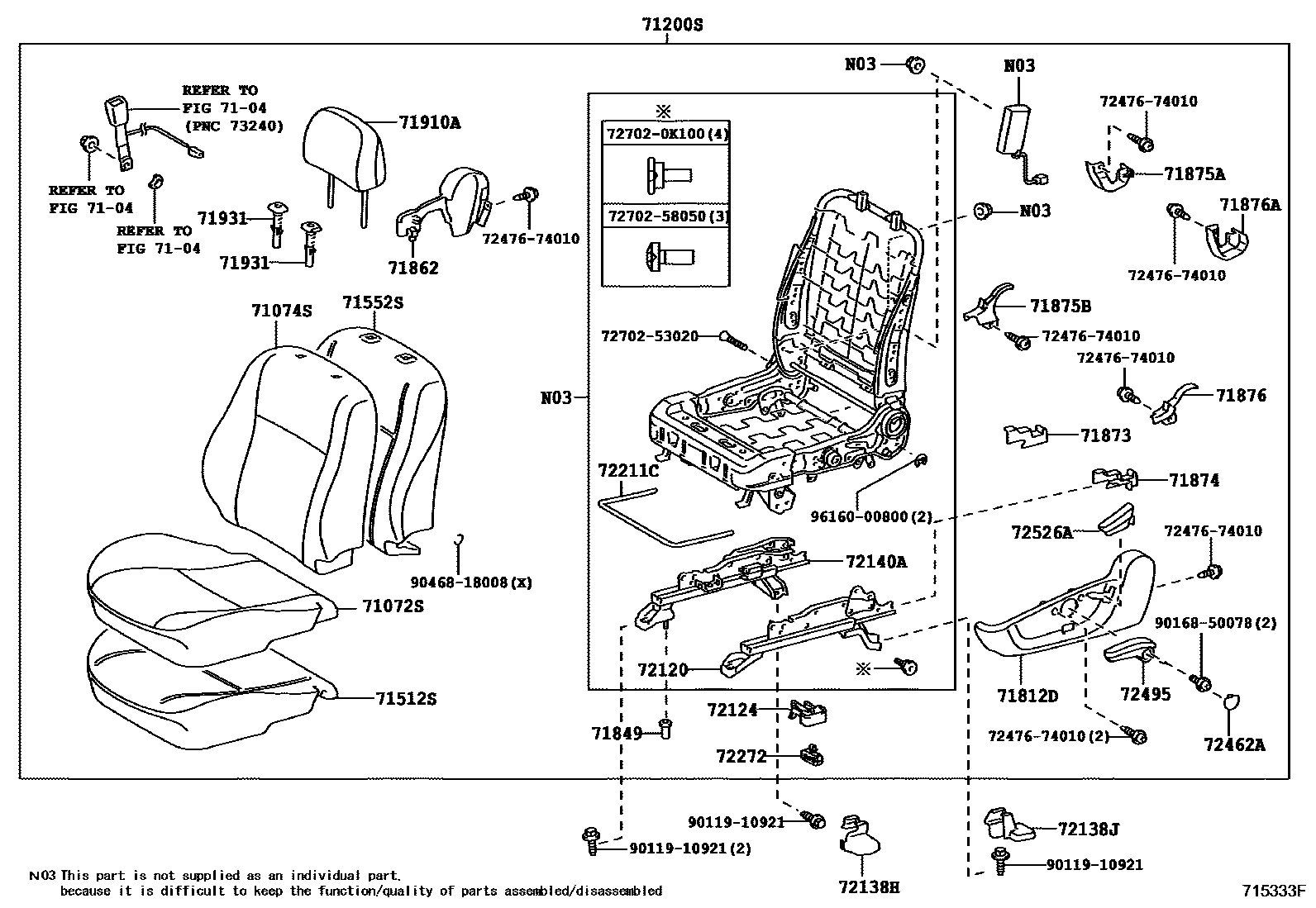

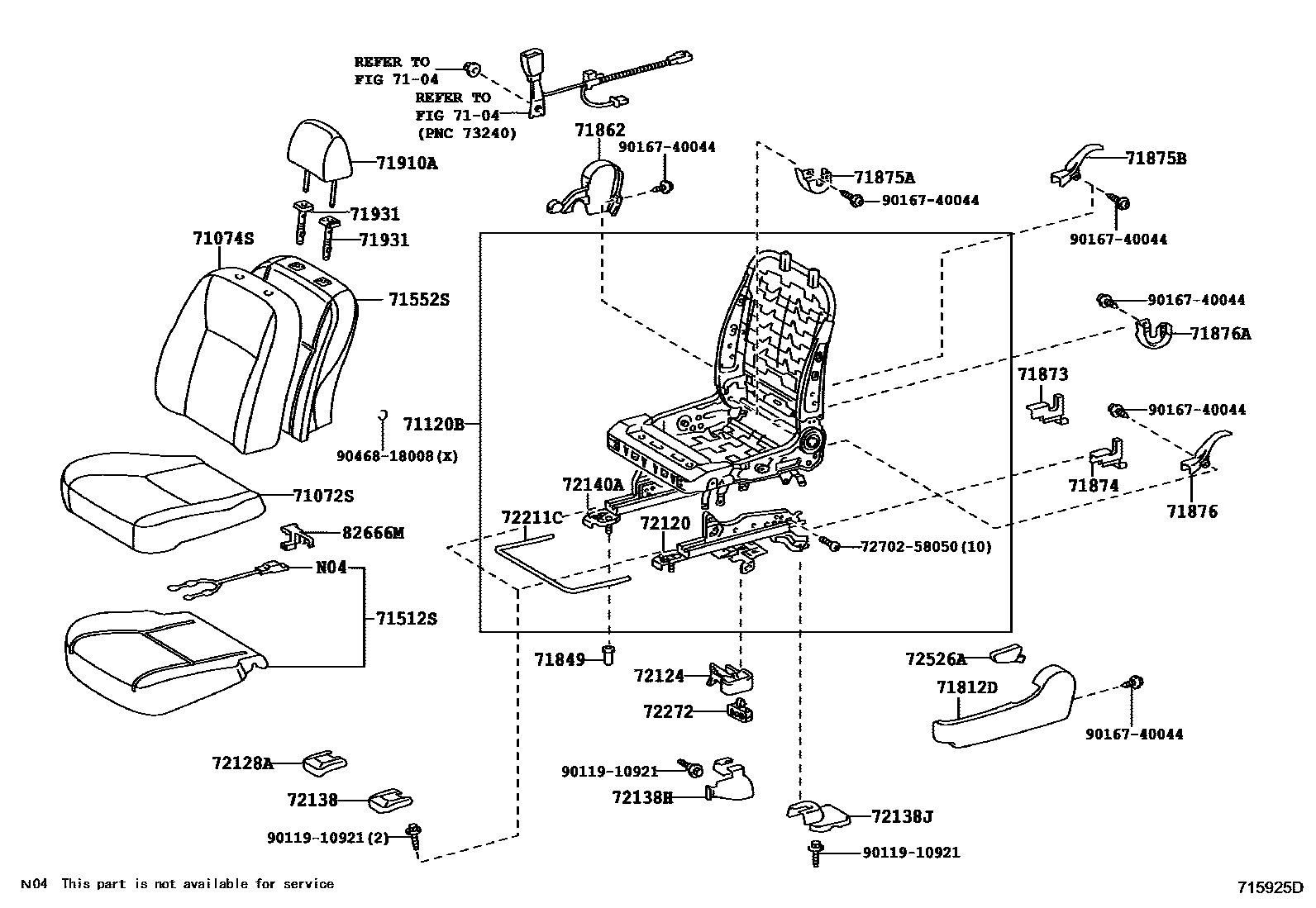

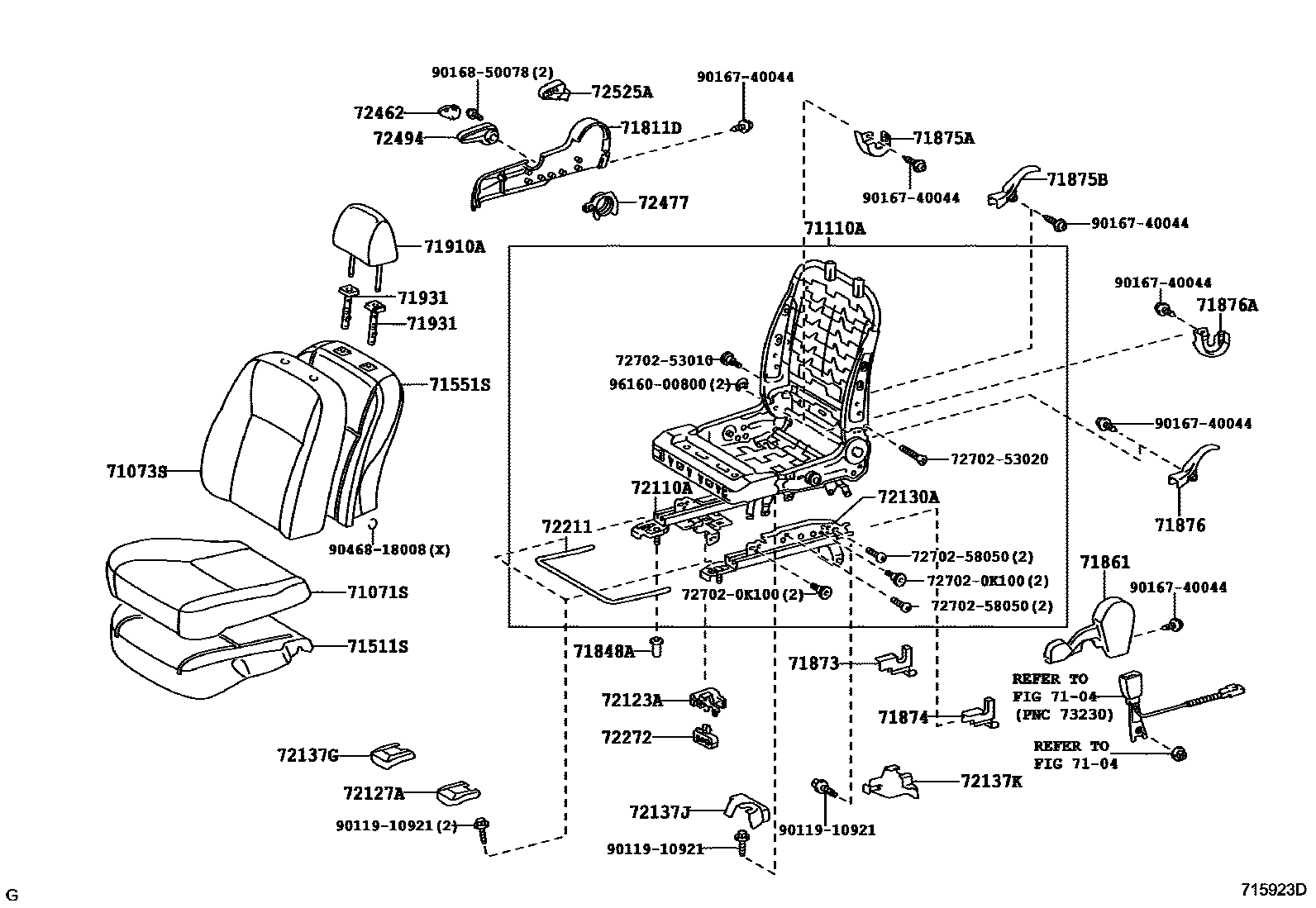

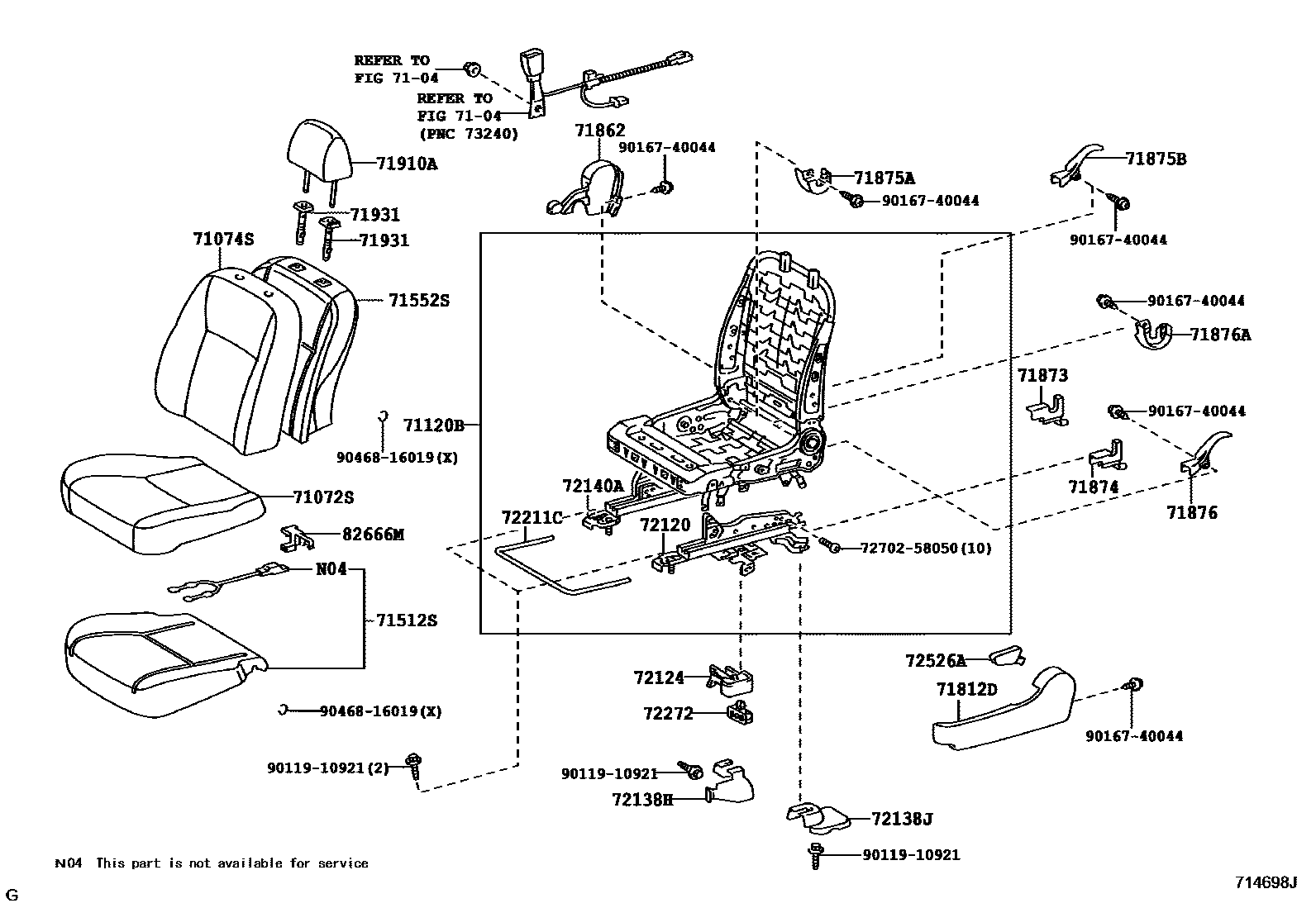

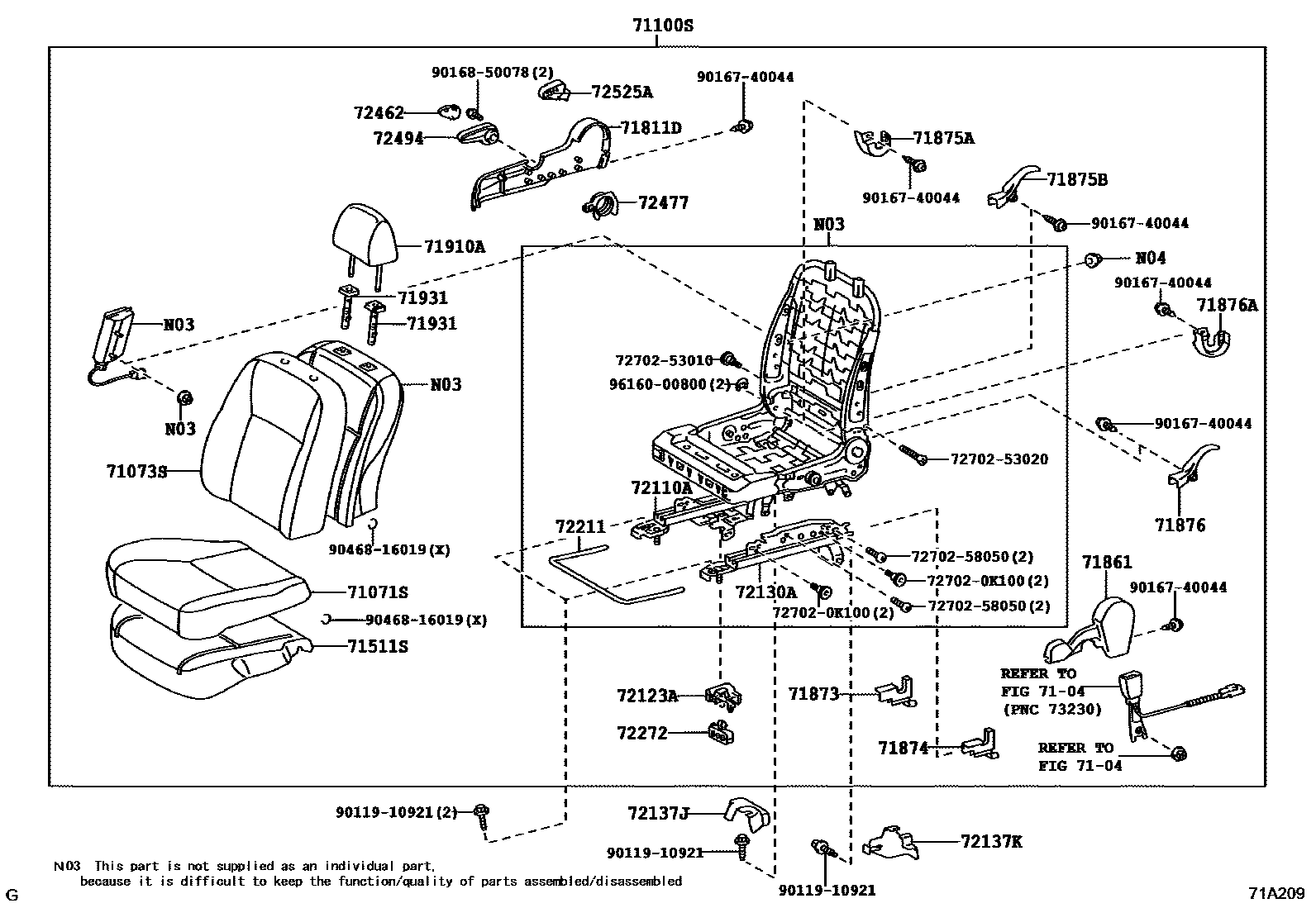

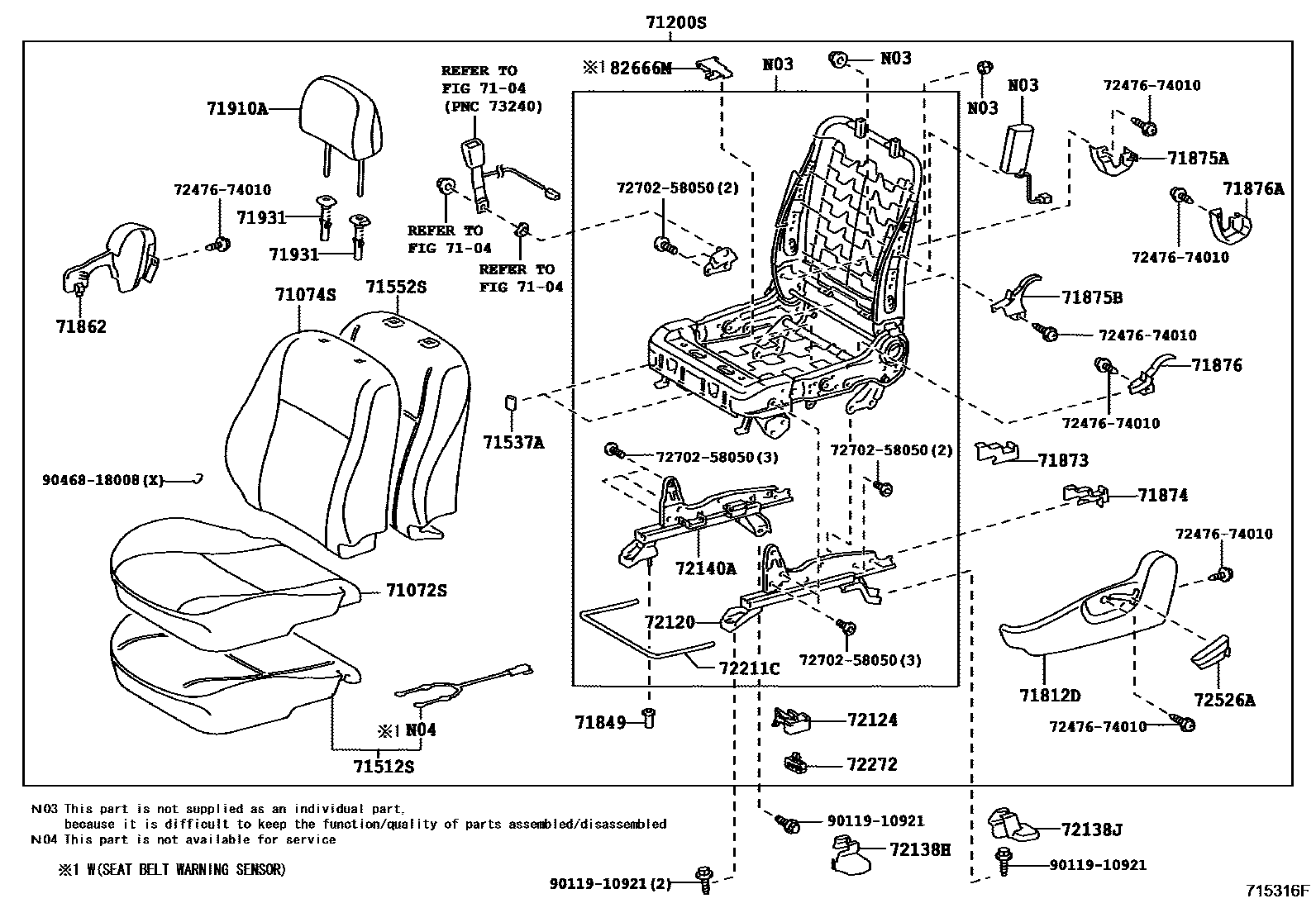

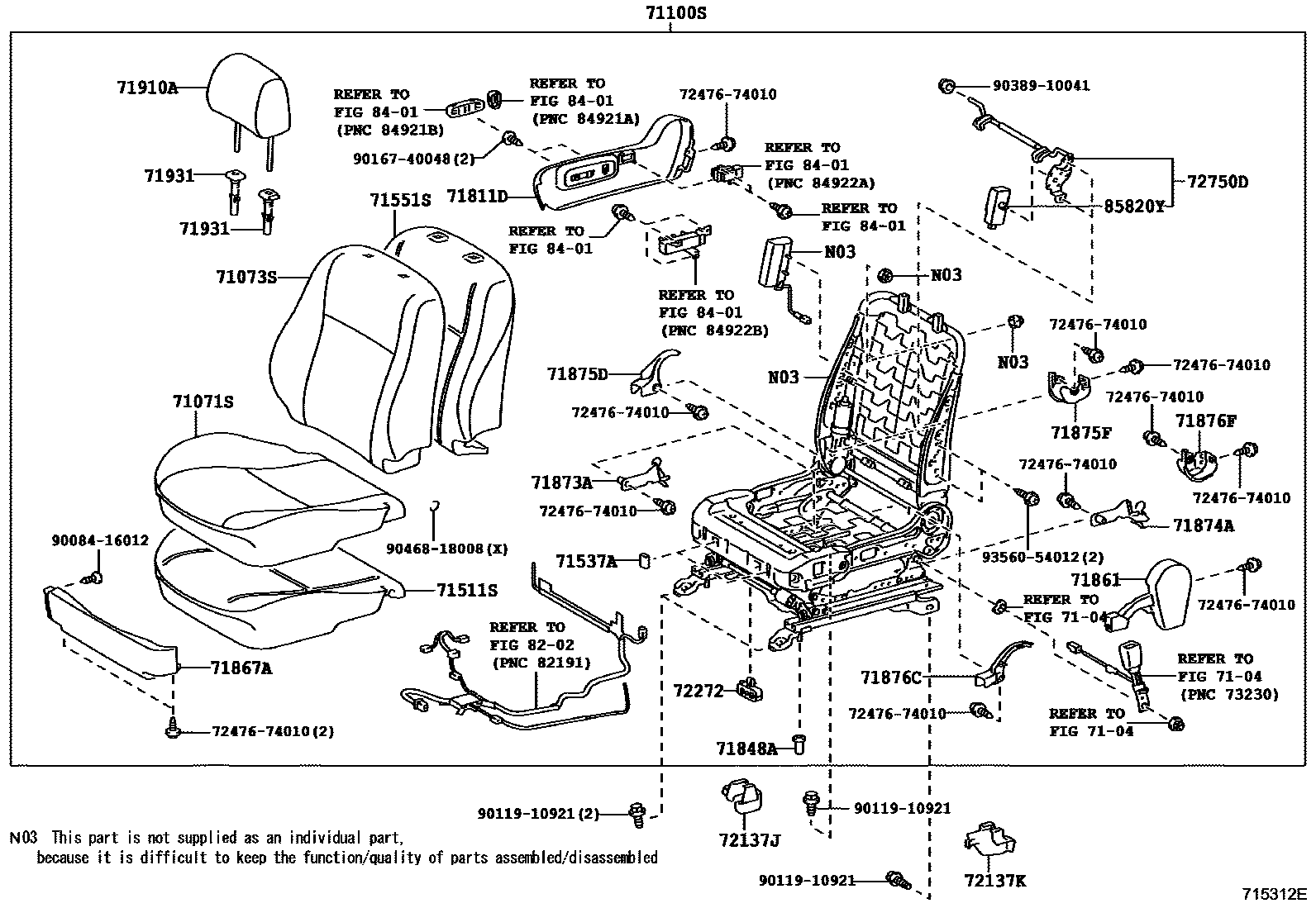

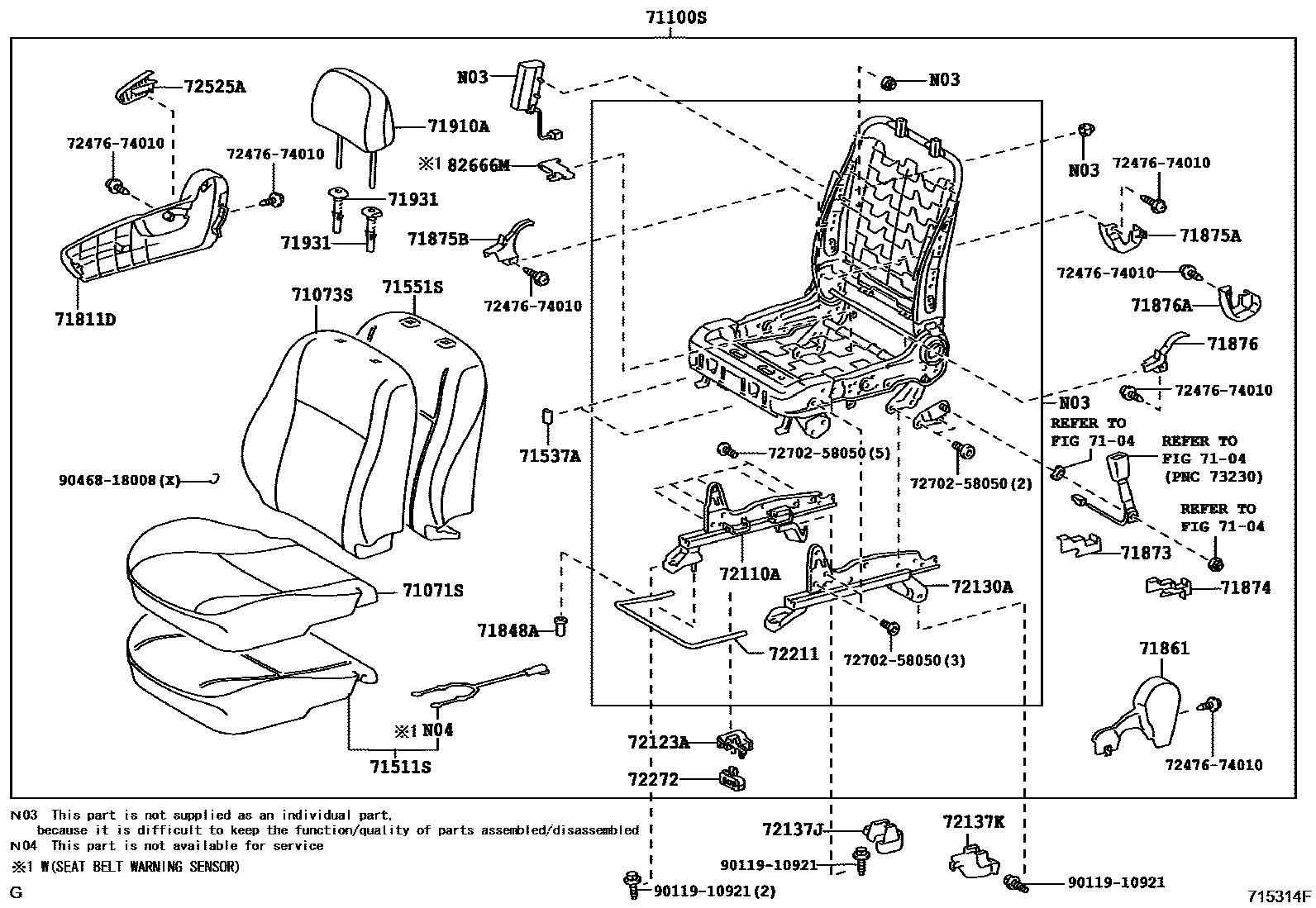

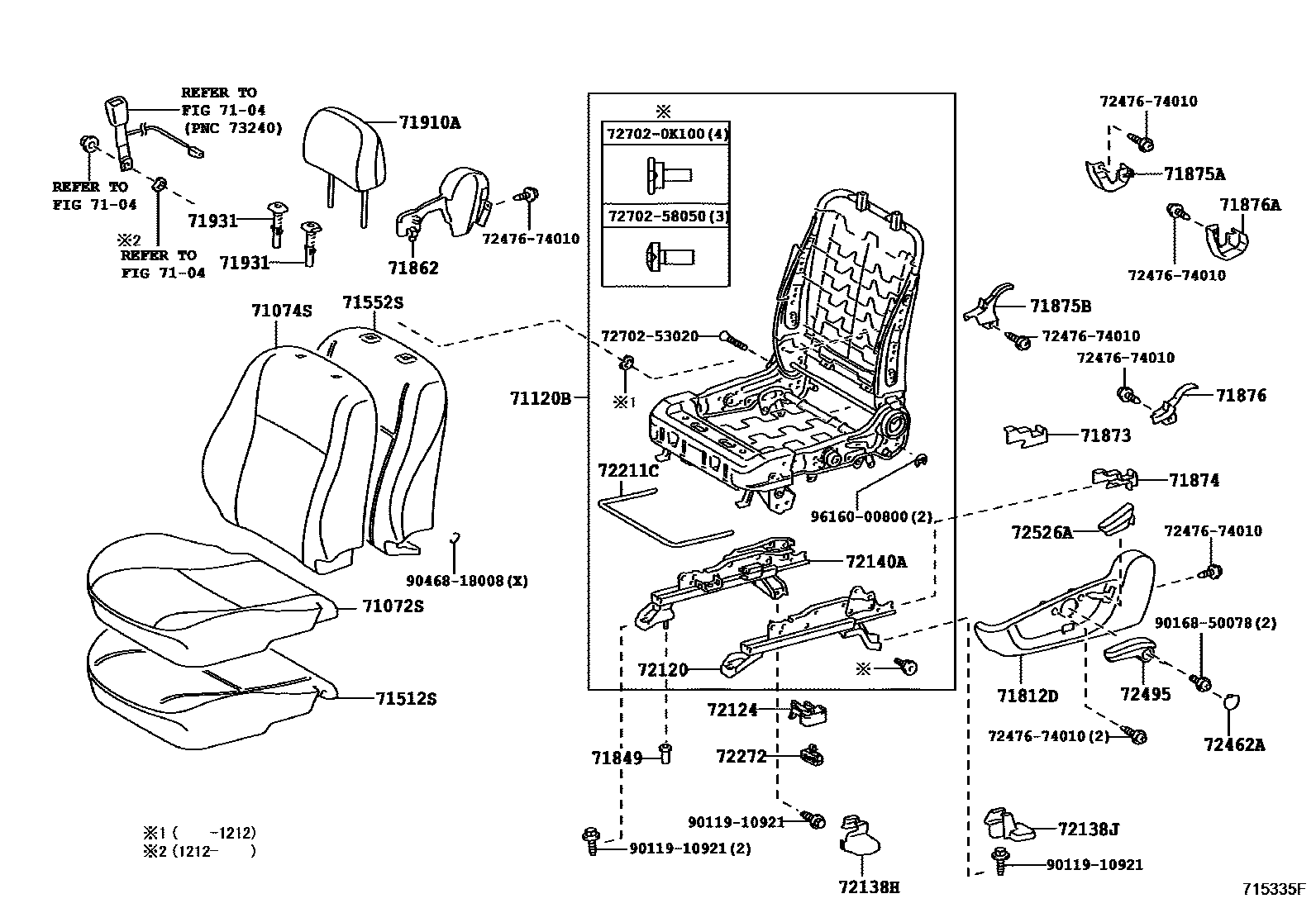

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 18 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12070 · 71110-12150 · 71110-12290 · 71110-12291 · 71110-12300 · 71110-12301 · 71110-12310 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12040 · 71120-12140 · 71120-12270 · 71120-12271 · 71120-12280 · 71120-12281 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-12030 · 71511-12A60 · 71511-12A70 · 71511-12B10 · 71511-12B40 · 71511-12B60 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-12080 · 71052-12100 · 71512-12300 · 71512-12370 · 71512-12490 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12830 · 71551-12840 · 71551-12A50 · 71551-12A60 · 71551-12A70 · 71551-12B30 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12380 · 71552-12390 · 71552-12410 · 71552-12420 · 71552-12470 · 71552-13170 |
| 71848A | Right seat adjuster cover | 71848-26010 |
| 71849 | left seat adjuster cover | 71848-26010 |
| 71873 | Front right seat cushion lower guard panel | 71873-12060 · 71873-53030 |
| 71873A | Front seat cushion lower guard | 71873-30070 |
| 71874 | Front left seat cushion lower guard | 71874-12060 · 71874-53010 |
| 71874A | Front left seat cushion lower guard | 71874-30020 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-58050 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-58050 |
| 72110A | Front right seat outer slide rail assembly | 72110-12150 · 72110-12220 · 72110-12230 |
| 72120 | Front left seat outer slide rail assembly | 72120-12190 · 72120-12200 · 72120-12280 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-12140 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-12120 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-12050 |
| 72128A | Front left seat inner slide rail bracket cover | 72128-12040 |
| 72130A | Front right seat inner slide rail assembly | 72130-12740 · 72130-12810 · 72130-12830 |
| 72137G | Right seat outer slide rail cover | 72123-12170 |
| 72137J | Front right seat outer slide rail rear cover | 72137-12190 |
| 72137K | Front right seat inner slide rail rear cover | 72157-12170 |
| 72138 | Left seat outer slide rail cover | 72124-12150 |
| 72140A | Front left seat inner slide rail assembly | 72140-12690 · 72140-12700 · 72140-12780 |
| 72211 | Seat slide adjustment handle | 72211-21020 |
| 72211C | Seat slide adjustment handle | 72211-21020 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 72750D | Right lumbar support adjuster assembly | 72750-48020 |
| 82666M | Connector holder | 82666-12420 |
| 85820Y | Electric seat motor assembly | 85820-60130 |
