Toyota COROLLA 锁芯组件 — Figure 6712

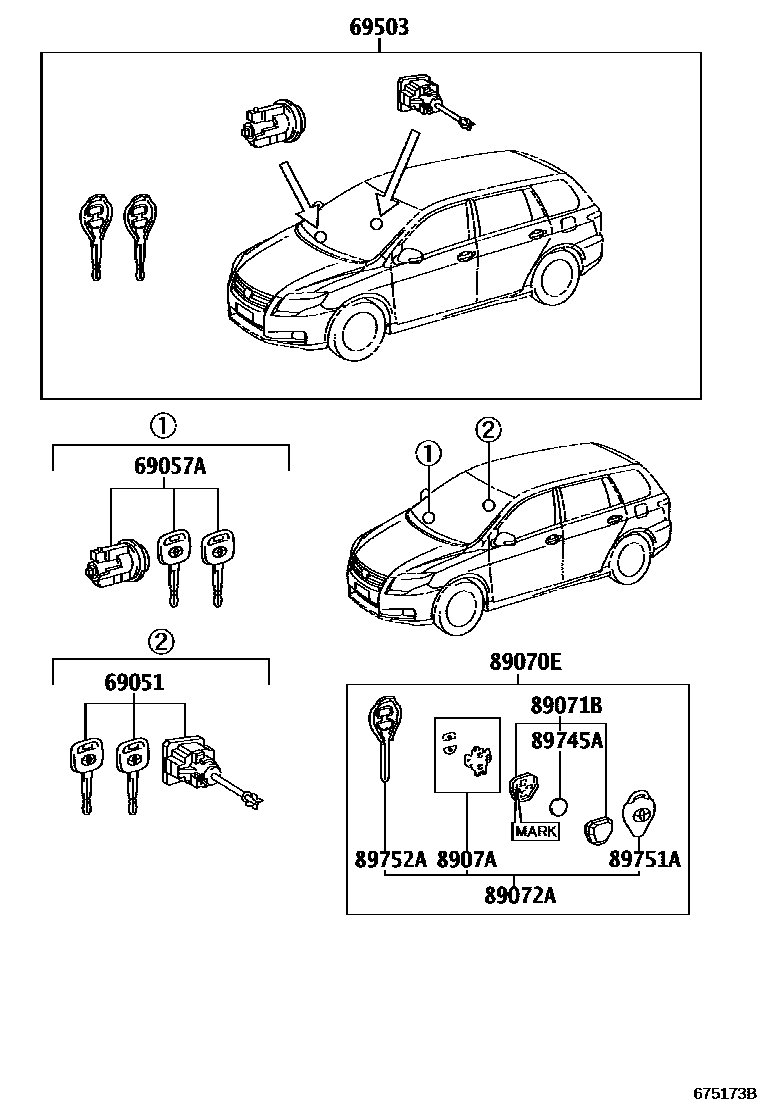

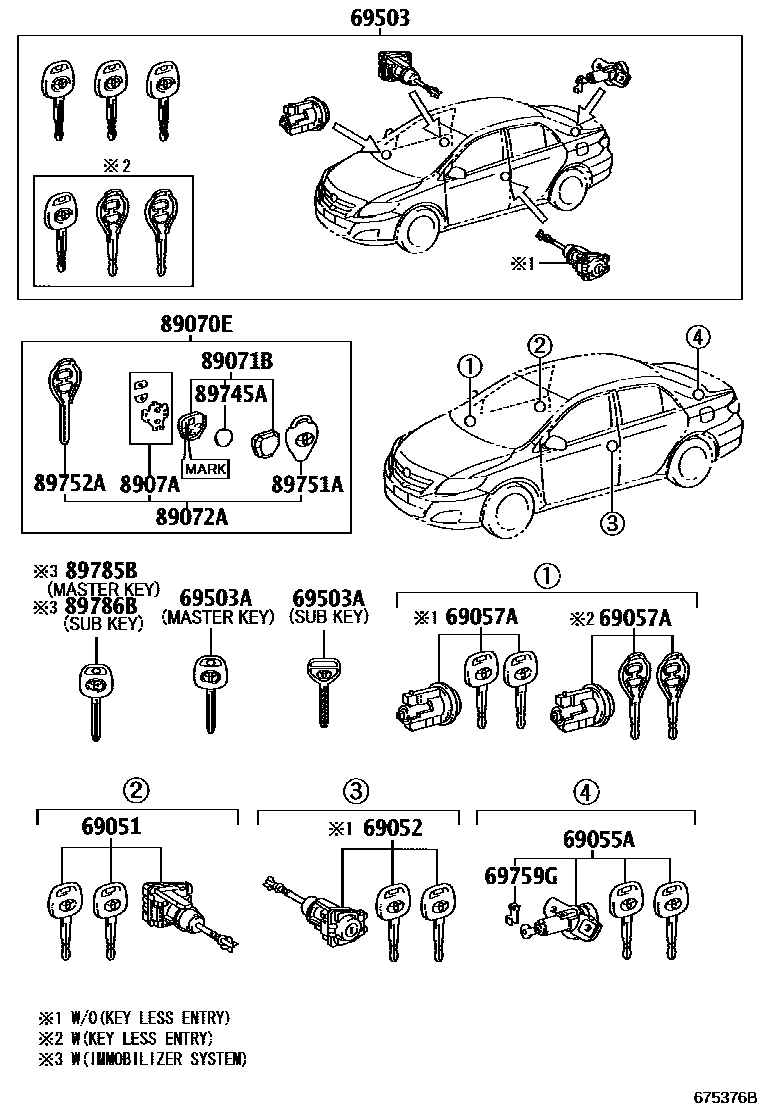

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12630 · 69051-12650 · 69051-21090 |
| 69052 | Left door lock cylinder and key assembly | 69052-21090 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12A20 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12750 · 69057-12800 · 69057-22260 · 69057-28370 · 69057-52510 · 69057-52530 · 69057-60610 |
| 69503 | Door lock cylinder components | 69005-12A90 · 69005-12B90 · 69005-12C20 · 69005-12D00 · 69005-12D40 · 69005-12D50 · 69005-12D60 · 69005-12D70 · 69005-12E50 · 69005-12E60 · 69005-12E70 |
| 69503A | external tooth key | 90999-00188 · 90999-00199 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-12410 · 89070-12430 · 89070-12491 · 89070-12550 · 89070-12840 · 89070-26222 · 89070-26270 · 89070-26310 · 89070-28811 · 89070-28812 · 89070-60C80 |
| 89071B | Remote key sub-assembly module assembly | 89071-12150 · 89071-28201 · 89071-28202 · 89071-28220 · 89071-28240 · 89071-60280 |
| 89072A | Remote key shell assembly | 89072-12100 · 89072-12181 · 89072-12360 · 89072-26080 · 89072-28300 · 89072-28380 · 89072-60A60 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89751A | Transmitter housing cover | 89751-12060 · 89751-28070 · 89751-52140 · 89751-60080 |
| 89752A | transmitter housing | 89752-12080 · 89752-12140 · 89752-28050 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
