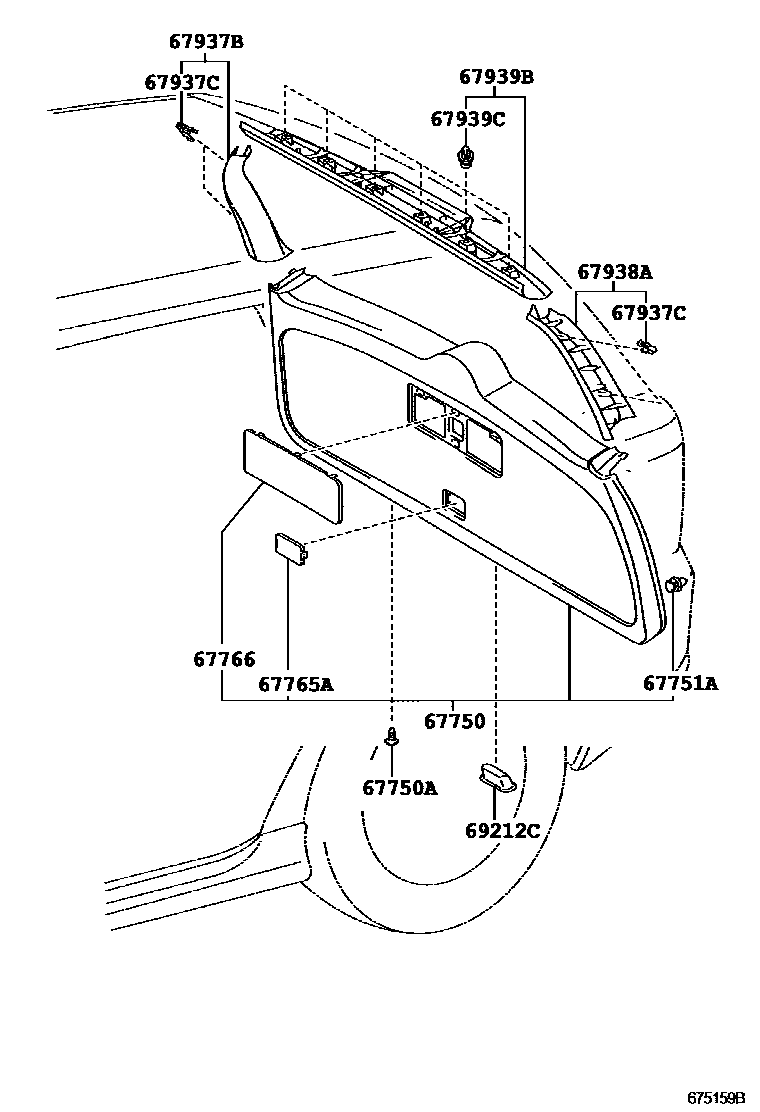

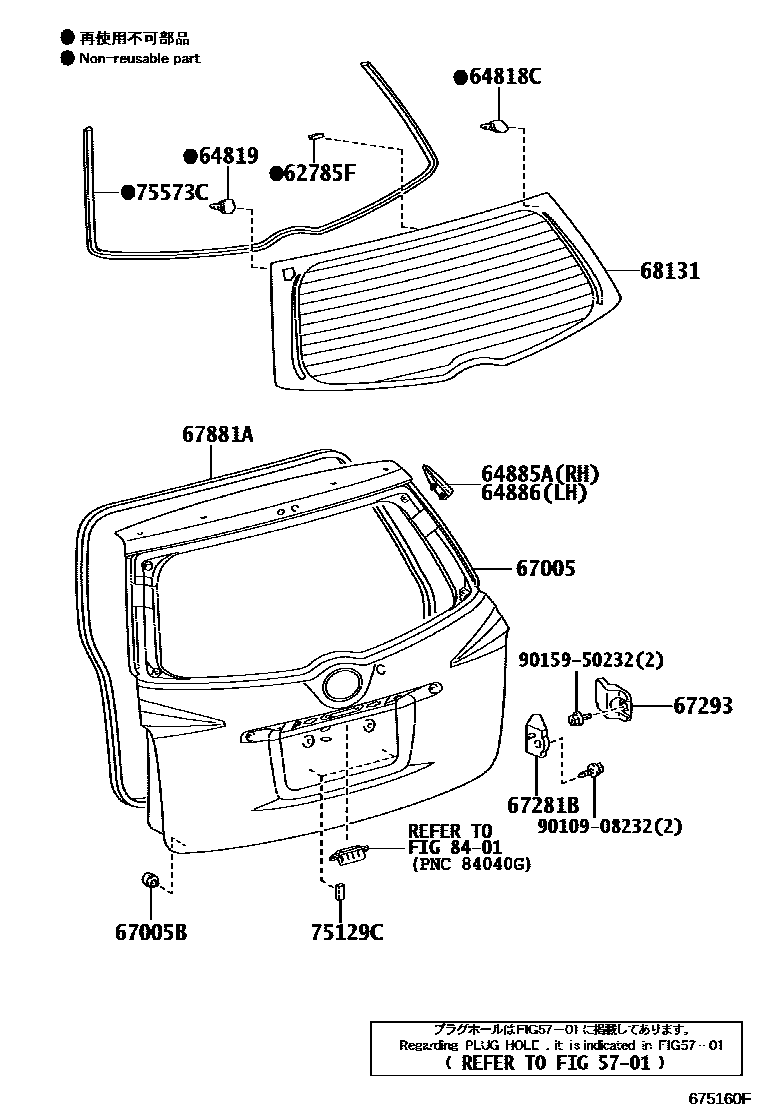

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-16030 |
| 64818C | No. 1 back window glass spacer | 64818-13070 |
| 64819 | No. 2 back window glass spacer | 64819-13050 |
| 64885A | Rear window right glass slot | 64885-13010 |
| 64886 | Rear window left glass slot | 64886-13010 |
| 67005 | Rear door panel sub-assembly | 67005-13C30 |
| 67005B | Cushion pad (for back door panel) | 90541-09124 · 90541-09143 |
| 67281B | Back door lower block | 67281-52010 |
| 67293 | Back door lower block cushion | 67293-13050 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 |
| 67881A | Back door seal | 67881-13260 |
| 67937C | Clip (for rear door side decorative strip) | 90468-05125 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68131-13680 |
| 75129C | rear license plate cushion | 75129-13020 · 75129-21010 · 75129-30010 |
| 75573C | Protective strip for rear window | 75573-13090 |
