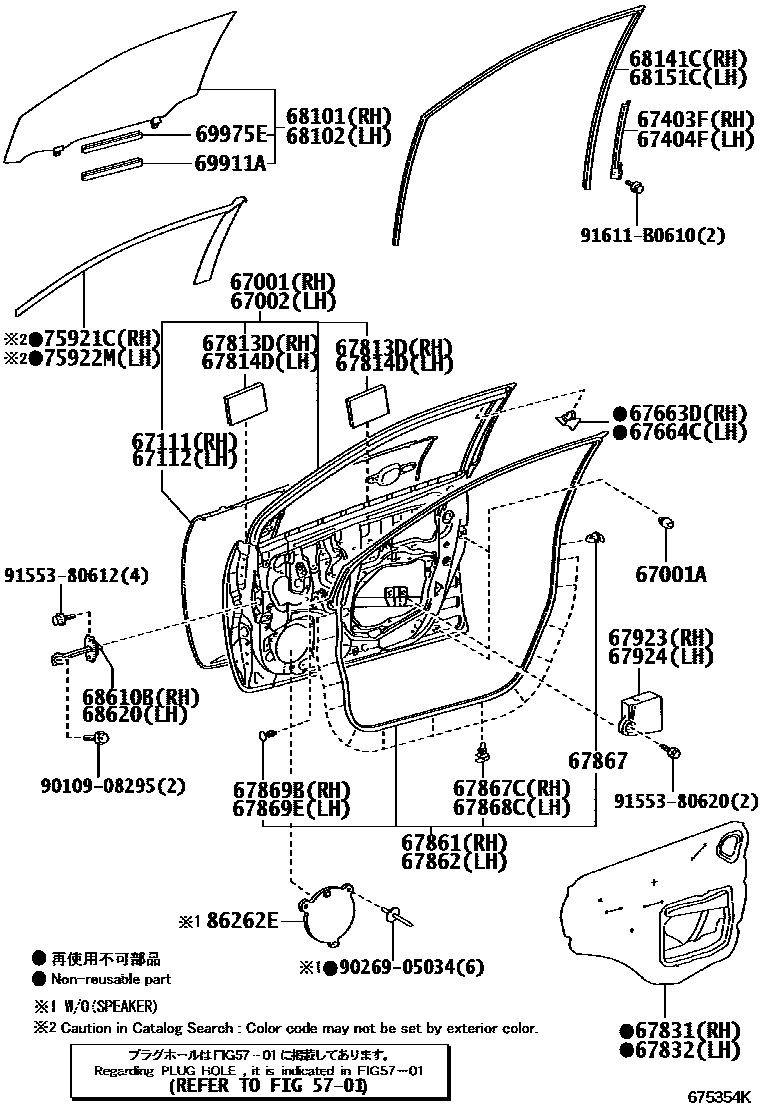

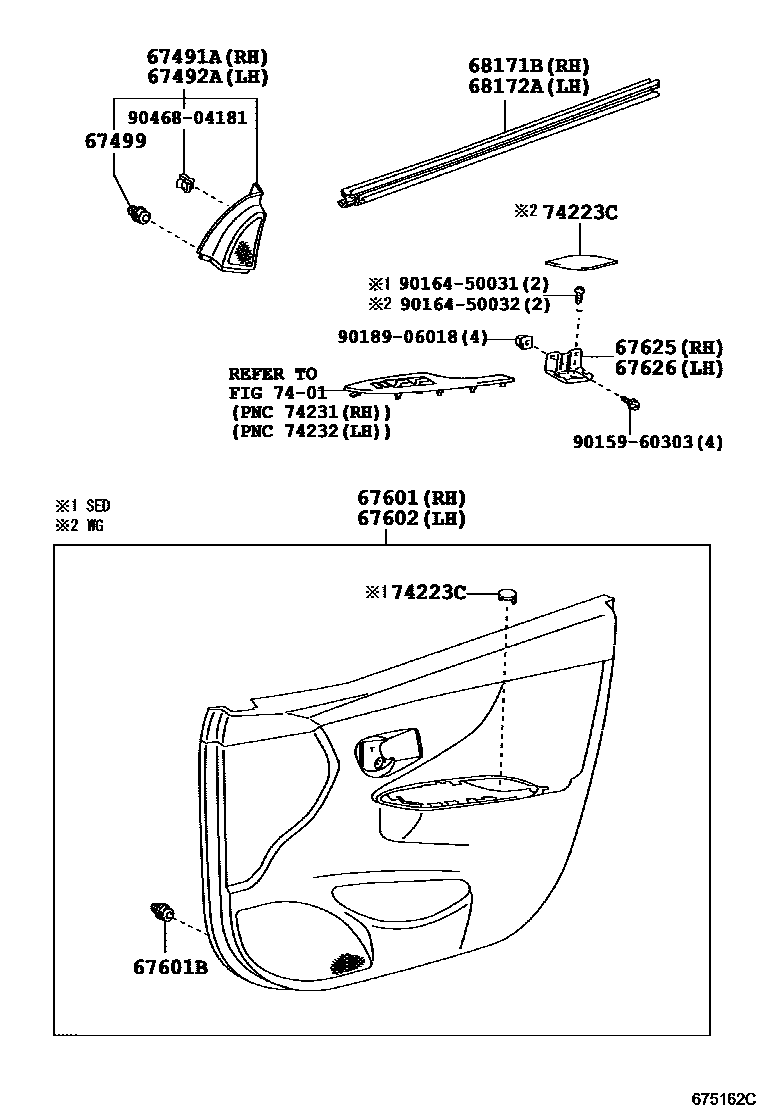

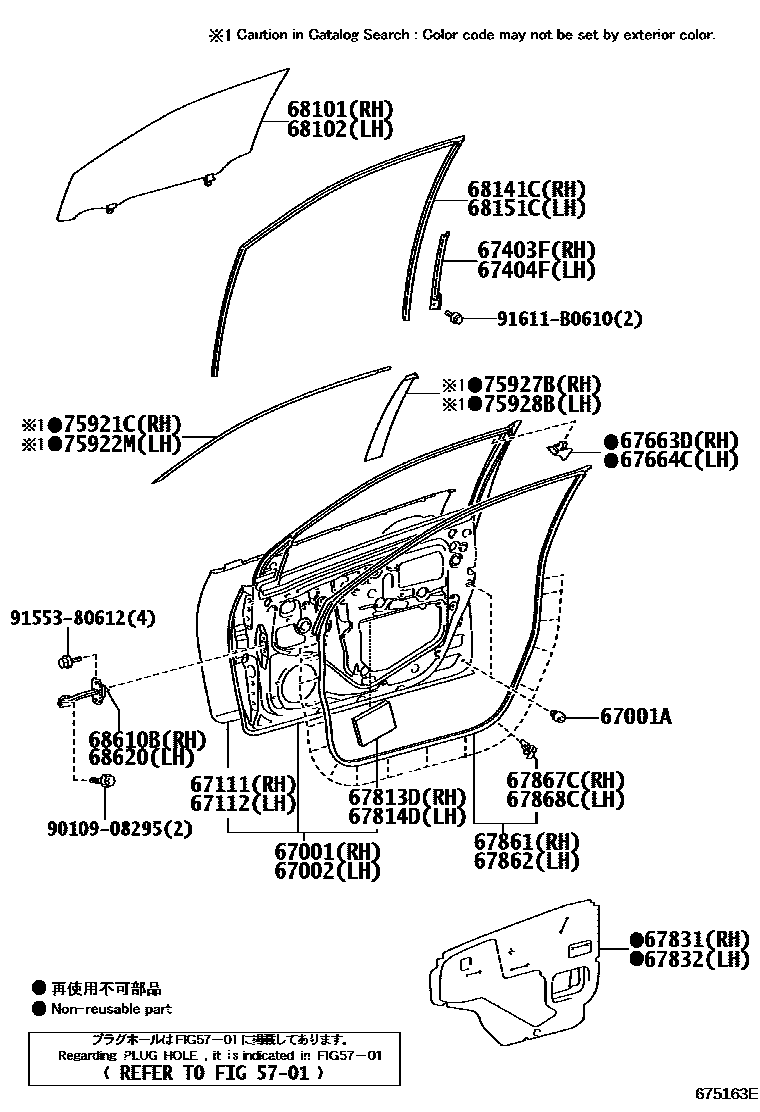

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12A30 · 67001-12A31 · 67001-12A40 |
| 67001A | Front door panel cushion | 90541-09124 · 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-12A30 · 67002-12A31 · 67002-12A40 |
| 67111 | Outer right front door panel | 67111-12700 · 67111-12710 |
| 67112 | Outer left front door panel | 67112-12690 · 67112-12700 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12260 · 67403-12270 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12250 · 67404-12260 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12500 · 67491-12510 · 67491-12520 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12500 · 67492-12510 · 67492-12520 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67625 | Right front door trim panel bracket | 67625-12190 · 67625-12210 |
| 67626 | Left front door trim panel bracket | 67625-12190 · 67625-12210 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67813D | Right side enclosure silencer panel | 67817-47010 |
| 67814D | Left side enclosure silencer panel | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-12670 · 67831-12671 · 67831-12690 |
| 67832 | Left front door access hole cover | 67832-12450 · 67832-12451 · 67832-12470 |
| 67861 | Right front door seal | 67861-12A20 · 67861-12A30 |
| 67862 | Left front door seal | 67862-12A20 · 67862-12A30 |
| 67867 | Car door seal strip clip | 90467-04034 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67869E | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-12040 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-12040 |
| 68101 | Right front door glass sub-assembly | 68101-12A80 · 68101-12A81 · 68101-12A82 · 68101-12B00 |
| 68102 | Left front door glass sub-assembly | 68102-12A80 · 68102-12A81 · 68102-12A82 · 68102-12B00 |
| 68141C | Right front door glass lift channel | 68141-12560 · 68141-12570 |
| 68151C | Left front door glass lift channel | 68151-12260 · 68151-12270 |
| 68171B | Right front door glass inner sealing strip | 68171-12340 · 68171-12350 |
| 68172A | Left front door glass inner sealing strip | 68172-12260 · 68172-12270 |
| 68610B | Right front door opening limiter assembly | 68610-12210 · 68610-12211 · 68610-12220 · 68610-12221 |
| 68620 | Left front door opening limiter assembly | 68610-12210 · 68610-12211 · 68610-12220 · 68610-12221 |
| 69911A | No. 1 front door glass slot | 69911-13010 · 69955-47010 |
| 69975E | No. 1 front door glass groove filler | 69975-16020 · 69975-47010 |
| 74223C | door armrest cover | 74223-12140 · 74224-12080 |
| 75921C | No. 1 right side light-shielding film | 75921-12080 · 75921-13020 |
| 75922M | No. 1 left shading film | 75922-12080 · 75922-13020 |
| 75927B | No. 4 right side light-blocking film | 75927-13010 |
| 75928B | No. 4 left shading film | 75928-13010 |
| 86262E | front speaker cover | 86262-50010 |
