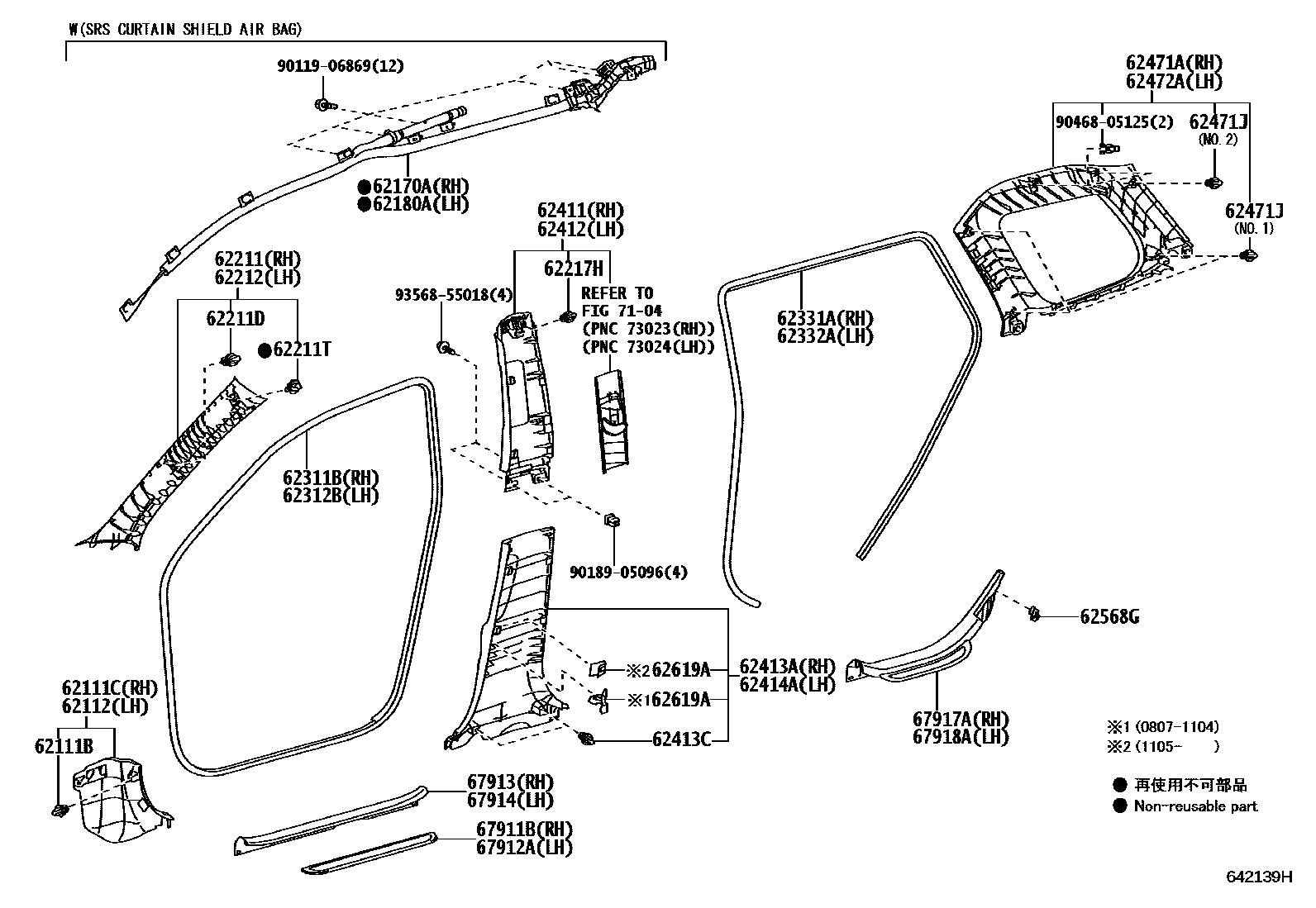

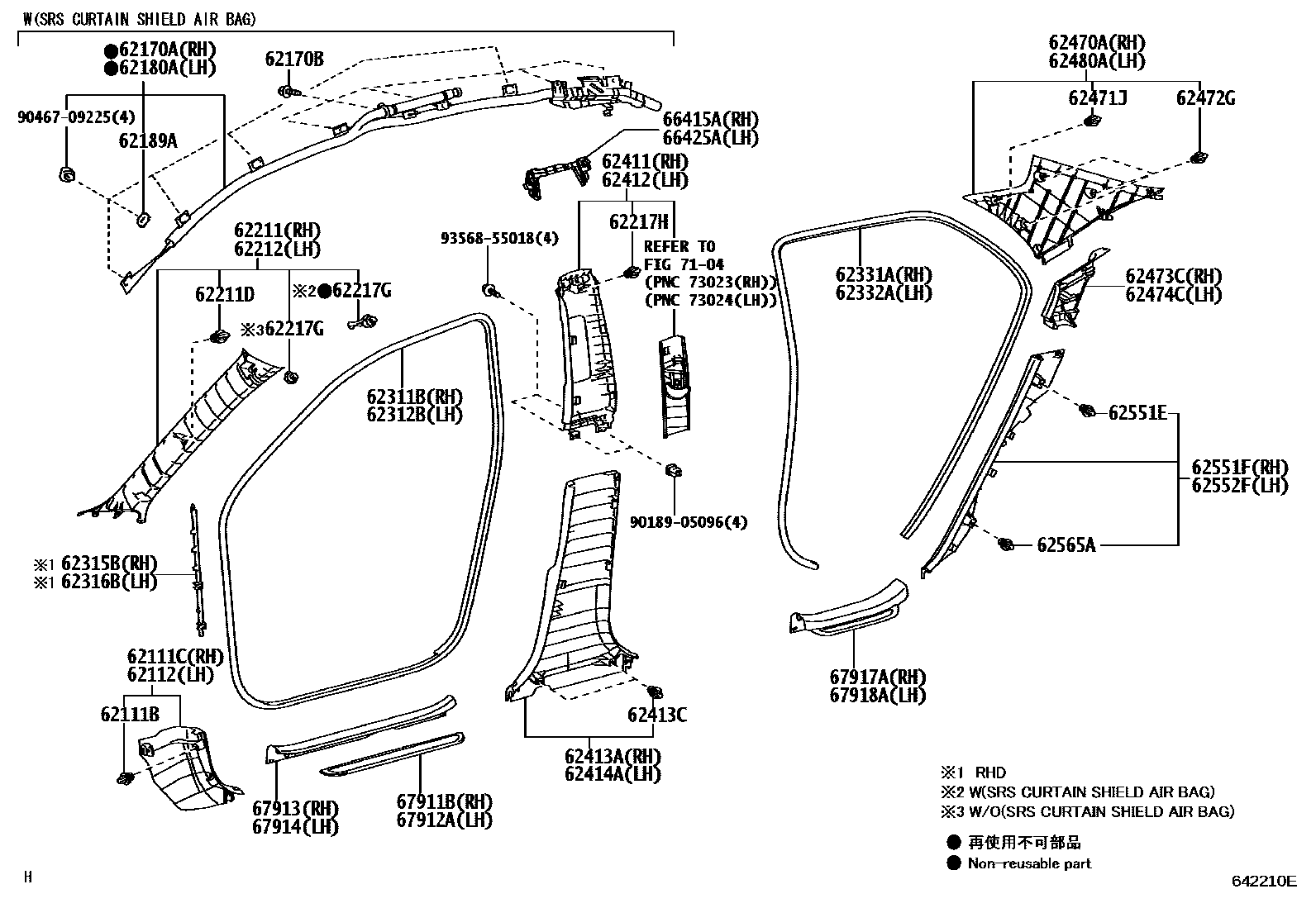

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-12030 · 62170-12031 · 62170-12032 · 62170-13030 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-12030 · 62180-12031 · 62180-12032 · 62180-13030 |
| 62189A | Curtain air bag clip spacer | 62189-33010 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10161 |
| 62211T | Clip (for front pillar decorative panel) | 62217-52010 · 90950-08004 |
| 62217G | Front pillar decorative plate clip | 62217-52010 · 90950-08004 |
| 62217H | Center pillar decorative plate clip | 62217-13010 · 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 62217-13010 · 90467-10161 |
| 62471J | Clips (for roof side trim panels) | 90467-10161 · 90467-10167 · 90467-10188 |
| 62472G | Clips (for roof side trim panels) | 90467-10161 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10161 |
| 62565A | Clips (for rear seat side trim panels) | 90467-10167 |
| 62568G | No. 3 door inner sill protection strip clip | 62568-13040 |
| 62619A | Side trim fixing plate | 62591-12050 · 62592-12050 · 62675-68010 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-12060 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-12060 |
