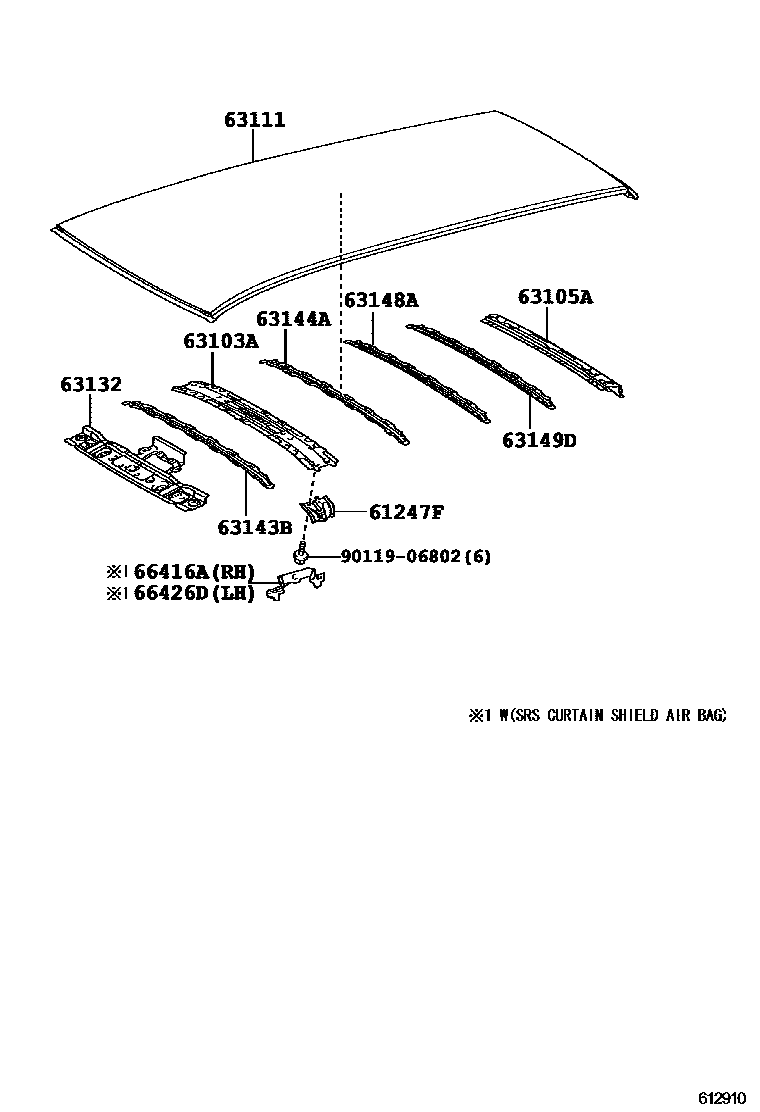

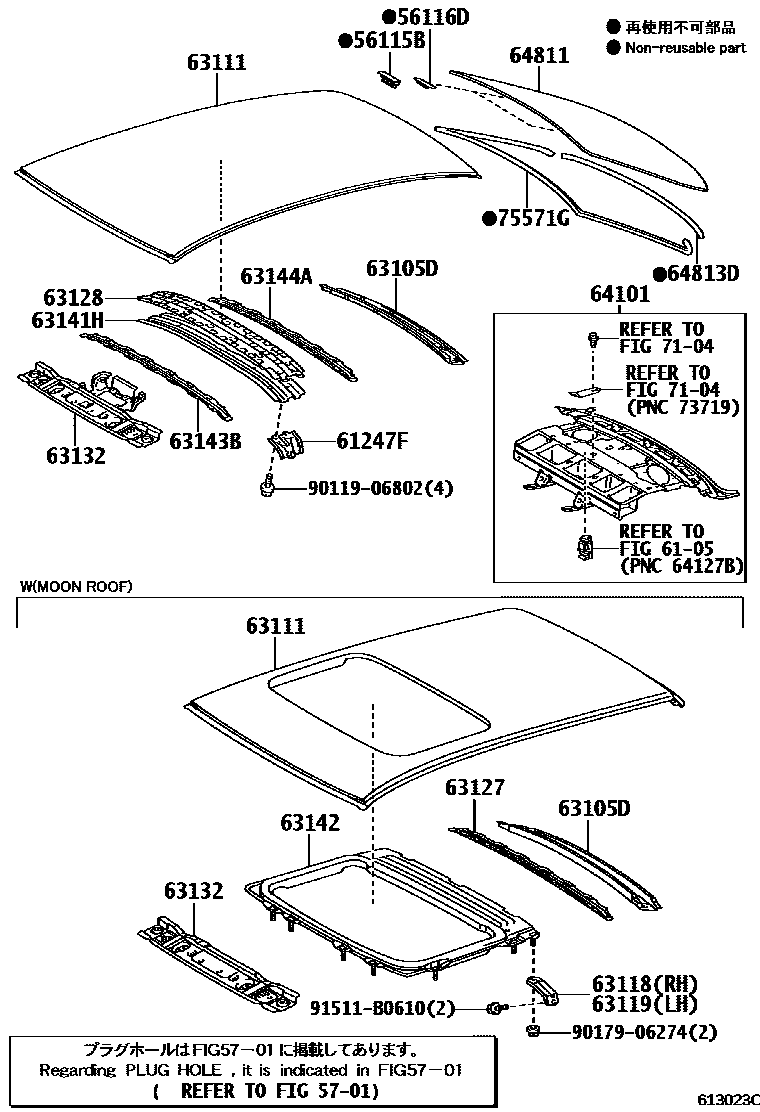

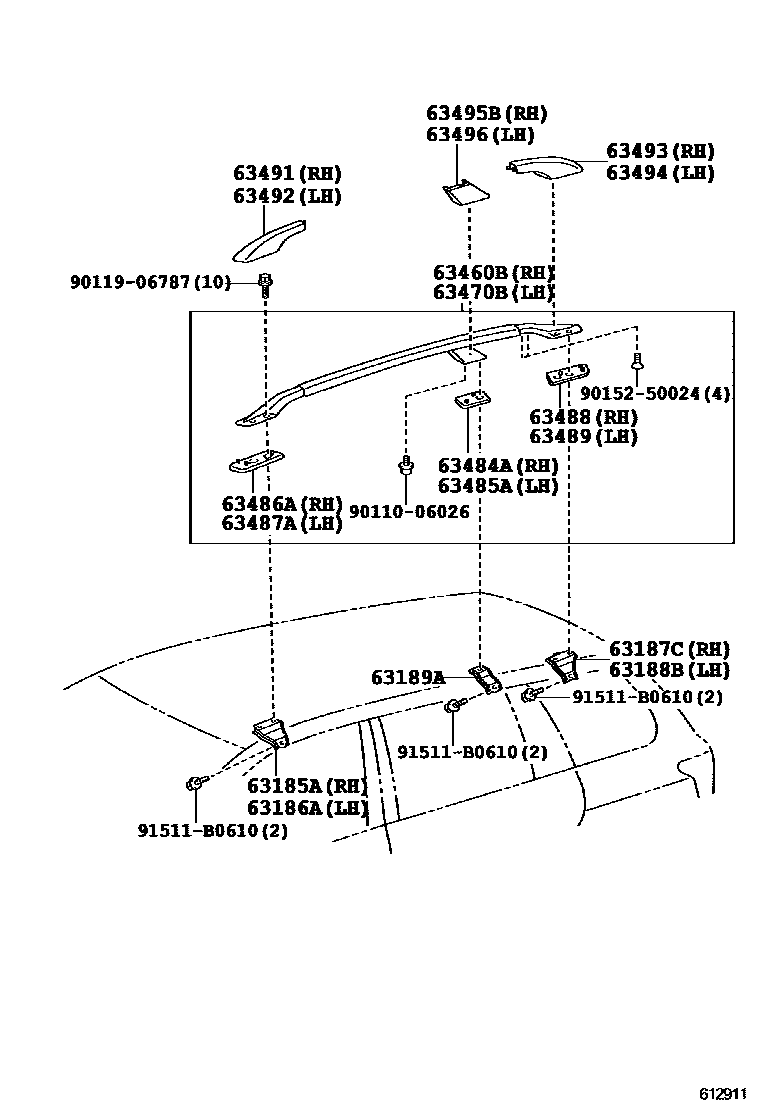

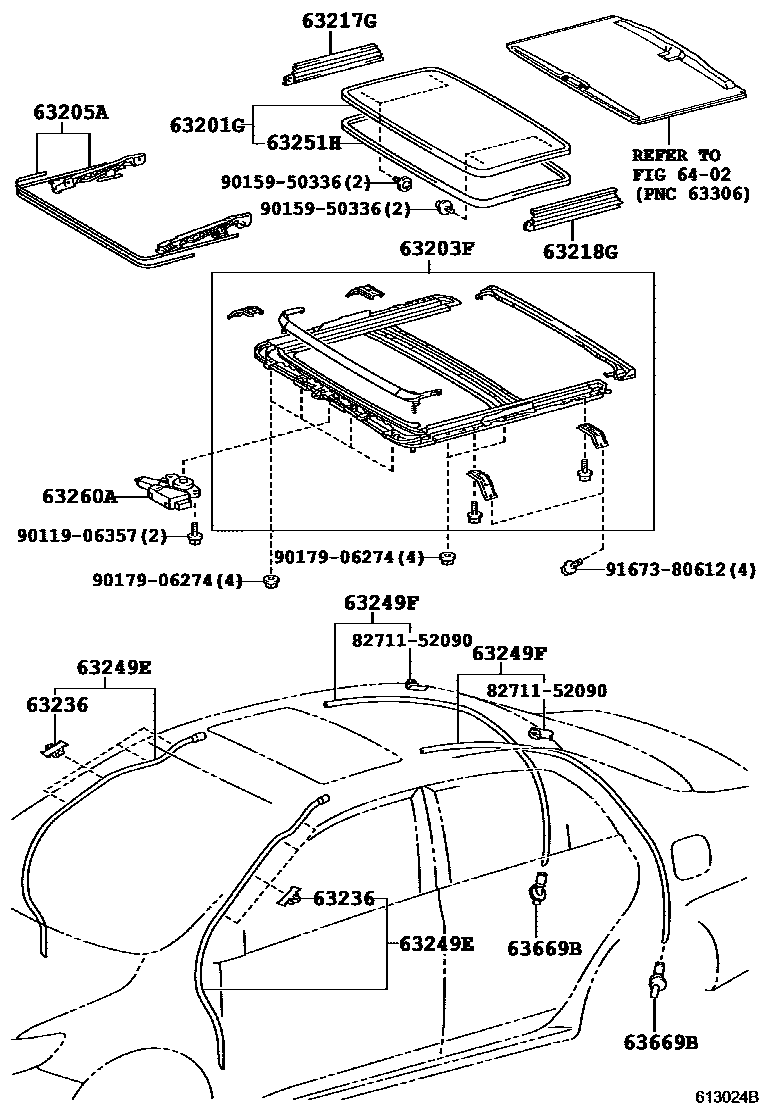

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12060 · 61247-12080 · 61248-12060 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-12110 |
| 63105A | Back door opening frame sub-assembly | 63105-13220 |
| 63105D | Rear window upper frame sub-assembly | 63105-12290 |
| 63111 | roof panel | 63111-12870 · 63111-12880 · 63111-13460 · 63111-13470 |
| 63118 | Right roof panel bracket | 63118-12120 |
| 63119 | Left roof panel bracket | 63118-12120 |
| 63127 | No. 5 roof panel reinforcement | 63127-12010 |
| 63128 | No. 6 roof panel reinforcement | 63128-12020 |
| 63132 | Windshield inner roof panel | 63102-12230 · 63102-12240 · 63102-12260 · 63102-12300 |
| 63141H | Center roof panel reinforcement | 63141-12330 |
| 63142 | No. 2 roof panel reinforcement | 63142-12140 |
| 63143B | No. 3 roof panel reinforcement | 63143-12130 · 63143-12140 |
| 63144A | No. 4 roof panel reinforcement | 63144-12110 · 63144-13050 |
| 63148A | No. 7 roof panel reinforcement | 63148-13060 |
| 63149D | No. 8 roof panel reinforcement | 63149-13040 |
| 63185A | Right front roof rack bracket | 63185-13090 |
| 63186A | Left front roof rack bracket | 63186-13100 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13040 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-13030 |
| 63189A | Center roof rack bracket | 63189-13080 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-13050 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12170 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-12010 |
| 63249E | Sliding skylight drain hose | 63249-12400 · 63249-12410 |
| 63249F | Sliding skylight drain hose | 63249-12430 |
| 63251H | Sliding skylight seal | 63251-63010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12140 |
| 63484A | Right center roof rack foot cushion | 63484-13070 |
| 63485A | Left center roof rack foot cushion | 63485-13070 |
| 63486A | Right front roof rack support foot cushion | 63486-13070 |
| 63487A | Left front roof rack support foot cushion | 63487-13070 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13080 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13080 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
| 64101 | Upper back panel sub-assembly | 64101-12830 · 64101-12840 |
| 64811 | back window glass | 64811-12A30 |
| 64813D | Back window glass adhesive seal | 64813-12180 |
| 66416A | No. 3 right rear longitudinal beam spacer | 66416-12010 |
| 66426D | No. 3 left rear longitudinal beam spacer | 66426-12010 |
| 75571G | No. 1 rear window outer upper protective strip | 75571-12A10 |
