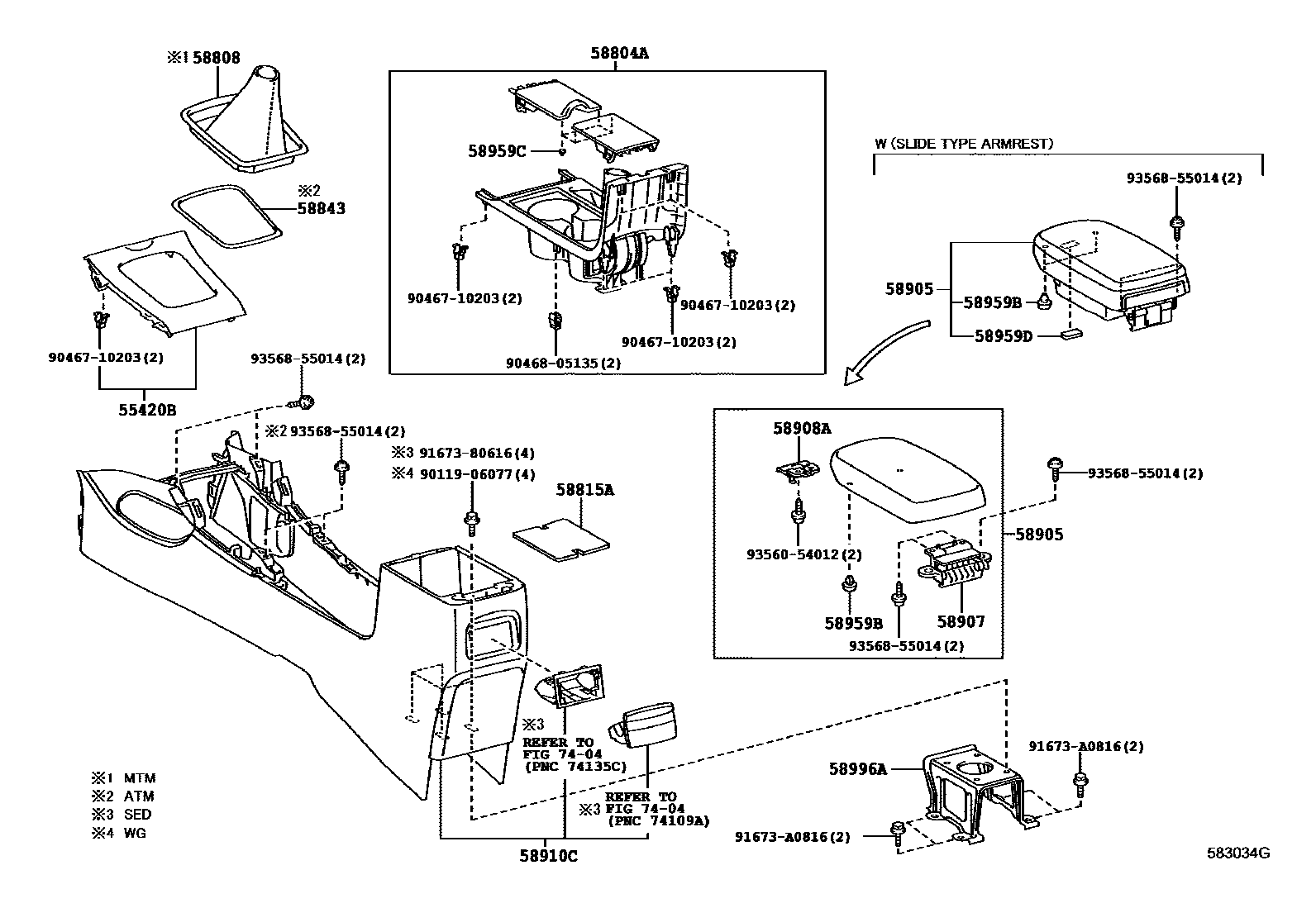

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55420B | Center instrument cluster No. 1 decorative panel assembly | 55420-12370 · 55420-12400 |
| 58815A | Armrest box felt pad | 58815-12120 |
| 58843 | shift hole frame | 58843-12130 · 58843-12140 · 58843-12160 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-12100 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58959C | Armrest box cover cushion | 58959-12030 · 58959-12040 |
| 58959D | Rear armrest box cushion | 55419-12120 · 55419-32020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12160 |
