VOCR EPC

Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 3 images and 3 PNC and OE references.

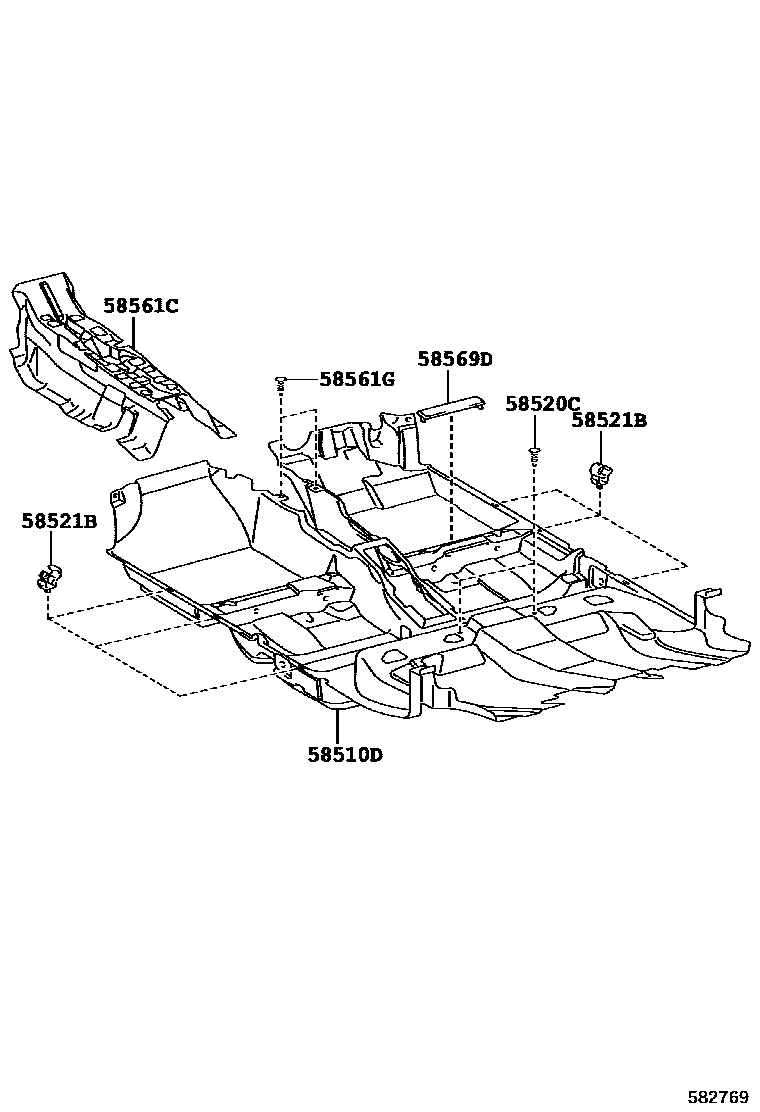

Toyota COROLLA 地板垫和地毯 EPC diagram — 582769
地板垫和地毯 — 582769 (200704 – 999999)

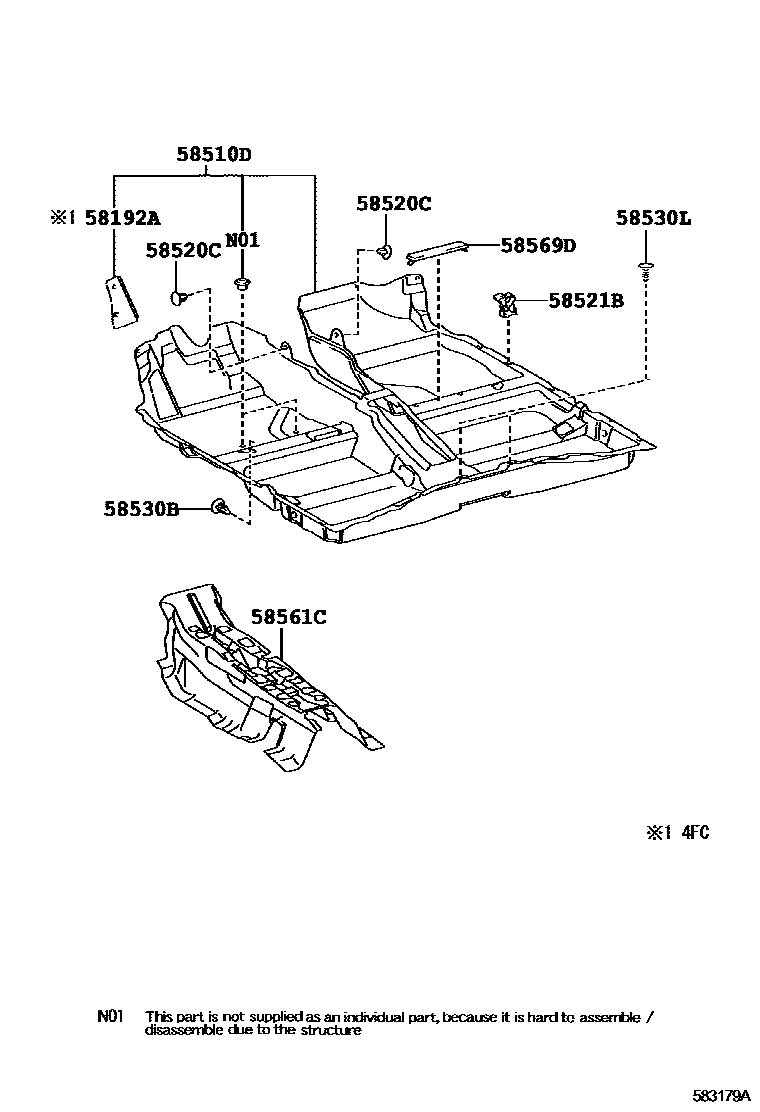

Toyota COROLLA 地板垫和地毯 EPC diagram — 583179A
地板垫和地毯 — 583179A (200708 – 999999)

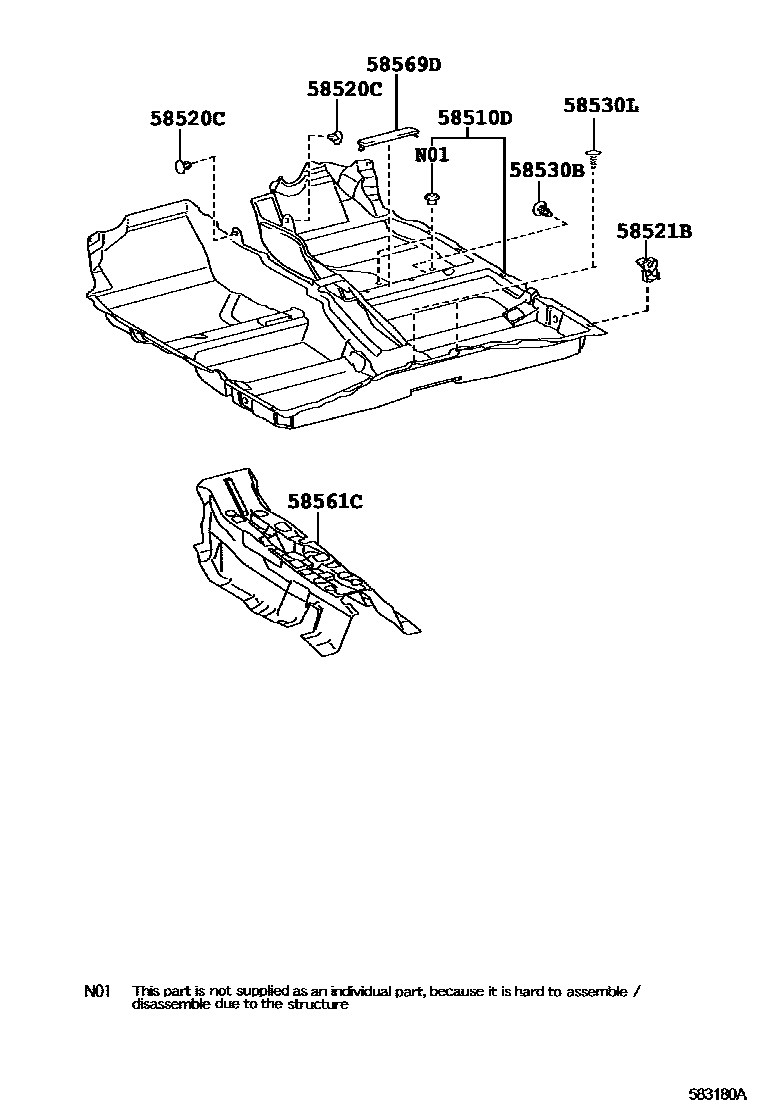

Toyota COROLLA 地板垫和地毯 EPC diagram — 583180A
地板垫和地毯 — 583180A (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
58192AFront floor left footrest58191-12170
58521Bcarpet hook58521-12140
58561CFront floor silencer No. 158561-12060
